UniGrip – Standard Cable Suspension for Slotted Channel or Strut

SKU # UG

Snap in and suspend. UniGrip Standard is purpose-built for slotted channel, enabling fast, tool-free installation directly into standard strut.

Max Working Load

Max Working Load:

240 lbs

Cable Compatibility

Cable Compatibility:

5/64" and 1/8"

Suspension Drop Lengths

Suspension Drop Lengths:

5 - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Standard - Technical Data Pack - USA
View all downloads
UniGrip – Standard Cable Suspension for Slotted Channel or Strut
SKU # UG
1
1

Fast, Safe and Efficient Cable Suspension for Slotted Strut and Channel

UniGrip Standard is purpose-built for seamless integration with slotted channel or strut, making it the ideal choice for trapeze suspensions.

Its tool-free connection simplifies installation, while the central cable exit ensures you can construct multi-tiered suspensions with ease.

Whether you’re suspending electrical containment, ductwork, or mechanical services, UniGrip Standard delivers a clean, efficient alternative to traditional rod-and-strut methods. Available in two load-rated sizes: 120 lbs and 240 lbs, it’s a versatile solution for a wide range of applications. Designed for speed, precision, and compatibility, UniGrip Standard helps you build smarter, faster, and neater from the ground up.

Read More
Fast, Tool-Free Attachment

Fast, Tool-Free Attachment

Quickly connect to slotted strut or channel, tool-free, with provided clip.

High Working Loads

High Working Loads

With safe working loads up to 240 lbs per suspension point, UniGrip is ideal for both light and heavy-duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip hangers eliminate cutting, require minimal tools, and offer tool-free height adjustment, making them quicker and easier to install than threaded rod or other methods—even for first-time users.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height, and when you're done just screw it down to lock in place to prevent tampering.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training, and support where needed.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Fast, Tool-Free Attachment

Fast, Tool-Free Attachment

Quickly connect to slotted strut or channel, tool-free, with provided clip.

High Working Loads

High Working Loads

With safe working loads up to 240 lbs per suspension point, UniGrip is ideal for both light and heavy-duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip hangers eliminate cutting, require minimal tools, and offer tool-free height adjustment, making them quicker and easier to install than threaded rod or other methods—even for first-time users.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height, and when you're done just screw it down to lock in place to prevent tampering.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training, and support where needed.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Range Variants

UniGrip Standard comes in two size variants, allowing for suspension of a range of services.

Load Rating Safety Factor Cable Size Cable Construction
UniGrip 2 120 lbs 5:1 5/64″ 7×7
UniGrip 3 240 lbs 5:1 1/8″ 7×7

How it works:

See how our UniGrip Standard works below, or download the Technical Data Pack for full install recommendations.

 UniGrip Standard – Technical Data Pack – USA

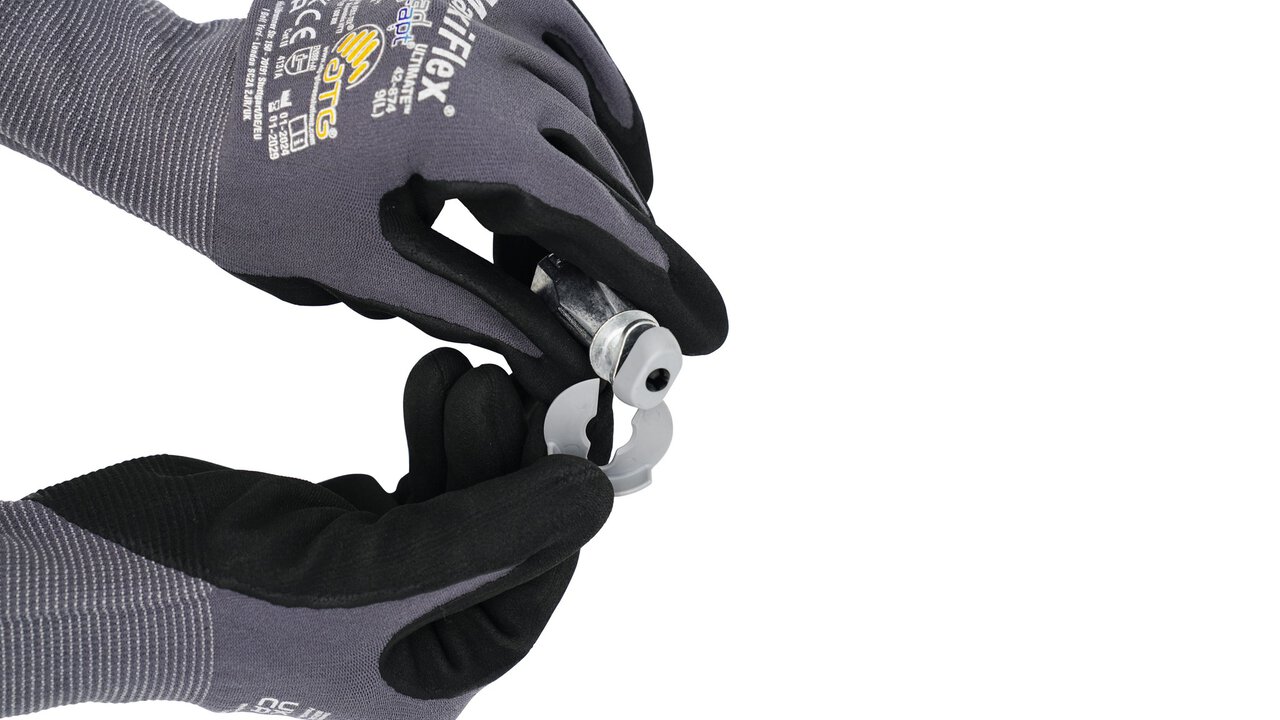

Step 1: Remove the circular pin from the top of the hanger.

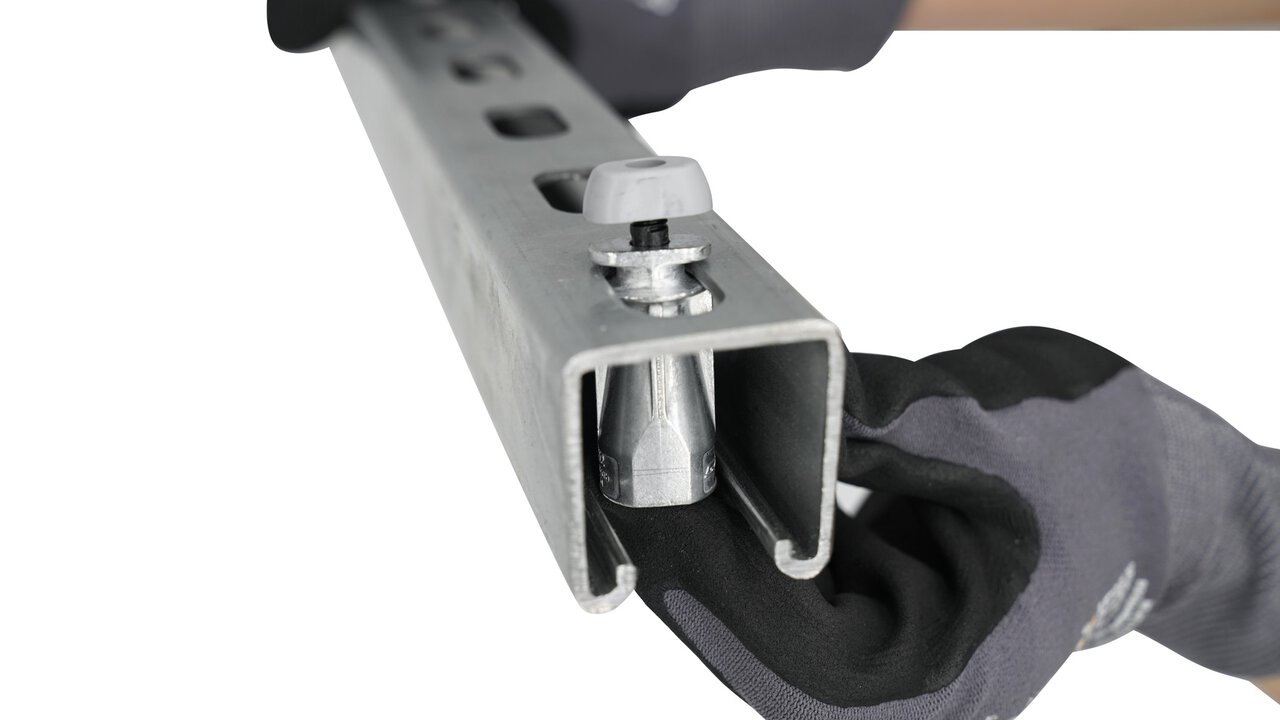

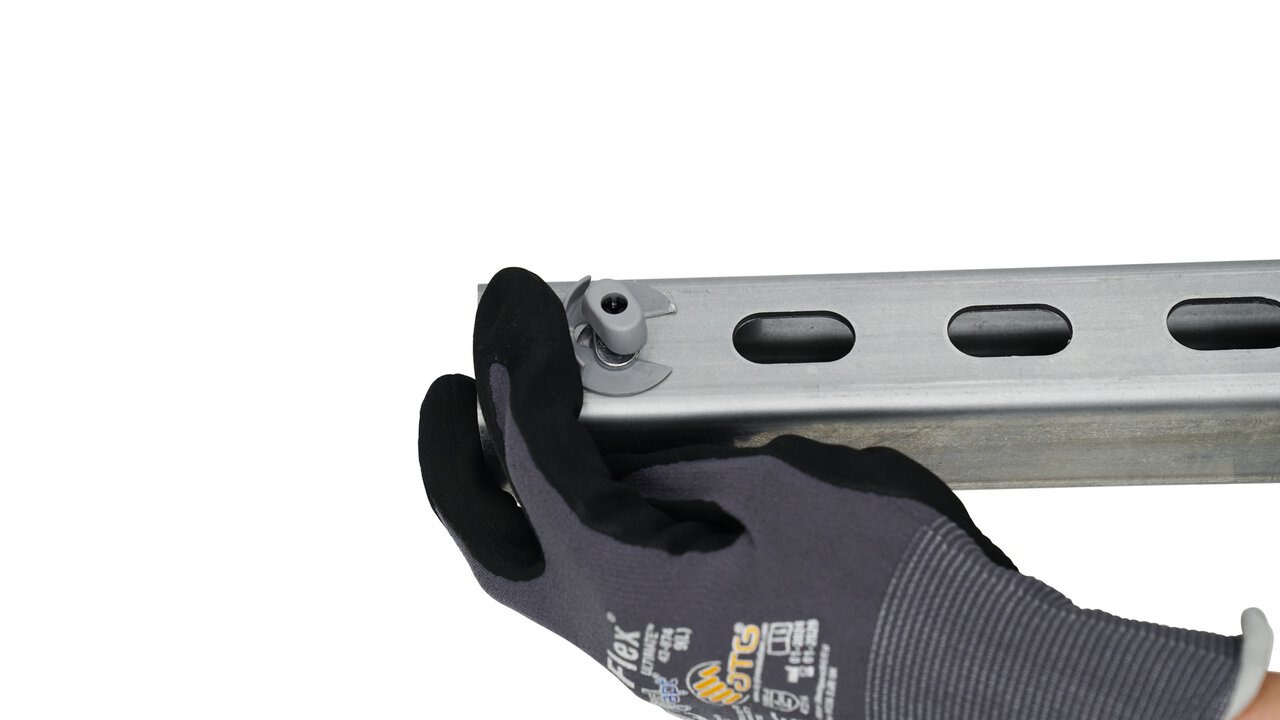

Step 2: Insert the UniGrip hanger into your strut so the top protrudes out of the slot.
Step 3: Secure in place by re-attaching the pin.

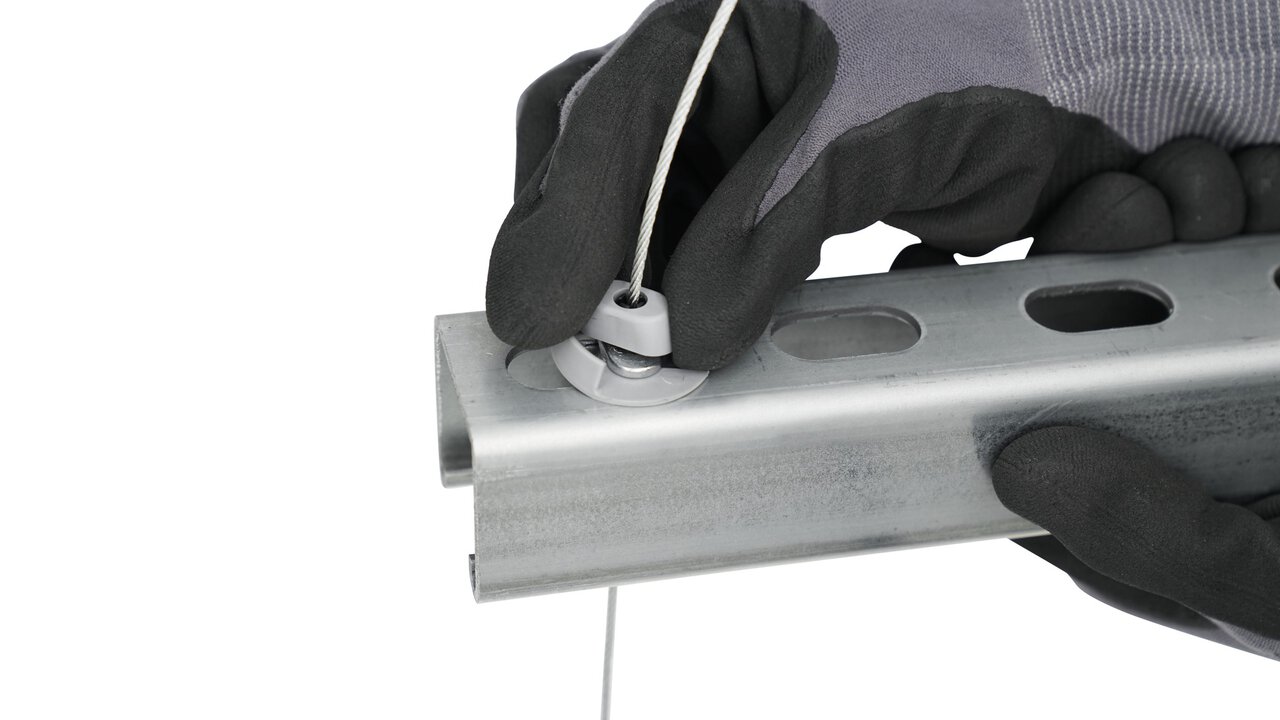

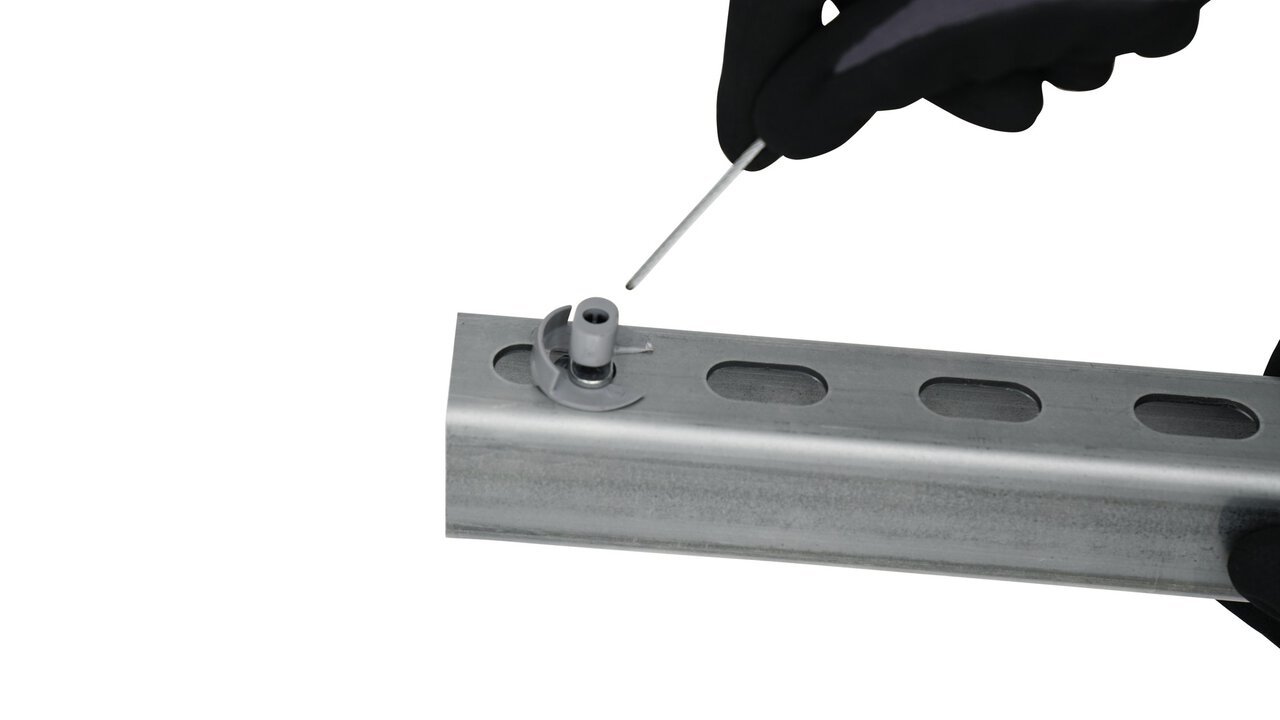

Step 4: Feed the cable into the entry channel at the top of the UniGrip and then back out of the other side. This then grips and locks the cable in place.

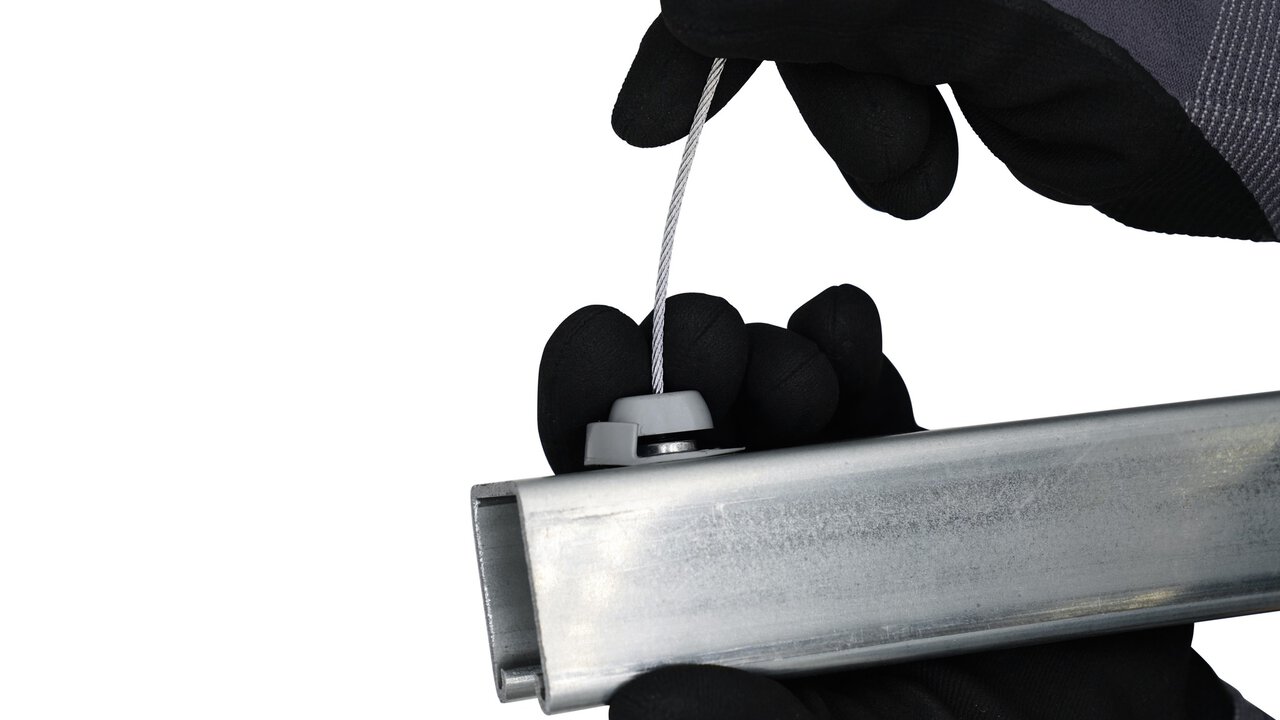

Step 5: Push down the end cap to allow adjustment up and down the cable.
Step 6: Screw down the top end cap to prevent accidental adjustment once installed.

Ready To Install
Suspension Kit

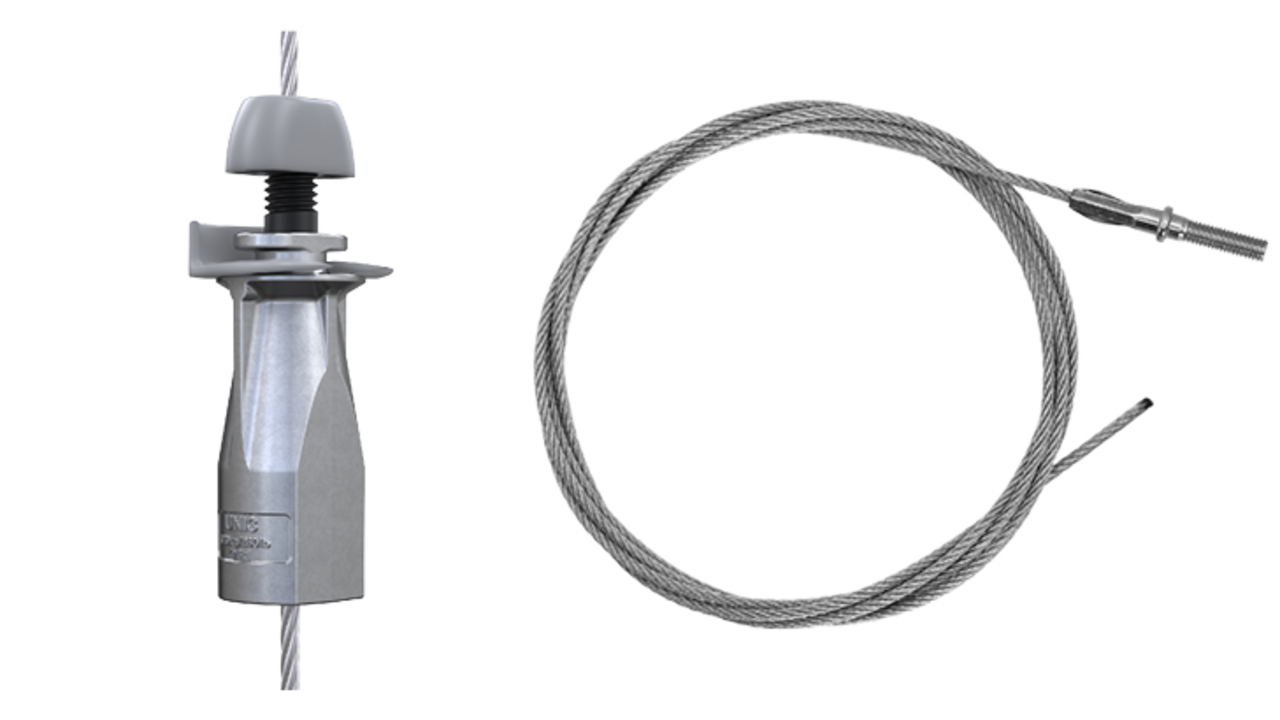

We supply UniGrip hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Your Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

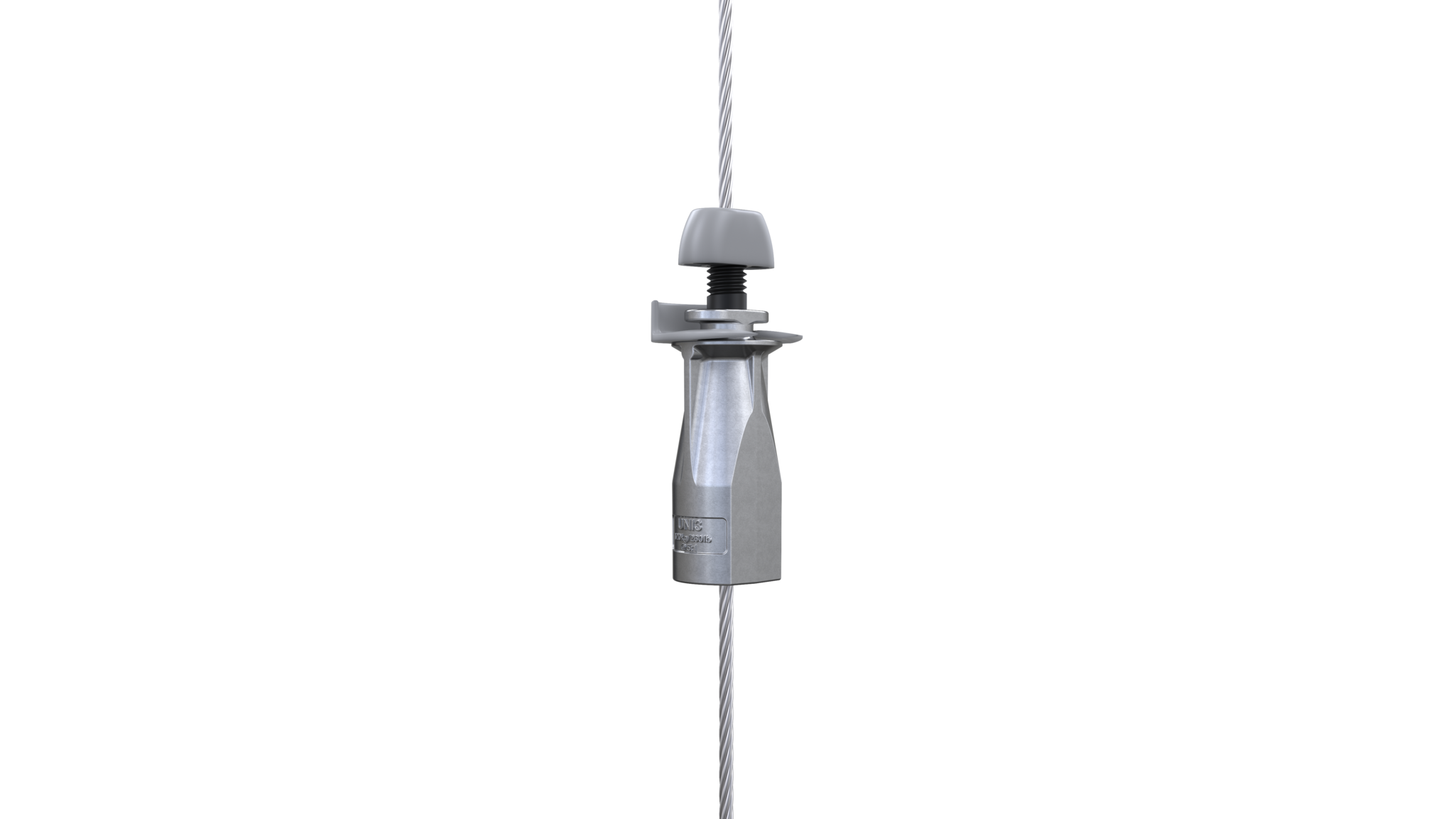

UniGrip Standard

Designed specifically to connect to a standard 41 x 41 channel tool free.

Ideal for trapeze bracket suspension with standard channel or strut. Central cable exit allows for easy installation of multi-tiered trapeze brackets.

(Not compatible with Gripple Universal Bracket)

  • Max Working Load: 240 lbs
  • Wire Compatibility: 5/64″ and 1/8″
  • Suspension Drop Lengths: 5 – 30 ft (custom lengths available on request)
