UniGrip – Central Exit Trapeze Bracket Cable Hanger

SKU # UG2-FN, UG3-FN, UG4-FN, UG6-FN

UniGrip Central Exit is your go-to-cable suspension solution for fast and efficient installation of trapezes using strut, channel or Gripple Universal Bracket.

Max Working Load

Max Working Load:

800 lbs

Wire Compatibility

Wire Compatibility:

5/64", 1/8", 3/16" and 1/4"

Suspension Drop Length

Suspension Drop Length:

5 - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Central Exit - Technical Data Pack - USAUniGrip Central Exit with Clevis Hanger - Technical Data Pack - USA
View all downloads
UniGrip – Central Exit Trapeze Bracket Cable Hanger
SKU # UG2-FN, UG3-FN, UG4-FN, UG6-FN
1
1
1
1
1
1
1

Next Generation Cable Suspension for Strut, Channel and Gripple Universal Bracket

UniGrip Central Exit is engineered for fast, efficient suspension across a range of building services. Supplied with either a channel nut or flange/hex nut, it connects quickly and securely to standard strut, channel, or Gripple Universal Bracket in the open face up or down orientation.

Its central cable exit allows for the easy installation of multi-tiered trapezes and complex containment runs. Available in four load-rated sizes: 120 lbs, 240 lbs, 550 lbs, and 800 lbs. UniGrip Central Exit delivers strength, speed, and precision in one compact solution.

Read More
Fast & Secure Attachment

Fast & Secure Attachment

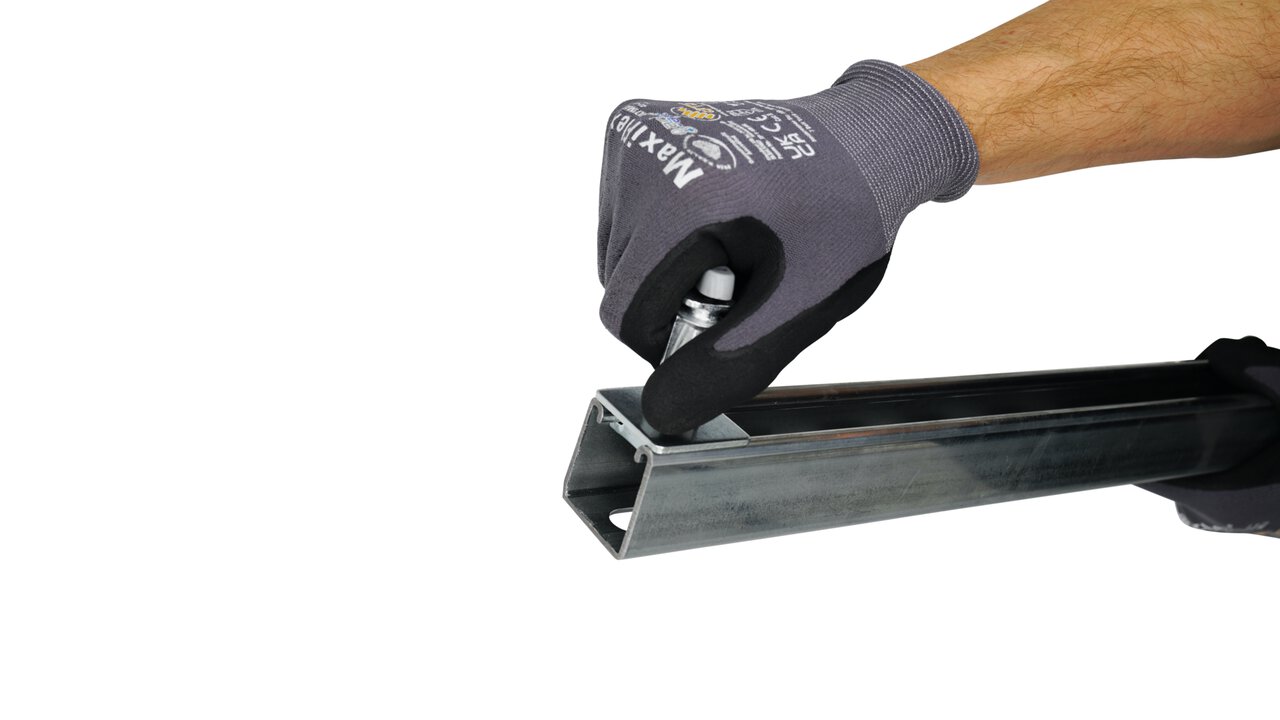

UniGrip Central Exit connects quickly to slotted strut, channel or our Gripple Universal Bracket using the supplied channel nut or hex/flange nut. Connections can be made in either the open face up or down orientation.

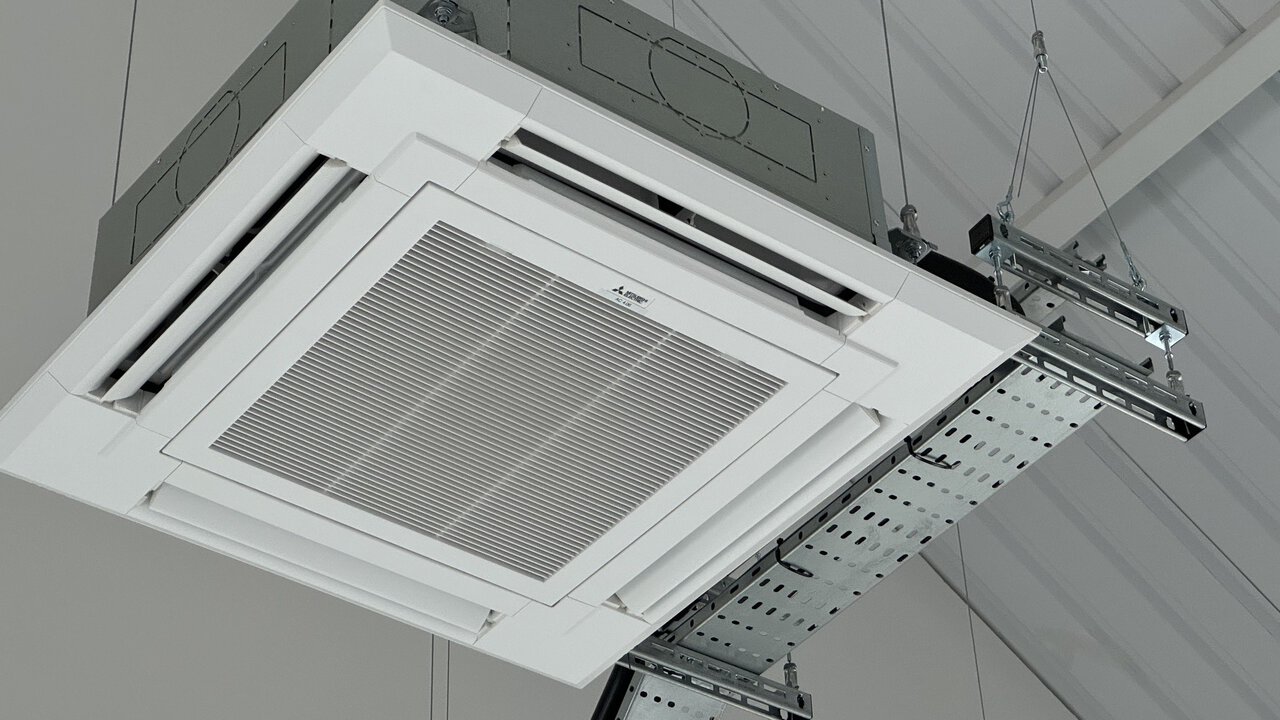

High Working Loads

High Working Loads

With safe working loads up to 800 lbs per suspension point, UniGrip is ideal for both lightweight and heavy-duty suspension projects.

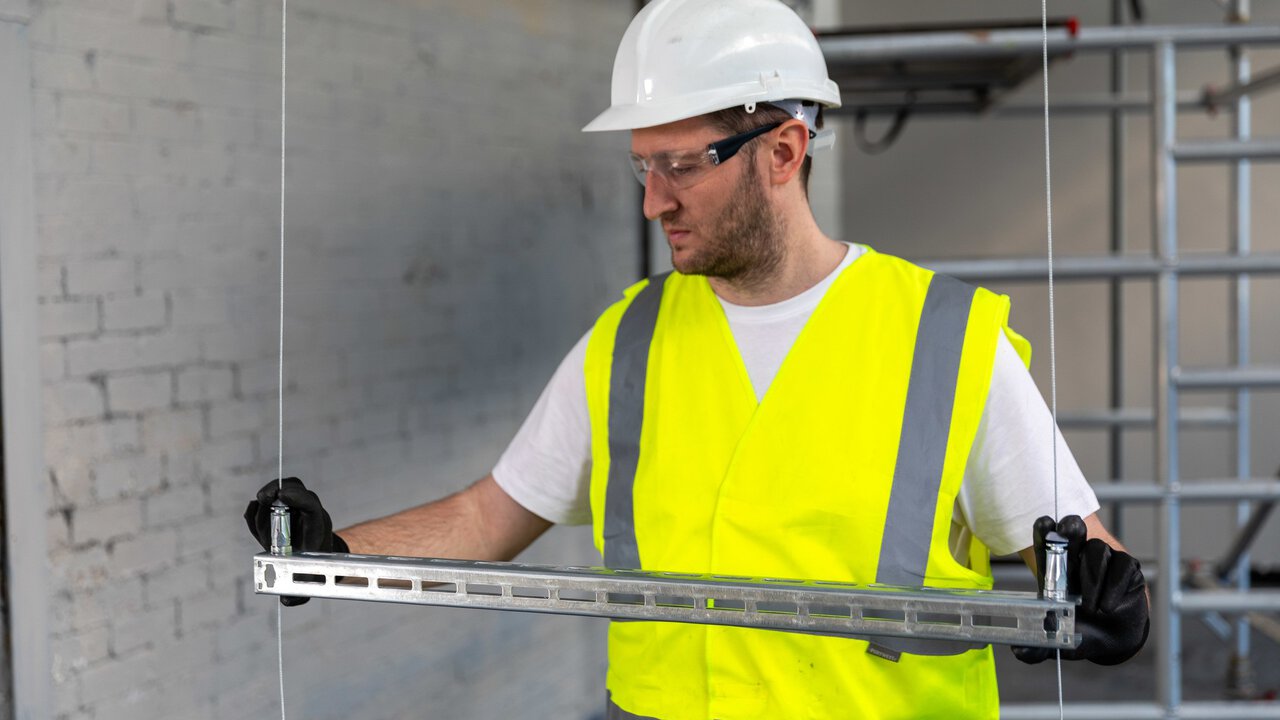

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Fast & Secure Attachment

Fast & Secure Attachment

UniGrip Central Exit connects quickly to slotted strut, channel or our Gripple Universal Bracket using the supplied channel nut or hex/flange nut. Connections can be made in either the open face up or down orientation.

High Working Loads

High Working Loads

With safe working loads up to 800 lbs per suspension point, UniGrip is ideal for both lightweight and heavy-duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Range Variants

UniGrip Central Exit comes in four size variants, allowing for the suspension of a range of services.

View All Downloads
Load Rating Safety Factor Wire Size
UniGrip 2 120 lbs 5:1 5/64″
UniGrip 3 240 lbs
 5:1 1/8″
UniGrip 4 550 llbs
 5:1 3/16″
UniGrip 6 800 lbs
 5:1 3/4″

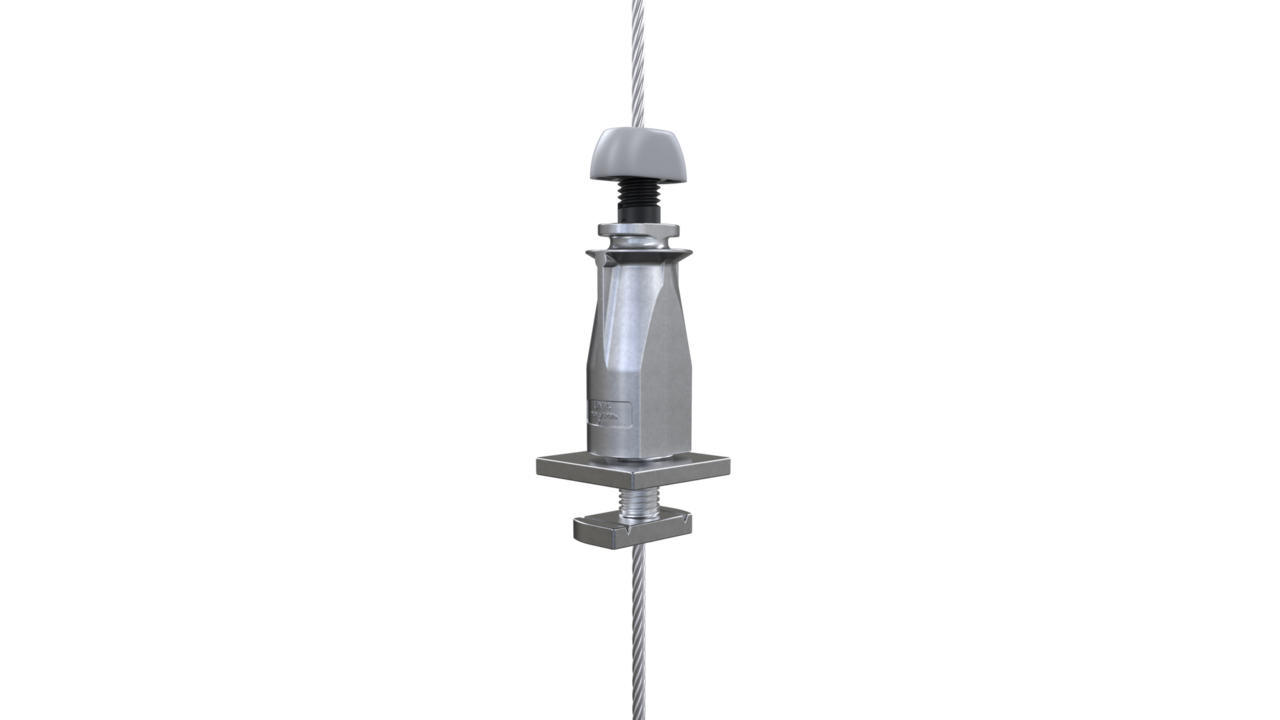

How it Works:

See how our UniGrip Central Exit works below, or download the Technical Data Pack for full installation guidance.

 UniGrip Central Exit – Technical Data Pack – USA

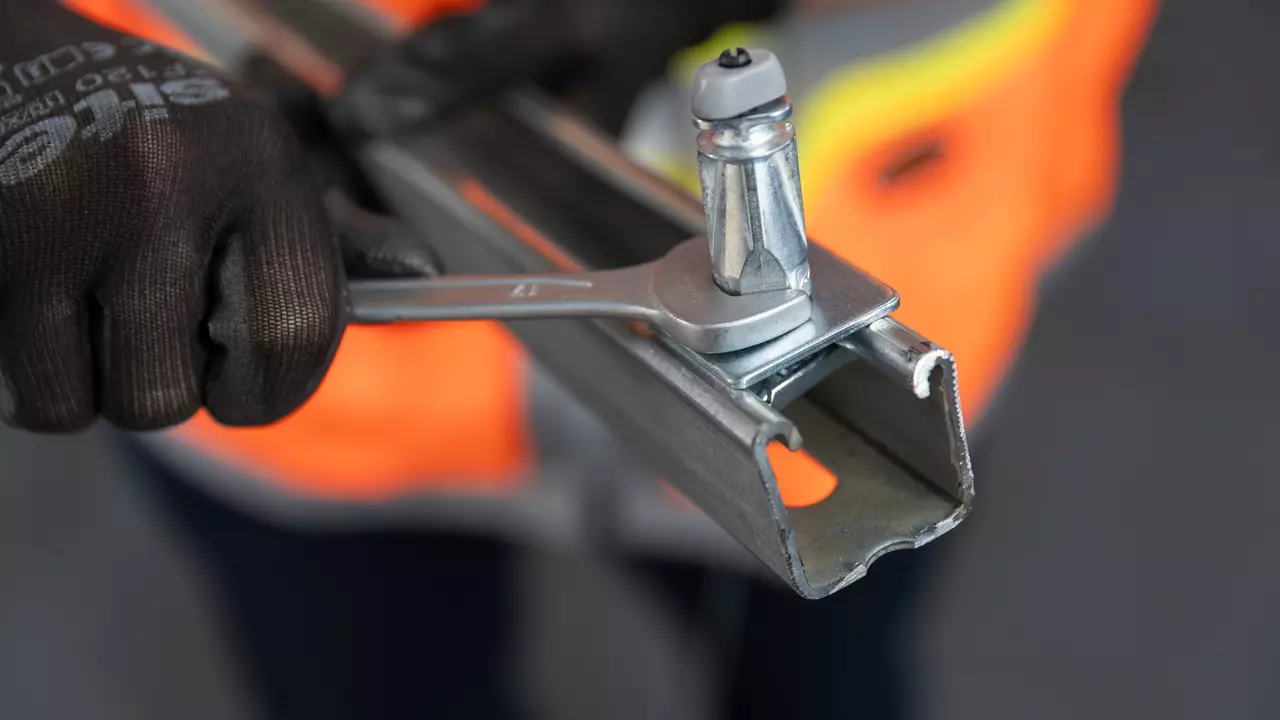

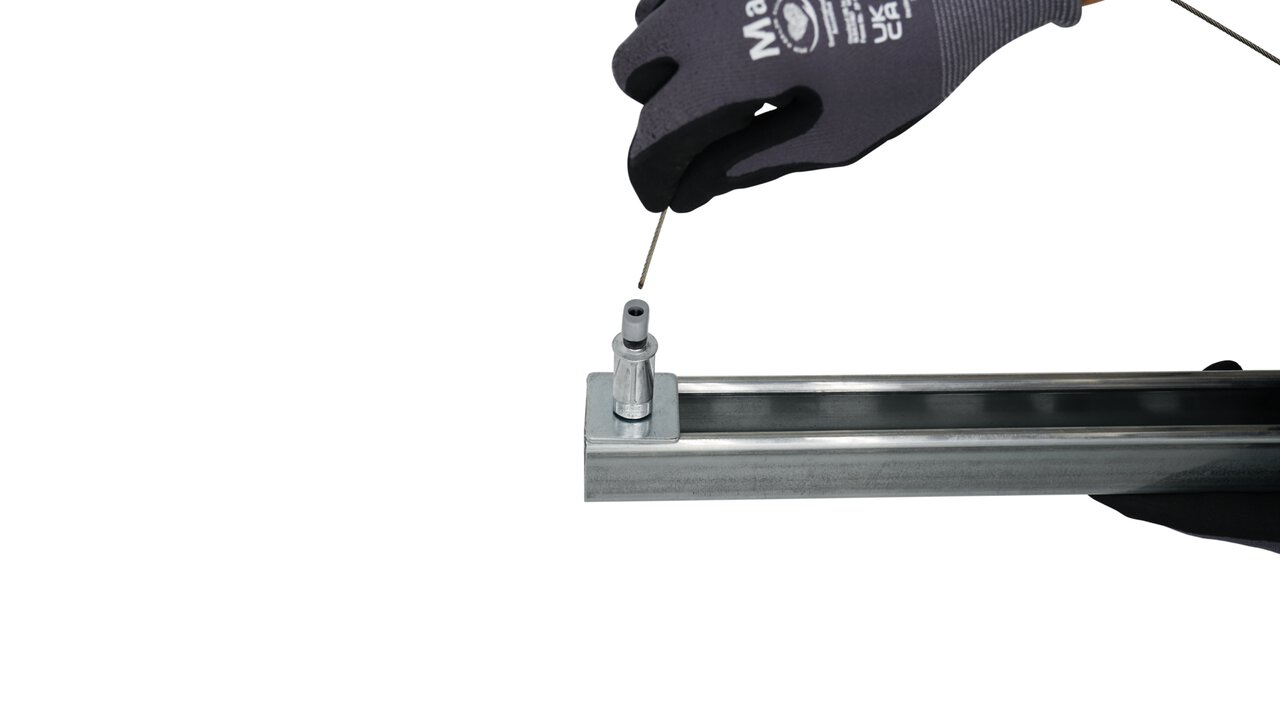

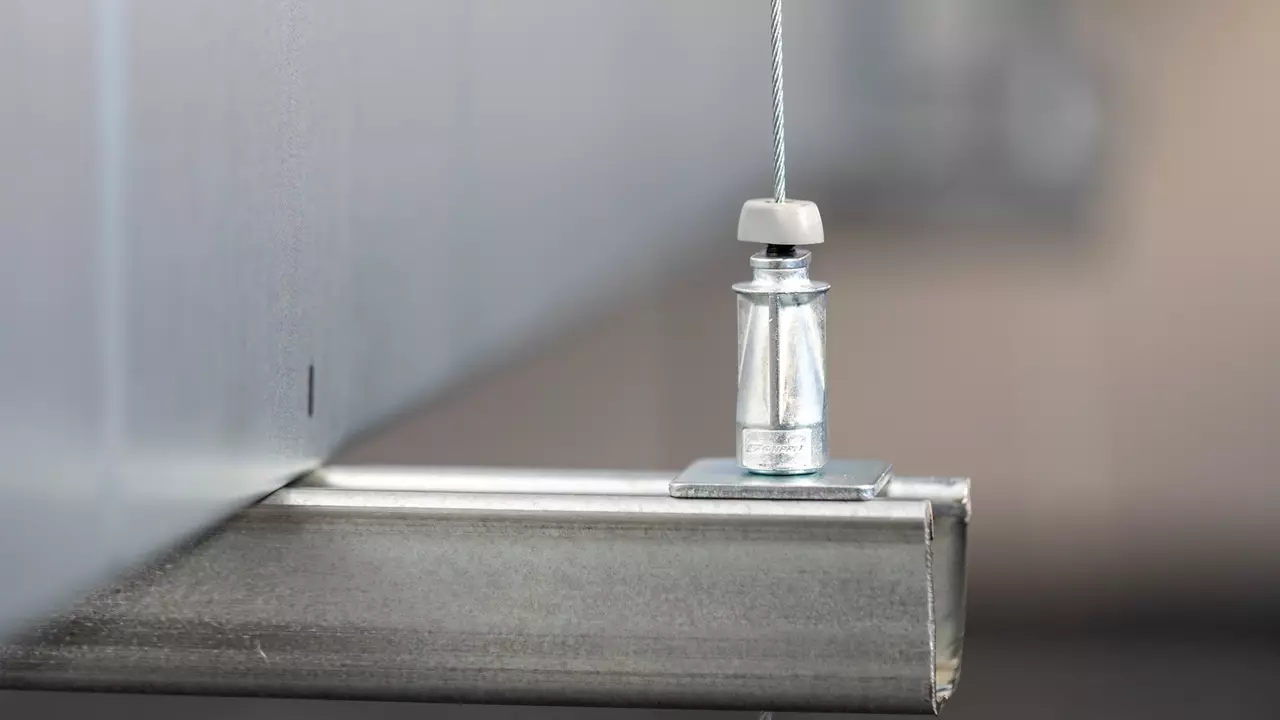

1. Attach to your strut, channel or bracket using the supplied channel nut or hex/flange nut.

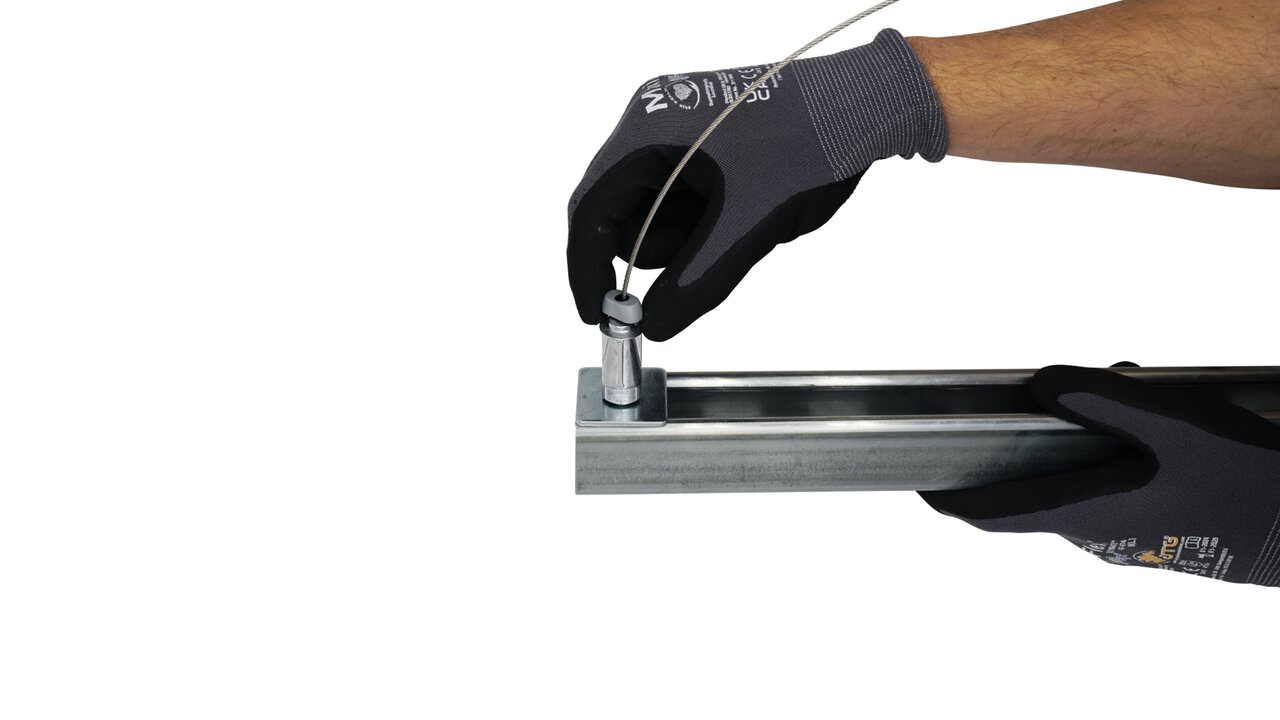

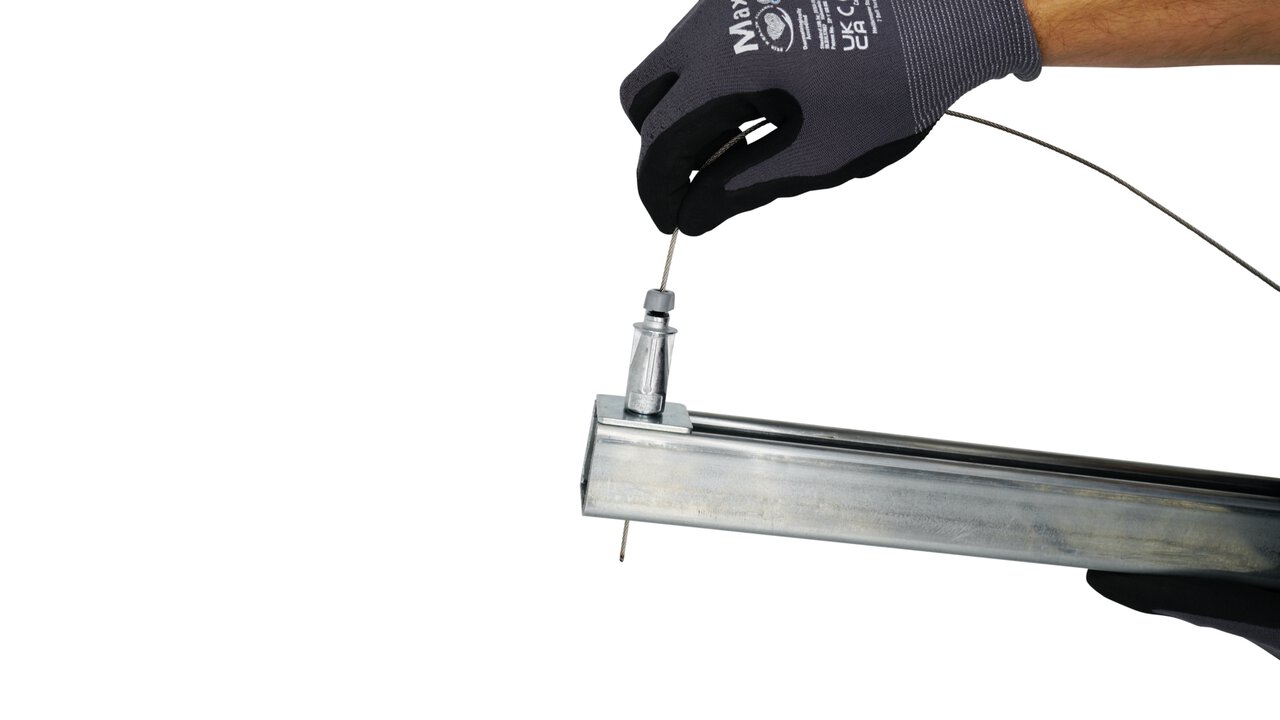

2. Feed the cable into the entry channel at the top of the UniGrip and then back out of the other side.
3. This then grips and locks the cable in place.
4. Push down the end cap to allow adjustment up and down the cable.
5. Screw down the top end cap to prevent accidental adjustment once installed.

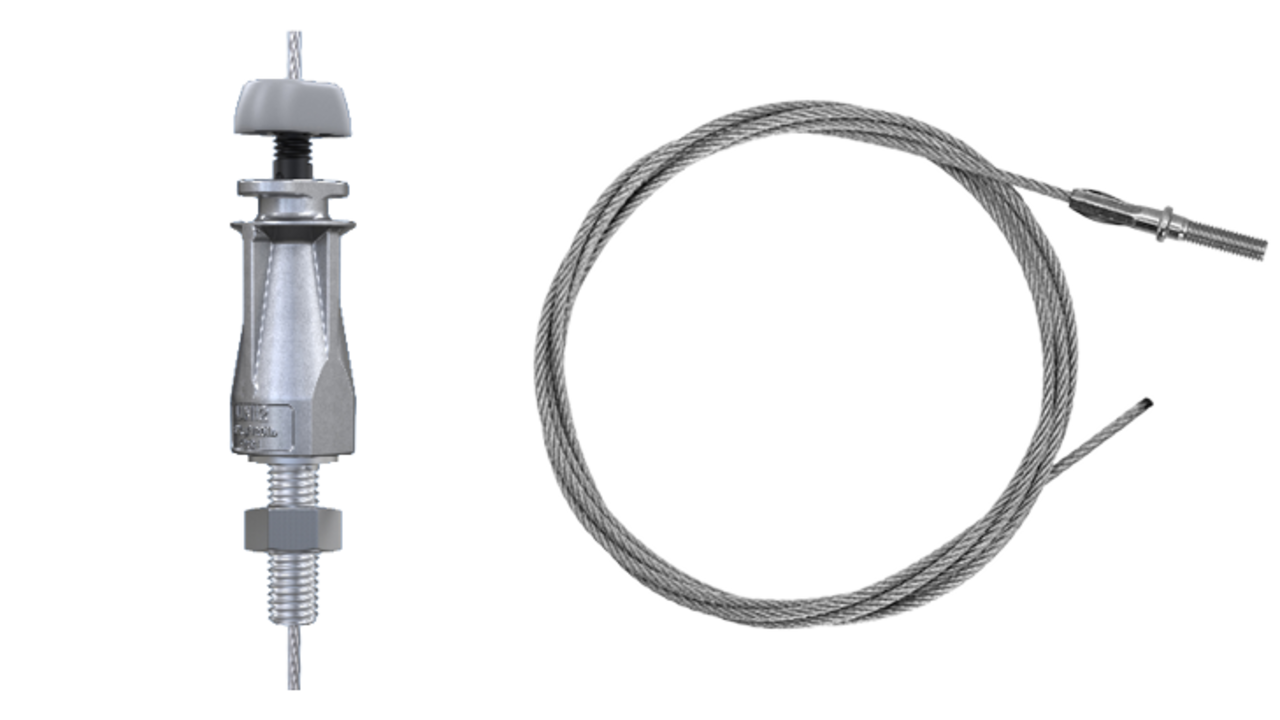

Ready To Install
Suspension Kit

We supply UniGrip Central Exit hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Cable
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

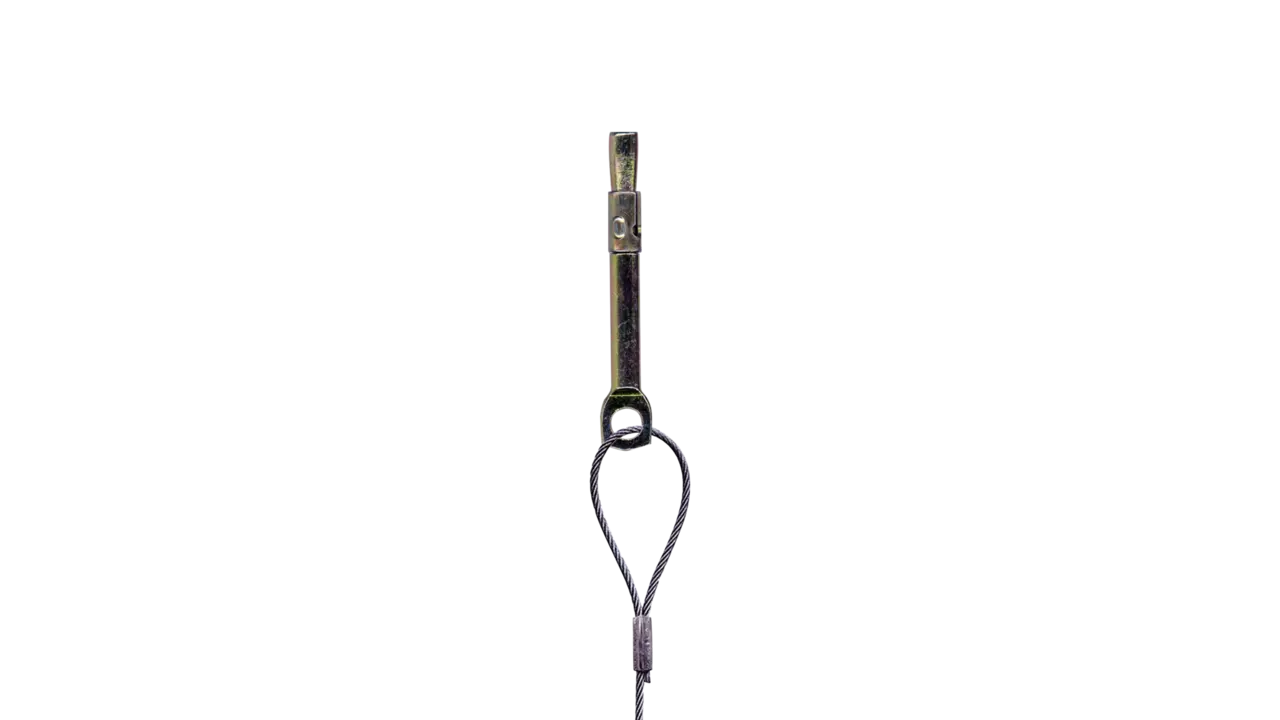

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

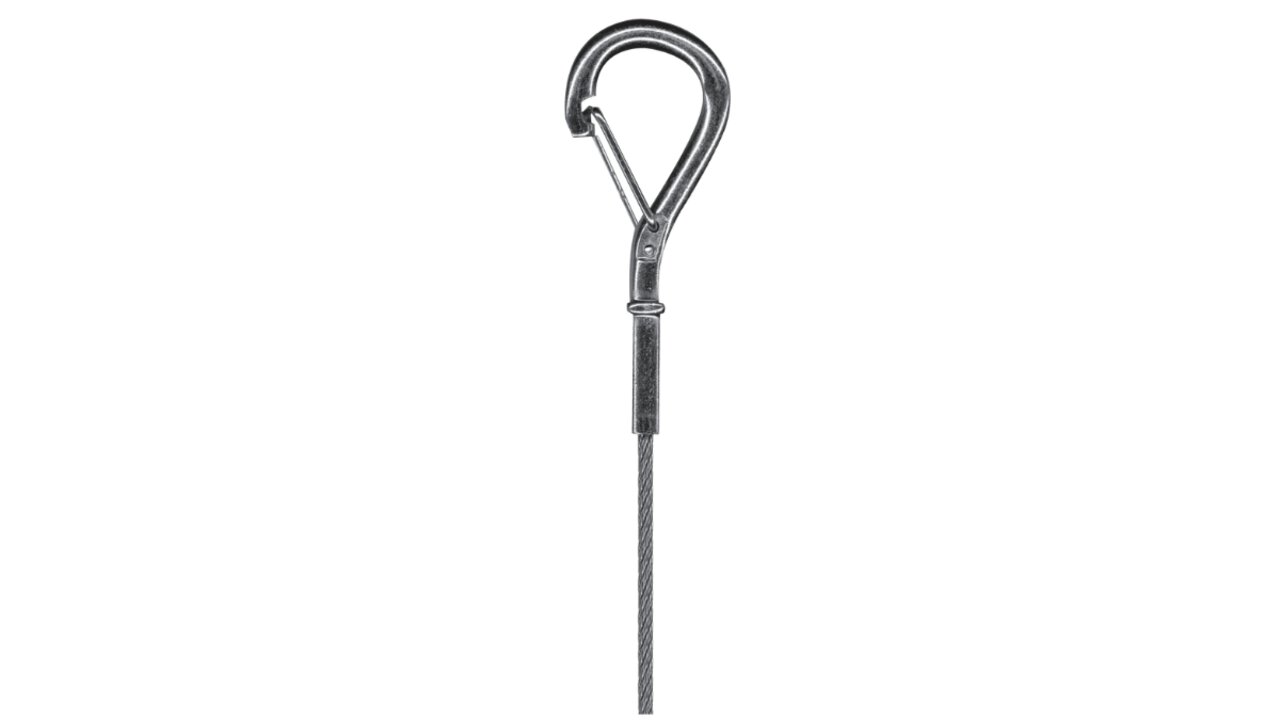

Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

UniGrip Central Exit Hanger

UniGrip Central Exit is your go-to-cable suspension solution for fast and efficient installation of trapezes using strut, channel or Gripple Universal Brackets. Quickly install using the supplied channel or hex nut.

  • Max Working Load: 800 lbs
  • Wire Compatibility: 5/64″, 1/8″, 3/16″ and 1/4″
  • Suspension Drop Lengths: 5 – 30 ft (custom lengths available on request)
