Preventing Duct Bank Movement on Critical Infrastructure Projects

Date: 10 July 2026

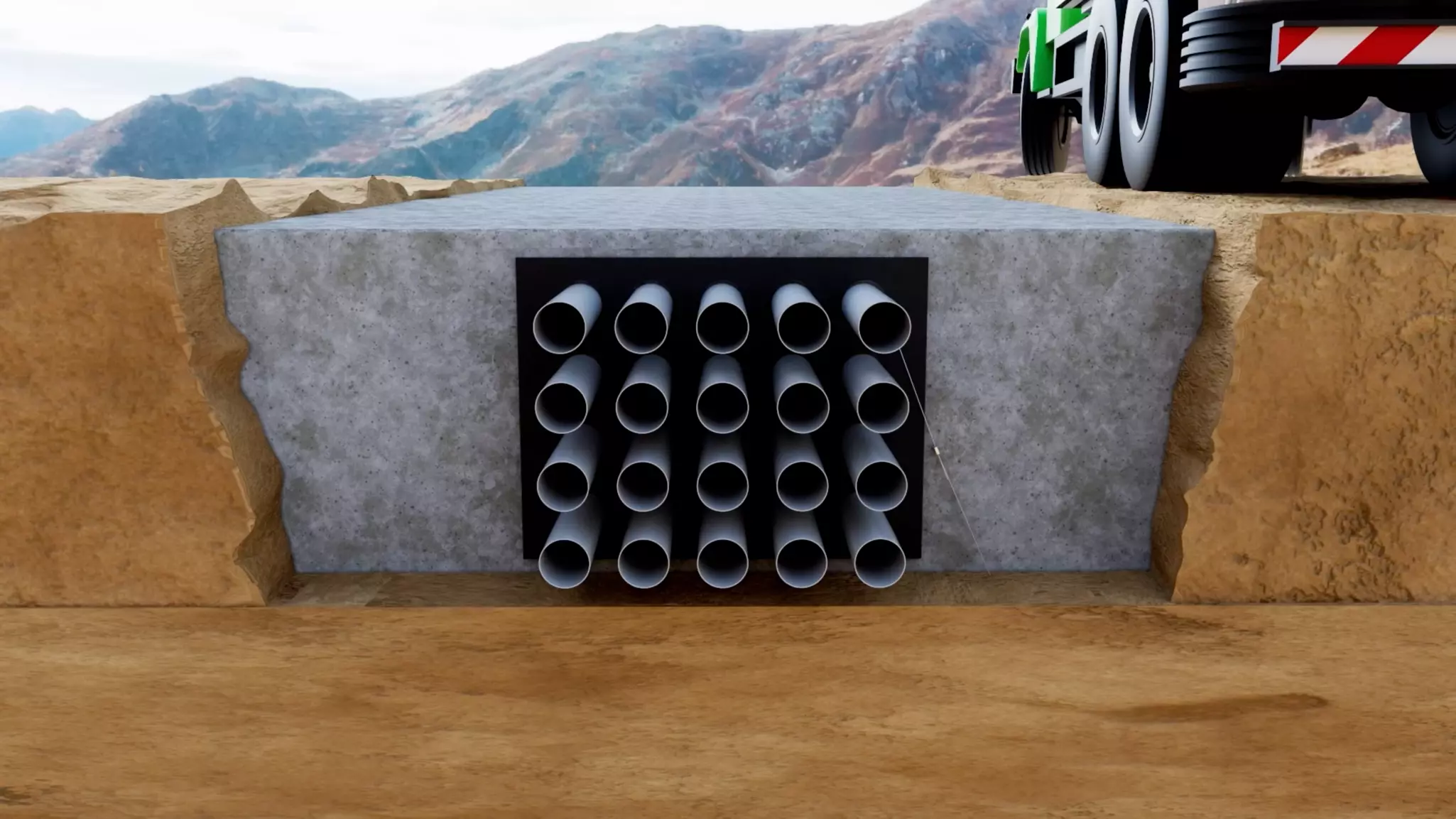

Why Underground Duct Bank Anchoring Matters

For electrical contractors working on data centers, hospitals, utilities, airports, and other critical infrastructure projects, underground duct banks are among the first systems installed and often among the most important.

These buried networks carry the power, communications, and data services that keep facilities operating. Yet despite their importance, one of the biggest risks to a duct bank can occur before a project is even completed.

If conduits shift, float, or move during installation, the consequences can be significant. Cracked ducting, failed inspections, costly rework, project delays, and long term reliability concerns can all stem from movement that could have been prevented during the early stages of construction.

That is why duct bank anchoring has become an essential consideration for contractors looking to protect critical infrastructure and keep projects on schedule.

The Hidden Challenge Beneath the Surface

Underground ducting provides an effective way to protect electrical and communication cables from mechanical damage, accidental contact, and environmental exposure.

When installed correctly, duct banks help improve system reliability while reducing the risk of faults such as electrical shock, short circuits, and fire.

However, underground infrastructure presents a unique challenge.

Once a duct bank is installed, concrete is poured, and trenches are backfilled, any problems are largely hidden from view. Identifying and correcting movement after installation can be difficult, disruptive, and expensive.

For this reason, preventing movement during installation is critical.

Why Duct Banks Move

Poor Trench Preparation

An uneven trench base can create stress points within the duct bank. Rocks, voids, and inconsistent bearing surfaces can affect alignment and increase the risk of movement during concrete pours.

Proper trench grading helps create a stable foundation and reduces unnecessary stress on the conduit system.

Inadequate Compaction

Loose backfill naturally settles over time.

If compaction is insufficient, the resulting movement can place additional pressure on duct banks, causing misalignment and increasing the likelihood of future maintenance issues.

Groundwater and High Water Tables

Water conditions can create challenges that are not always visible during installation.

Sites with high groundwater levels require careful planning to ensure duct banks remain secure throughout construction.

Buoyancy During Concrete Pours

Perhaps the greatest risk comes from buoyancy.

Many conduit systems are manufactured from lightweight plastic materials. While easy to transport and install, these materials naturally want to float when exposed to water or wet concrete.

Without effective restraint, entire duct banks can rise out of position during installation.

This movement can result in:

Cracked or damaged conduits
Incorrect burial depths
Failed inspections
Non-compliance with project specifications
Costly excavation and rework

Unlike trench grading or compaction issues, buoyancy often occurs during installation and can be difficult to detect until the damage has already been done.

Understanding Compliance Requirements

In addition to protecting the integrity of the installation, contractors must also ensure compliance with applicable codes and standards.

Several regulations highlight the importance of maintaining stable underground conduit systems.

National Electrical Safety Code (NESC)

Section 32 requires underground conduit systems and duct banks to withstand external forces including soil settlement, hydrostatic pressure, and shifting.

National Electrical Code (NEC)

Chapter 3 includes requirements relating to conduit integrity and protection from movement that could result in damage.

OSHA Requirements

OSHA Directive 1926.965 requires buried electrical systems to remain secure and protected from movement that could expose cables and create safety risks for workers.

Many projects may also be subject to additional state or local requirements depending on location and application.

Why Anchoring Should Be Part of the Plan

The most effective way to prevent duct bank movement is to address the risk before installation begins.

Rather than reacting to problems onsite, contractors should incorporate anchoring into the project planning process from the outset.

A properly designed anchoring system helps keep conduits securely positioned throughout construction, reducing the risk of movement caused by buoyancy, groundwater, or site conditions.

This not only protects the installation but can also help avoid delays, rework, and inspection failures later in the project.

A Faster Approach to Duct Bank Anchoring

Traditional anchoring methods can be labour intensive and time consuming to install.

Modern anchoring solutions are helping contractors secure duct banks more efficiently while reducing time spent in the trench.

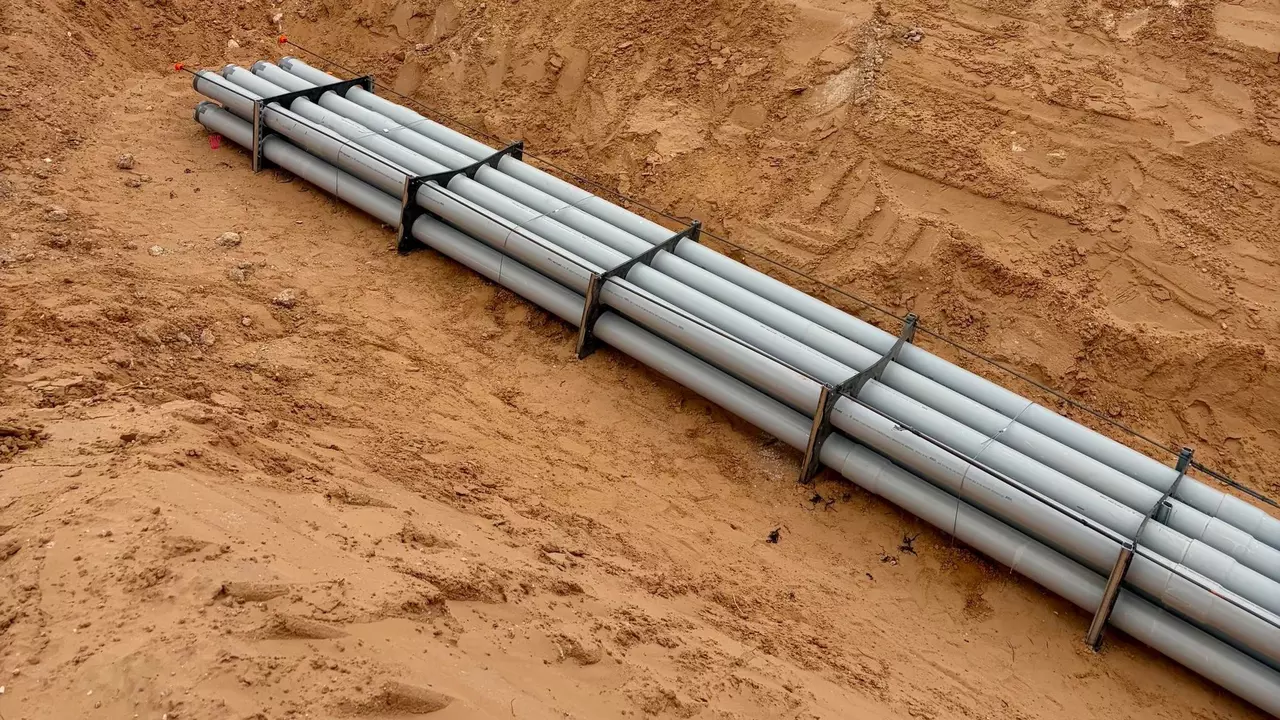

Gripple’s Underground Duct Bank Anchoring System has been developed to simplify installation while providing reliable restraint during concrete pours and challenging ground conditions.

Key benefits include:

Fast installation by a single contractor
High strength corrosion resistant anchors
Reliable performance across a range of soil conditions
Minimal disruption to trench walls during installation
Pre-assembled systems ready for use onsite
No cutting required onsite
Reduced labour requirements

By simplifying installation, contractors can improve productivity while maintaining confidence that duct banks remain securely in position.

Protecting Critical Infrastructure from Day One

Whether supporting a hyperscale data center, healthcare facility, utility project, or major commercial development, underground duct banks form a critical part of the electrical infrastructure.

Failures hidden beneath the surface can create significant costs long after construction is complete.

By taking a proactive approach to anchoring, contractors can reduce risk, improve installation quality, and help ensure critical power and communication pathways remain protected for the life of the facility.

When it comes to underground infrastructure, preventing movement before it happens is always easier than fixing the consequences afterwards.

Explore Gripple’s Underground Duct Bank Anchoring solutions and discover a faster, smarter way to secure critical electrical infrastructure.
