UniGrip – Side Exit Direct Equipment Suspension

SKU # UGSE

UniGrip Side Exit is the compact suspension solution designed for direct connection to equipment or brackets using a flange/hex nut. Ideal for mechanical and single pipe supports.

Max Working Load

Max Working Load:

550 lbs

Cable Compatibility:

Cable Compatibility::

5/64", 1/8" and 15/64"

Suspension Drop Lengths

Suspension Drop Lengths:

5 ft - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Side Exit - Technical Data Pack - USAUniGrip Side Exit with 3" Stud for Clevis Hangers - Technical Data Pack - USA
View all downloads
UniGrip – Side Exit Direct Equipment Suspension
SKU # UGSE
1
1
1
1
1

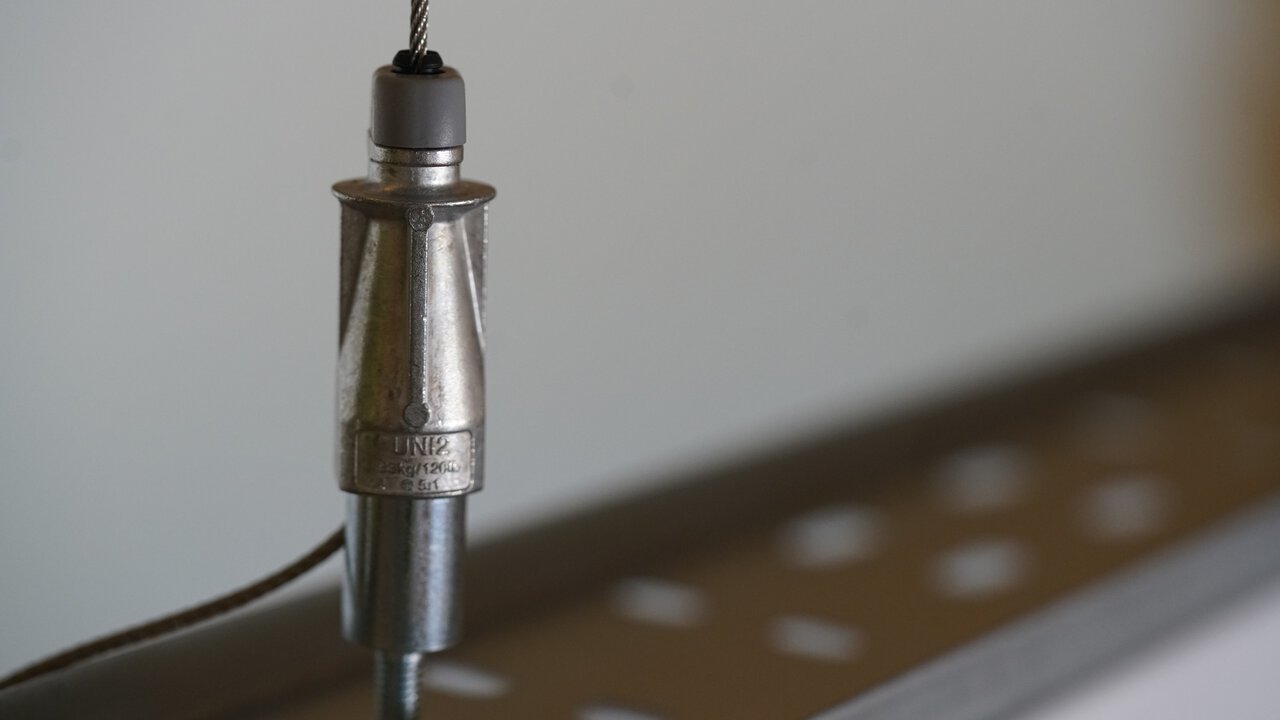

Cable Suspension for Direct Connection To Equipment

UniGrip Side Exit is engineered for applications where space is tight and precision matters. Designed to connect directly to equipment via a blind tapped hole or through a bracket, it’s ideal for hanging equipment and single pipework supports.

Supplied with a flange or hex nut, installation is quick, secure and simple to carry out. Its side-exit wire path allows for attachment directly to equipment, while still allowing for adjustability if needed.

Available in three load-rated sizes, 120 lbs, 240 lbs and 550 lbs our UniGrip Side Exit hanger delivers a clean, efficient alternative to traditional hanging methods. When direct connection is key, trust Gripple’s side-exit solution for smarter suspension.

Read More

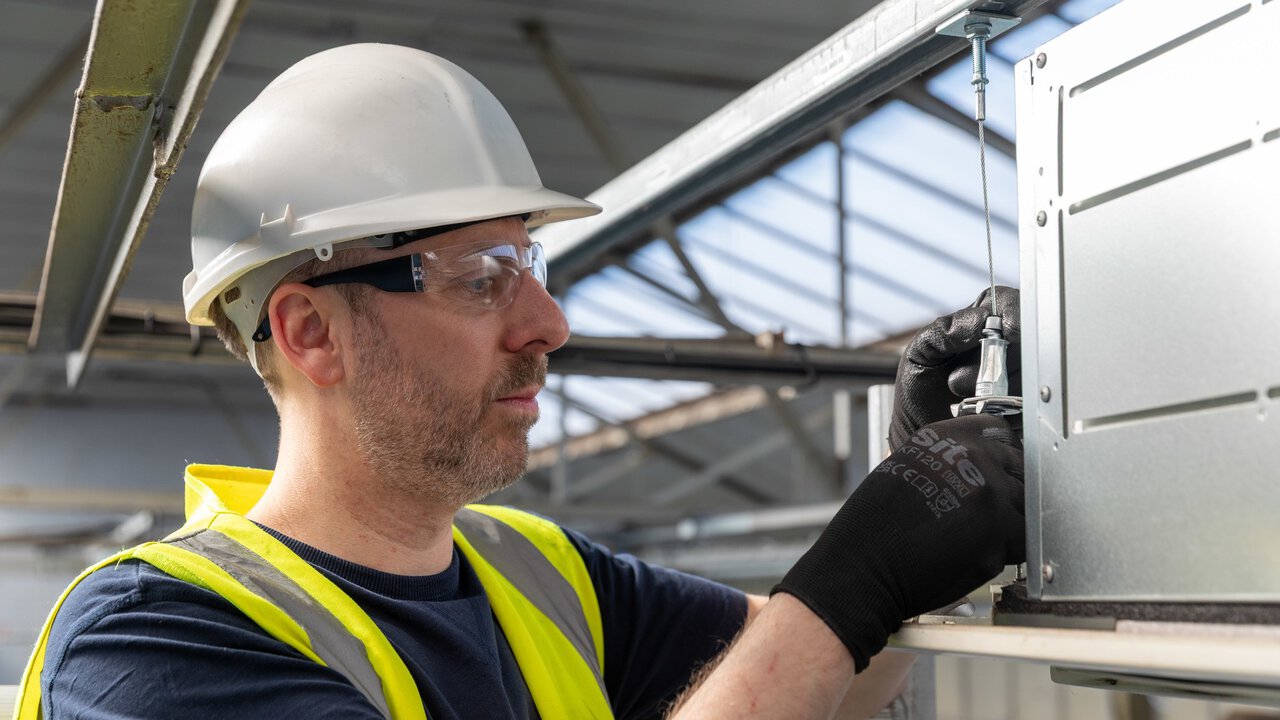

Direct Attachment

Direct Attachment

UniGrip Side Exit connects directly to equipment using an M8 thread fixing. Plus, with a side exit, you can still adjust even after installation.

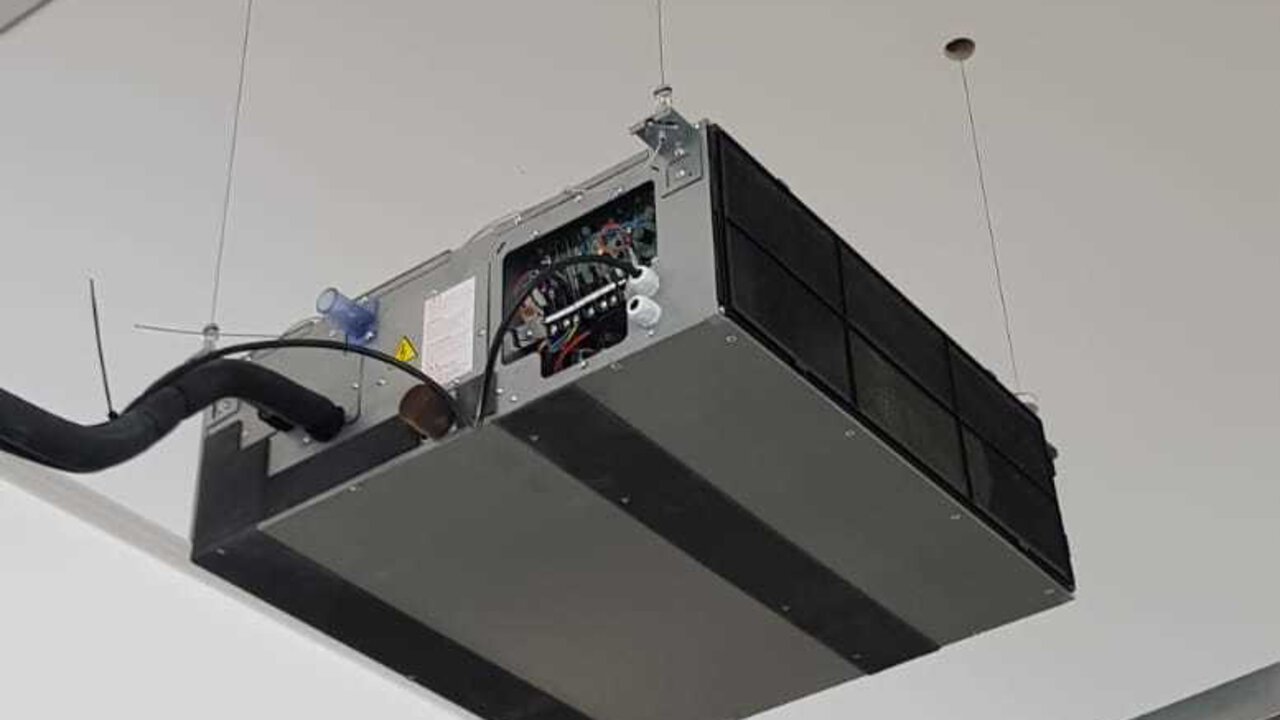

High Working Loads

High Working Loads

With safe working loads up to 550 lbs per suspension point, UniGrip is ideal for heavy duty suspension projects.

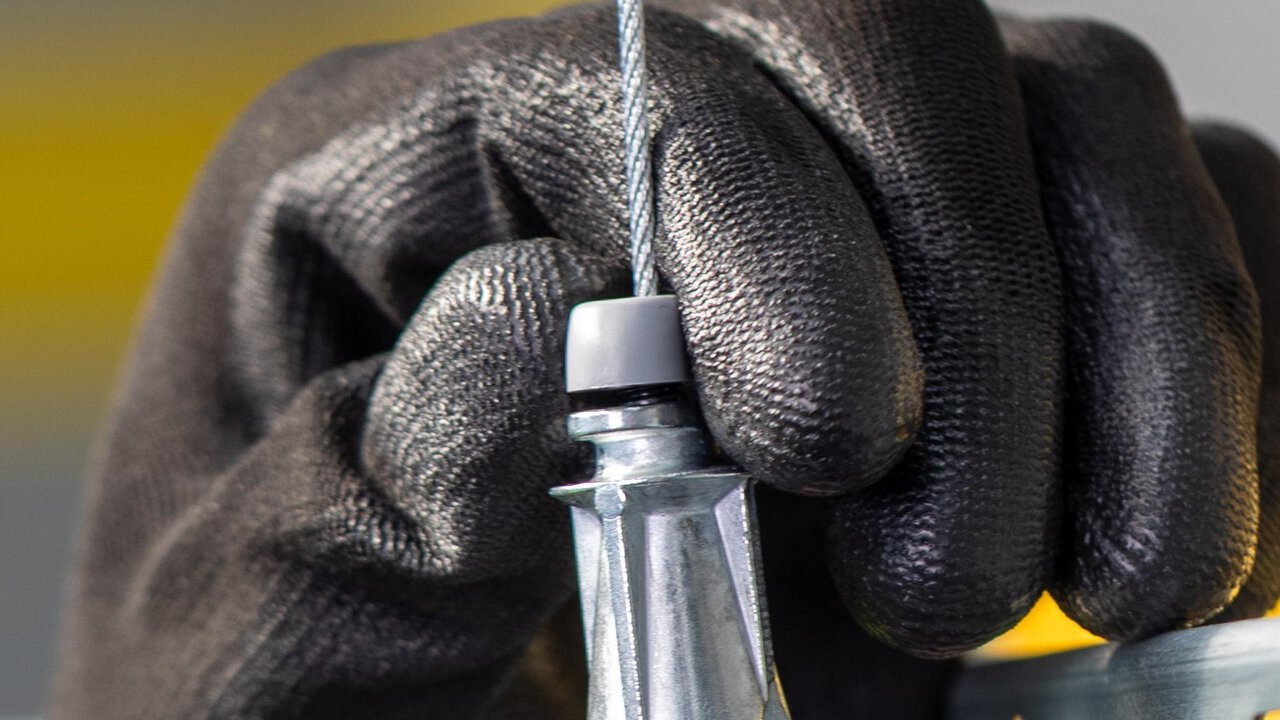

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or traditional cable methods, even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

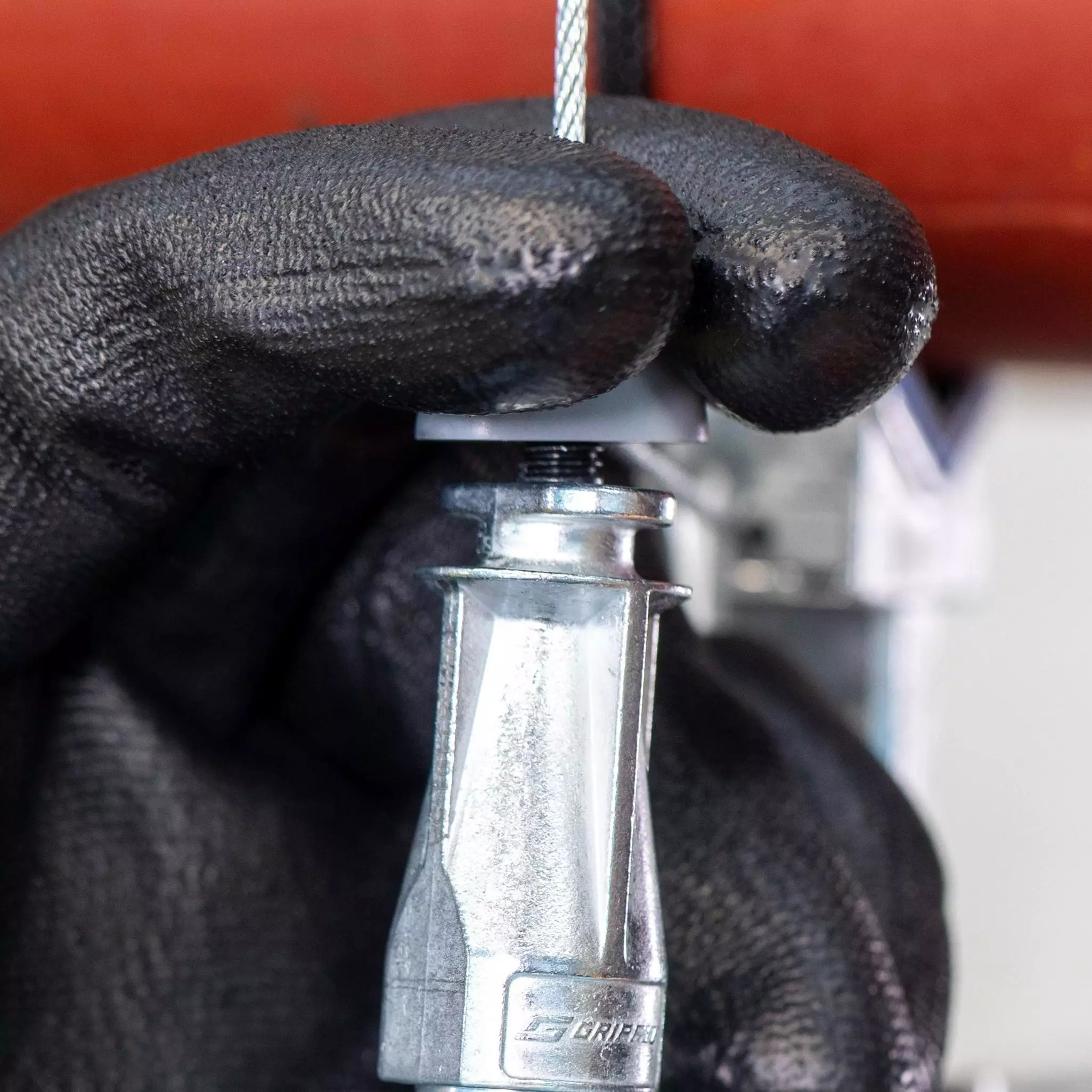

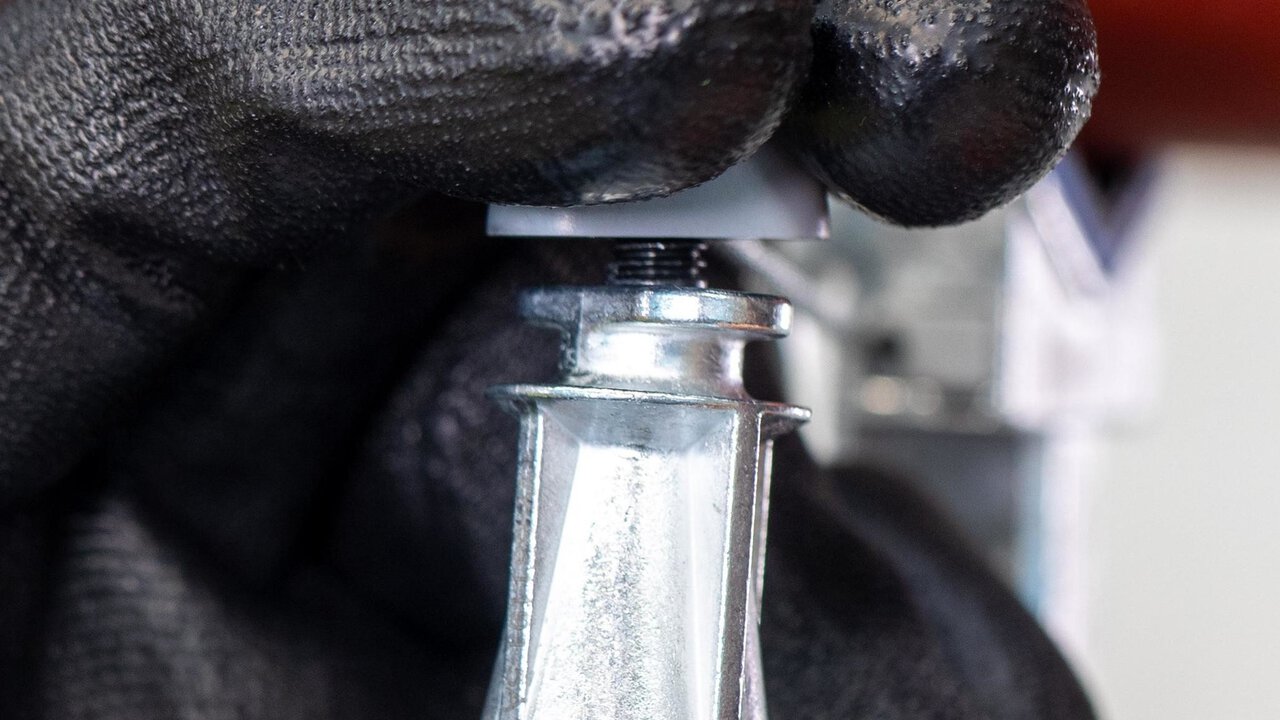

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Direct Attachment

Direct Attachment

UniGrip Side Exit connects directly to equipment using an M8 thread fixing. Plus, with a side exit, you can still adjust even after installation.

High Working Loads

High Working Loads

With safe working loads up to 550 lbs per suspension point, UniGrip is ideal for heavy duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or traditional cable methods, even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Range Variants

UniGrip Side Exit comes in three size variants, allowing for suspension of a range of services. See a breakdown of key performance data in the table or download the Technical Data Packs for full specification information.

UniGrip Side Exit – Technical Data Pack – USA
Load Rating Safety Factor Cable Size
UniGrip 2 120 lbs 5:1 5/64
UniGrip 3 240 lbs 5:1 1/8″
UniGrip 6 800 lbs 5:1 15/64″

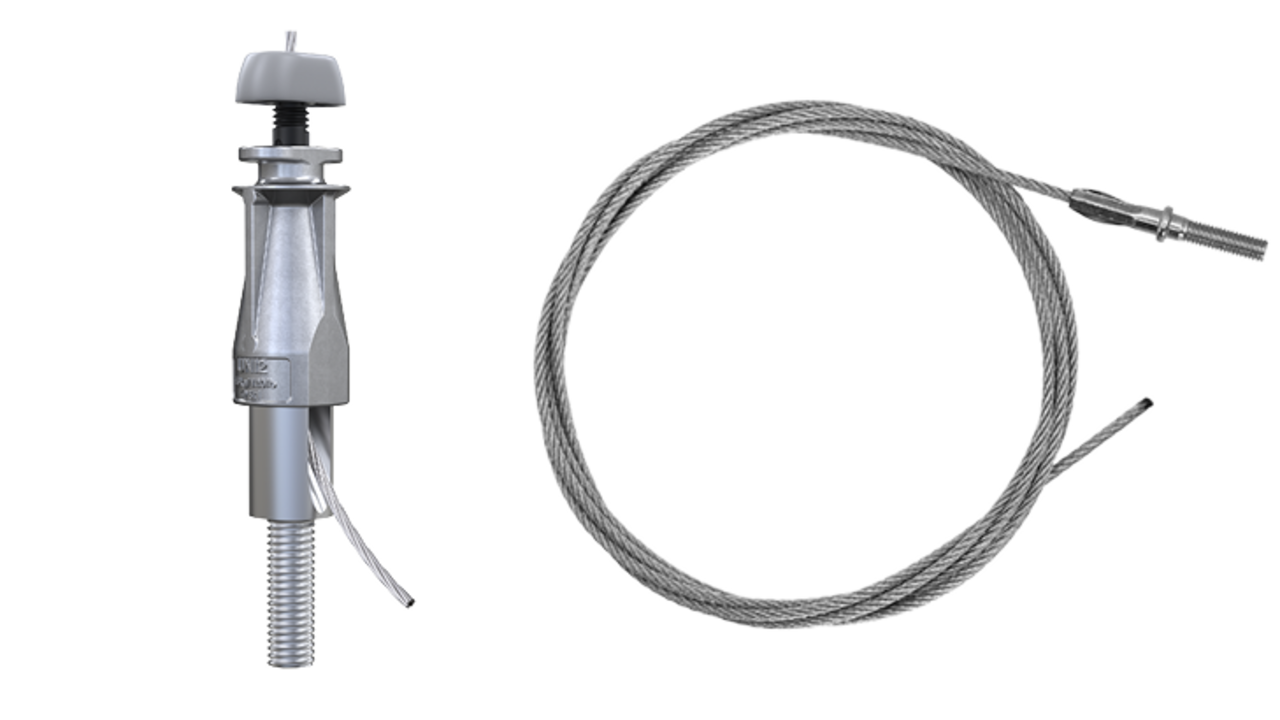

Ready To Install
Suspension Kit

We supply UniGrip Side Exit hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

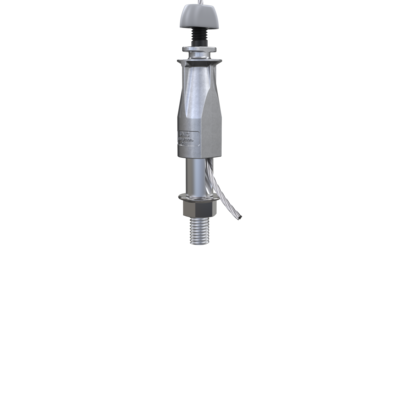

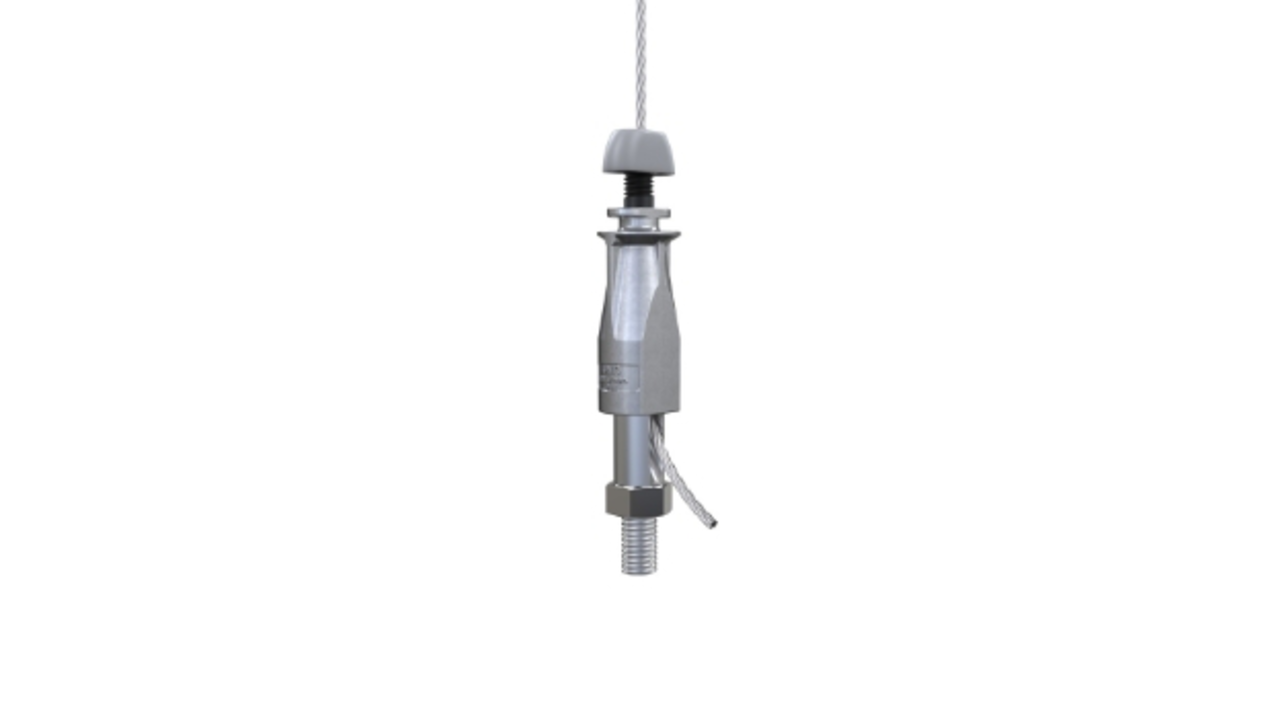

UniGrip Side Exit

UniGrip Side Exit

Designed for use connecting directly to equipment via a blind tapped hole or through a bracket.

It is supplied with a flange/hex nut for easy attachment.

It can also be used for single pipework supports (mechanical).

  • Max Working Load: 800 lbs
  • Wire Compatibility: 5/64″, 1/8″ and 15/64″
  • Suspension Drop Lengths: 5 ft – 30 ft (custom length available on request)
