Quarter Turn Conduit Clamp Conduit Clamp for Gripple Brackets

SKU # FTCC

Fast to install conduit clamp designed for quick quarter-turn attachment to Gripple Universal, Low Profile and Fast Trak brackets.

Safe Working Load

Safe Working Load:

230 lbs

Conduit Compatibility

Conduit Compatibility:

from 3/4" to 3.5"

QT Bracket Compatibility

QT Bracket Compatibility:

Fast Trak, Universal and Low Profile Gripple Brackets

Inquire Now

Product Downloads

QT Compact Clamp - Technical Data Pack - USA
SKU # FTCC
1
1
1
1

Fast, tool-free conduit support, ready to install straight out of the box.

The Gripple Quarter Turn Conduit Clamp is designed for rapid, tool-free installation of conduit to Gripple Universal, Low Profile, or Fast Trak Brackets. Supporting EMT and RMC conduit from 3/4″ to 3.5″, this clamp delivers a strong, reliable hold with a simple quarter turn.

Pre-assembled with nut and bolt, it’s ready to go straight from the box. With a working load of up to 230 lbs, it’s ideal for suspending conduit used in cable management or pipework routing across a range of MEP applications.

Compared to traditional strut-mounted clamps that require tools and multiple components, our Gripple solution is faster, cleaner, and easier to install, helping you stay efficient on-site while maintaining a professional finish.

Read More

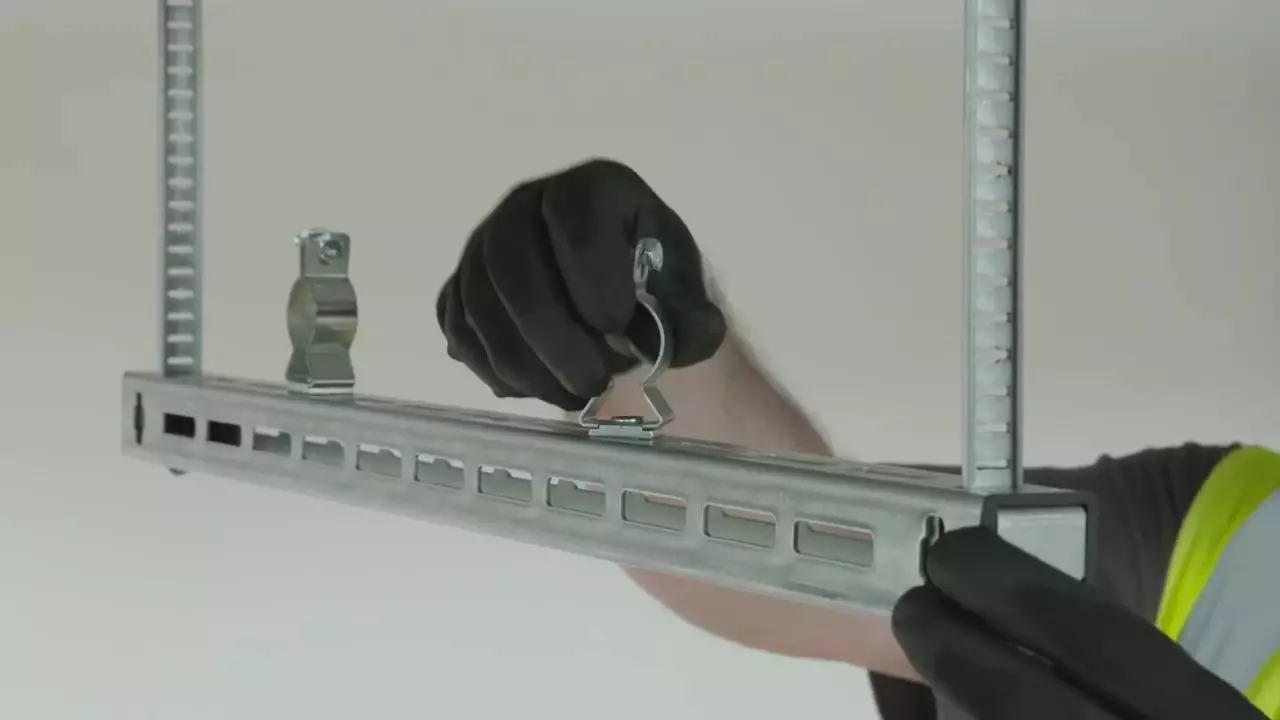

Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

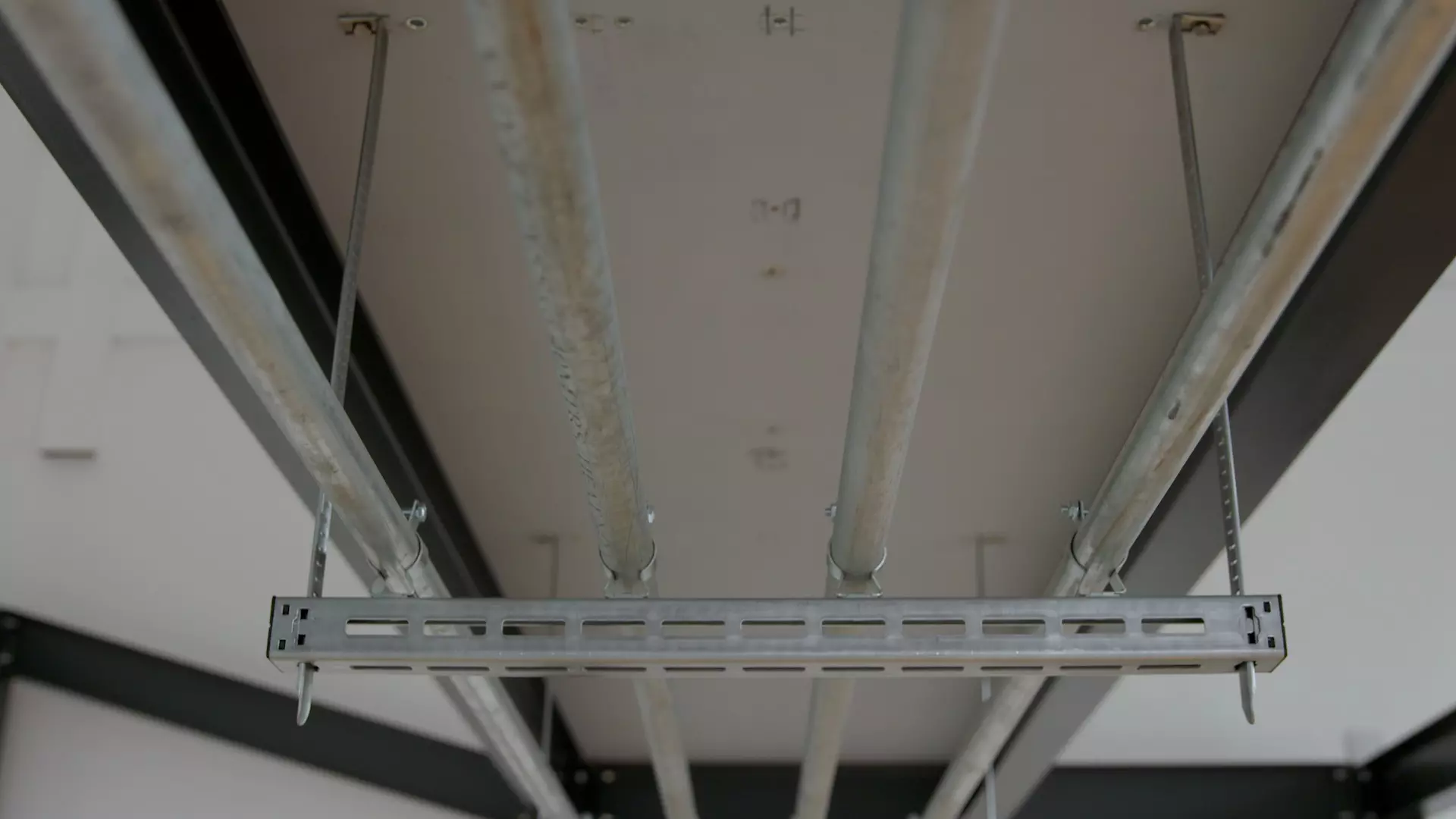

Versatile & Compatible

Versatile & Compatible

Use with EMT and RMC conduit from 3/4" to 3.5".

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

Versatile & Compatible

Versatile & Compatible

Use with EMT and RMC conduit from 3/4" to 3.5".

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Range Variants

Our Quarter Turn Conduit Clamp comes in a range of size variants to suit multiple diameters. See the table for an overview or download the Technical Data Pack for full specifications.

Variant Load Rating Safety Factor
FTCC-0.75IN 60 lbs 3:1
FTCC-1IN 75 lbs 3:1
FTCC-1.25IN 80 lbs 3:1
FTCC-1.5IN 100 lbs 3:1
FTCC-2IN 125 lbs 3:1
FTCC-2.5IN 160 lbs 3:1
FTCC-3IN 200 lbs 3:1
FTCC-3.5IN 230 lbs 3:1

How it works:

See how our Quarter Turn Conduit Clamp works below. (*Not to be used underneath the bracket or with the bracket mounted vertically*)

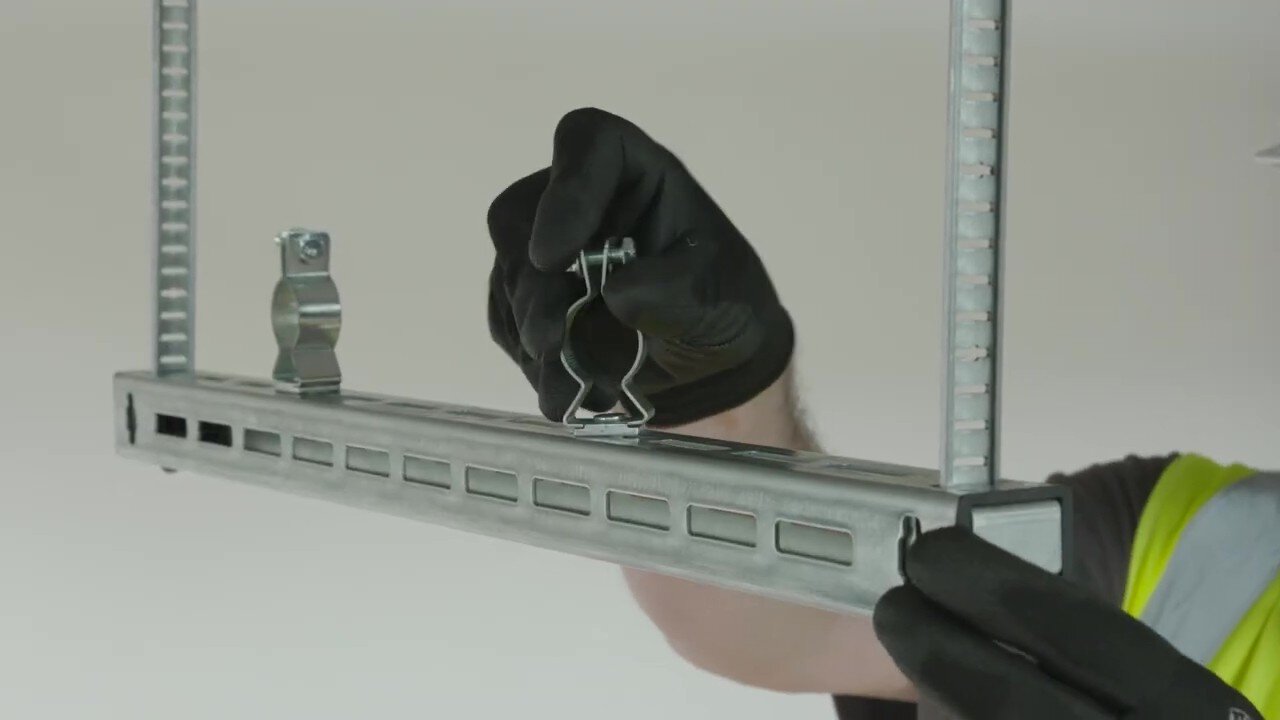

Step 1: Insert the Conduit Clamp into the channel slot and rotate 90° to lock.

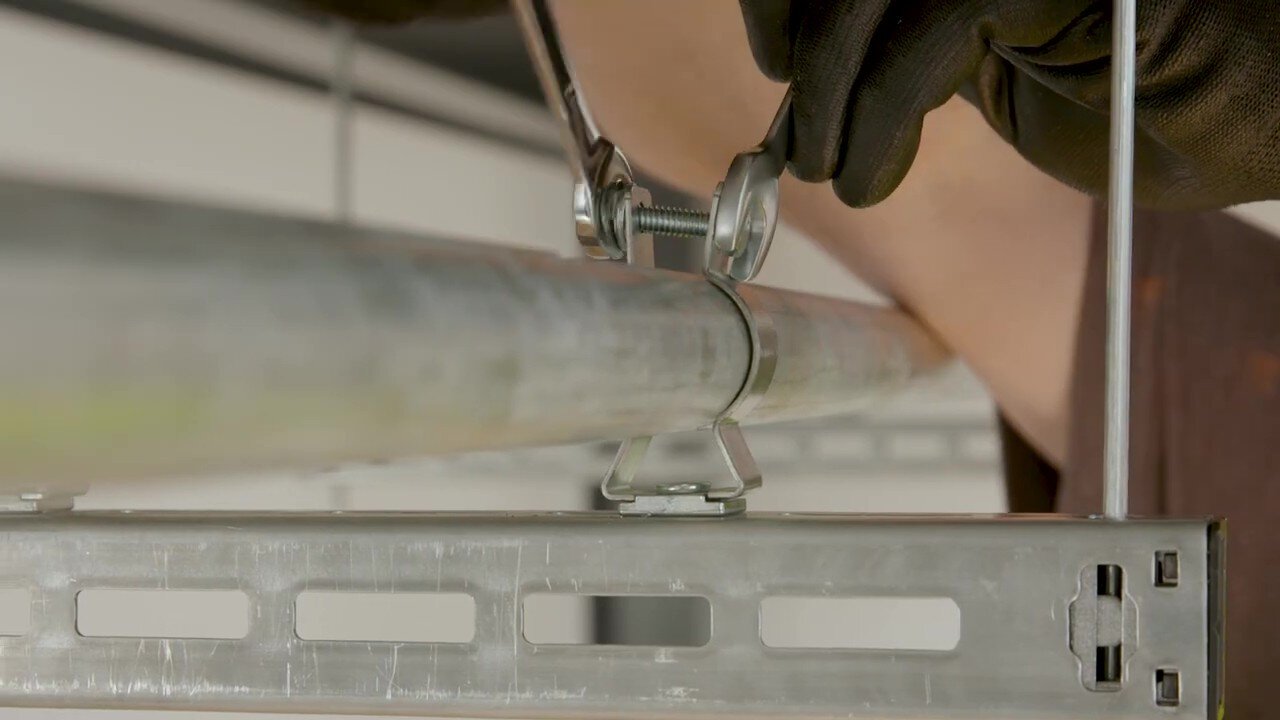

Step 2: Remove the nut and bolt to open the clamp and position the RMC or EMT conduit

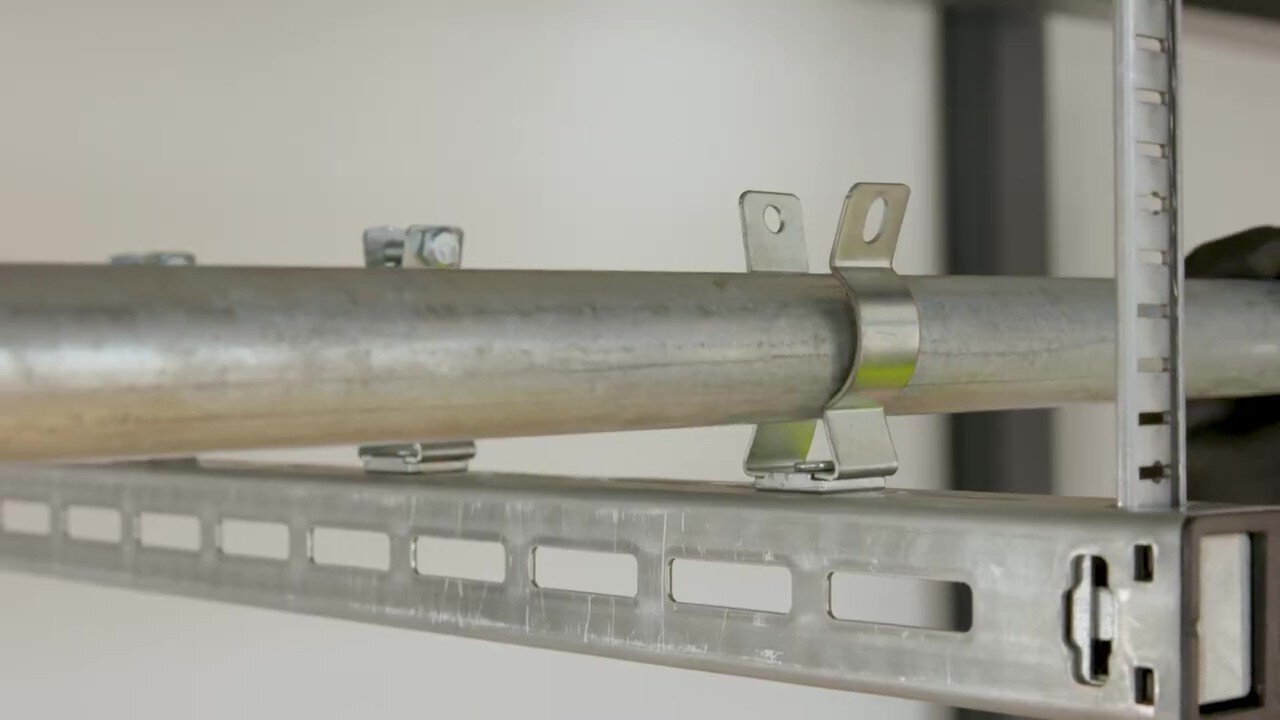

Step 3: Re-secure with the nut and bolt.

Related Products & Accessories

Fast Trak™ – Standard

Bracketry Suspension System for MEP Services

Max System Load : 440 lbs
Suspension Space: 9″ – 61″
Drop Height Range: 8″ – 59″
View Fixing Variant

Universal Bracket

Pre-cut Channel Alternative

Bracket Widths: 9 – 61 in.
Max Single Point Load: 240 lbs
Max Uniformly Distributed Load: 440 lbs
View Product

Fast Trak™ – Low Profile

A Low Profile and Prefabricated Trapeze Bracket

Max Single-Point Load: 330 lbs
Max Uniformly Distributed Load: 515 lbs
Bracket Range: 9″ – 61″
View Fixing Variant

Low Profile Bracket (Header Rail)

Direct Fix Header Rail or Pipe Clamp Bracket

Maximum Uniform Load : 330 lbs
Pre-cut Size Range: 1 ft – 4 ft
View Product

UniGrip – Range

Single Channel Cable Hanger

Maximum Safe Working Load: 800 lbs
Cable Compatibility: 5/64″ – 1/4″
Suspension Drop Lengths: 5 ft – 30 ft (additional lengths available on request)
View Product

Quarter Turn Trunking Clamp

Trunking Clamp for Gripple Brackets

Safe Working Load: Up to 110 lbs
Sizes available: 2×2″, 3×3″, 4×4″ and 5×5″
Gripple Bracket Compatibility: Fast Trak, Universal Bracket and Low Profile Bracket
View Product

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 170 lbs
Maximum Pipe Diameter: 6″
Noise Reduction: > 23 dB (depending on variant)
View Product
