Fast Trak™ – Low Profile A Low Profile and Prefabricated Trapeze Bracket

SKU # FTBL-9IN-FTBL-61IN

The perfect solution for ultra-restricted ceiling spaces, the Fast Trak® Low Profile is a discreet, prefabricated trapeze bracket that installs up to six times faster than traditional methods.

Max Single-Point Load

Max Single-Point Load:

330 lbs

Max Uniformly Distributed Load

Max Uniformly Distributed Load:

515 lbs

Bracket Range

Bracket Range:

9" - 61"

Inquire Now

Product Downloads

Fast Trak - Low Profile - Technical Data Pack - USAFast Trak® Range - Brochure - USA
View all downloads
SKU # FTBL-9IN-FTBL-61IN
1
1
1

Precision-engineered for seamless installation in the tightest of spaces

Gripple Fast Trak® – Low Profile is the ultimate solution for fast, efficient installation in ultra-restricted ceiling spaces.

With a sleek .83″ | 21 mm bracket depth, it’s even more compact than the standard Fast Trak range, making it perfect for electrical containment, pipework, and mechanical services. This prefabricated trapeze bracket system is up to six times quicker to install than traditional methods, eliminating the need to cut threaded rod or channel on-site. Tool-free adjustment and built-in measurement indicators make positioning effortless. Fire-rated to F120 & MPA to 1363-1 and designed for zero waste, it’s a smart, safe, and sustainable choice. Whether you’re working in high-rise buildings or tight service zones, Fast Trak Low Profile delivers speed, precision, and reliability every time.

Read More
Space Efficient

Space Efficient

Only .83" | 21 mm bracket depth is even more discreet than the standard Fast Trak range.

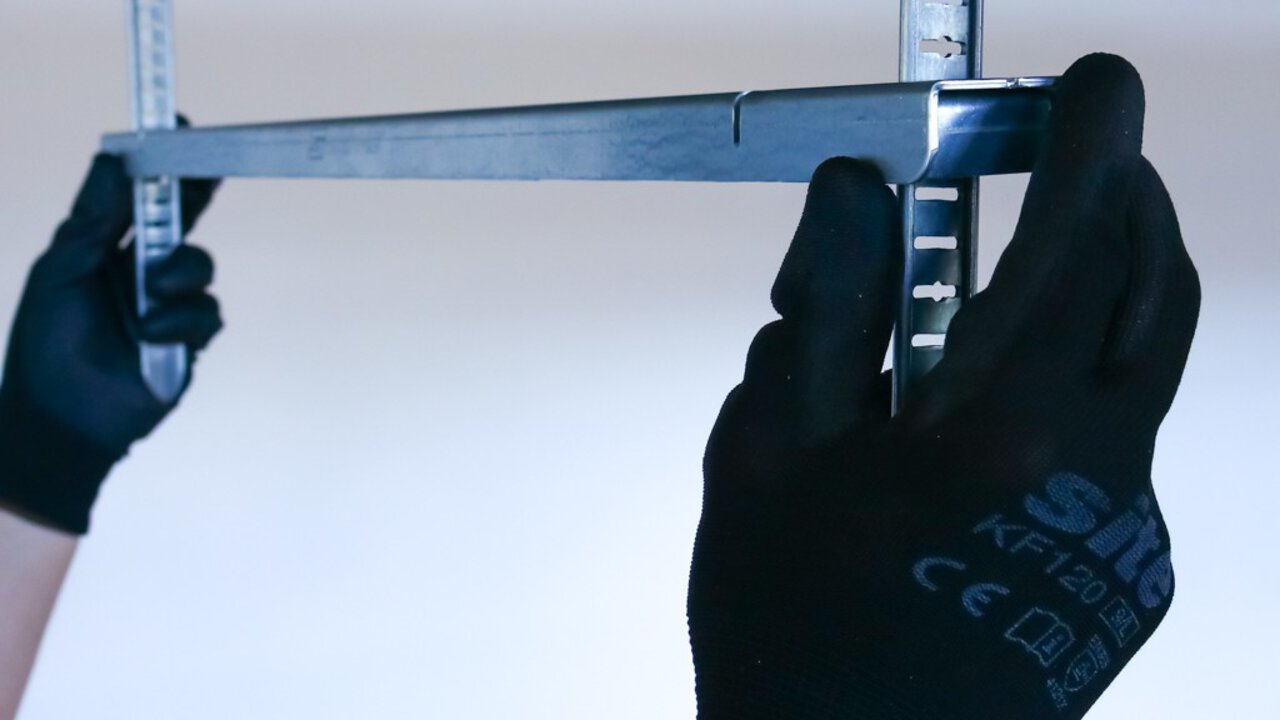

Simple Install

Simple Install

Up to 6x faster than traditional methods with minimal tools and training required.

Safer

Safer

Safer than traditional methods as prefabricated system which removes the need to cut threaded rod or channel on-site.

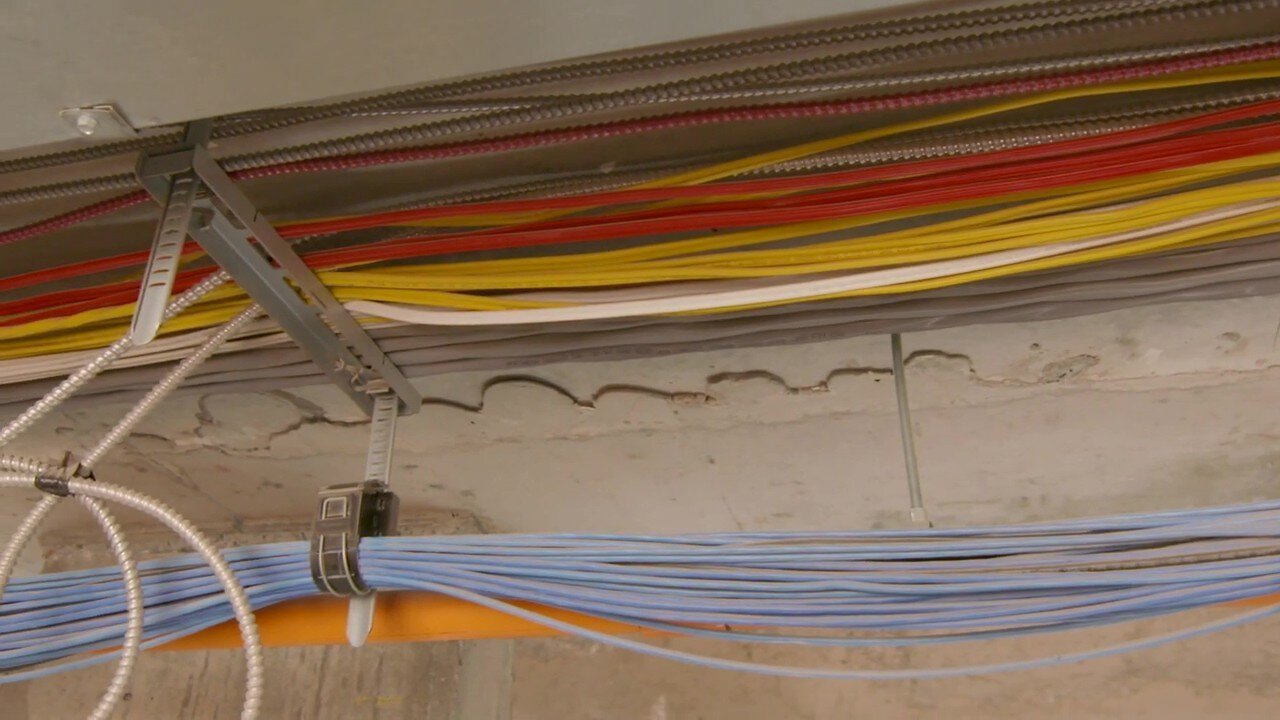

Fire Tested

Fire Tested

Independently tested to F120 with temperatures associated with BS EN 1363-1:2020

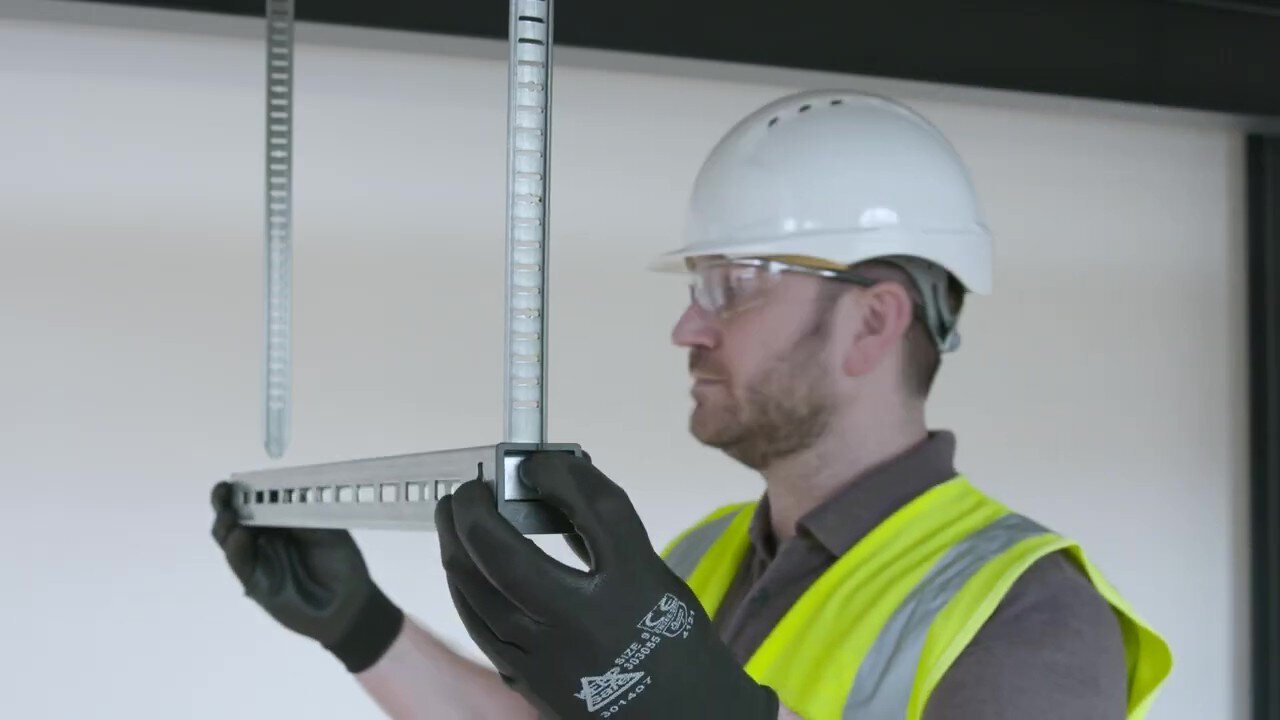

Adjustable

Adjustable

Brackets can be moved up and down the tracks without tools

Zero Waste

Zero Waste

Tracks bend neatly under bracket* *Excess tracks can also be snapped off once bracket is levelled & secured for a neater finish. Bending tracks by hand is not recommended when excess is under 3"/100 mm

Space Efficient

Space Efficient

Only .83" | 21 mm bracket depth is even more discreet than the standard Fast Trak range.

Simple Install

Simple Install

Up to 6x faster than traditional methods with minimal tools and training required.

Safer

Safer

Safer than traditional methods as prefabricated system which removes the need to cut threaded rod or channel on-site.

Fire Tested

Fire Tested

Independently tested to F120 with temperatures associated with BS EN 1363-1:2020

Adjustable

Adjustable

Brackets can be moved up and down the tracks without tools

Zero Waste

Zero Waste

Tracks bend neatly under bracket* *Excess tracks can also be snapped off once bracket is levelled & secured for a neater finish. Bending tracks by hand is not recommended when excess is under 3"/100 mm

Range Variants

The max load rating of Fast Trak Low Profile varies depending on the load point. They can be used with a variety of track lengths.

Single Point Load Uniformly Distributed Load
Load Rating 33 – 330 lbs (depending on width) 66 – 515 lbs (depending on width)
Safety Factor Single Point Load @ 3:1 Uniformly Distributed Load @ 3:1

How it Works:

Installing Fast Trak – Low Profile is simple. Follow the steps below or refer to the Technical Data Pack for more information.

 Download the Technical Data Pack

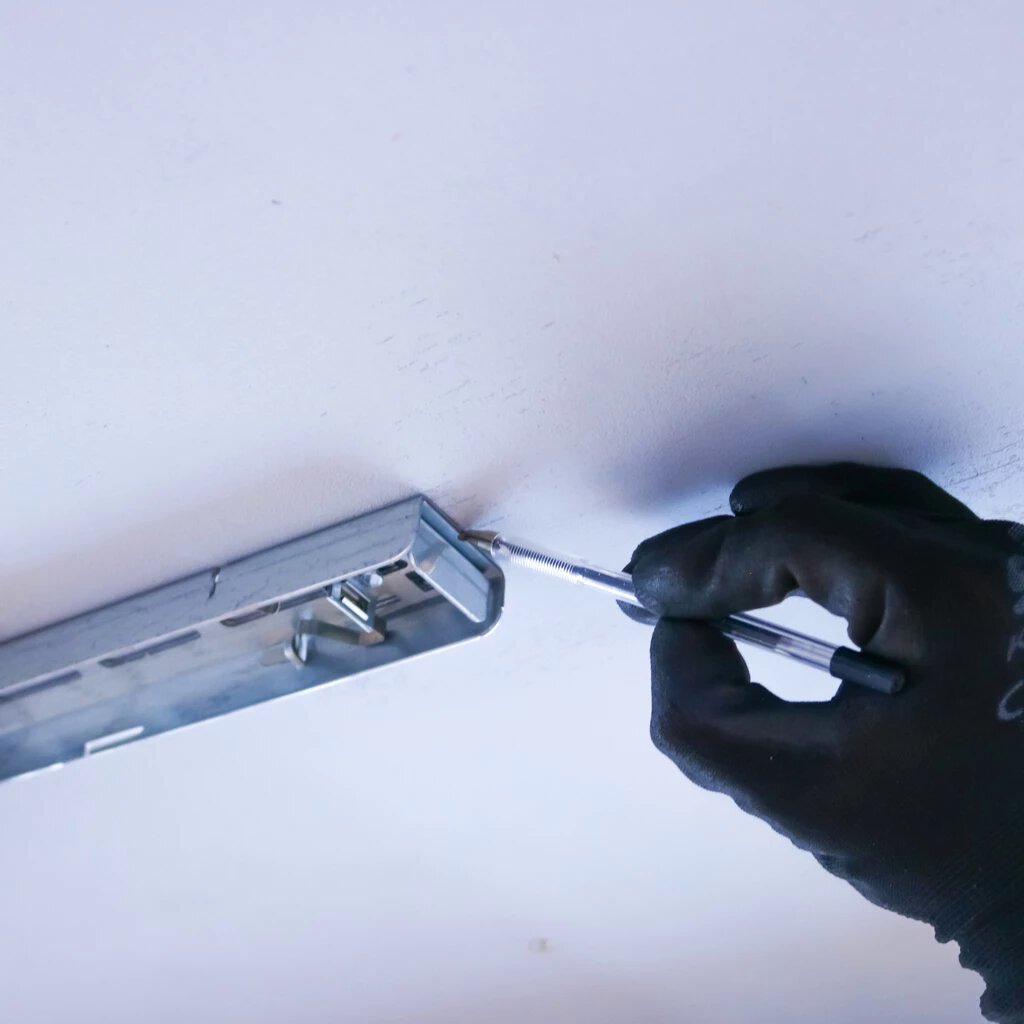

Step 1: Using the marking indentations on the ends of the Fast Trak cartridge, mark the fixing point location for the vertical drop.

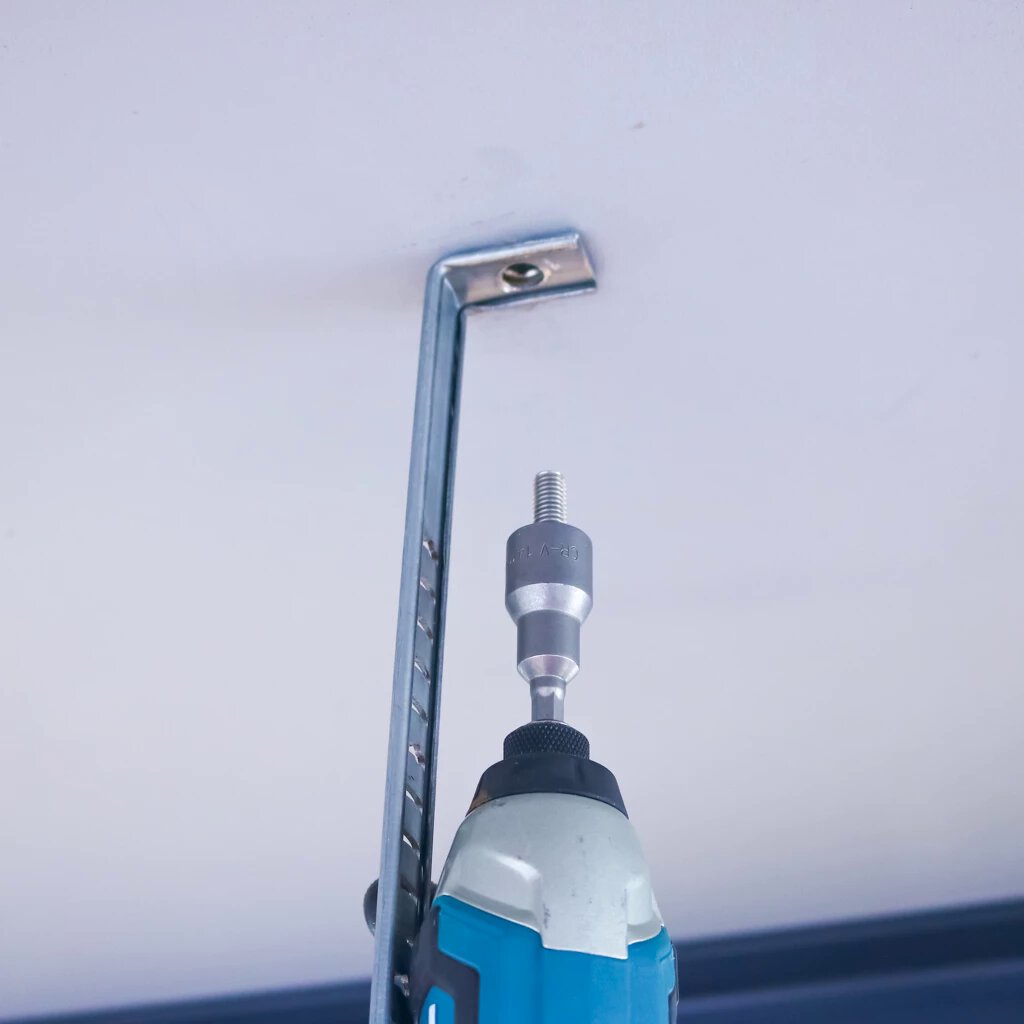

Step 2: Use the screws provided to fix the tracks to the soffit.

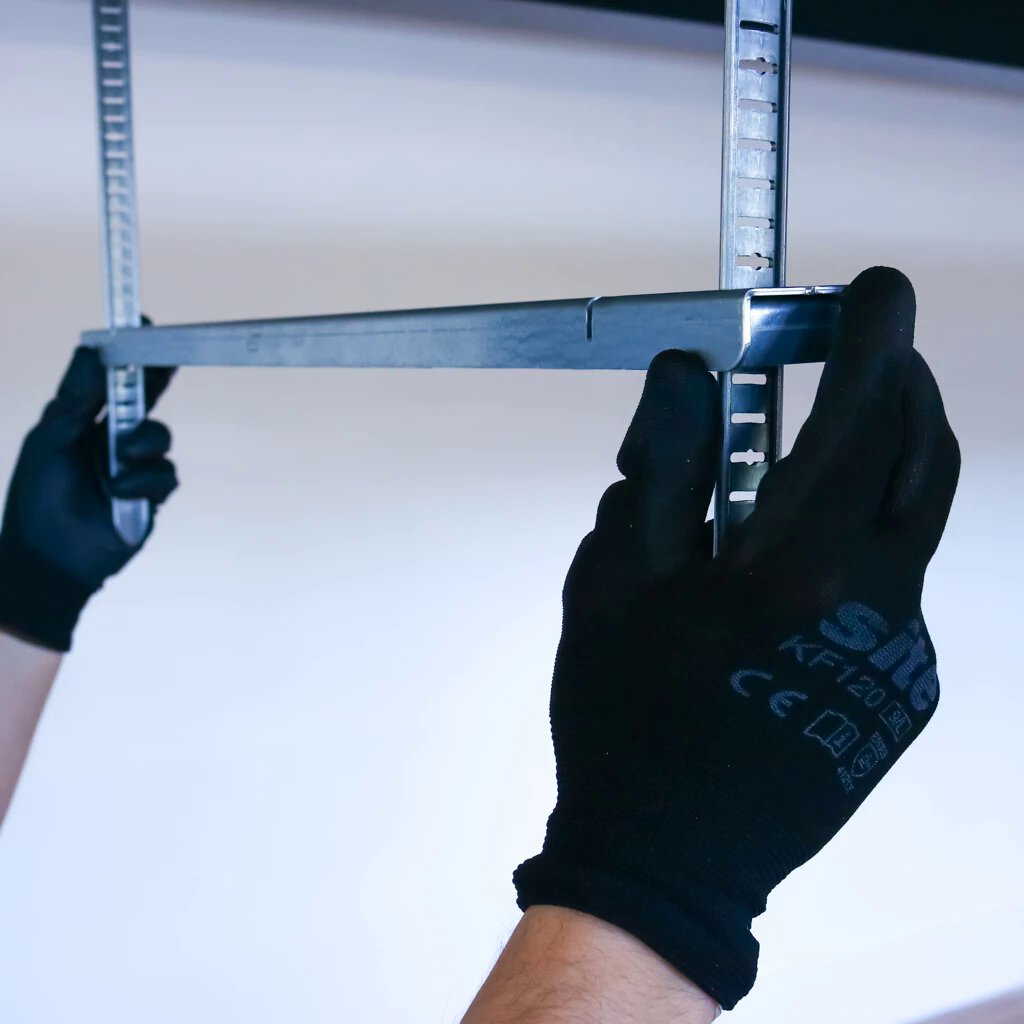

Step 3: Press and hold the Fast Trak cartridges inwards to retract the latches. Locate the track into the cartridge slot and continue to press the cartridge inwards whilst the bracket is lifted to the correct height. When the bracket is at the correct height, release the cartridge to lock the bracket in position.

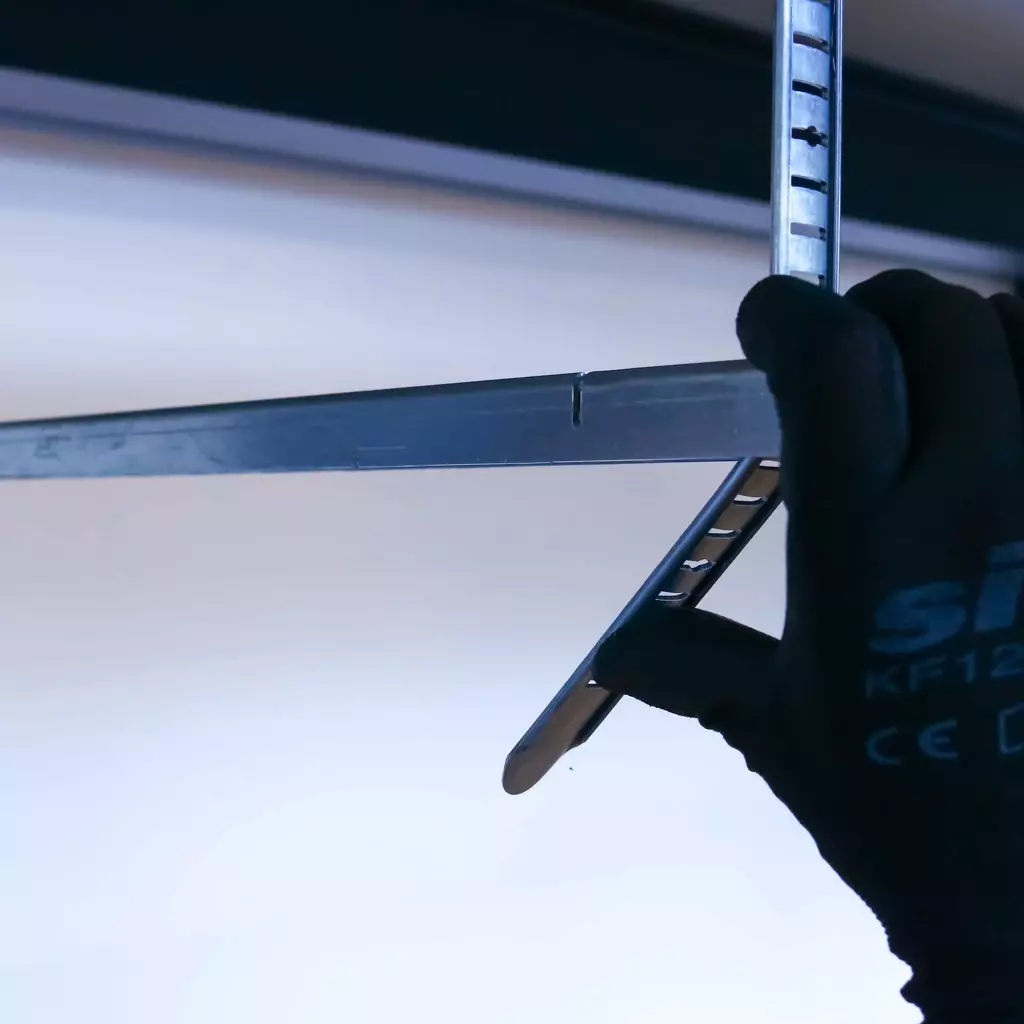

Step 4: Slide the locking button on the cartridge upwards to the lock the bracket in position and finalise the installation. Fold up the excess tracks for a neater finish.

Trusted by the Experts

“We finished installing one VRF system 3 weeks ahead of time, just using Gripple products alone.”
“We finished installing one VRF system 3 weeks ahead of time, just using Gripple products alone.”
David Roseboom, Superintendent | GSM Services
Discover the full case study here
“The guys like it because it’s easy; you don’t need a bunch of tools. In today’s construction industry, everything boils down to TIME. Jobs need to be done faster, faster, and faster. And Gripple Fast Trak helped us do that.”
Josh Larson, Foreman | Parsons Electric
Discover the full case study here

Common Applications

Pipework

Cable Containment

Electrical

Ductwork

Multi-Trade Racks

Pipework

Cable Containment

Electrical

Ductwork

Multi-Trade Racks

Related Products & Accessories

Fast Trak™ – Range

Prefabricated Trapeze Bracket System

Maximum System Load: 440 lbs
Suspension Space: 9″ – 61″
Drop Height Range: 8″ – 59″
View Product

Fast Trak™ – Bracket Cover

Optional accessory to neatly hide suspension cables or tracks to further enhance the aesthetics of Gripple’s bracket suspensions.

View Accessory

Fast Trak™ – Track Protector

An optional end cap designed for protruding Fast Trak tracks to reduce the risk of injury when installing the Fast Trak system.

View Accessory

Fast Trak™ – Standard

Bracketry Suspension System for MEP Services

Max System Load : 440 lbs
Suspension Space: 9″ – 61″
Drop Height Range: 8″ – 59″
View Fixing Variant
Untitled design - 1 Untitled design - 1 Untitled design - 1

Fast Trak™ – Side Load

Side-loaded, bracketry suspension system for MEP services

Max Single Point Load: 33 lbs
Max Uniformly Distributed Load: 66 lbs
Track Lengths: 12″ – 59″
View Fixing Variant

Vibration Dampener Pad

The Vibration Dampener Pad (VDP) is designed for vibration reduction when installing rectangular ducting on Fast Trak™ and Universal Brackets.

View Accessory

Related Downloads

Fast Trak – Low Profile – Technical Data Pack – USA
Fast Trak® Range – Brochure – USA

Frequently Asked Questions

It’s designed to provide reliable low profile trapeze bracket support for services in tight ceiling spaces, offering strength without bulk.

The prefabricated system allows tool-free adjustment and installs up to six times faster than traditional methods, making it perfect for efficient low-level support.

Yes! Its flexible design means you can reposition as needed, without compromising stability or ceiling space.
