Fast Trak™ – Standard Bracketry Suspension System for MEP Services

SKU # FTB, FTT

Fast Trak is our prefabricated, trapeze bracket system, offering fast, flexible, tool-free suspension even in restricted space environments. Designed to replace threaded rod and strut, Fast Trak makes MEP installations faster and safer.

Max System Load

Max System Load :

440 lbs

Suspension Space

Suspension Space:

9" - 61"

Drop Height Range

Drop Height Range:

8" - 59"

Inquire Now

Product Downloads

Fast Trak - Standard (Electrical) - Technical Data Pack - USAFast Trak - Standard (Mechanical & Plumbing) - Technical Data Pack - USA
View all downloads
SKU # FTB, FTT
1
1
1
1
1
1
1

Fast to Install. Simple to Adjust. Built to Last.



Fast Trak® is a game-changing alternative to traditional threaded rod and strut trapeze suspension systems. Designed for speed, safety, and simplicity, it allows you to create trapeze or cantilever brackets in a fraction of the time, no cutting, no-hot works, and no fuss.

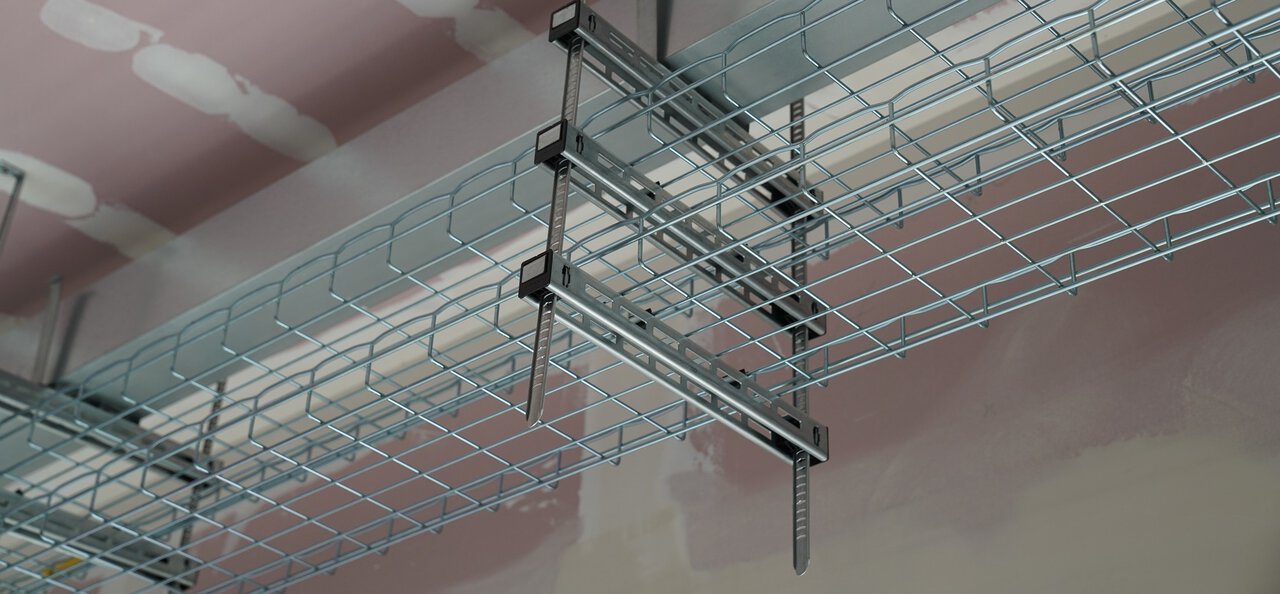

The Fast Trak® Standard system is the core of the Gripple Fast Trak range. A dual track prefabricated trapeze suspension designed for supporting MEP services such as ductwork, pipework,and cable containment.

Each kit includes prefabricated suspension tracks and our patented Smart-Bracket, which locks securely into place with a simple push-button mechanism. The bracket can be adjusted vertically in seconds, with no tools required, and supports working loads up to 440 lbs.

Fast Trak® installs up to six times faster than traditional methods, saving labor time and reducing on-site risk. With no hot works, compact packaging, and fire testing to F120, Fast Trak offers proven safety and reliability.

Read More
Speed of Install

Speed of Install

With no on-site cutting and a simple installation, labor costs are reduced and margins are increased.

Simple to Use

Simple to Use

Designed for ease of use, anyone can install it confidently with minimal training and no specialist tools. It’s intuitive, quick to learn, and ideal for speeding up installs without compromising on quality.

Push-Button Adjustability

Push-Button Adjustability

Patented smart bracket technology allows the user to adjust the bracket to the correct level without the need for tools.

Technical Support Included

Technical Support Included

Access to Gripple technical support from start to finish including project designs, engineering drawings and on-site support if needed.

Easy Storage & Handling

Easy Storage & Handling

Easy-to-handle packaging, reducing the time spent handling and sorting materials on site.

No Cutting Required

No Cutting Required

Fast Trak comes prefabricated and cut to specific lengths ready to install on site, meaning no hot works permit is needed.

Speed of Install

Speed of Install

With no on-site cutting and a simple installation, labor costs are reduced and margins are increased.

Simple to Use

Simple to Use

Designed for ease of use, anyone can install it confidently with minimal training and no specialist tools. It’s intuitive, quick to learn, and ideal for speeding up installs without compromising on quality.

Push-Button Adjustability

Push-Button Adjustability

Patented smart bracket technology allows the user to adjust the bracket to the correct level without the need for tools.

Technical Support Included

Technical Support Included

Access to Gripple technical support from start to finish including project designs, engineering drawings and on-site support if needed.

Easy Storage & Handling

Easy Storage & Handling

Easy-to-handle packaging, reducing the time spent handling and sorting materials on site.

No Cutting Required

No Cutting Required

Fast Trak comes prefabricated and cut to specific lengths ready to install on site, meaning no hot works permit is needed.

How it Works:

Installing Fast Trak Standard – quick, simple and safe. See how it works below, or download the full technical data pack for more details.

 Download the Technical Data Pack

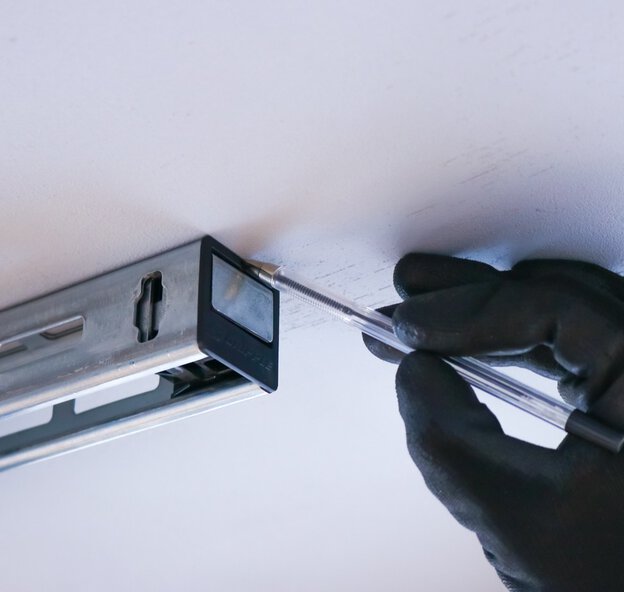

Step 1: Using the marking indentations on the ends of the Fast Trak cartridge, mark the fixing point location for the vertical drops.

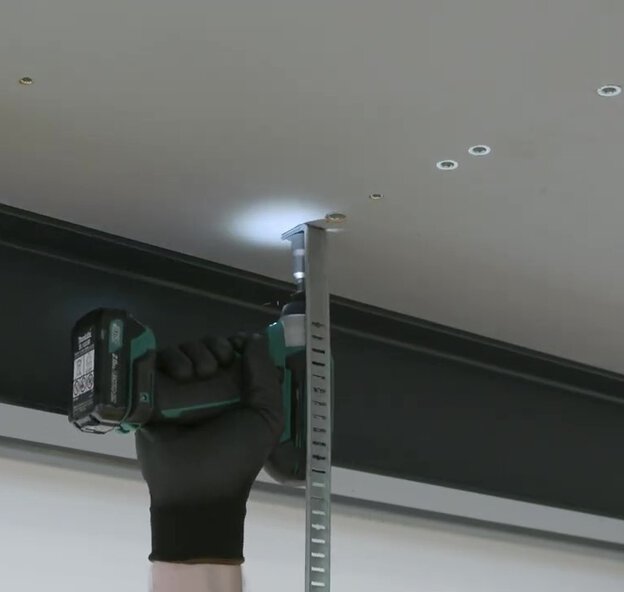

Step 2: Use the screws provided to fix the tracks to the soffit, ensuring that the tracks are facing outwards.

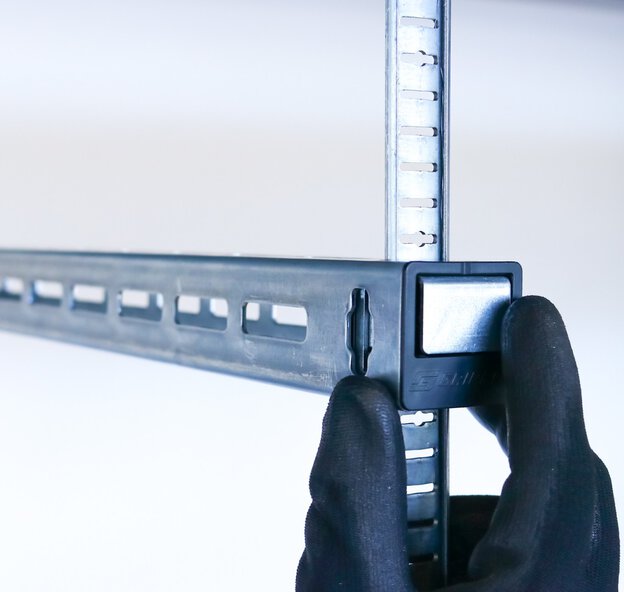

Step 3: Press and hold both of the Fast Trak cartridges inwards simultaneously to retract the latches.

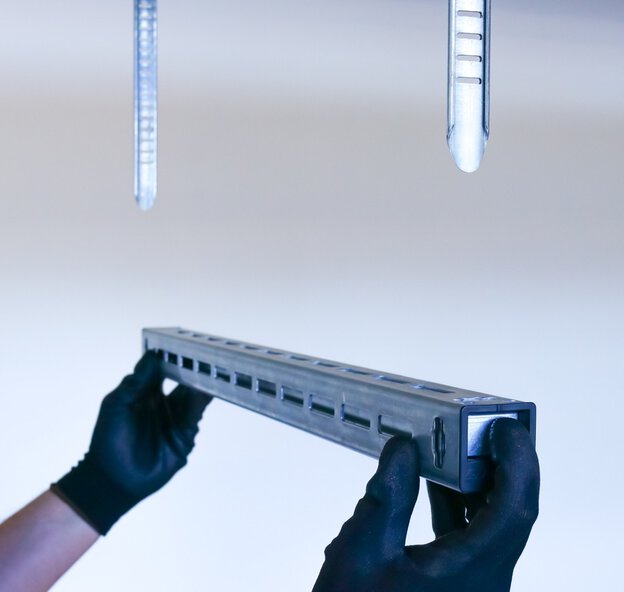

Step 4: Locate the tracks into the cartridge slots. Continue to press the cartridges inwards whilst the bracket is lifted to the correct height. When the bracket is at the correct height, release the cartridges to lock it in position.

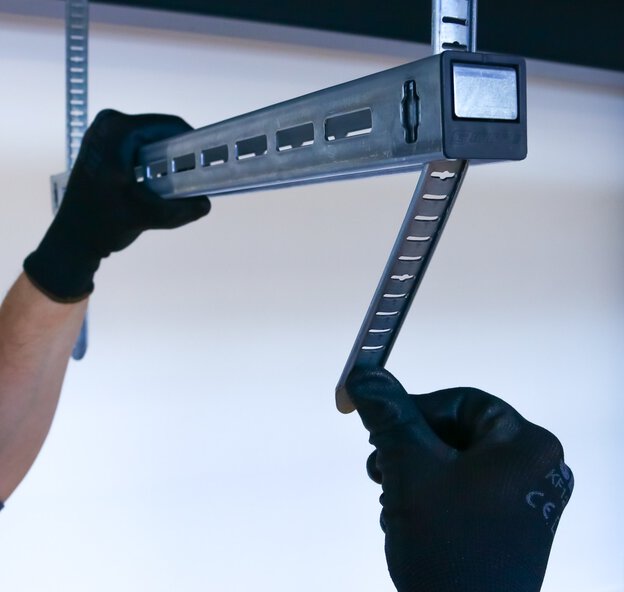

Step 5: Fold any track which extends below the bracket inwards and up underneath the bracket for a flush finish.

Range Variants

Our Fast Trak Standard system is available with a range of track lengths for different suspension drops, and bracket widths to allow for suspension of a range of services.

Fast Trak Bracket and Track Sizes:

FTB-9IN FTB-13IN FTB-17IN FTB-21IN FTB-25IN FTB-29IN FTB-33IN FTB-37IN FTB-41IN FTB-45IN FTB-49IN FTB-53IN FTB-58IN FTB-61IN
Length (in) 9.25 13.19 17.13 21.06 25.2 29.1 33.0 36.81 40.75 44.69 48.62 52.56 56.5 60.43
Suspension Space 7.6 11.5 15.5 19.4 25.3 27.3 31.2 35.1 39.1 43.0 47.0 50.9 54.8 58.8
Working Space 5.5 9.4 13.4 17.3 21.3 25.2 29.1 33.1 37.0 40.9 44.9 48.8 52.8 56.7
No. Slots 3 5 7 9 11 13 15 17 19 21 23 25 27 29
FTT-200 FTT-300 FT-400 FTT-500 FTT-600 FTT-700 FTT-800
Track Length (mm) 200 300 400 500 600 700 800
FTT-900 FTT-1000 FT-1100 FTT-1200 FTT-1300 FTT-1400 FTT-1500
Track Length (mm) 900 1000 1100 1200 1300 1400 1500

Fast Trak Load Ratings:

Bracket (‘n’ orientation) Bracket (‘n’ orientation) Bracket (‘c’ orientation) Bracket (‘c’ orientation)
Load Rating 220 lbs (FTB-9IN to FTB-61IN) 440 lbs (FTB-9IN to FTB-53IN)
385 lbs (FTB-61IN)		 150 lbs (FTB-9IN to FTB-61IN) 285 lbs (FTB-9IN to FTB-61IN)
Safety Factor Single Point Load @ 3:1 Uniformly Distributed Load @ 3:1 Single Point Load @ 3:1 Uniformly Distributed Load @ 3:1

Trusted by the Experts

“We finished installing one VRF system 3 weeks ahead of time, just using Gripple products alone.”
“We finished installing one VRF system 3 weeks ahead of time, just using Gripple products alone.”
David Roseboom, Superintendent | GSM Services
Discover the full case study here
“The guys like it because it’s easy; you don’t need a bunch of tools. In today’s construction industry, everything boils down to TIME. Jobs need to be done faster, faster, and faster. And Gripple Fast Trak helped us do that.”
Josh Larson, Foreman | Parsons Electric
Discover the full case study here

Related Products & Accessories

FlexiStak™

Adjustable Suspension Solution for VRF and Piping

Safe Working Load: 75 lbs (3:1 Safety Factor)
Suspension Lengths: 8″ – 59″
Usable Width: 3″
View Product

Fast Trak™ J-Hook

Cable Routing & Support

Maximum No. of Cables: 90
Safe Working Load: 11 lbs (3:1 Safety Factor)
Wire Material: Steel-HS3 Wire
View Product

Fast Trak™ – Track Protector

An optional end cap designed for protruding Fast Trak tracks to reduce the risk of injury when installing the Fast Trak system.

View Accessory

Fast Trak™ – Metal Decking Adaptor

Versatile adaptor that can be used in conjunction with Gripple Fast Trak system and a range of decking wedges to assist in the suspension of Gripple products into any metal decking type.

View Accessory

Fast Trak™ – Bracket Cover

Optional accessory to neatly hide suspension cables or tracks to further enhance the aesthetics of Gripple’s bracket suspensions.

View Accessory

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 170 lbs
Maximum Pipe Diameter: 6″
Noise Reduction: > 23 dB (depending on variant)
View Product

Gripple Clamp for Strut (GCS)

Universal Adjustable Pipe Clamp

Maximum Pipe Outside Diameter: 12”
Safe Working Load (Above Mount/Racked): 850 lbs
Safe Working Load (Below Mount)*: 120 lbs *Not Applicable to GCS-Extended Strap
View Product

Vibration Dampener Pad

The Vibration Dampener Pad (VDP) is designed for vibration reduction when installing rectangular ducting on Fast Trak™ and Universal Brackets.

View Accessory

Common Applications

Cable Containment

Electrical

Mechanical

Cable Containment

Electrical

Mechanical

Downloads

Fast Trak – Standard (Mechanical & Plumbing) – Technical Data Pack – USA
Fast Trak® Range – Brochure – USA
Electrical Solutions Brochure – USA

Frequently Asked Questions

Fast Trak Standard is a prefabricated, bracket-based suspension system designed for faster, tool-free installation of electrical containment, ductwork, pipework, and other MEP services. It replaces traditional channels and threaded rod solutions.

Brackets: From 9″ – 61″ in length

Tracks: From 8″ – 59″ vertical height

Multiple size combinations are available to suit different project layouts.

Yes. Fast Trak is suitable for ceiling suspension and underfloor applications (up to 12″ track length). Wall mounting is possible, though deflection limits apply.

The bracket system allows for tool-free, click-and-lock adjustment, enabling installation up to six times faster than traditional methods. Pre-cut components also eliminate the need for cutting, grinding, or filing on site.

Yes. It is compatible with standard M8/M10 channel nuts and most 1.5″ channel accessories. However, channel covers may not fit due to the four-sided design of the bracket.

Absolutely. Tracks are designed to bend and tuck behind the bracket, and any short excess (<3 inches) can be snapped off by hand. No cutting tools are required.

Yes. Fast Trak’s stackable, four-sided bracket is ideal for multi-tier, modular, and prefabricated systems. It allows for quick assembly and reduces space during transport.

Installation guides, load tables, Revit files, fire-rated test data, and design resources are available on www.gripple.com or through your My Gripple account. Technical support is also available from Gripple’s in-house engineering team.
