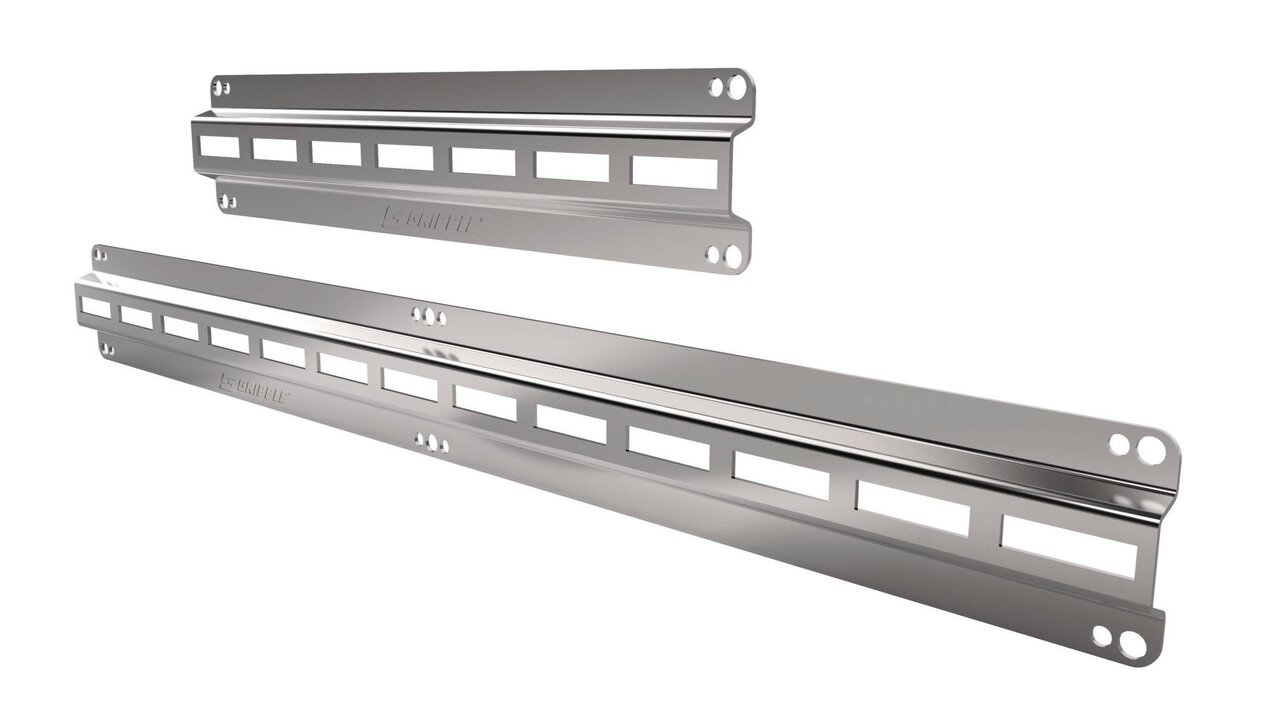

Low Profile Bracket (Header Rail) Direct Fix Header Rail or Pipe Clamp Bracket

SKU # LPB250, LPB650, LPB950, LPB1250

Designed for the quick and easy support of pipework, compatible with the Gripple Pipe Clamp range.

Maximum Uniform Load

Maximum Uniform Load :

330 lbs

Pre-cut Size Range

Pre-cut Size Range:

1 ft - 4 ft

Inquire Now

Product Downloads

Low Profile Bracket - Technical Data Pack - USA
SKU # LPB250, LPB650, LPB950, LPB1250
1
1
1
1
1

Low Profile. High Impact.

The Gripple Low Profile Bracket is a smarter alternative to traditional strut for supporting building services. This low profile clamping-system attaches directly to walls or ceilings with minimal protrusion (less than 5/8”), making it ideal for compact spaces. Pre-cut to length, it speeds up installation, reduces waste, and eliminates the need for hot works permits.

Compatible with Gripple Quarter Turn Pipe Clamps, it enables rapid, tool-free installation of pipework, ductwork, HVAC equipment, cable containment, and busbars. Despite its slim design, this low profile pipe clamp solution can support uniform loads up to 330 lbs and is fire tested for safety.

Choose Gripple’s Low Profile Bracket for a lightweight, efficient Pipe Header Rail system that keeps your services neat, secure, and easy to access.

Read More
Quick To Install

Quick To Install

Brackets are pre-cut to eliminate the need for hot-works permits and cutting channel on site.

Compatible

Compatible

Specifically designed to work with the Gripple pipe clamp range and available in two sizes.

Fire Tested

Fire Tested

Fire Rated by Exova. Get in touch with our technical team for more details on how temperatures may affect performance.

Low Profile Design

Low Profile Design

Ideal for compact spaces and discreet aesthetics with a less than 5/8” depth

Strong Performance

Strong Performance

Max working loads of 330 lbs

Technical Support

Technical Support

Speak to our expert technical team for installation advice and services such as site drawings and project take-offs.

Quick To Install

Quick To Install

Brackets are pre-cut to eliminate the need for hot-works permits and cutting channel on site.

Compatible

Compatible

Specifically designed to work with the Gripple pipe clamp range and available in two sizes.

Fire Tested

Fire Tested

Fire Rated by Exova. Get in touch with our technical team for more details on how temperatures may affect performance.

Low Profile Design

Low Profile Design

Ideal for compact spaces and discreet aesthetics with a less than 5/8” depth

Strong Performance

Strong Performance

Max working loads of 330 lbs

Technical Support

Technical Support

Speak to our expert technical team for installation advice and services such as site drawings and project take-offs.

Range Variants

The bracket is provided in pre-cut lengths, in sizes ranging from 1 to 4ft/250 mm to 1550 mm. Please note, the load ratings provided below is at ambient temperatures.

Product Width Load Rating
 Safety Factor
Low Profile Bracket
(Header Rail)
 1ft-2ft/
250 mm – 850 mm 		330lbs/150kg 5:1
Low Profile Bracket
(Header Rail)
 3ft-4ft/
950 mm – 1550 mm		 330lbs/150kg 5:1

Frequently Bought With

Quarter Turn Trunking Clamp

Trunking Clamp for Gripple Brackets

Safe Working Load: Up to 110 lbs
Sizes available: 2×2″, 3×3″, 4×4″ and 5×5″
Gripple Bracket Compatibility: Fast Trak, Universal Bracket and Low Profile Bracket
View Product

Quarter Turn Conduit Clamp

Conduit Clamp for Gripple Brackets

Safe Working Load: 230 lbs
Conduit Compatibility: from 3/4″ to 3.5″
QT Bracket Compatibility: Fast Trak, Universal and Low Profile Gripple Brackets
View Product

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 170 lbs
Maximum Pipe Diameter: 6″
Noise Reduction: > 23 dB (depending on variant)
View Product

QT Accessory

Enables pipes to be installed at varying heights from the bracket; ideal for instances where different sized pipes require aligning along the center axis. For use with M8 rod and the Gripple Universal Clamp.

View Accessory

CT Clip

Developed for the quick fastening of cable tray to Gripple Brackets and Fast Trak Brackets.

View Accessory

Vibration Dampener Pad

The Vibration Dampener Pad (VDP) is designed for vibration reduction when installing rectangular ducting on Fast Trak™ and Universal Brackets.

View Accessory

CB Clip

Developed for the quick fastening of cable basket to Gripple Brackets, Fast Trak Brackets and G Brackets.

View Accessory

Universal Clamp QT – (Quarter Turn Height Adjustable)

Height Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm
Noise Reduction: > 23 dB (depending on variant)
View Product

Common Applications

Pipework Suspension

Ductwork Suspension

Cable Containment

Pipework Suspension

Ductwork Suspension

Cable Containment

“The Low Profile Brackets and Compact Clamps were easy to move on-site, and quick to install. The speed of the installation for the M&E services was ideal for this type of build – a busy city centre location and a site which need to be completed quickly and on time”

Supervisor, Castle Building Service – Vita Student Accommodation

Downloads

Low Profile Bracket – Technical Data Pack – USA
Construction Product Guide – Brochure – USA

Frequently Asked Questions

Yes. The low profile clamping-system is ideal for suspending ductwork, cable containment, HVAC equipment, and pipework. It’s pre-cut and ready to install, reducing onsite preparation.

Unlike traditional pipe header rails, the Gripple Low Profile Bracket is lighter, pre-cut to size, and allows faster installation of low profile piping clamps without hot works or extra cutting.

Yes. With its slim design under 5/8”/15 mm depth, the Gripple Low Profile Bracket is perfect for tight areas. It provides a secure, low profile clamping-system ideal for compact installations where traditional strut won’t fit.
