UniGrip – Phenolic Adaptor Push-Fit Duct Hanger

SKU # UG2-PA

UniGrip Phenolic Adaptor is the custom suspension solution for phenolic and PIR ductwork, installed in seconds with a secure push-fit.

Safe Working Load

Safe Working Load:

33 lbs

Cable Compatibility

Cable Compatibility:

5/64"

Suspension Drop Lengths

Suspension Drop Lengths:

5 - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Phenolic Adapter - Technical Data Pack - USA
View all downloads
UniGrip – Phenolic Adaptor Push-Fit Duct Hanger
SKU # UG2-PA
1
1
1
1

Purpose-Built for Phenolic and PIR Ductwork

UniGrip Phenolic Adaptor is designed specifically for attaching to phenolic and PIR fabricated rectangular ductwork.

Its push-fit design enables fast, tool-free installation directly into the duct surface or bracket, making it ideal for tight timelines and clean installs. It also supports vapor sealing using aluminum tape, ensuring airtight performance where needed.

When you’re working on ductwork, UniGrip Phenolic Adaptor delivers a reliable, easy-to-install suspension solution.

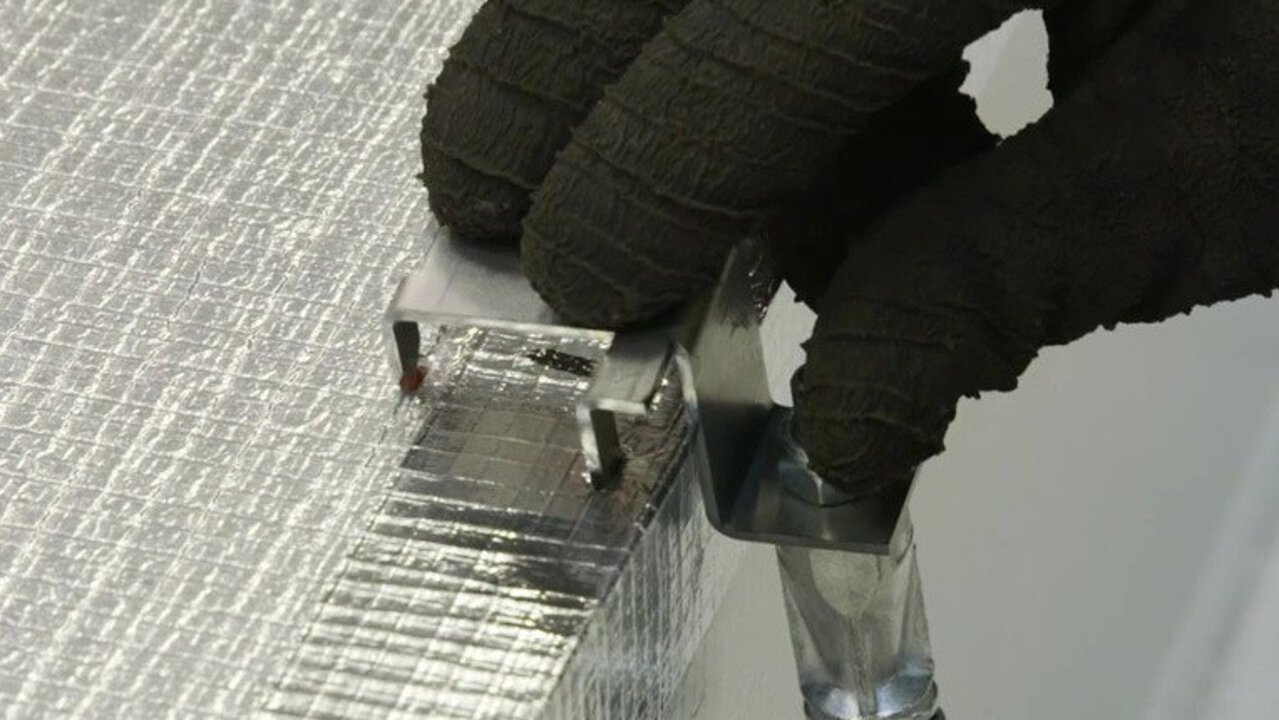

Push Fit Duct Installation

Push Fit Duct Installation

Quickly attach to phenolic ductwork with an easy push fit install.

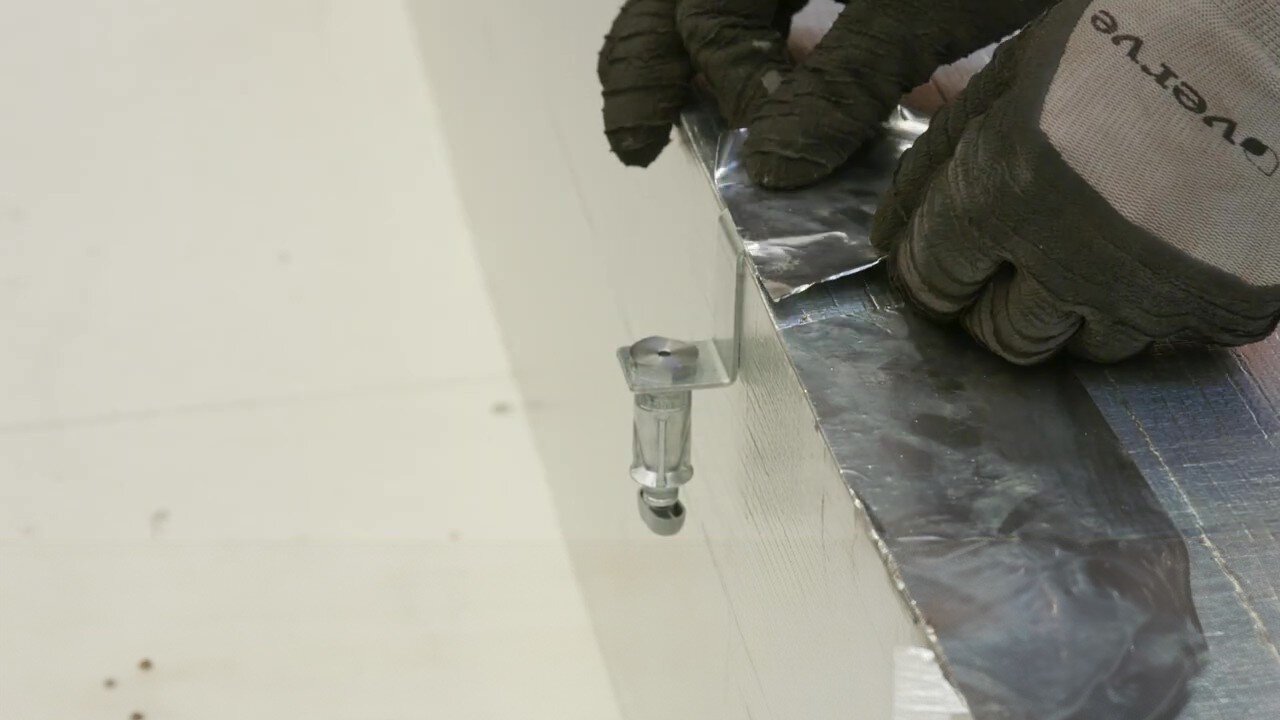

Vapor Sealed

Vapor Sealed

Simply apply aluminum tape over the fixing for a reliable vapor seal.

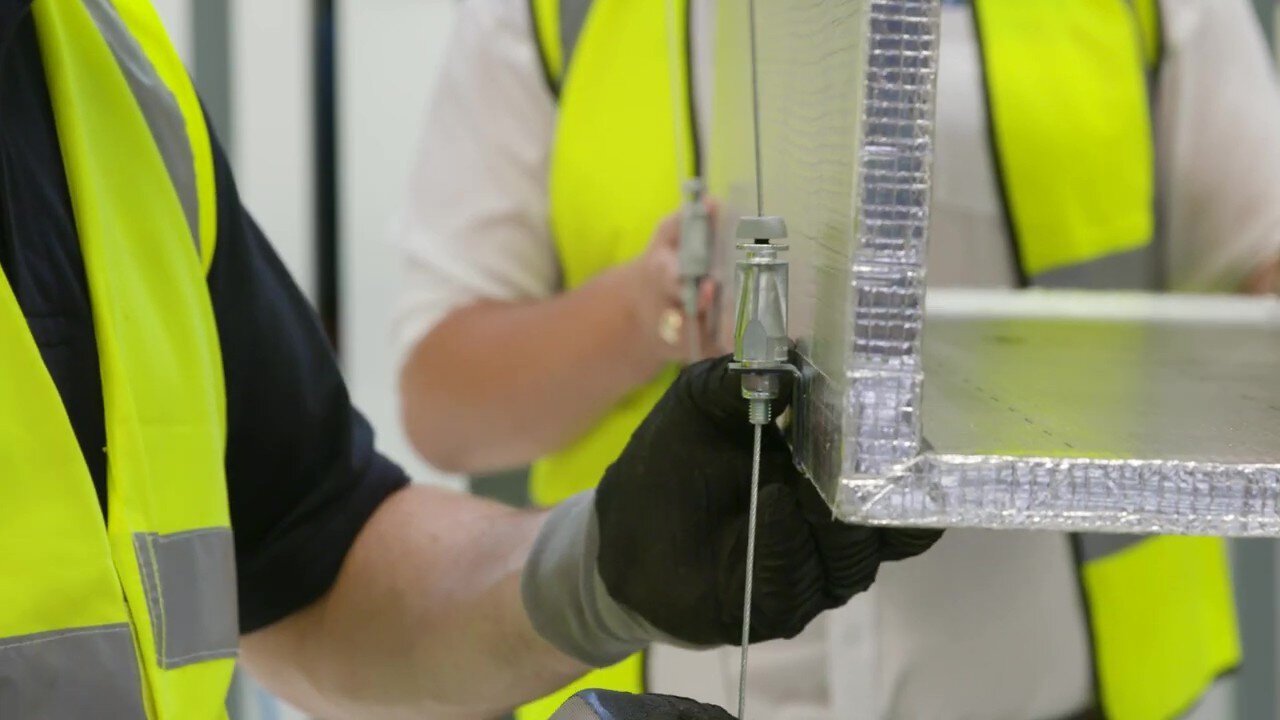

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take offs, on-site inspections, training, and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Push Fit Duct Installation

Push Fit Duct Installation

Quickly attach to phenolic ductwork with an easy push fit install.

Vapor Sealed

Vapor Sealed

Simply apply aluminum tape over the fixing for a reliable vapor seal.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take offs, on-site inspections, training, and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

How it Works:

See how our UniGrip Phenolic Adaptor works below or download the Technical Data Pack for full installation guidance.

 UniGrip Phenolic Adapter – Technical Data Pack – USA

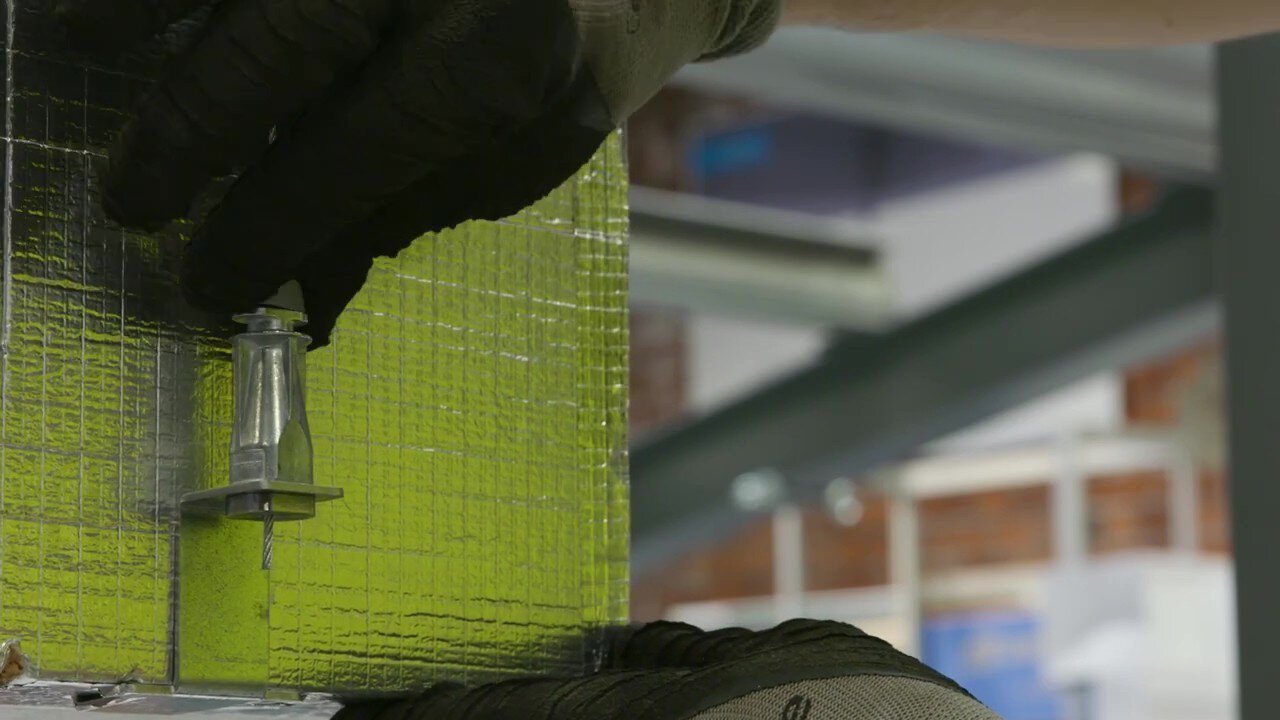

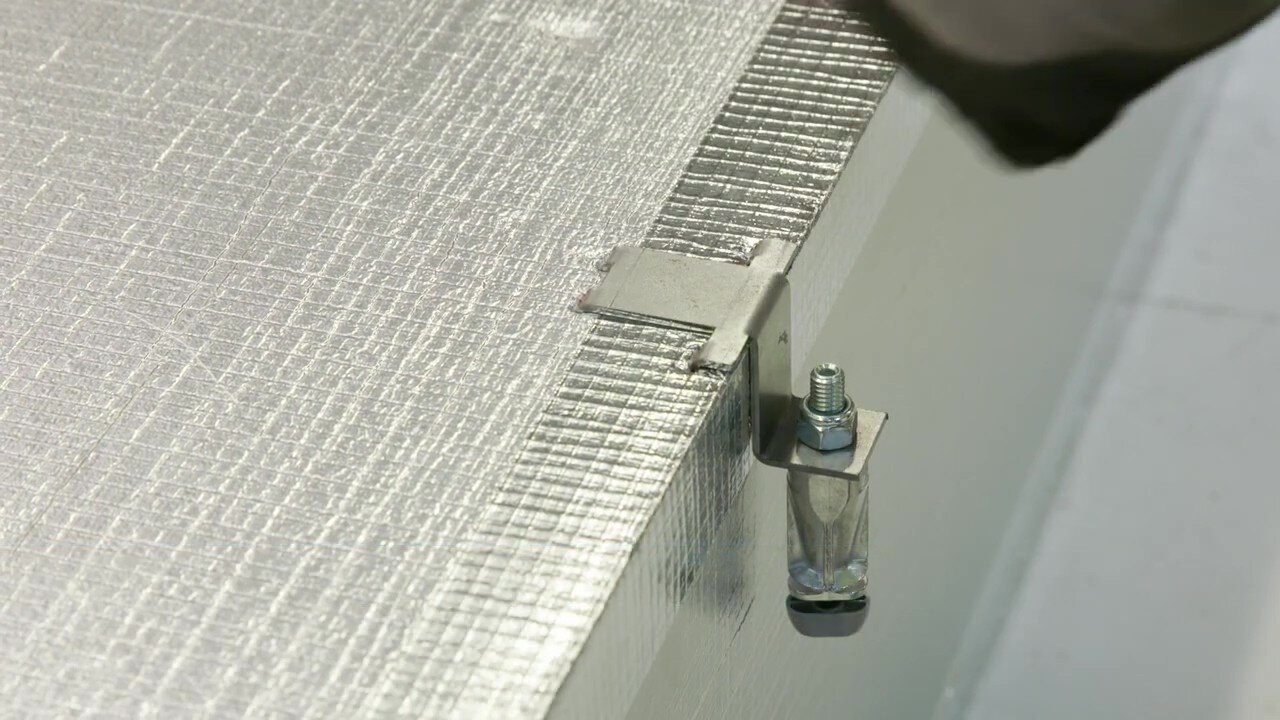

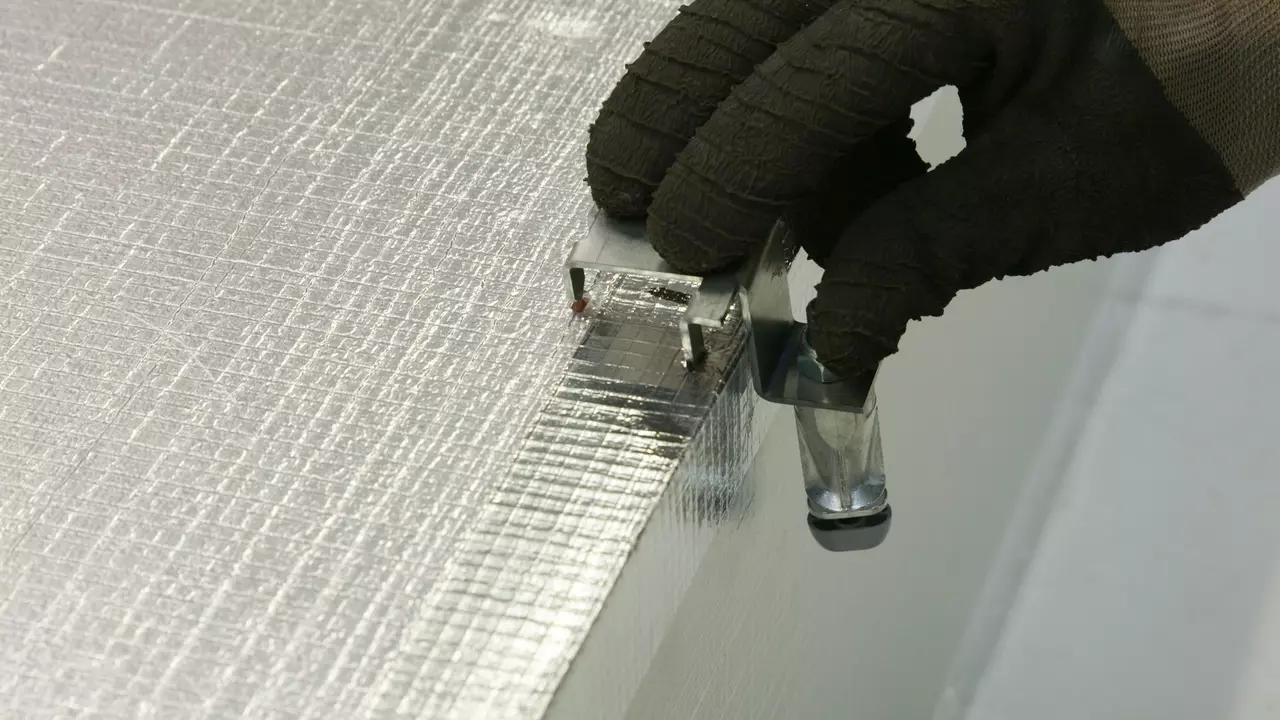

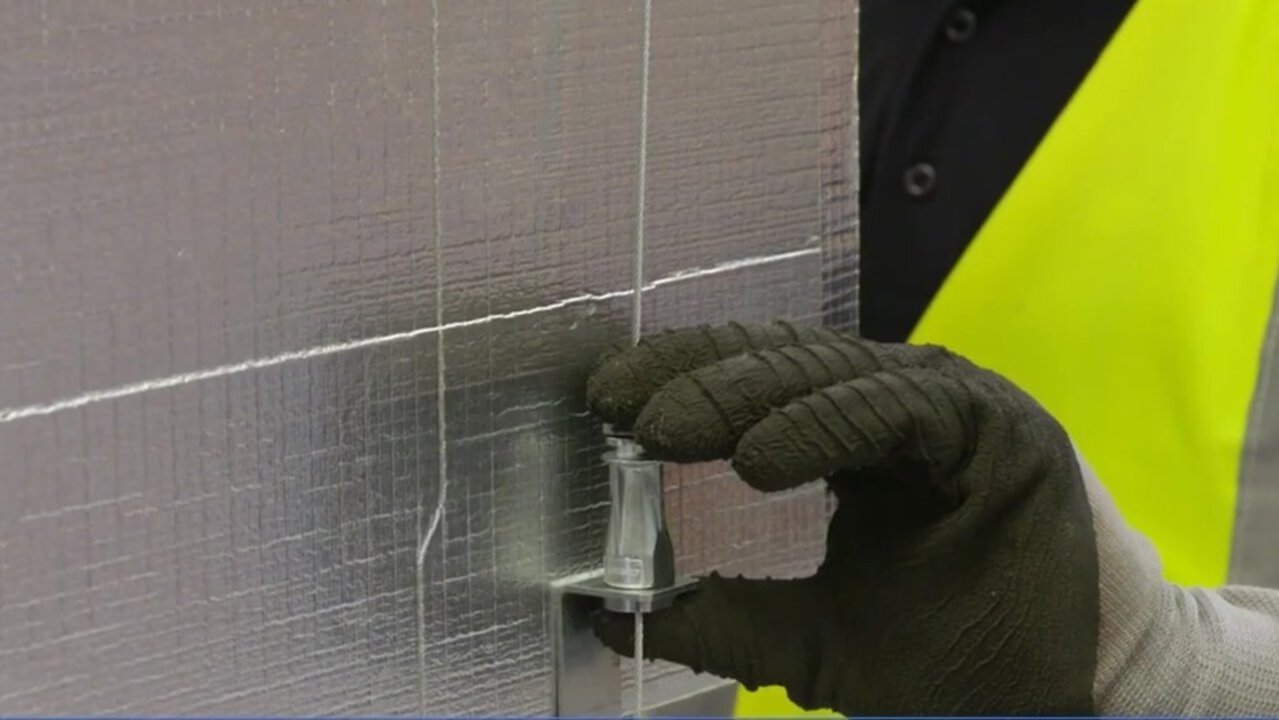

1, Push-fit each fixing directly into the duct.

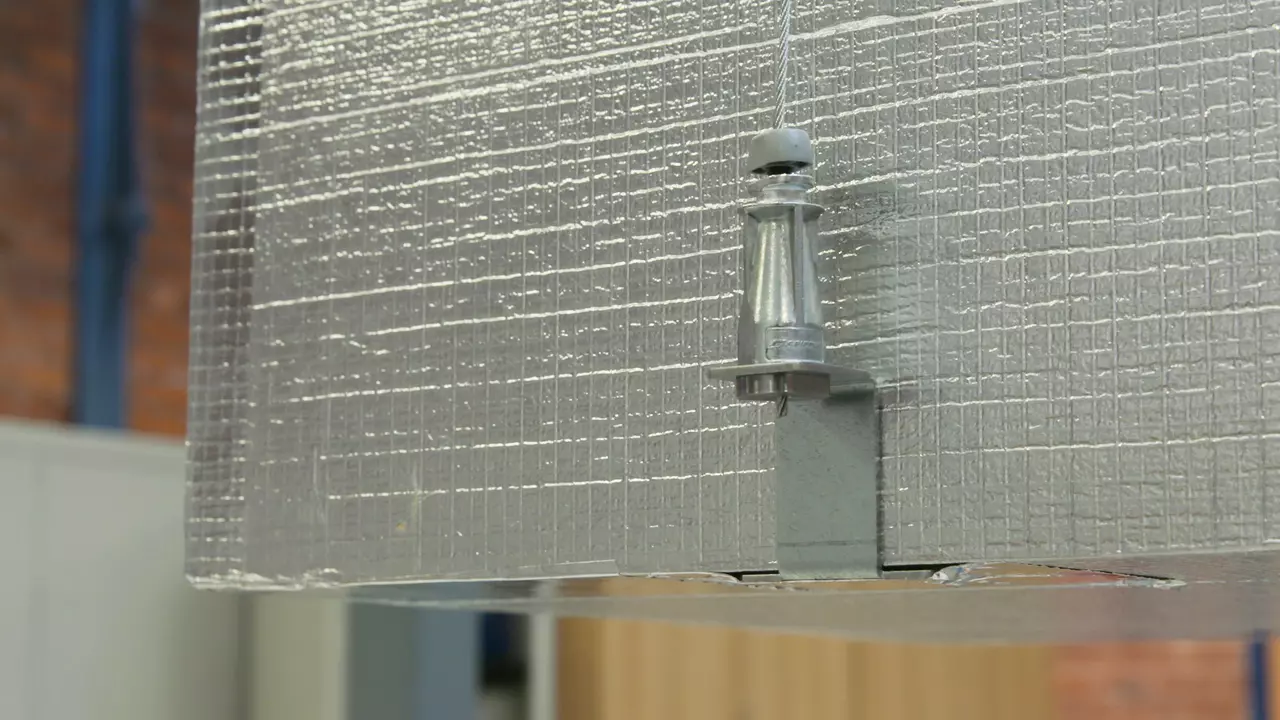

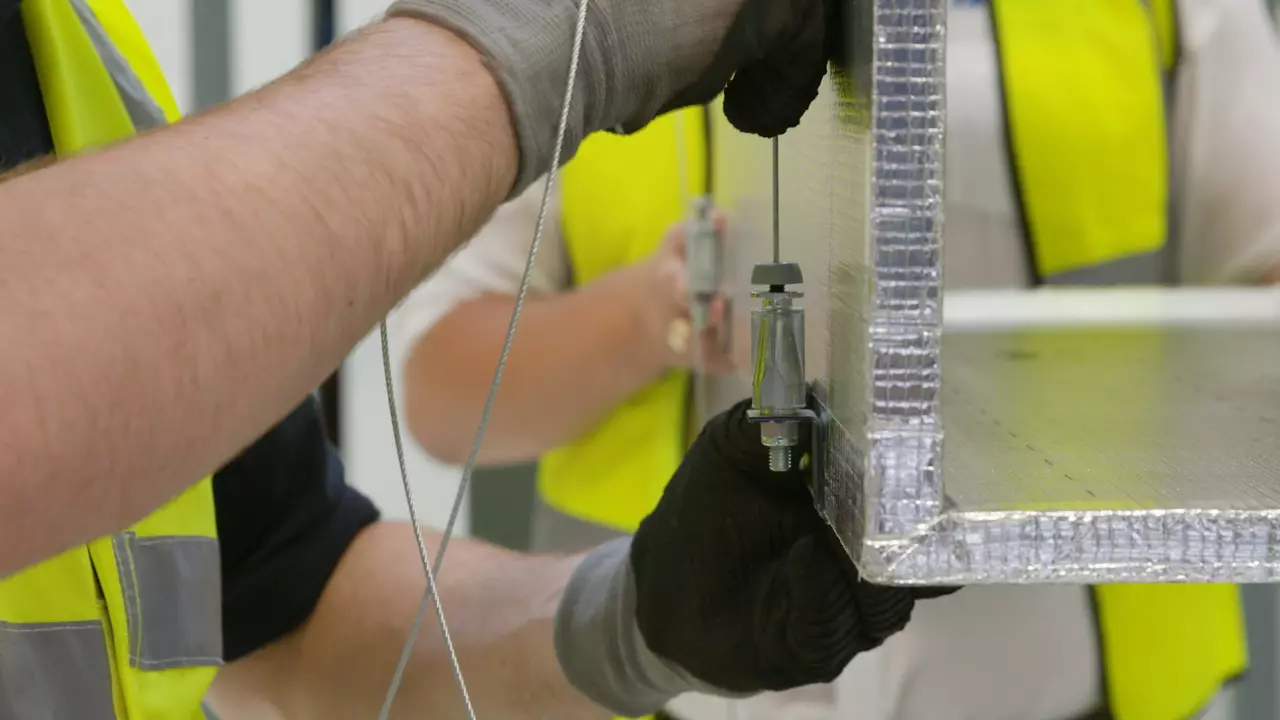

2. Feed the cable into the entry channel at the top of the UniGrip and then back out of the other side, leaving at least 3 inches. This then grips and locks the cable in place.
3. Push down the end cap to allow adjustment up and down the cable.

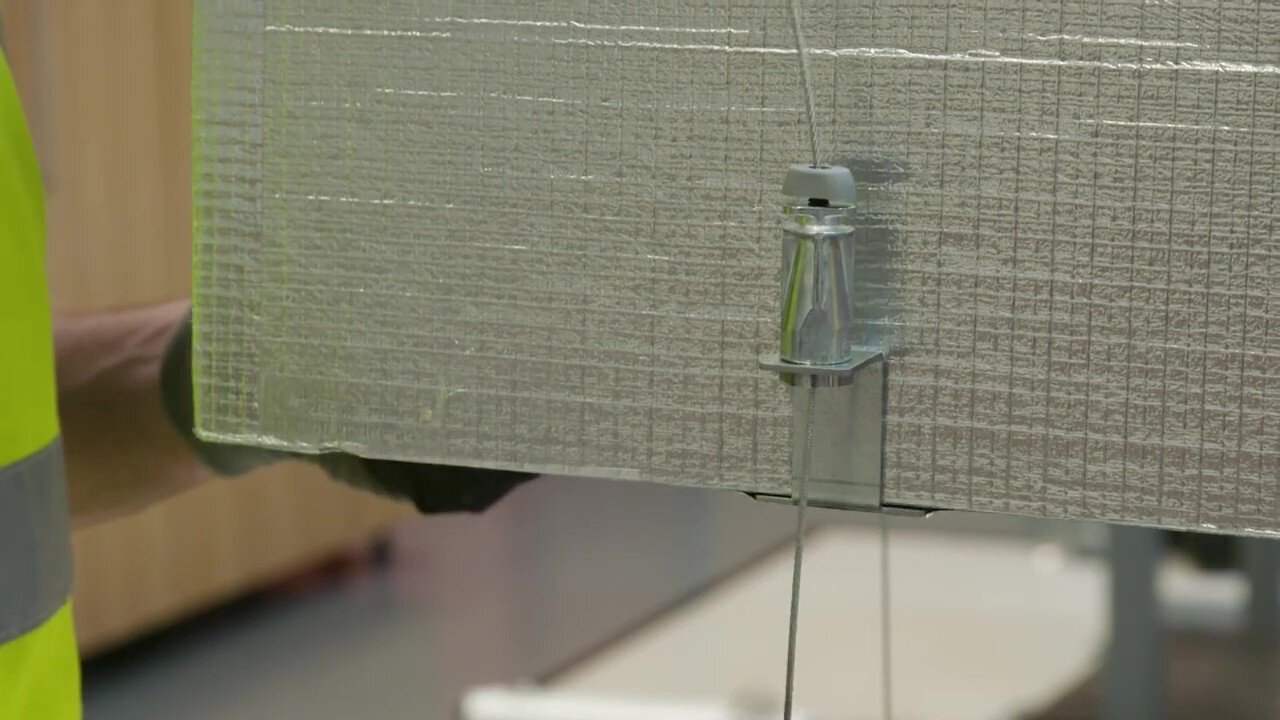

4. Screw down the top end cap to prevent accidental adjustment once installed.

Ready To Install
Suspension Kit

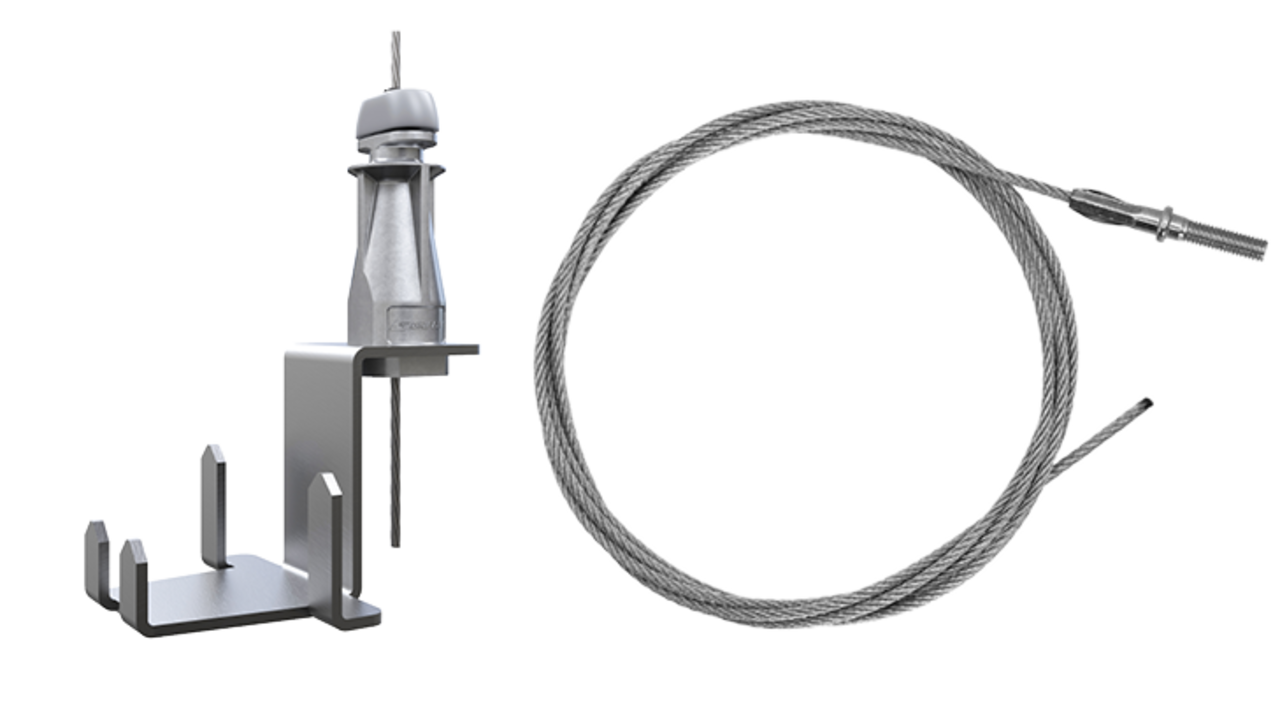

We supply UniGrip Phenolic Adaptor hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Cable
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

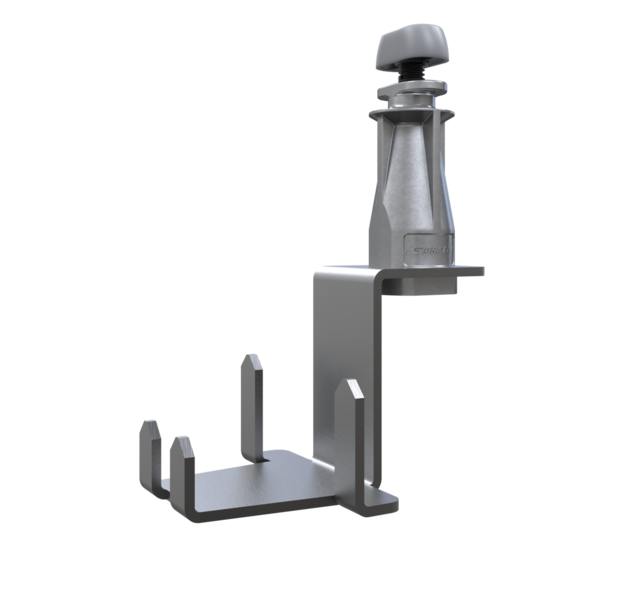

UniGrip Phenolic Adaptor

UniGrip Phenolic Adaptor is the specialist suspension solution for phenolic and PIR ductwork, installed in seconds with a secure push-fit.

  • Safe Working Load: 33 lbs
  • Wire Compatibility: 5/64″
  • Suspension Drop Lengths: 5 – 30 ft (custom lengths available on request)
