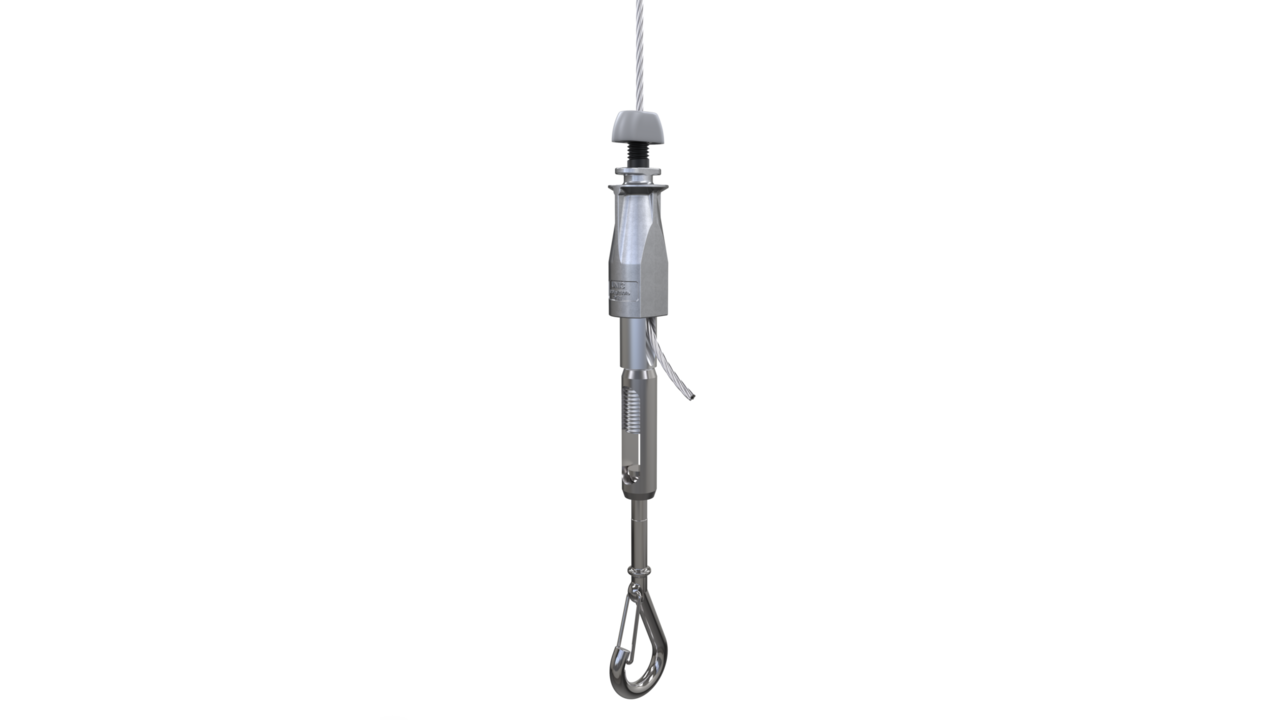

UniGrip – Calibra Adjustable Under-Load Hanger

SKU # UG2-CAL

UniGrip Calibra is the precision-engineered suspension solution with built-in vertical adjustment and a quick-fit hook ideal for suspended services.

Safe Working Load

Safe Working Load:

120 lbs

Cable Compatibility

Cable Compatibility:

5/64"

Suspension Drop Lengths

Suspension Drop Lengths:

5 ft - 30 ft (custom lengths available on request)

Inquire now

Product Downloads

UniGrip Calibra - Technical Data Pack - USA
View all downloads
UniGrip – Calibra Adjustable Under-Load Hanger
SKU # UG2-CAL
1

Precision Suspension with Built-In Adjustability

UniGrip Calibra is designed for installers who demand flexibility and control. Featuring a pre-attached hook for rapid, tool-free connection to eyebolts or suspended equipment, Calibra simplifies even the most complex installations. Its standout feature? A unique built-in mechanism that allows up to 1.37″ (35 mm) of vertical adjustment while under load, making fine-tuning effortless and safe.

Supplied in compact kits with pre-cut, fused cable and your choice of pre-attached end fixing, Calibra is ready to go straight from the box. Whether you’re suspending HVAC units or electrical containment, UniGrip Calibra delivers smarter, faster, and more precise suspension every time.

Read More
Fine-tune with confidence

Fine-tune with confidence

UniGrip Calibra’s built-in mechanism allows up to 1.37" (35 mm) of vertical adjustment, even while under load—so you can make precise changes without disassembling

Fast, Tool-Free Connection

Fast, Tool-Free Connection

The pre-fitted hook enables instant attachment to eyebolts or suspended equipment, cutting down installation time.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training, and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height, and when you're done, just screw it down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying complian

Fine-tune with confidence

Fine-tune with confidence

UniGrip Calibra’s built-in mechanism allows up to 1.37" (35 mm) of vertical adjustment, even while under load—so you can make precise changes without disassembling

Fast, Tool-Free Connection

Fast, Tool-Free Connection

The pre-fitted hook enables instant attachment to eyebolts or suspended equipment, cutting down installation time.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or other methods–even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training, and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height, and when you're done, just screw it down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying complian

How it works:

See how our UniGrip Calibra works below or download the Technical Data Pack for full installation guidance

 UniGrip Calibra – Technical Data Pack – USA

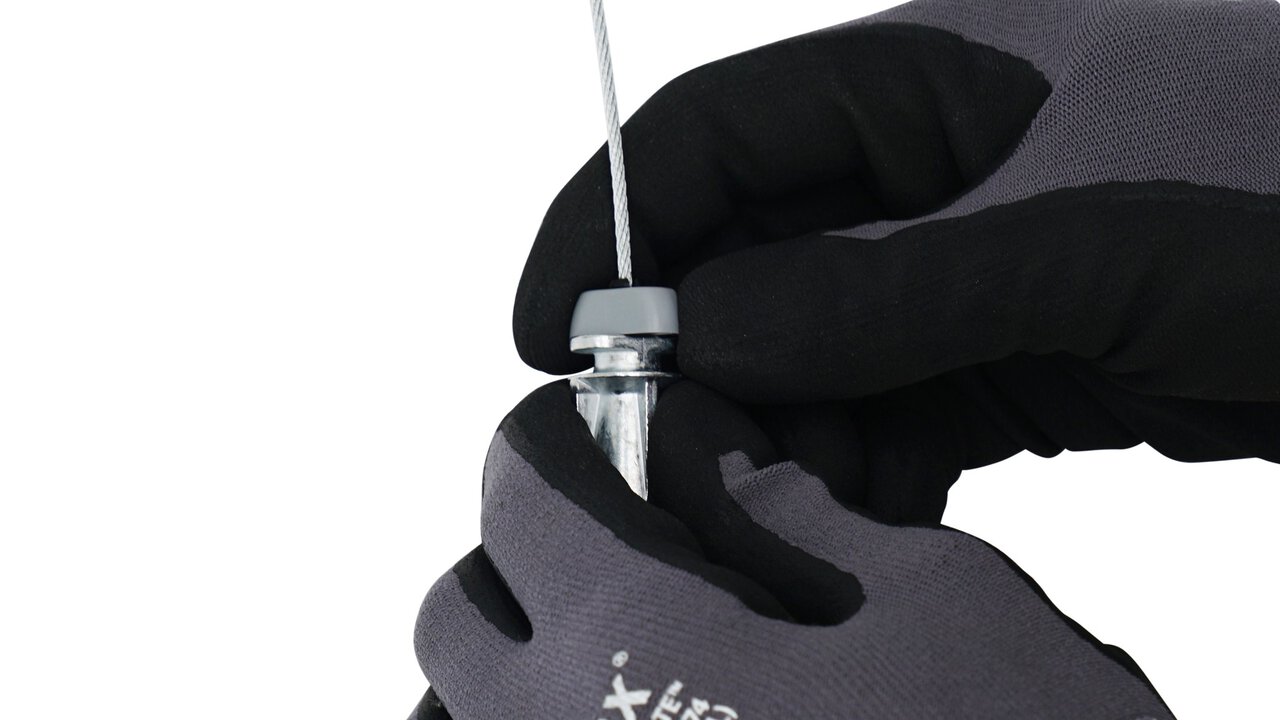

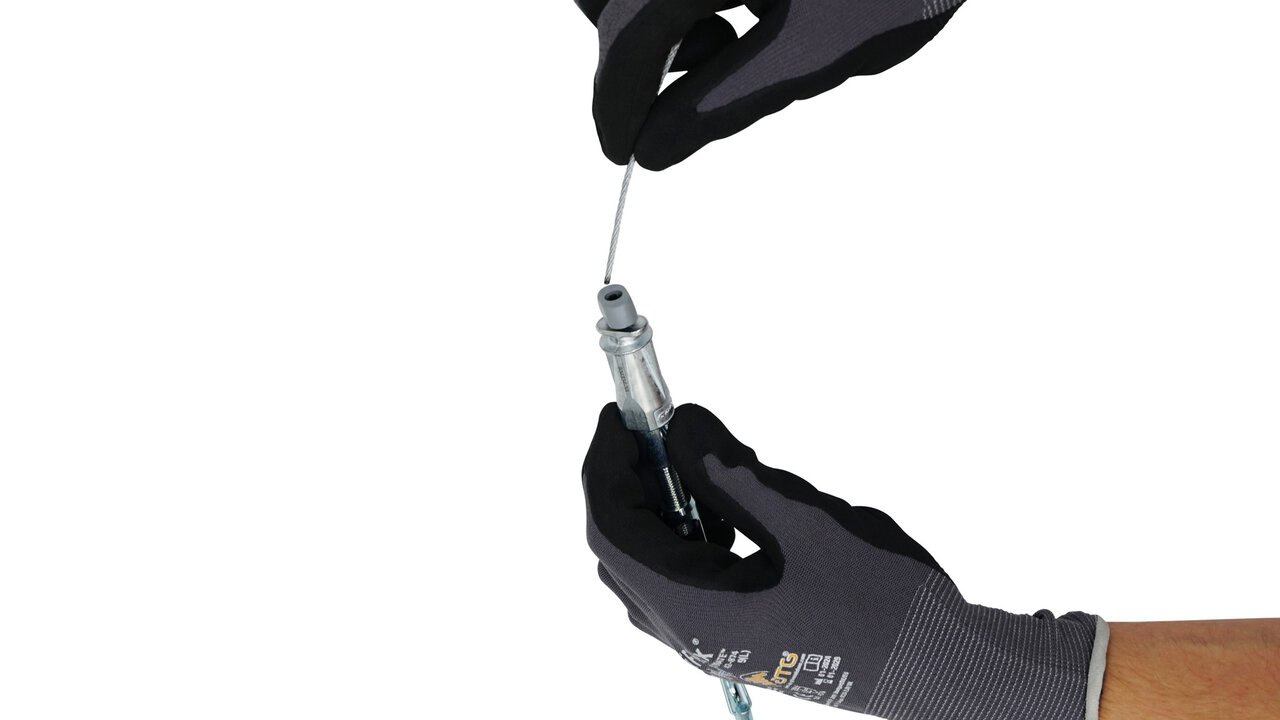

Step 1: Feed the cable into the entry channel at the top of the UniGrip and then back out of the other side
Step 2: This then grips and locks the cable in place

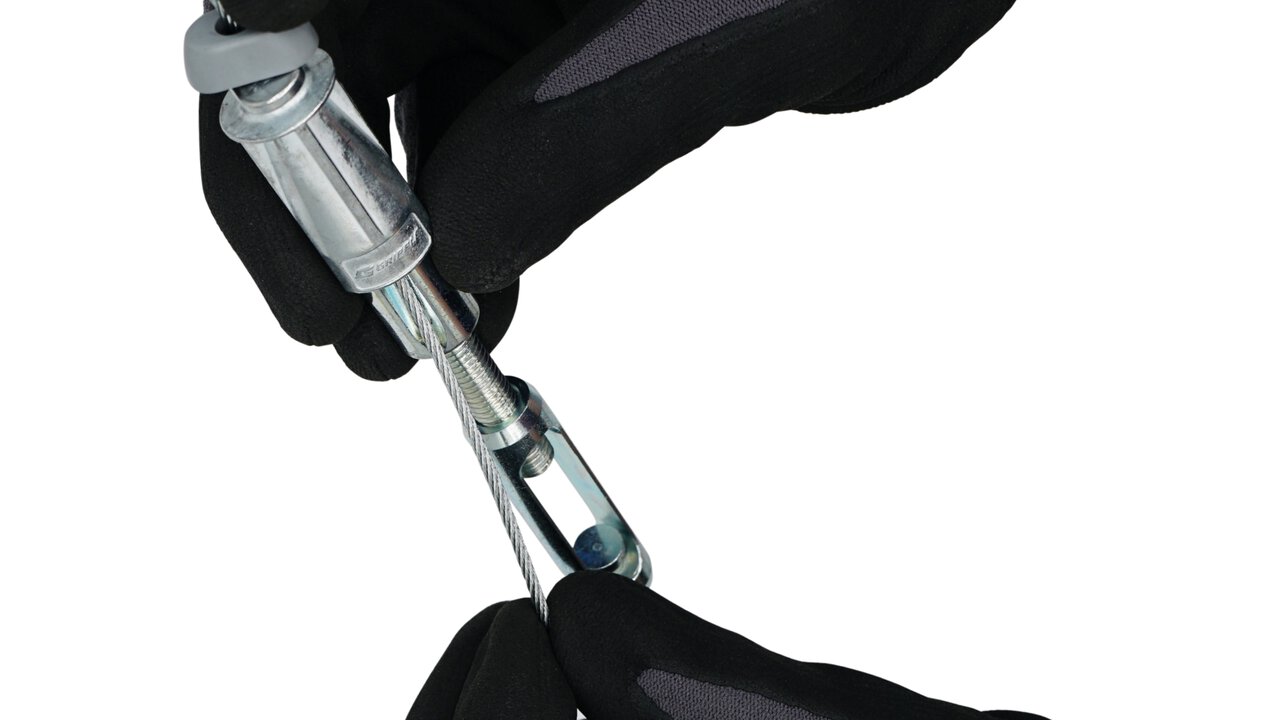

Step 3: Push down the end cap to allow adjustment up and down the cable

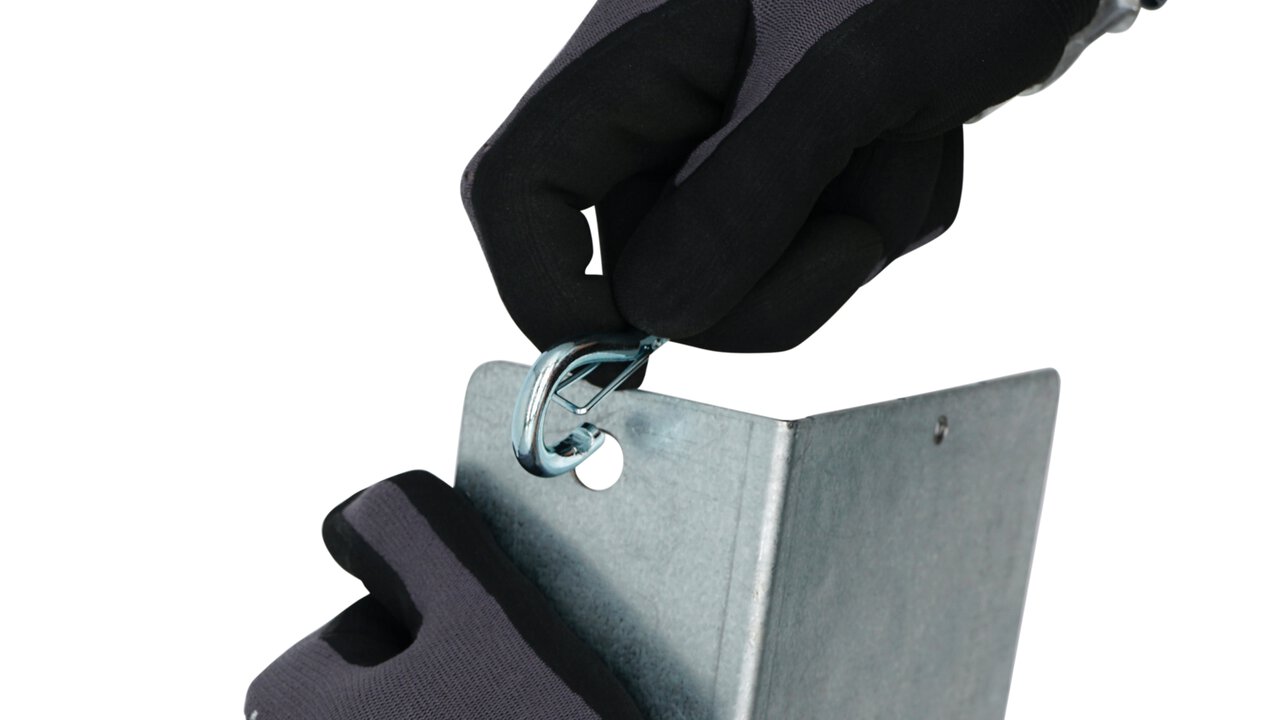

Step 4: Use the hook fixing to connect to your suspended service or item.

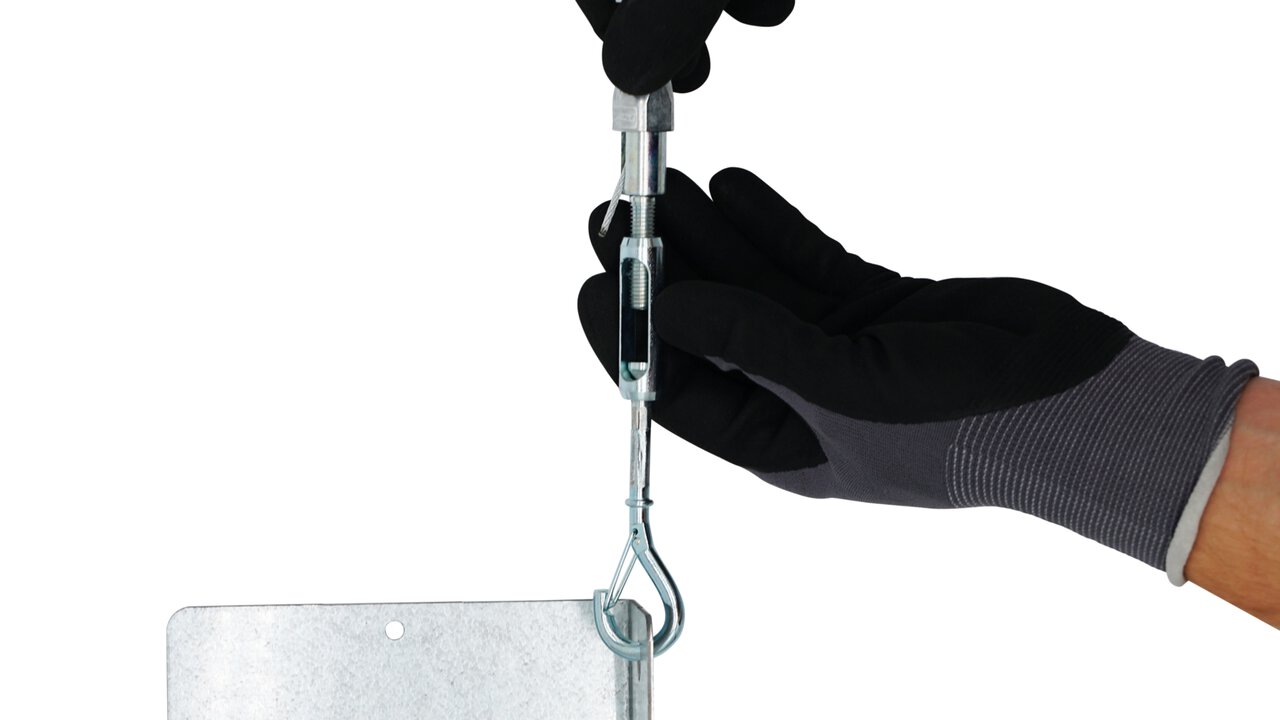

Step 5: Fine-tune your suspension height using the M8 thread and adjustment pillar until you reach the desired height.

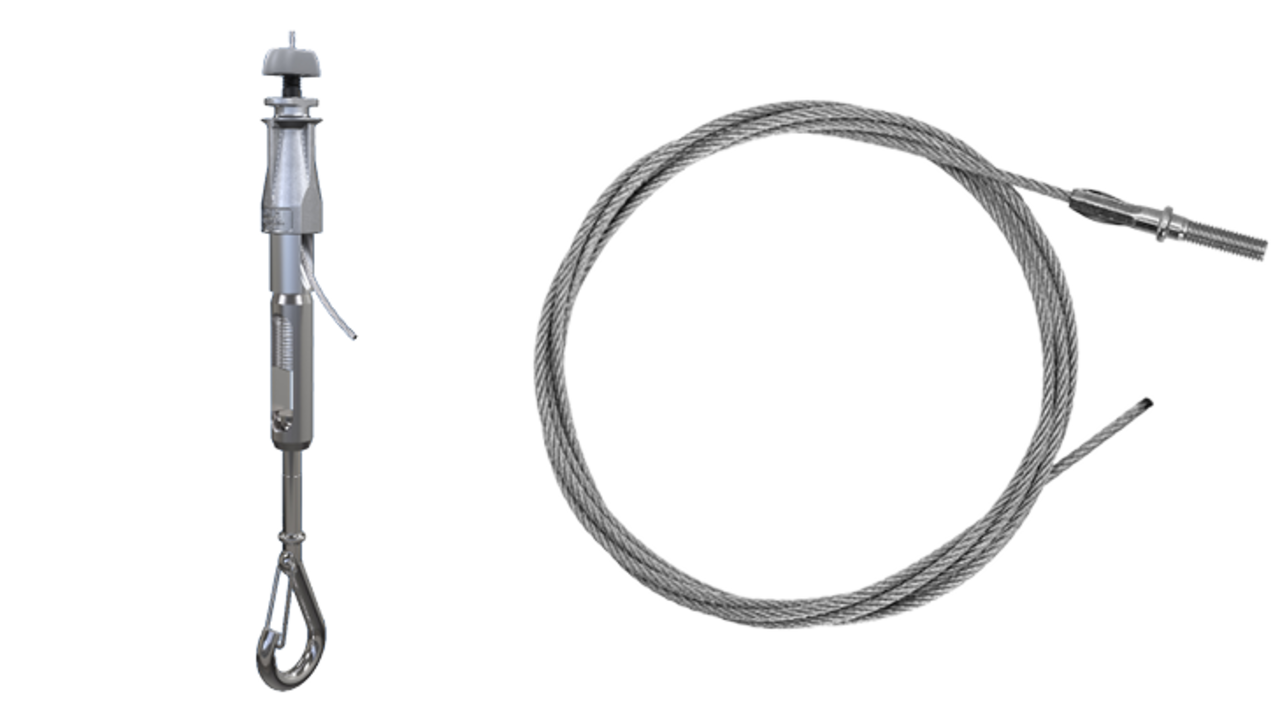

Ready To Install
Suspension Kit

We supply UniGrip Calibra hangers as a ready to install suspension kit comprised of three parts

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

UniGrip Calibra

Supplied hook fixing allows quick tool-free attachment to an eyebolt or hole on suspended equipment.

It is designed to allow for up to 1.37″ (35mm) of vertical adjustment under load using the built-in mechanism.

  • Max Working Load: 120 lbs
  • Cable Compatibility: 5/64″
  • Suspension Drop Lengths: 5 ft – 30 ft (custom lengths available on request)
