UniGrip – Hook Hook Attachment Cable Hanger

SKU # UG2-HK

UniGrip Hook is the fast-attach suspension solution with a pre-fitted snap hook for effortless connection to suspended equipment or eyebolts.

Safe Working Load

Safe Working Load:

120 lbs

Cable Compatibility

Cable Compatibility:

5/64"

Suspension Drop Lengths

Suspension Drop Lengths:

5 - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Hook - Technical Data Pack - USA
View all downloads
UniGrip – Hook Hook Attachment Cable Hanger
SKU # UG2-HK
1
1
1

Fast, Tool-Free Cable Suspension, Hooked on Speed and Simplicity



UniGrip Hook is designed for quick, tool-free suspension where speed and simplicity matter most.

Supplied with a pre-attached snap hook, it allows instant attachment to eyebolts or holes on suspended equipment, ideal for HVAC units, lighting, or containment systems.

With no tools required and a compact, ready-to-use design, UniGrip Hook reduces installation time and complexity on site. Rated for loads up to 120 lbs, it delivers the strength and reliability you expect from Gripple, with the convenience of a plug-and-play solution.

When you need a fast, secure connection, UniGrip Hook is the smart choice.

Read More
Quick Snap Hook Fixing

Quick Snap Hook Fixing

Attach to eyebolts or holes tool-free using the pre-attached snap hook fixing point.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free height adjustment, making them quicker and easier to install than threaded rod or other methods-even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple-to-use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

High Quality US and UK Manufacturing

High Quality US and UK Manufacturing

Designed, engineered and manufactured in the US and the UK to the highest standards, delivering reliable performance every time.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

Quick Snap Hook Fixing

Quick Snap Hook Fixing

Attach to eyebolts or holes tool-free using the pre-attached snap hook fixing point.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free height adjustment, making them quicker and easier to install than threaded rod or other methods-even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are available from start to finish to provide project engineering drawings, take-offs, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple-to-use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

High Quality US and UK Manufacturing

High Quality US and UK Manufacturing

Designed, engineered and manufactured in the US and the UK to the highest standards, delivering reliable performance every time.

Improved Health and Safety

Improved Health and Safety

Our cable hanger kits minimize your time spent in the air or working with power tools, and eliminate the need for hot works permits, helping your teams work safer while staying compliant.

How it Works:

See how our UniGrip Hook works below or download the Technical Data Pack for full installation guidance.

 UniGrip Hook – Technical Data Pack – USA

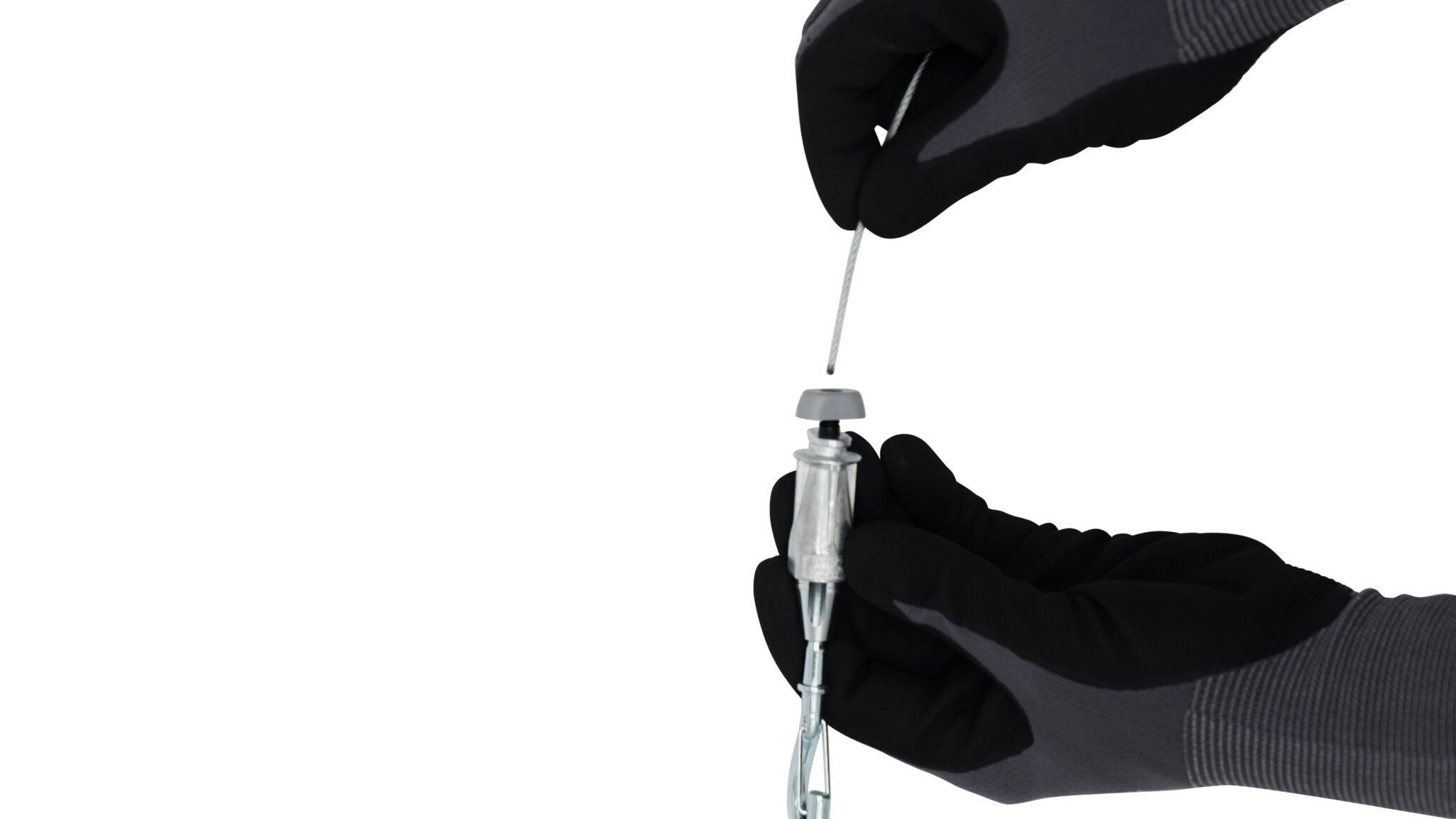

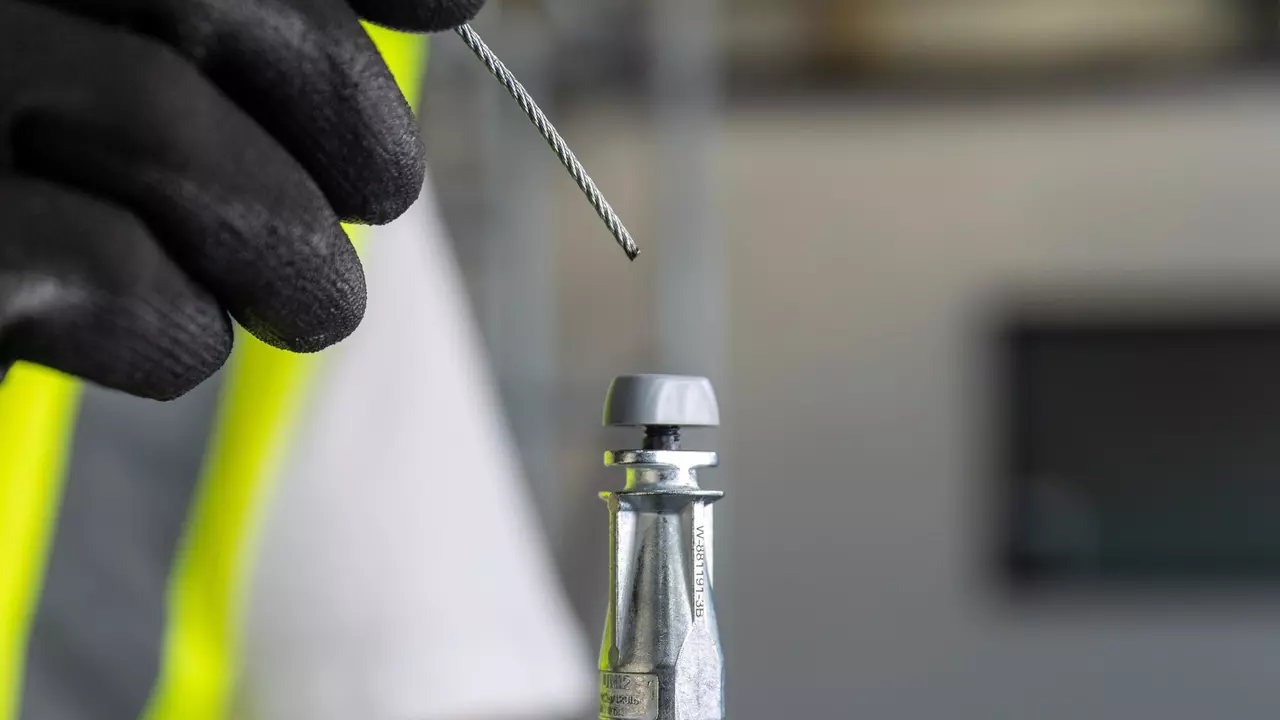

Step 1. Feed the cable into the entry channel at the top of the UniGrip and then back out of the other side. This then grips and locks the cable in place.

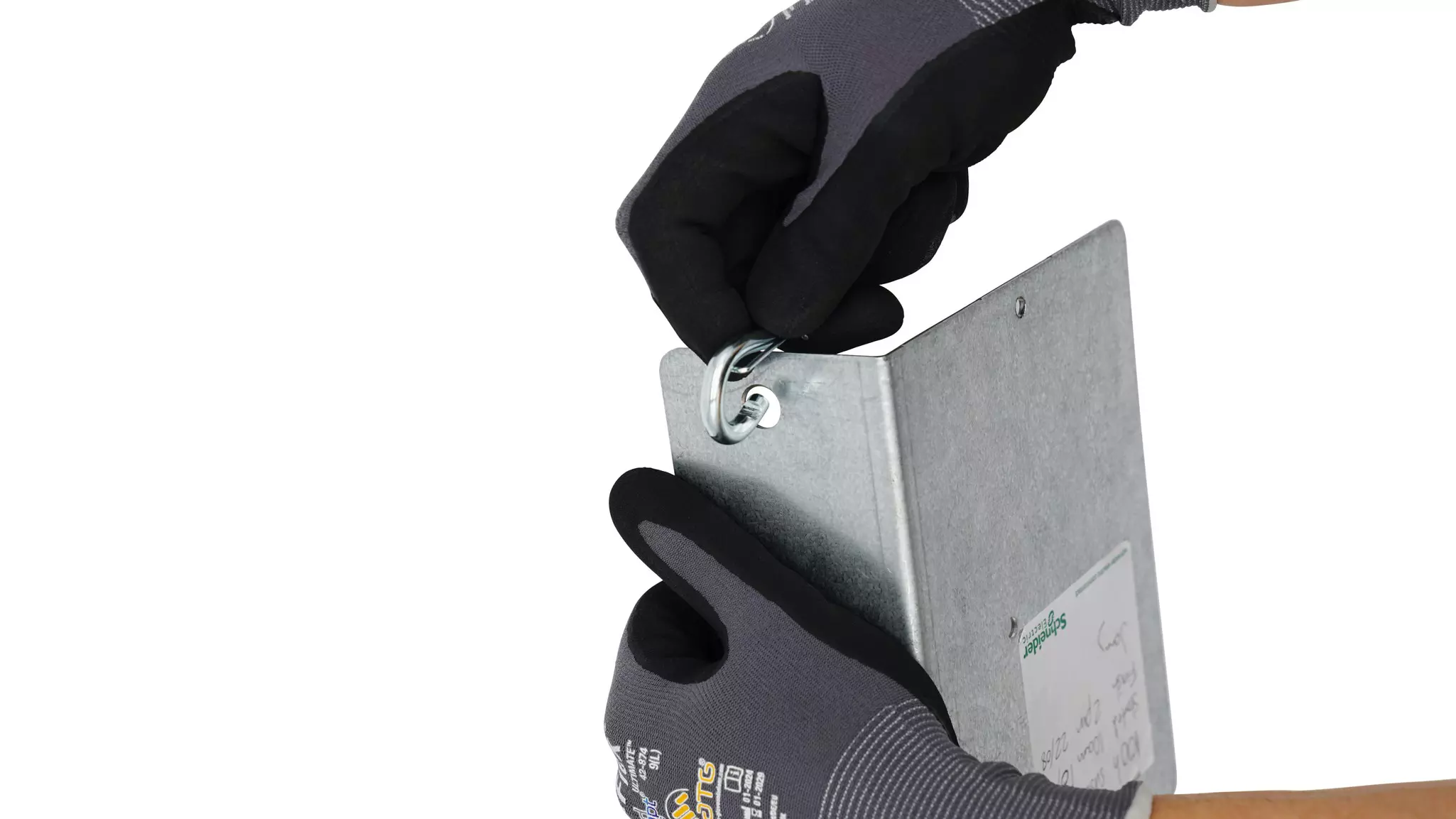

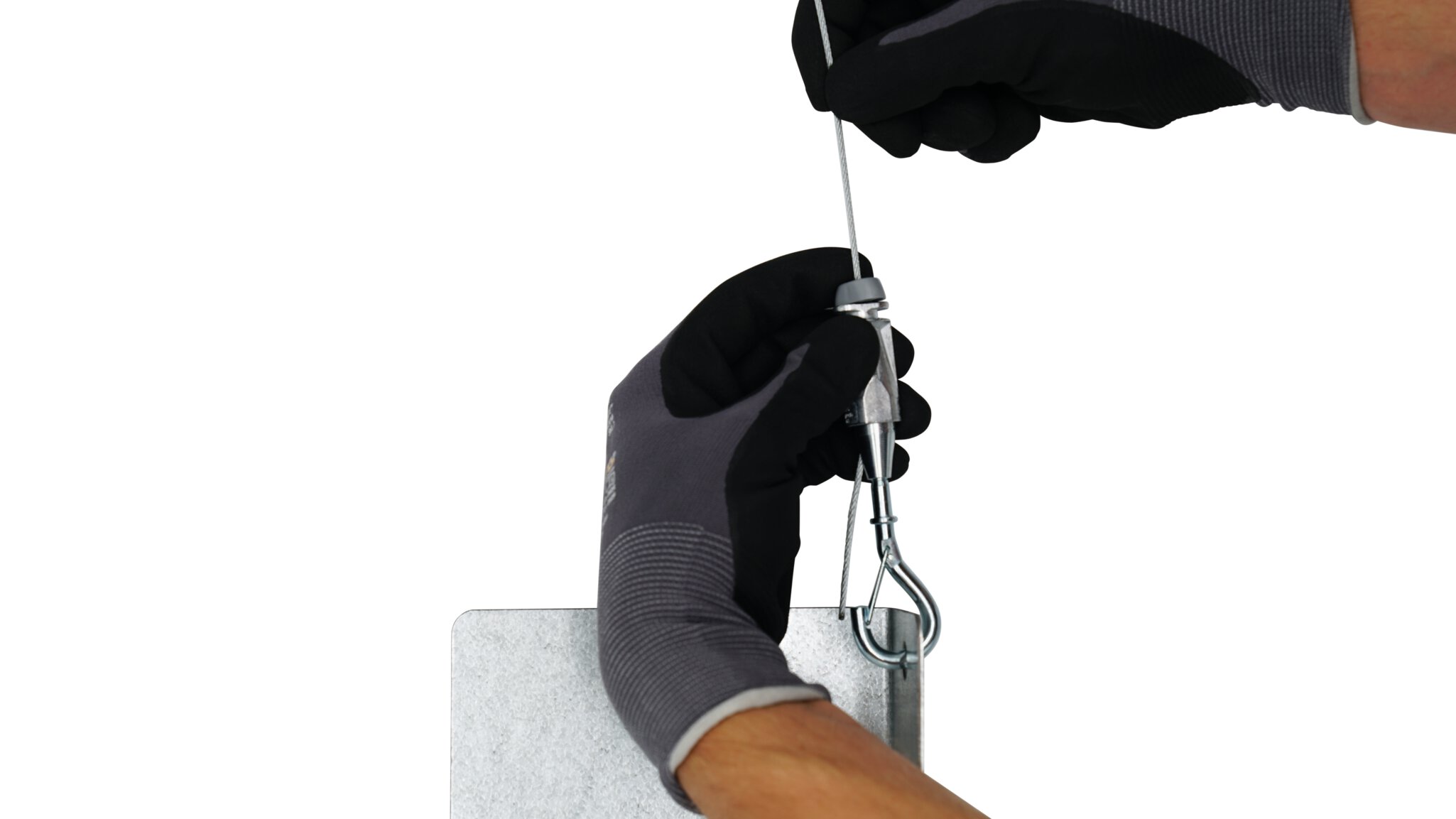

Step 2. Use the snap hook fixing to attach the hanger to your suspended item or service.

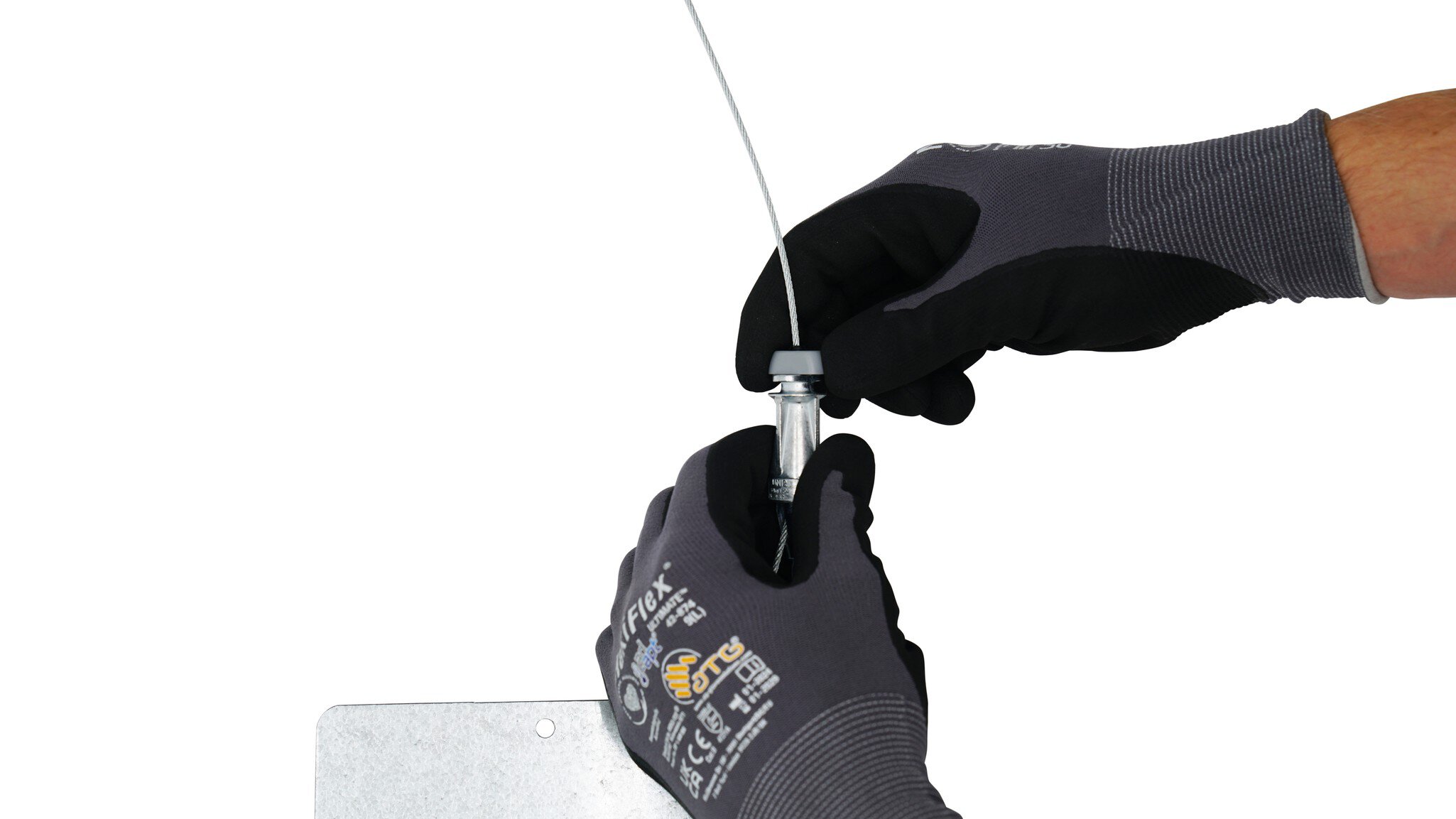

Step 3. Push down the end cap to allow adjustment up and down the cable.
Step 4. Screw down the top end cap to prevent accidental adjustment once installed.

Ready To Install
Suspension Kit

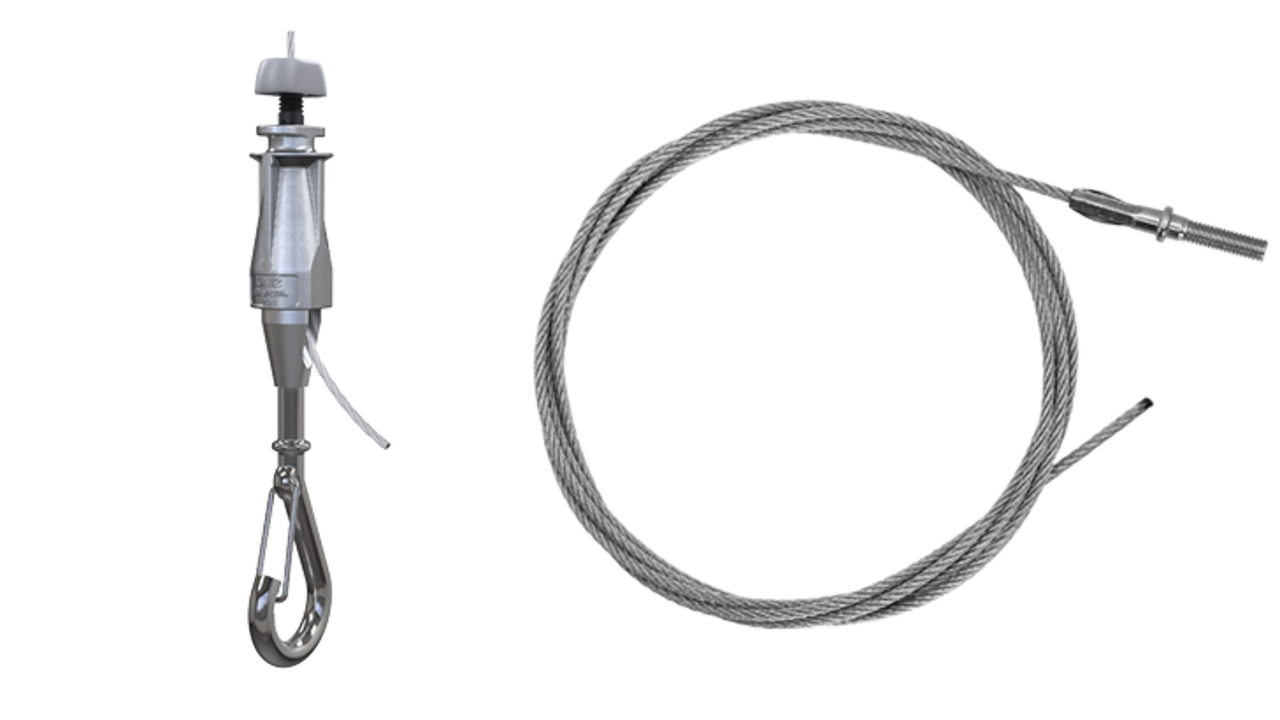

We supply UniGrip Hook hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

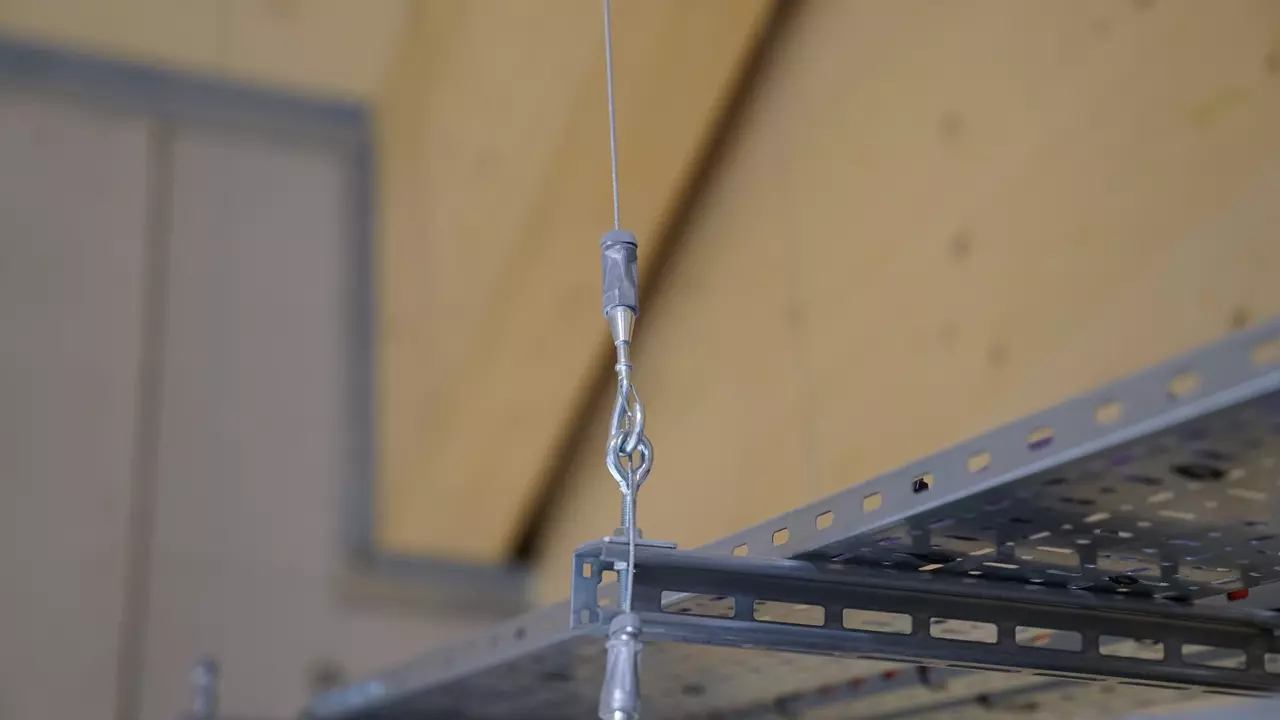

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

UniGrip Hook

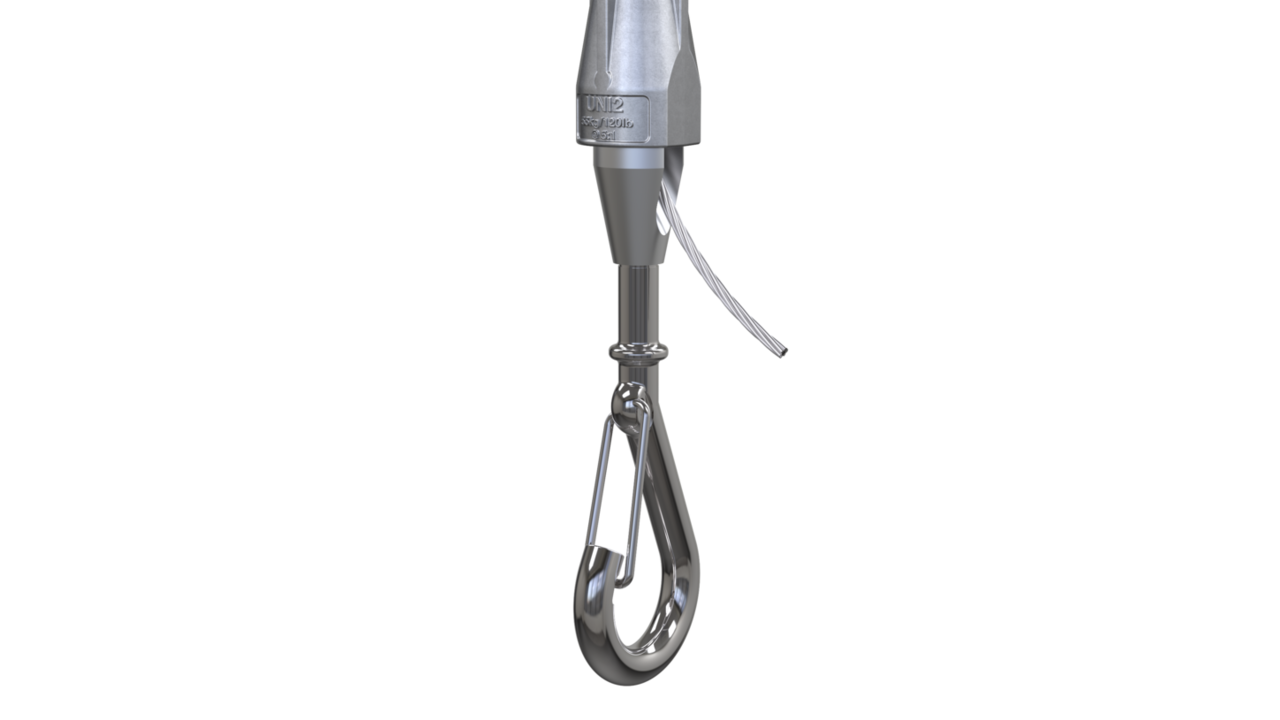

Supplied hook fixing allows quick tool-free attachment to an eyebolt or hole on suspended equipment.

  • Safe Working Load: 120 lbs
  • Wire Compatibility: 5/64″
  • Suspension Drop Lengths: 5 – 30 ft (custom lengths available on request)
