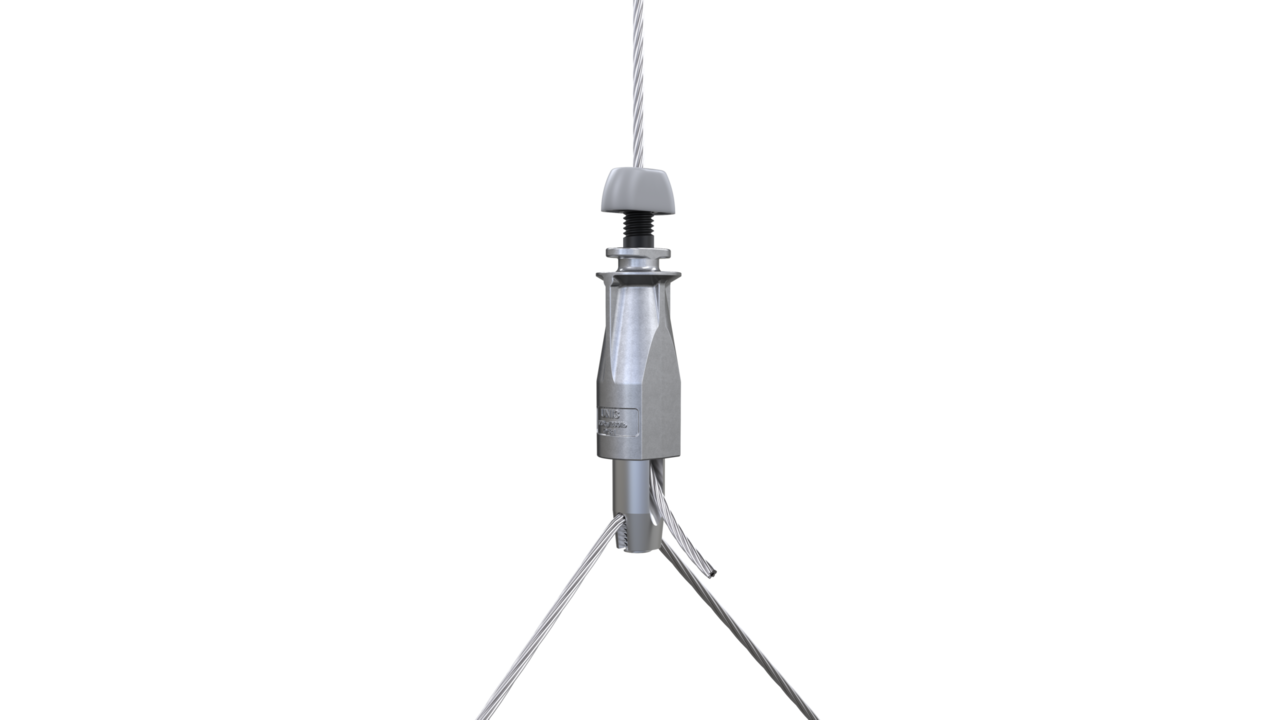

UniGrip Y-Fit Cable Hanger with Dual Fixing Points

SKU # UG2-Y, UG3-Y

Designed specifically for heavy duty lighting, electrical containment, signage, and HVAC units with dual fixing points for balance. Quick installation and high load capacity.

Max Working Load

Max Working Load:

240 lbs

Leg Length Size Range

Leg Length Size Range:

6", 12" and 18"

Maximum Off Axis Suspension

Maximum Off Axis Suspension:

15º

Inquire Now

Product Downloads

UniGrip Y-Fit - Technical Data Pack - USA
View all downloads
UniGrip Y-Fit Cable Hanger with Dual Fixing Points
SKU # UG2-Y, UG3-Y
1
1
1
1

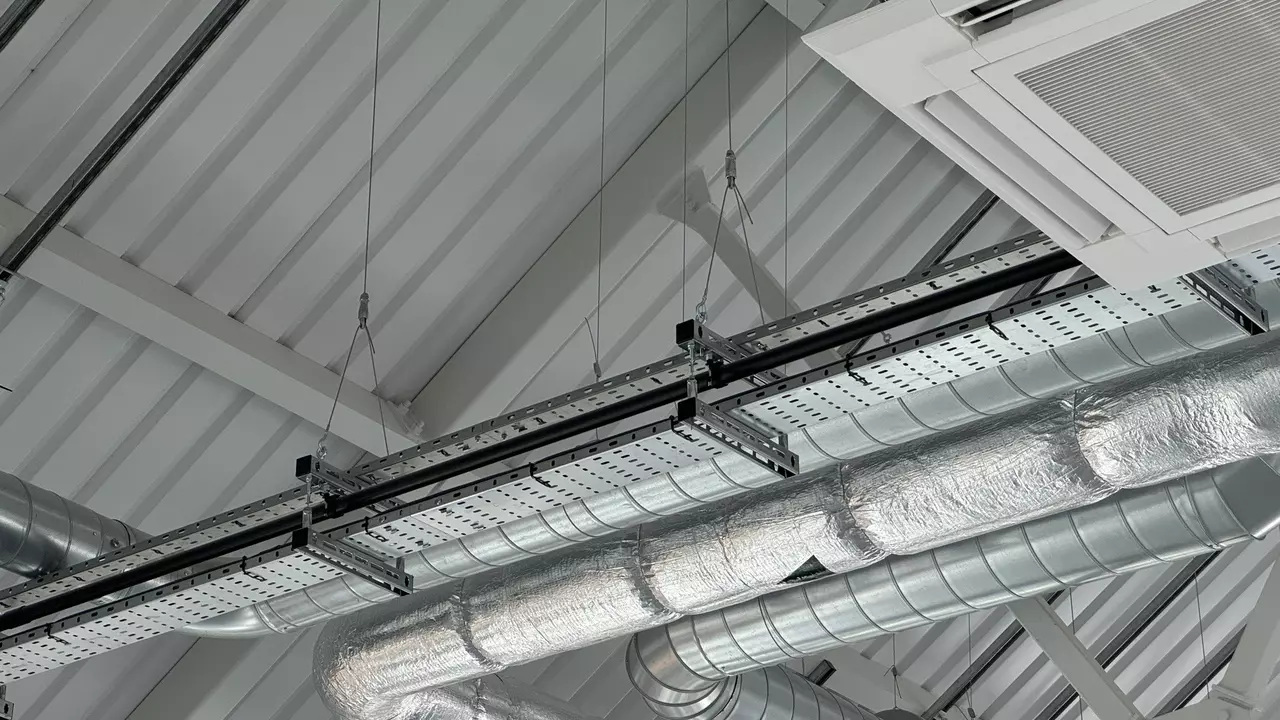

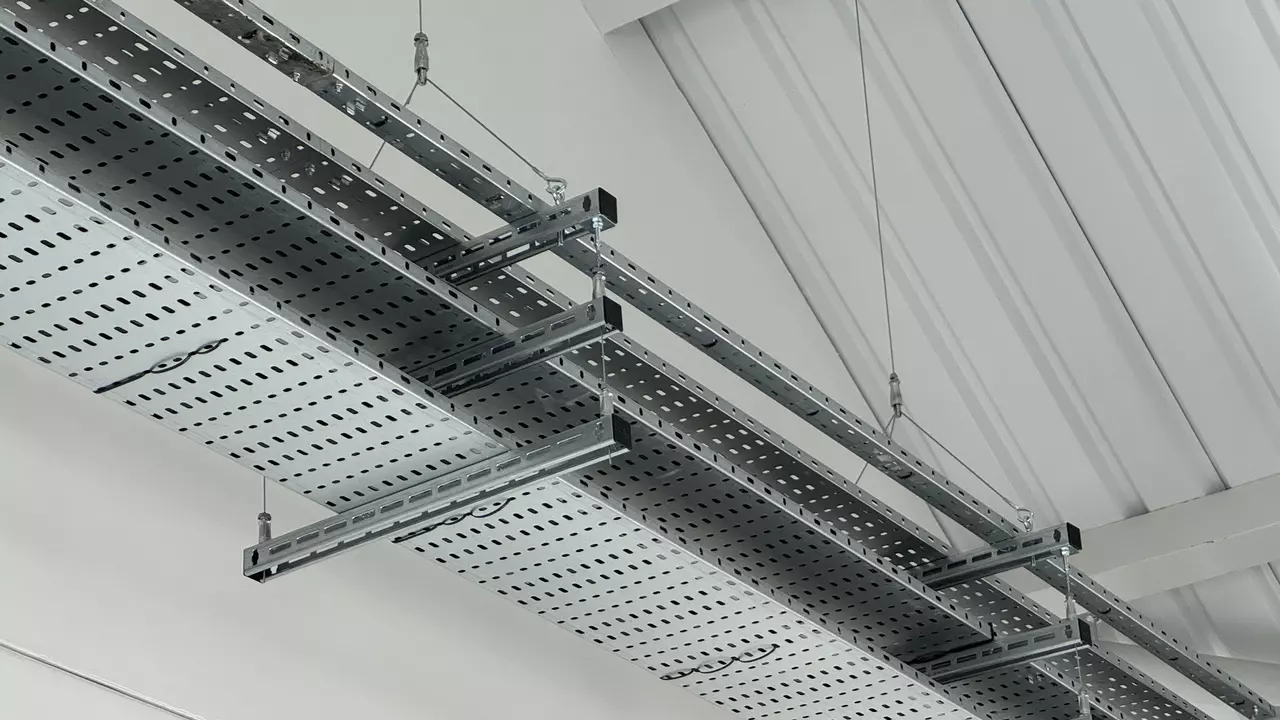

Rapid Installation of Cable Containment and Lighting

Our UniGrip Y-Fit is a versatile and ready-to-use cable hanger kit engineered for quick, secure installations of heavy-duty lighting, cable containment, signage, and HVAC units. With twin fixing points for perfect balance and stability, it delivers a professional finish every time.

Its ergonomic design allows for rapid height adjustment, while the integral button doubles as both release and a lock, enhancing safety on-site.

Designed to save time without compromising strength, the Y-Fit is available with multiple leg lengths and end fixings to suit various configurations. With a maximum safe working load of up to 240 lbs and a 5:1 safety factor, it’s the go-to solution for installers seeking efficiency and reliability in overhead electrical suspension projects.

Read More
Strong

Strong

High load rating of up to 240 lbs with 5:1 SWL.

Quick

Quick

Up to 6x quicker install than rod and strut or other traditional methods

Specifically Engineered for Level Hanging

Specifically Engineered for Level Hanging

UniGrip Y-Fit has two suspension points to ensure balance.

Technical Support

Technical Support

Our expert in-house team is on hand to offer site-specific advice and support.

Secure

Secure

For extra peace of mind, the UniGrip top button acts as a locking screw and ensures that the fastener can’t be easily tampered with

Compatibility

Compatibility

UniGrip Y-Fit is available with a variety of leg lengths and cable attachment to structure to suit a wide range of applications

Strong

Strong

High load rating of up to 240 lbs with 5:1 SWL.

Quick

Quick

Up to 6x quicker install than rod and strut or other traditional methods

Specifically Engineered for Level Hanging

Specifically Engineered for Level Hanging

UniGrip Y-Fit has two suspension points to ensure balance.

Technical Support

Technical Support

Our expert in-house team is on hand to offer site-specific advice and support.

Secure

Secure

For extra peace of mind, the UniGrip top button acts as a locking screw and ensures that the fastener can’t be easily tampered with

Compatibility

Compatibility

UniGrip Y-Fit is available with a variety of leg lengths and cable attachment to structure to suit a wide range of applications

Range Variants

Our UniGrip Y-Fit Variant is available in sizes 2 and 3.

No. 2 No. 3
Load Rating 120 lbs 240 lbs
Safety Factor 5:1 5:1
Cable Size 5/64″ 1/8″
Cable Construction 7×7 7×7

How it works:

See how our UniGrip Y-Fit works below or download the technical data pack for full install guidance.

 UniGrip Y-Fit – Technical Data Pack – USA

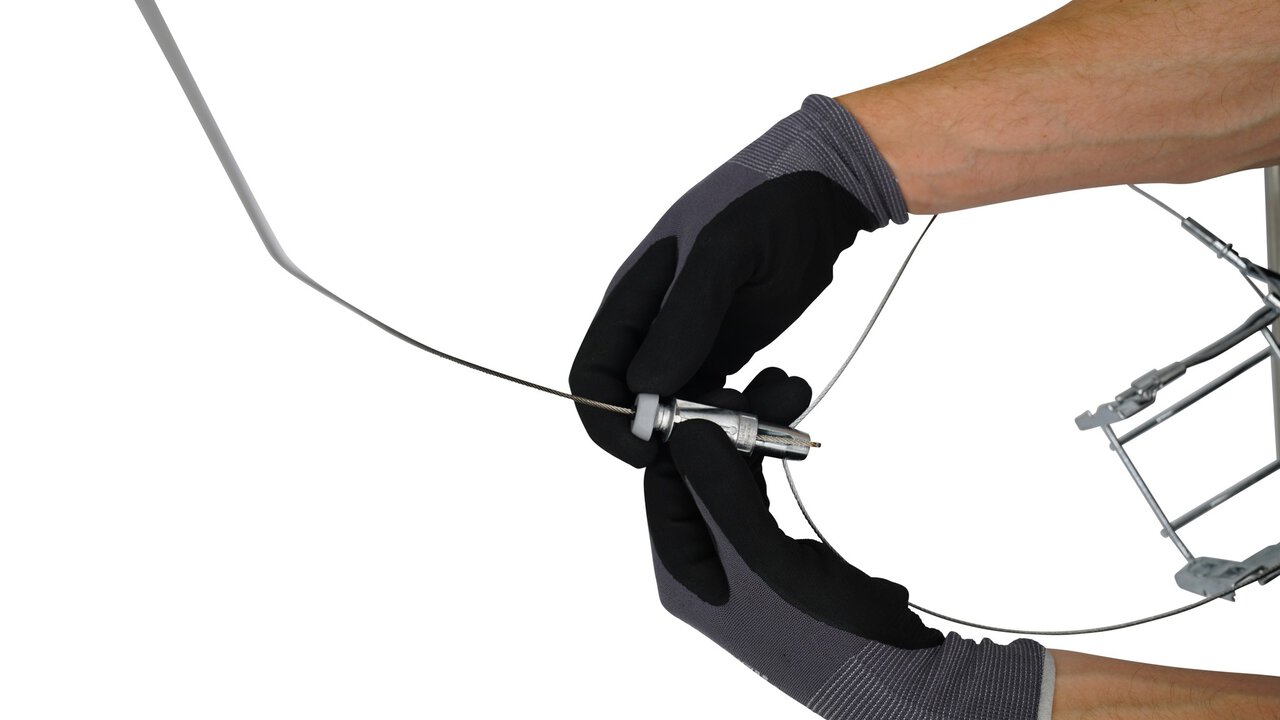

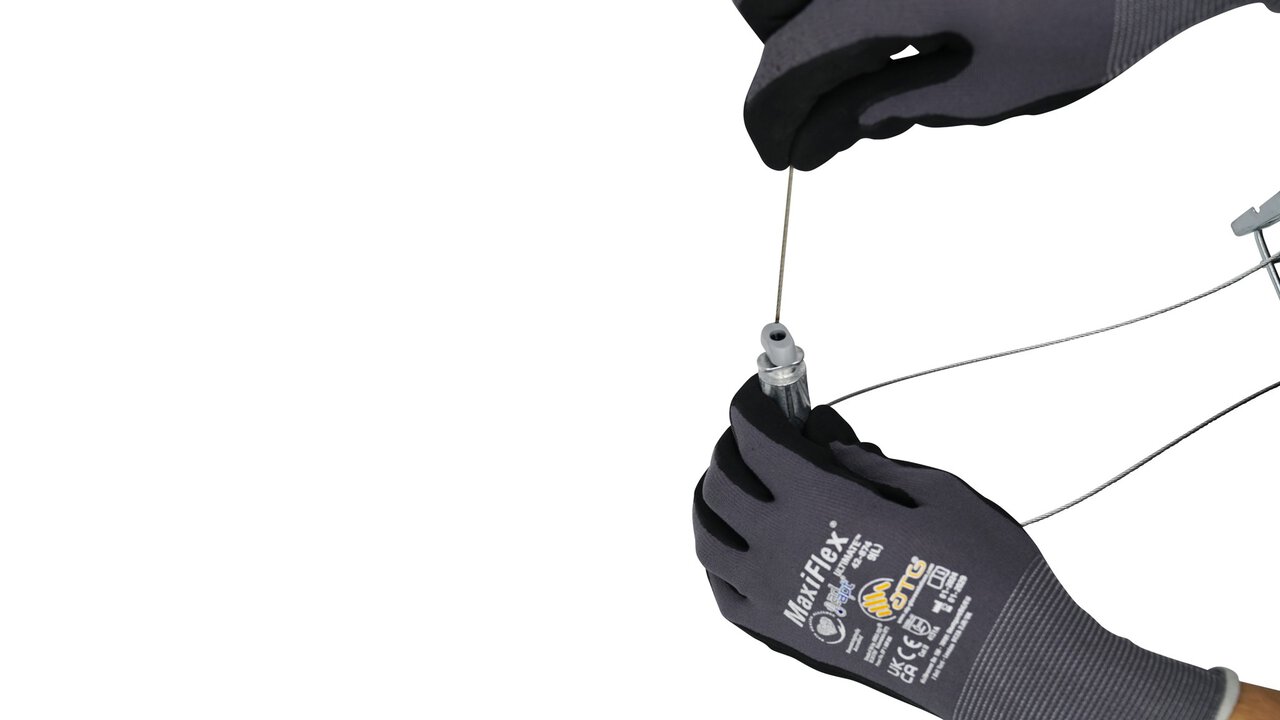

Step 1: Thread the cable through the hole in the plastic cap of the hanger.

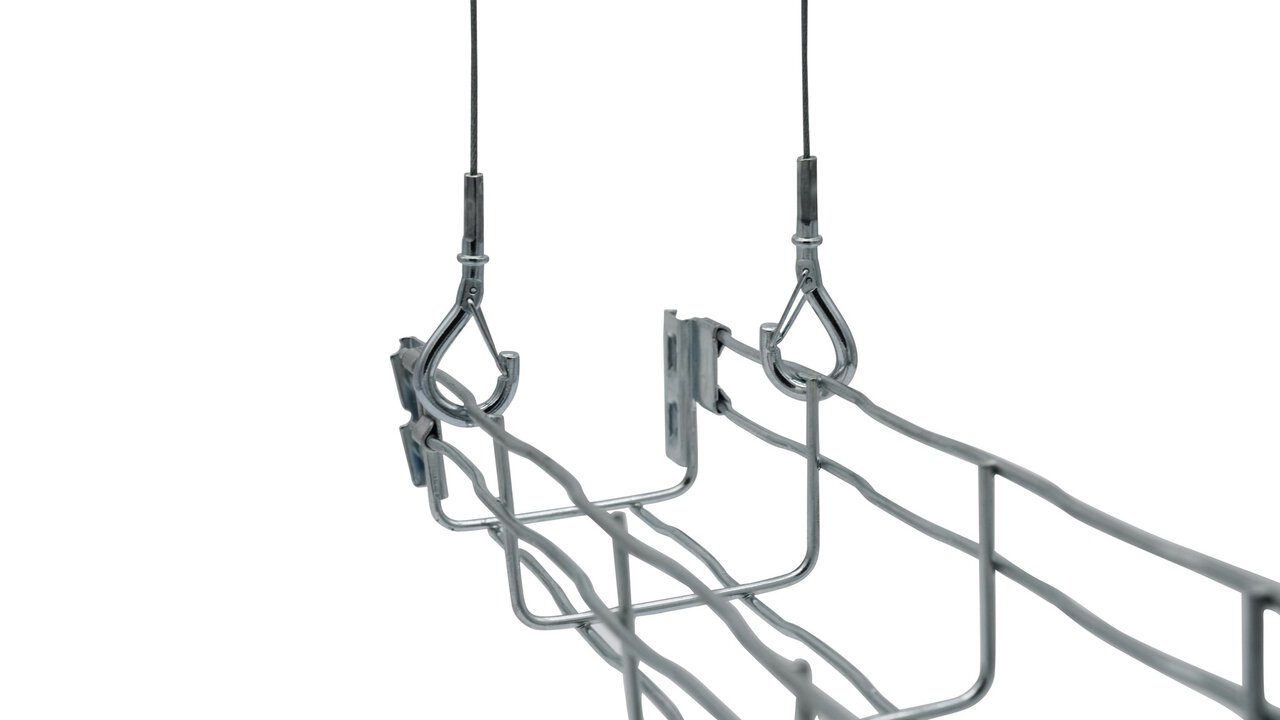

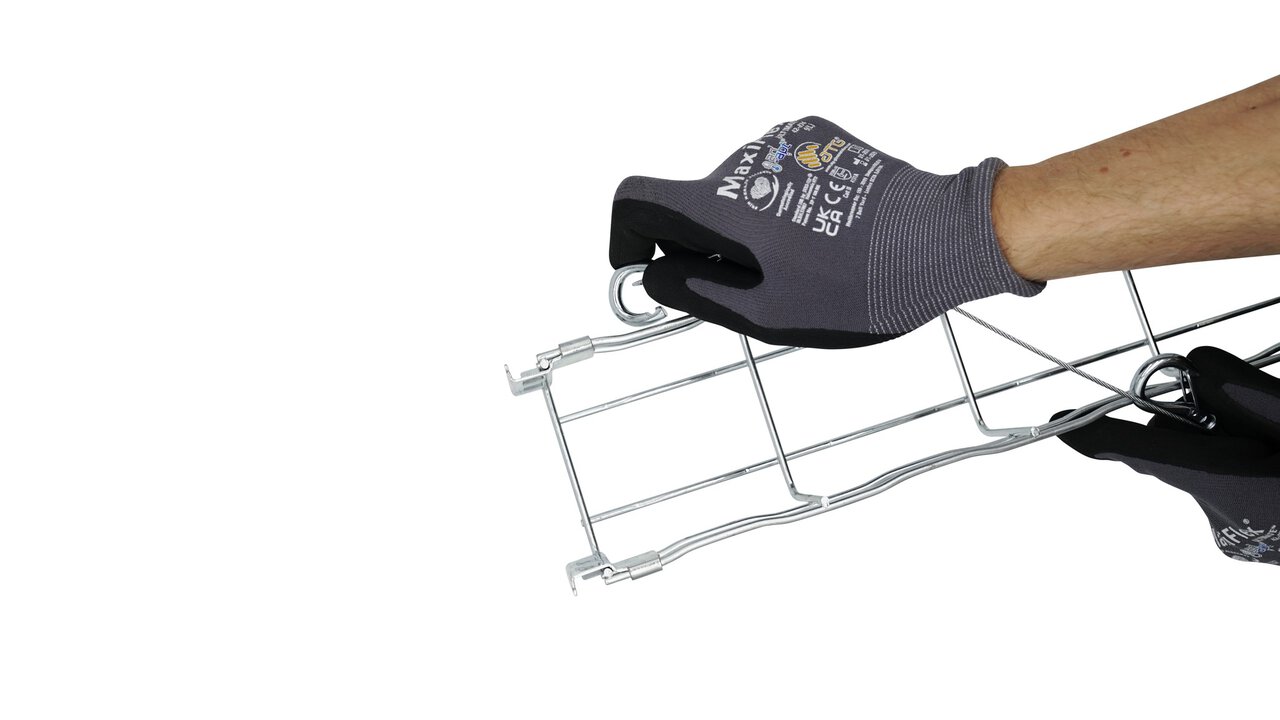

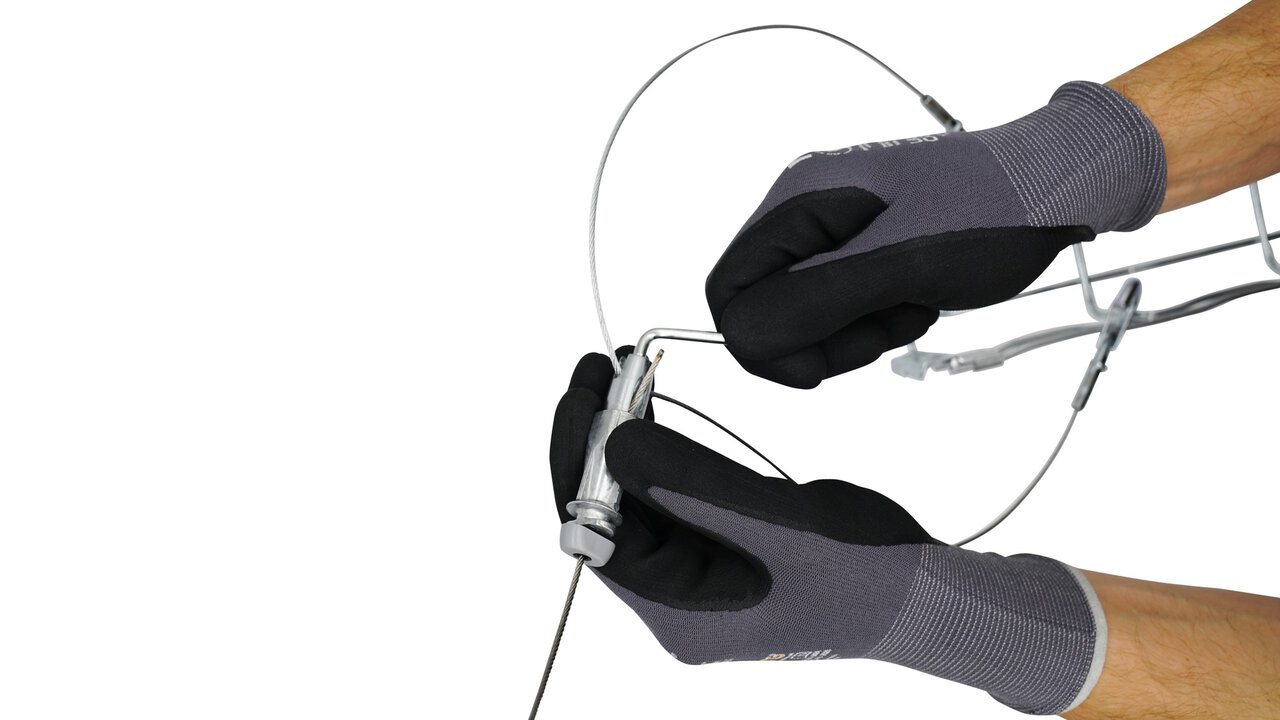

Step 2: Attach the dual cable attachment to structure to the object’s fixing point.
Step 3: Once at the desired position, use an Allen key to lock the cable into place.
Step 4: Twist the end cap downwards to lock the UniGrip.
Step 5: Repeat as necessary.

Ready To Install
Suspension Kit

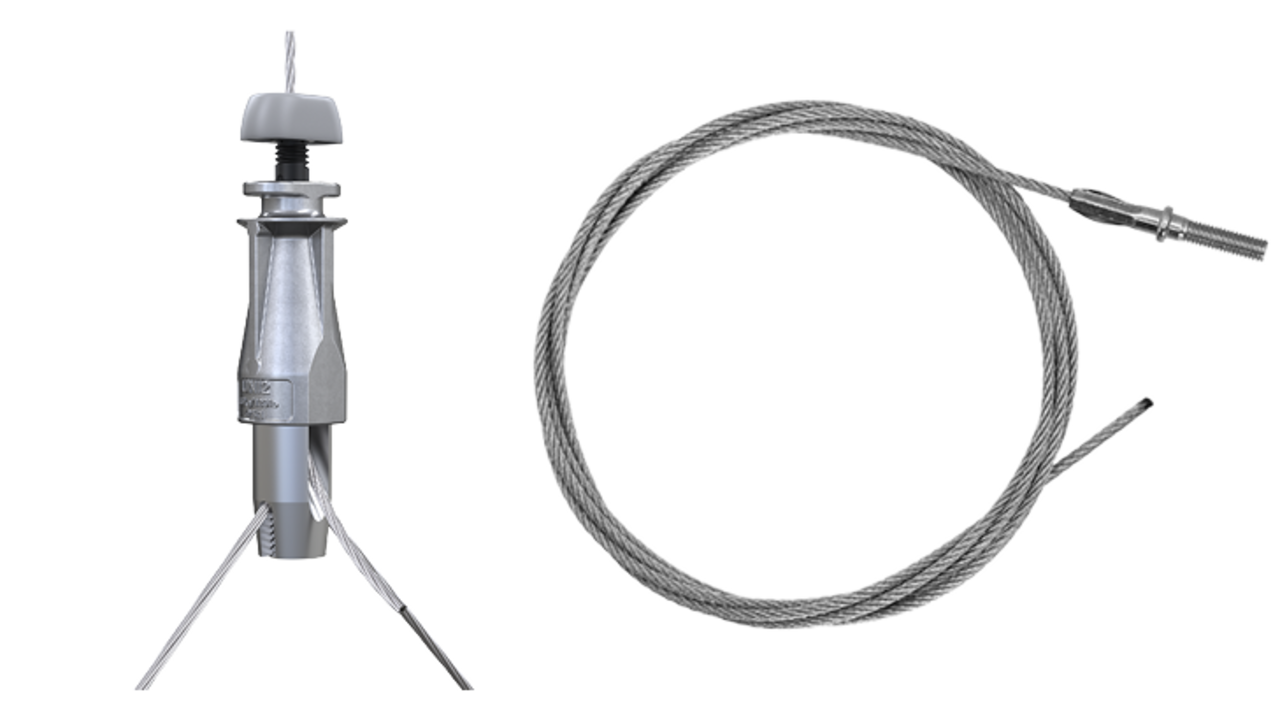

We supply UniGrip hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

UniGrip Y-Fit Hanger

Designed specifically for lighting and containment, with dual fixing points for balance. Quick installation and high load capacity.

  • Max Working Load: 240 lbs
  • Wire Compatibility: 5/64″ and 1/8″
  • Leg Length Size Range: 6″, 12″ and 18″

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1
1
1

UniGrip Y-Fit

SKU # UG2-Y, UG3-Y

Designed specifically for heavy duty lighting, electrical containment, signage, and HVAC units with dual fixing points for balance. Quick installation and high load capacity.

Key Specifications

Max Working Load: 240 lbs
Leg Length Size Range: 6″, 12″ and 18″
Maximum Off Axis Suspension: 15º

Available Sizes

No.2: 120 lbs
No.3: 240 lbs
Find a SupplierView Product Page

Product Downloads

UniGrip Y-Fit – Technical Data Pack – USA

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

Related Products & Accessories

Y-Fit Accessory

Ideal for balanced cable containment, lighting and pipework.

View Accessory

Angel™ Hanger – Y-Fit Adjustable

Adjustable Dual Attachment Hanger

Safe Working Load: 33 lbs
Cable: 1/16″ galvanized high tensile steel cable
Safety Factor: 5:1
View Fixing Variant

Common Applications

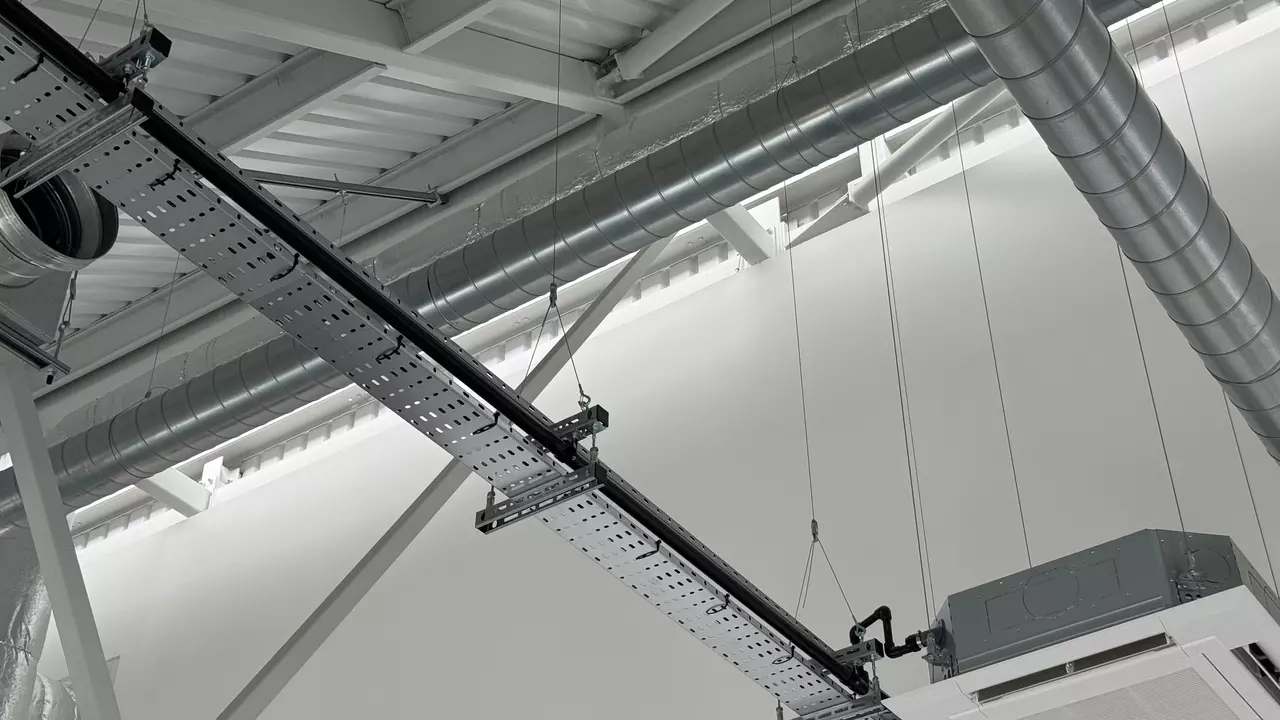

Cable Containment

Lighting Suspension

Cable Containment

Lighting Suspension

Related Downloads

UniGrip Y-Fit – Technical Data Pack – USA

Frequently Asked Questions

The UniGrip Y-Fit has a maximum safe working load of up to 240 lbs when using the No. 3 size, with a built-in 5:1 safety factor for added peace of mind.

Due to the dual suspension point for added balance, the UniGrip Y-Fit is ideal for suspending heavy-duty lighting, electrical containment, signage, and HVAC units, offering quick installation and a clean, balanced finish.

Yes, we offer the UniGrip Y-Fit with multiple attachment to structure options for the cable, and multiple hanger / leg lengths to suit a wide range of ceiling types and installation needs.
