Angel™ Hanger – Y-Fit Adjustable Adjustable Dual Attachment Hanger

SKU # AL1-YTGA

Engineered for precision and elegance, our Angel Y-Fit Adjustable suspension kit provides a discreet, tool-free system for single-point cable suspension - offering a fast, secure solution for lighting, signage, and acoustic installations.

Safe Working Load

Safe Working Load:

33 lbs

Cable

Cable:

1/16" galvanized high tensile steel cable

Safety Factor

Safety Factor:

5:1

Inquire Now

Product Downloads

Angel Y-Fit_Adj - Technical Data Pack - USALighting, Acoustics, & Displays Brochure - US
Angel™ Hanger – Y-Fit Adjustable Adjustable Dual Attachment Hanger
SKU # AL1-YTGA
1
1

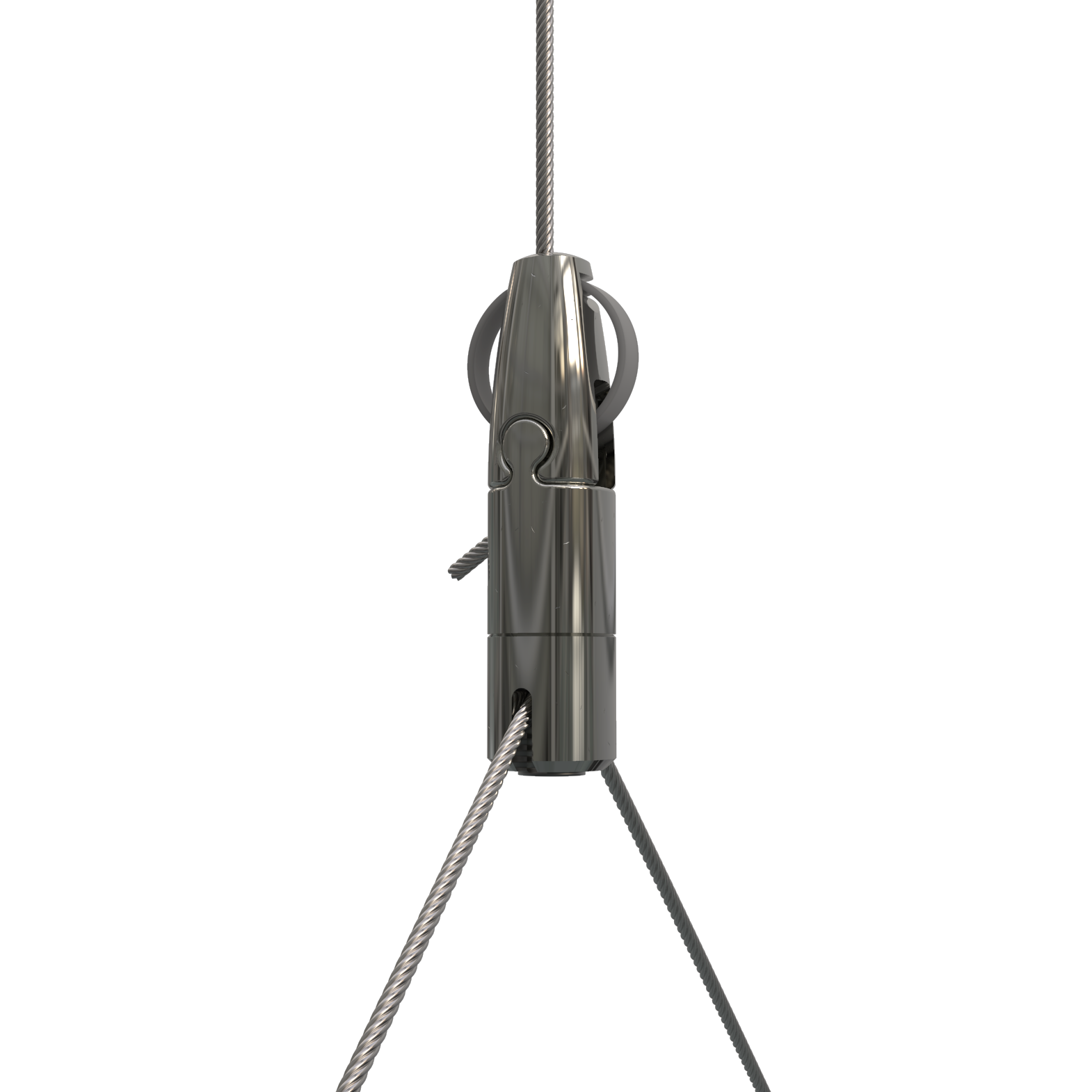

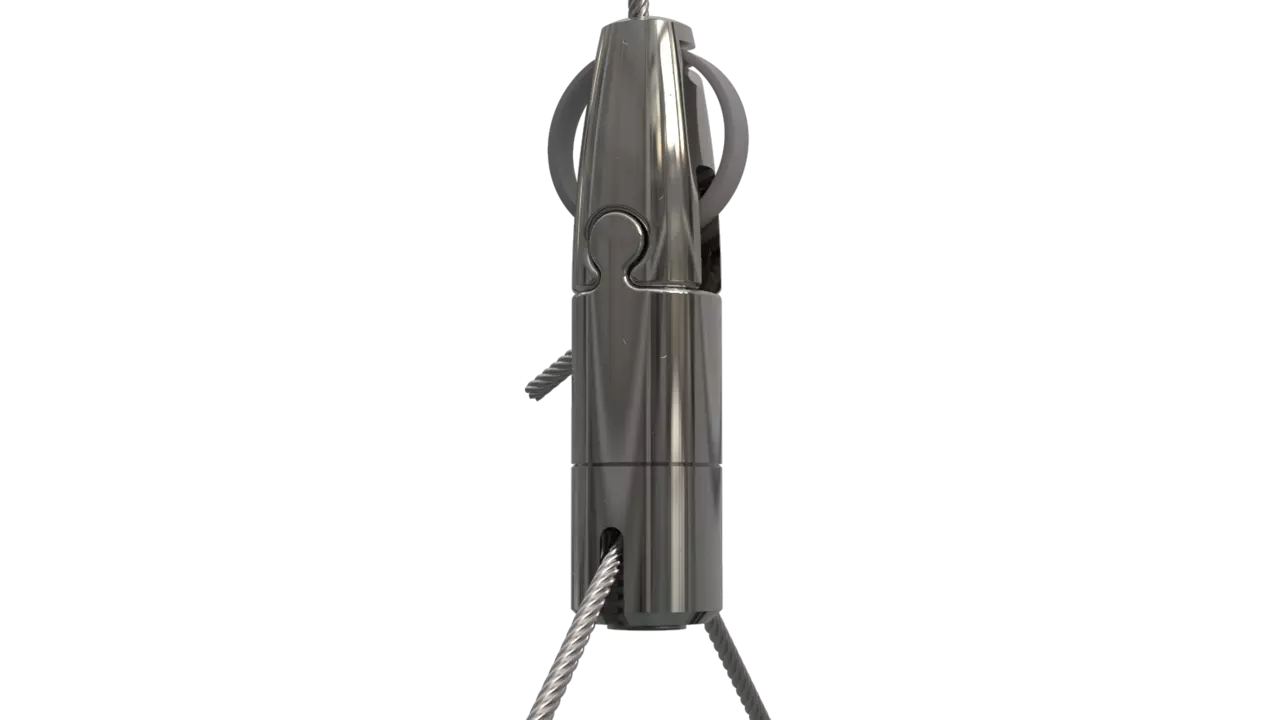

Angel™ Y-Fit Adjustable – Effortless Suspension, Engineered for Accuracy

The Angel™ Y-Fit Adjustable suspension kit is a sleek, single-point hanger designed for secure suspension of lighting, signage, and acoustics. It’s tool-free, one-handed adjustment and side-exit cable make installations quick and simple, while the slim 1/16″ cable ensures a discreet, refined appearance.

With a contemporary design, it complements modern interiors and delivers a clean finish to any project. Supplied in ready-to-use kits with drop lengths up to 30 ft., it saves time on site and offers adjustable legs in 6″ and 12″ lengths for perfect balance.

Versatile fixing options and dependable strength make it an ideal solution for a wide range of suspension needs.

Read More
Simple One-Handed Adjustment

Simple One-Handed Adjustment

Effortlessly fine-tune suspension height with single-handed operation by pressing in the “wings” on the sides of the Angel fastener.

Modern Aesthetics

Modern Aesthetics

A sleek, contemporary silhouette that enhances interiors while complementing lighting, signage, and acoustic designs.

Versatile Installation Options

Versatile Installation Options

Wide range of cable attachment to structure options for ceiling attachment, and adjustable Y-legs for balance in almost any application (6" and 12" as standard).

Quick to Install

Quick to Install

Supplied in ready-to-use kits, no tools required, enabling faster, more efficient installations with minimal downtime.

Discreet Suspension

Discreet Suspension

Supplied in ready-to-use kits, no tools required, enabling faster, more efficient installations with minimal downtime.

Secure Multi-Level Support

Secure Multi-Level Support

Utilizes slim 1/16" cable to deliver strong support while remaining subtle and unobtrusive.

Simple One-Handed Adjustment

Simple One-Handed Adjustment

Effortlessly fine-tune suspension height with single-handed operation by pressing in the “wings” on the sides of the Angel fastener.

Modern Aesthetics

Modern Aesthetics

A sleek, contemporary silhouette that enhances interiors while complementing lighting, signage, and acoustic designs.

Versatile Installation Options

Versatile Installation Options

Wide range of cable attachment to structure options for ceiling attachment, and adjustable Y-legs for balance in almost any application (6" and 12" as standard).

Quick to Install

Quick to Install

Supplied in ready-to-use kits, no tools required, enabling faster, more efficient installations with minimal downtime.

Discreet Suspension

Discreet Suspension

Supplied in ready-to-use kits, no tools required, enabling faster, more efficient installations with minimal downtime.

Secure Multi-Level Support

Secure Multi-Level Support

Utilizes slim 1/16" cable to deliver strong support while remaining subtle and unobtrusive.

Ready To Install
Suspension Kit

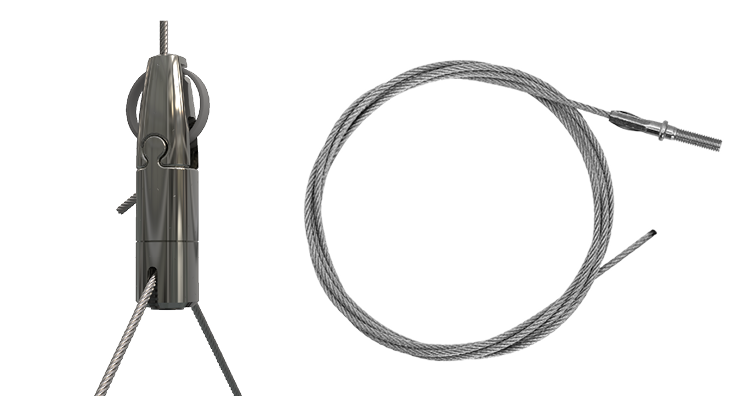

We supply Angel Y-Fit Adjustable hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Cable
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or lighting.

Available Sizes:
No.1: 1/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 2

Mini Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 15 kg
Available Sizes:
No. 1: 1/16″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

Angel Y-Fit Adjustable

Engineered for precision and elegance, our Angel Y-Fit Adjustable suspension kit provides a discreet, tool-free system for single-point cable suspension – offering a fast, secure solution for lighting, signage, and acoustic installations.

Key Specs:

  • Safe Working Load: 33 lb
  • Wire: 1/16″ galvanized high tensile steel cable
  • Safety Factor: 5:1

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1

Angel™ Hanger – Y-Fit Adjustable

SKU # AL1-YTGA

Engineered for precision and elegance, our Angel Y-Fit Adjustable suspension kit provides a discreet, tool-free system for single-point cable suspension – offering a fast, secure solution for lighting, signage, and acoustic installations.

The Gripple Angel™ Helix Hanger is a sleek, low-profile suspension system designed for fast, secure installation of acoustic panels. The discreet solution can create the illusion of a floating acoustic ceiling.

Ideal for fibreglass and dense foam panels, the Helix locks in place with a simple twist using an Allen key, while the Angel mechanism allows for effortless height adjustment via a spring-loaded button.

The central wire exit variant supports multi-layer configurations, whilst the side exit variant is better suited to single-layer projects. With a 33 lbs load rating, it’s built for performance and versatility and for peace of mind, the one-click safety feature reinforces its strength.

Additionally, pre-installation of the helix screw is possible at the point of, leaving just the Angel body to be installed on-site, streamlining workflows and reducing time on the project.

Key Specifications

Safe Working Load: 33 lbs
Cable: 1/16″ galvanized high tensile steel cable
Safety Factor: 5:1

Available Sizes

No. 1: 33 lbs
Find a SupplierView Product Page

Product Downloads

Angel Y-Fit_Adj – Technical Data Pack – USALighting, Acoustics, & Displays Brochure – US
