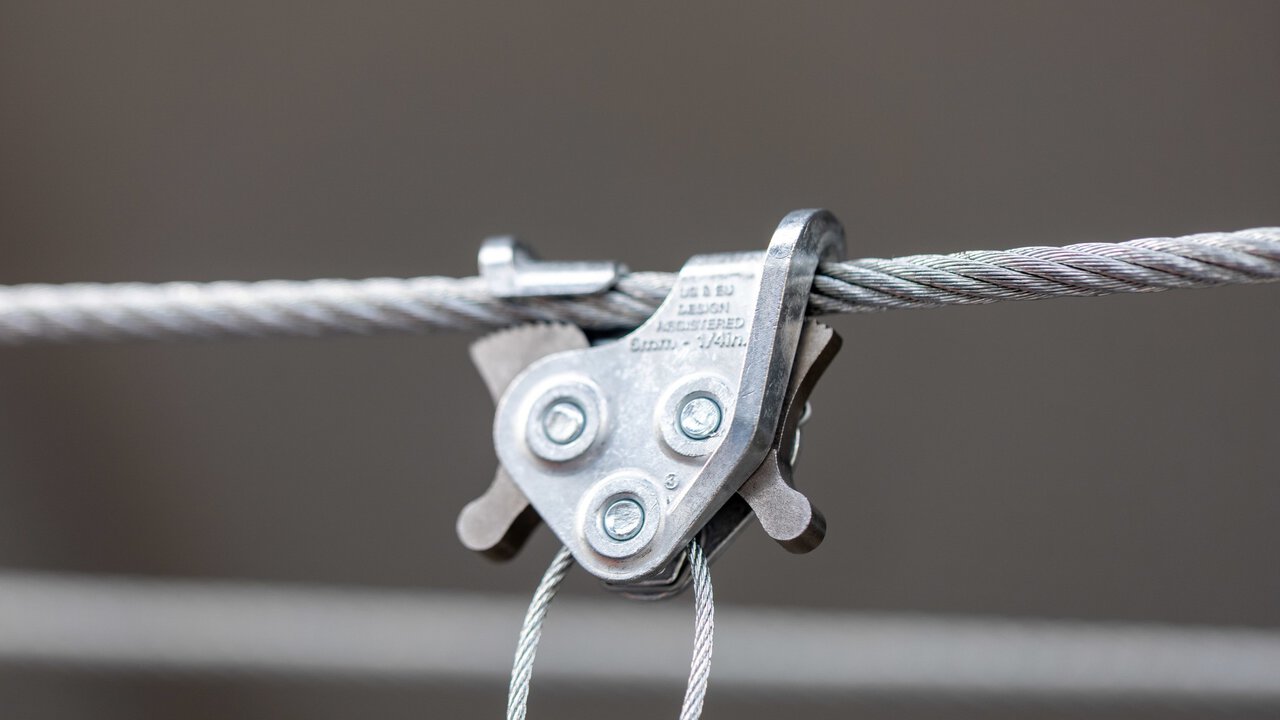

C-Clip Catenary Suspension Clip

SKU # CCLIP-3MM-BB, CCLIP-6MM-BB

Designed for precision and style, C-Clip provides a quick and secure connection to the Gripple Cable Strut Kit (Catenary) This allows for horizontal and vertical adjustment via a cable suspension system. Available in 1/8" and 1/4" versions, C-Clip is ideal for various applications, including lighting and acoustics.

Safe Working Load

Safe Working Load:

35 lbs (1/8"), 100 lbs (1/4")

Available Drop Lengths

Available Drop Lengths :

5 - 30 ft (custom lengths available on request)

Catenary Cable Compatibility

Catenary Cable Compatibility :

1/8" and 1/4"

Inquire Now

Product Downloads

C-Clip - Technical Data Pack (USA)
View all downloads
SKU # CCLIP-3MM-BB, CCLIP-6MM-BB
1
1
1
1
1
1
1
1

C-Clip – Seamless Connections, Designed for Catenary Systems

The Gripple C-Clip is a versatile cable suspension solution ideal for a range of suspension applications, offering quick installation and secure adjustment. Designed for flexibility, it allows horizontal or vertical positioning, even at angles up to 60°and can be easily retrofitted into existing systems. Available in ready-to-use kits, it’s the smart choice for streamlined, professional suspensions.

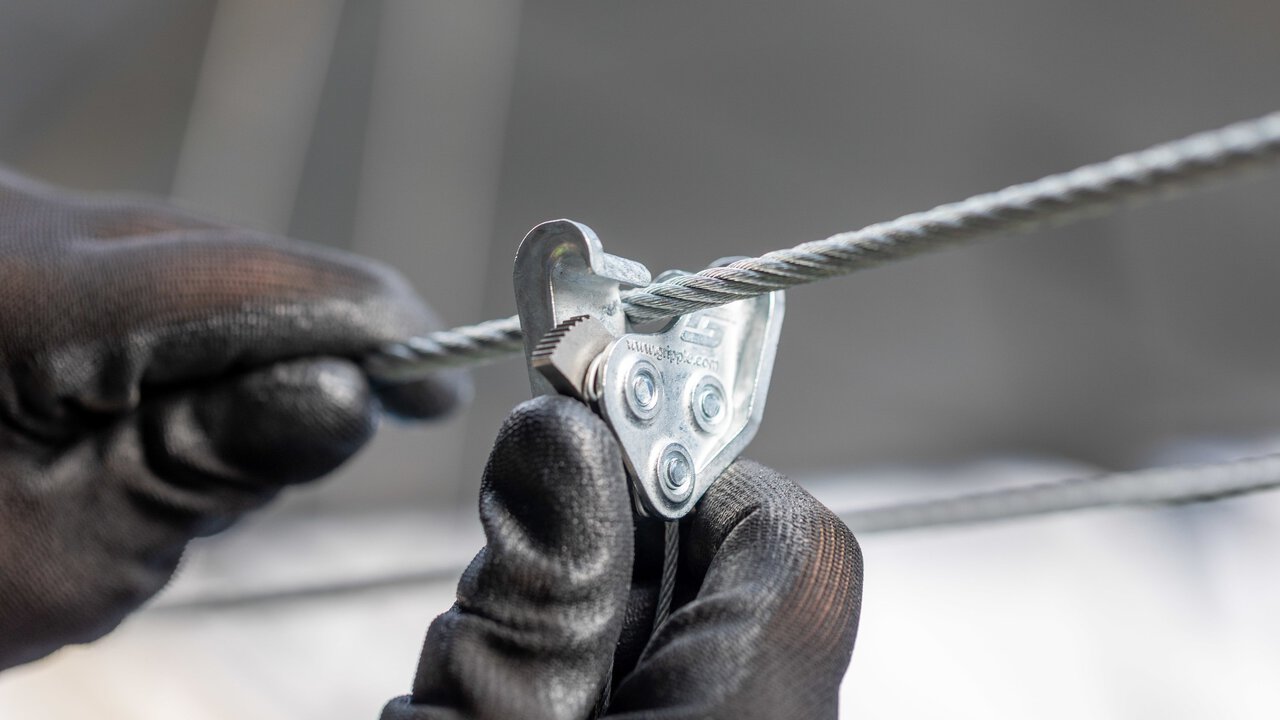

Fast, Tool-Free Installation

Fast, Tool-Free Installation

Clip and go with no need for tools, reducing time on-site.

Ideal for a Range of Suspensions

Ideal for a Range of Suspensions

Our Cable Strut (Catenary) kits and C-Clips allow you to overcome challenging installs on open span buildings with limited suspension fixing points.

Adjustable & Versatile

Adjustable & Versatile

Allows precise horizontal or vertical adjustment, even at angles up to 60°.

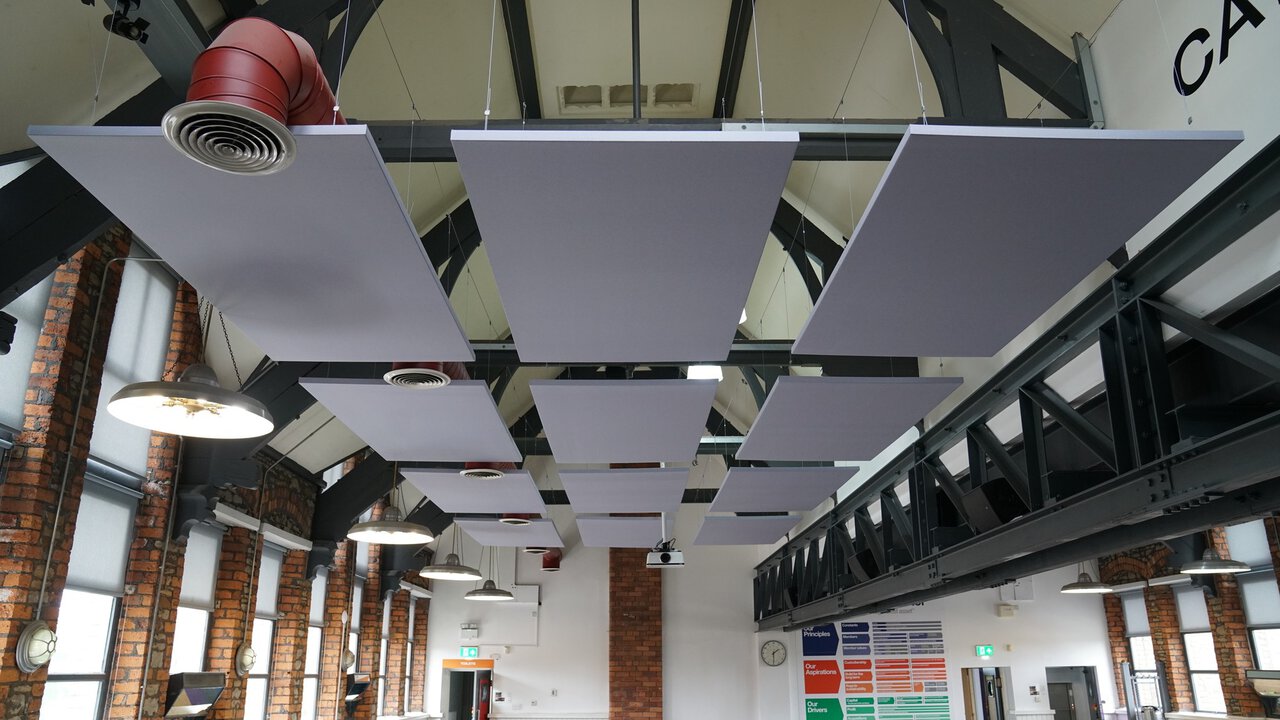

Compact & Discreet Design

Compact & Discreet Design

Minimalist form blends seamlessly into architectural spaces.

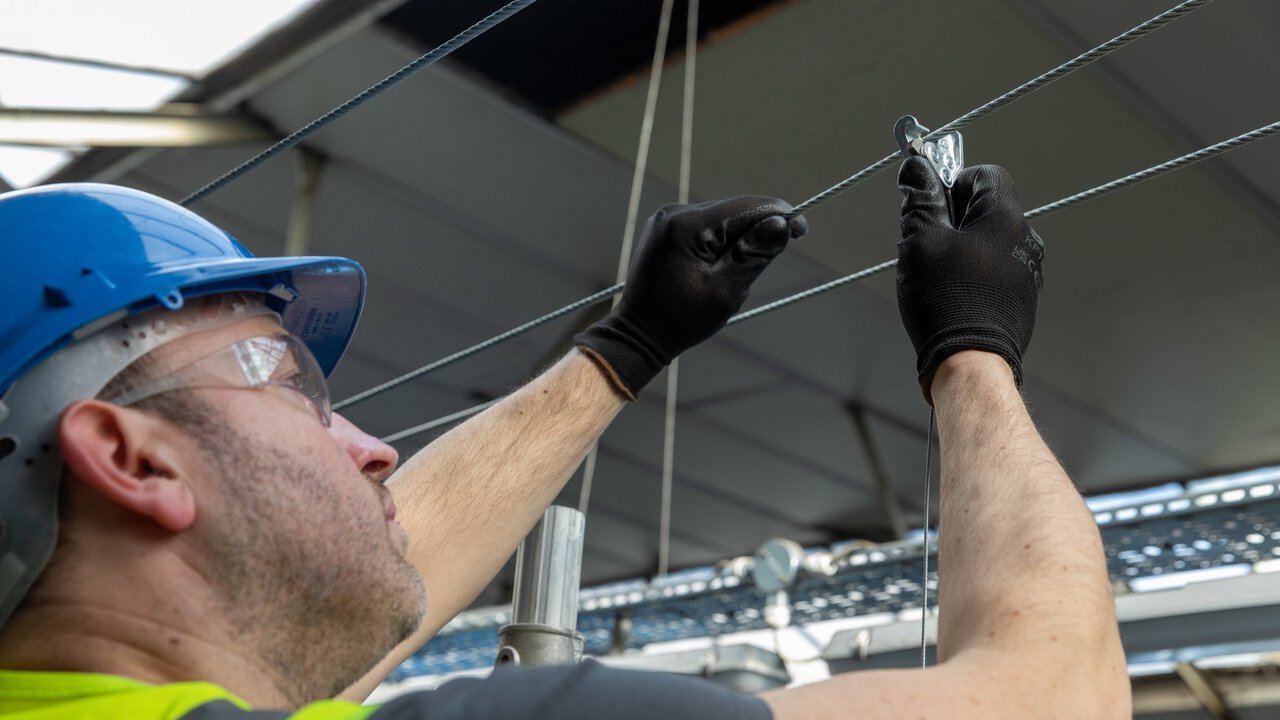

Retrofit-Friendly

Retrofit-Friendly

Easily integrates into existing cable systems without disruption.

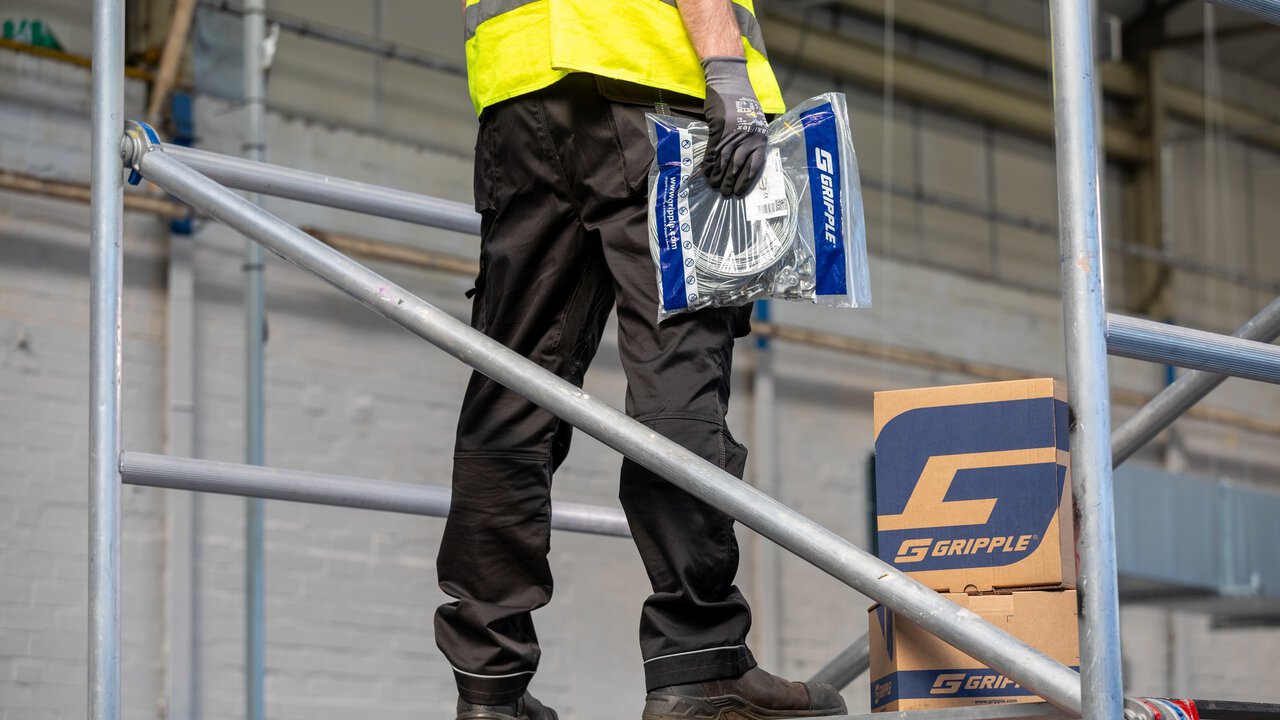

Complete Kit Convenience

Complete Kit Convenience

Supplied as a ready-to-use solution with cable and hanger included.

Fast, Tool-Free Installation

Fast, Tool-Free Installation

Clip and go with no need for tools, reducing time on-site.

Ideal for a Range of Suspensions

Ideal for a Range of Suspensions

Our Cable Strut (Catenary) kits and C-Clips allow you to overcome challenging installs on open span buildings with limited suspension fixing points.

Adjustable & Versatile

Adjustable & Versatile

Allows precise horizontal or vertical adjustment, even at angles up to 60°.

Compact & Discreet Design

Compact & Discreet Design

Minimalist form blends seamlessly into architectural spaces.

Retrofit-Friendly

Retrofit-Friendly

Easily integrates into existing cable systems without disruption.

Complete Kit Convenience

Complete Kit Convenience

Supplied as a ready-to-use solution with cable and hanger included.

How it Works:

Our C-Clip catenary suspension fixings are easy to install and adjust. See how it works below or download the Technical Data Pack for full installation guidance and specifications.

 Download the Technical Data Pack Here

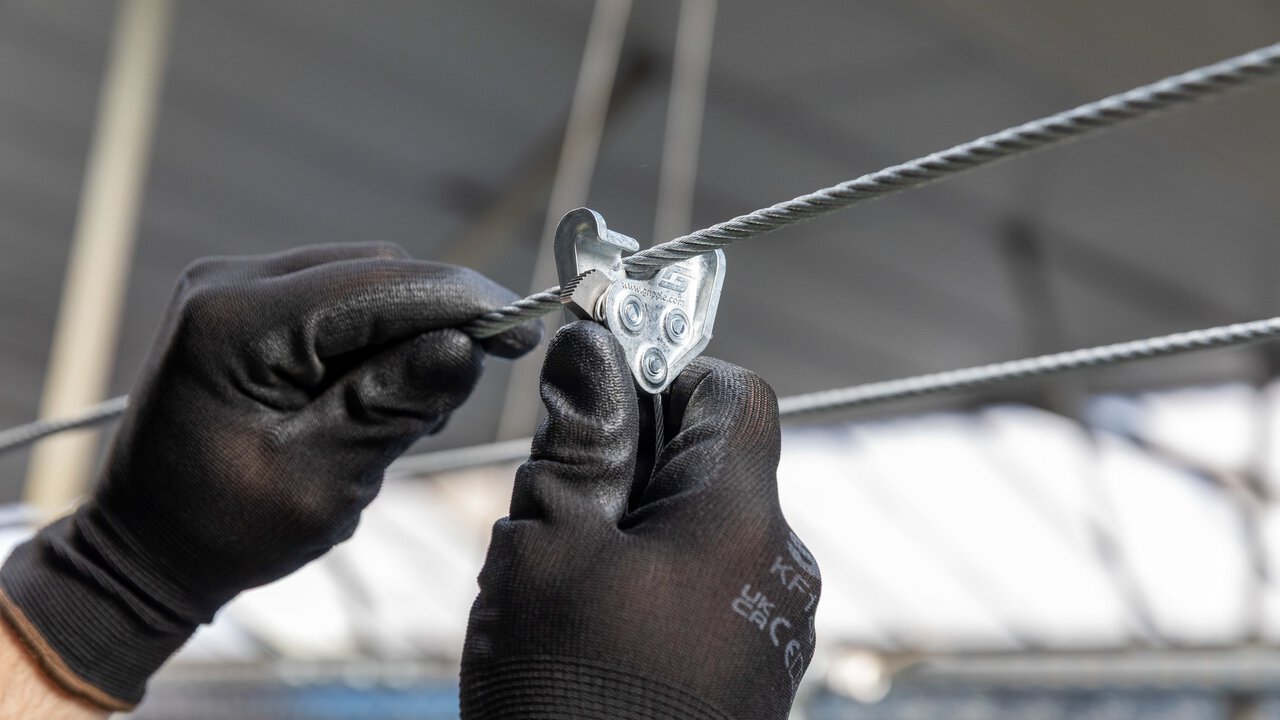

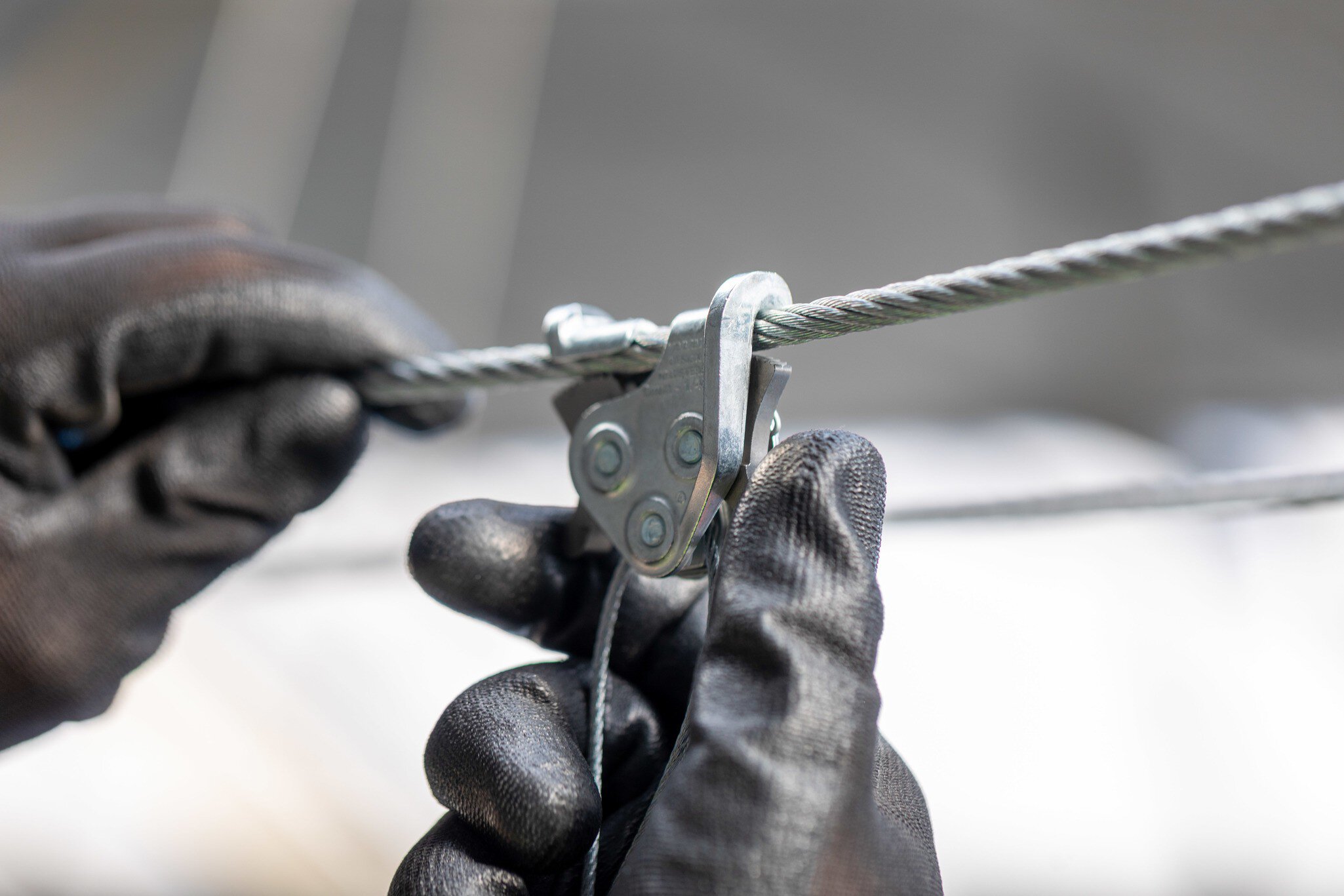

Step 1: Pinch and hold the two cams on the C-Clip to open
Step 2: Rotate the C-Clip onto the catenary cable through 90 degrees
Step 3: Release the two cams to grip onto the catenary cable
Step 4: Pinch and hold the two cams on the C-Clip for lateral adjustment along the length of the catenary cable
“We were able to install our Gripple Cable Strut in 1 day as opposed to 11 days doing it with all thread and strut. That’s amazing!”
Ramon Simpson, Field Superintendent
Read the full case study here
“Using Gripple Cable Strut along with the UniGrip has cut the installation time by 50%. We eliminated threaded rod and all fasteners to build strut racks. We were able to complete the job with 50% less man hours! I will continue to use Gripple as a time saver.”
Pat Hearity, Project Manager | Electric Company Inc.
Read the full case study here

Common Applications

Lighting Suspension

MEP Suspension

Acoustic Suspension

Signage & Display Suspension

Lighting Suspension

MEP Suspension

Acoustic Suspension

Signage & Display Suspension

Need Technical Support?

While catenary solutions can often feel complex or daunting, our in-house Technical Services team takes care of the full design and specification process, giving you complete confidence in your project.



Discover Our Catenary Analysis and Design Services

Related Products & Accessories

Catenary Kit (Indoor)

Overhead Cable Suspension Cable Strut (Catenary)

Safe Working Load: Up to 220 lbs vertical load per free span
Available Cable Sizes: 1/8″ and 1/4″
Attachment Methods: Wall Bracket, Loop, Beam Clamp
View Product

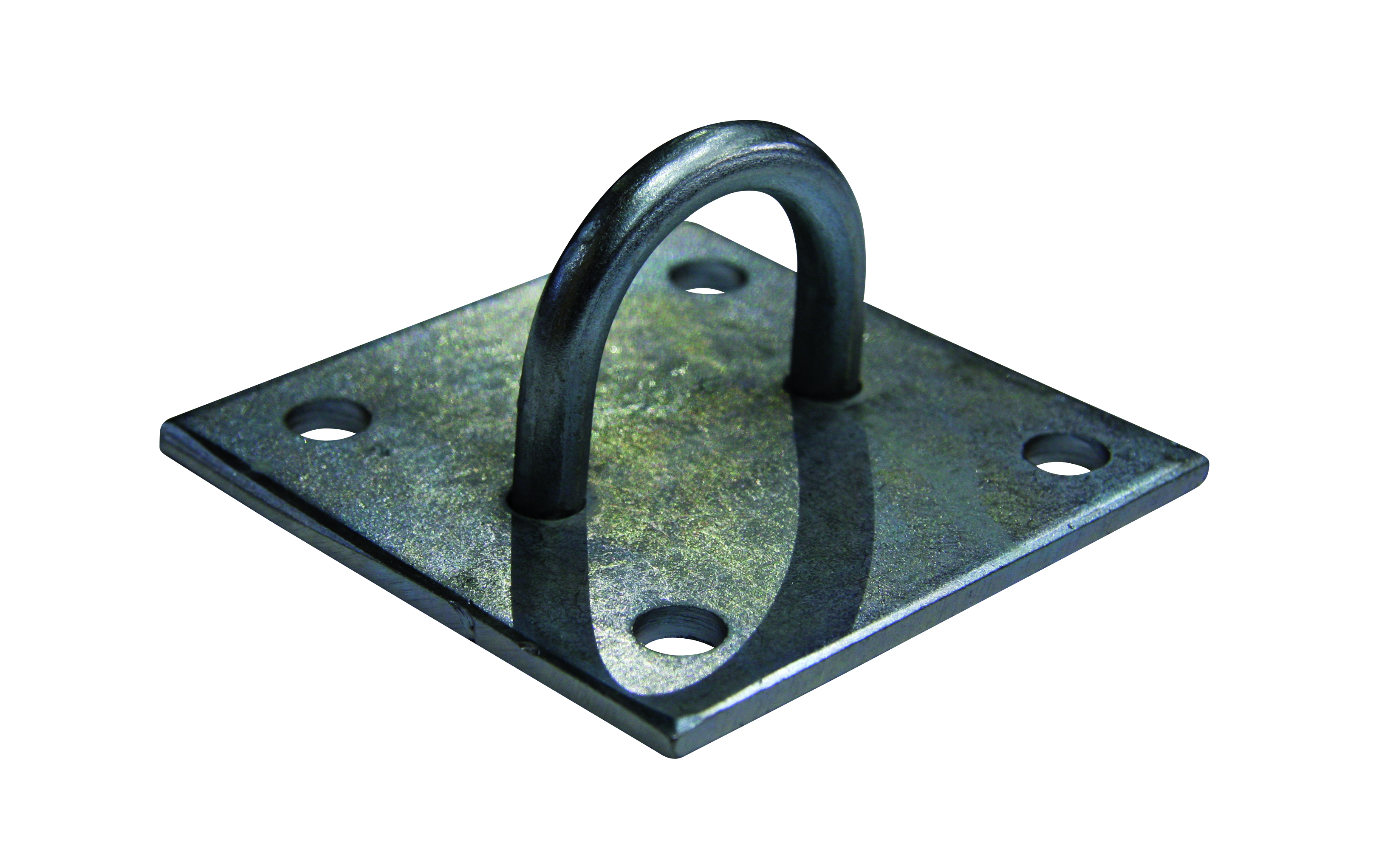

Catenary Wall Bracket

Ideal for attaching a D6 or 3 mm Cable Strut kit from a concrete wall or wooden beam.

View Accessory

Catenary Tensioning Tool

Lightweight tool designed to tension 6 mm wire rope installations with ease.

View Accessory

GF Bracket

The GF bracket is ideal for clamping onto an I-Beam when it’s not possible to loop around with the catenary cable, or when the height of the beam is too great.

View Accessory
Beam Clamp Untitled design - 1

Beam Clamp

A flange clamp suitable for use with parallel or tapered flange beams, supplied with the rear hole drilled or tapped.

View Accessory

Beam, Flange & Purlin Clip

The purlin clips are ideal for attaching Gripple Hangers when access or drilling restrictions occur.

View Accessory

Frequently Bought With

HangPro®

Versatile Adjustable Cable Hanger

Safe Working Load: Up to 120 lbs
Safety Factor: 5:1
Cable Compatibility: 1/16″ and 5/64″
View Product

UniGrip – Range

Single Channel Cable Hanger

Maximum Safe Working Load: 800 lbs
Cable Compatibility: 5/64″ – 1/4″
Suspension Drop Lengths: 5 ft – 30 ft (additional lengths available on request)
View Product

Angel™ Hanger – Range

Aesthetic Architectural Cable Hanger

Safe Working Load: 33 lbs
Range of Fixing Variants (Feet): 10+
Suitable For: Lighting, Signage, Acoustics +
View Product

HangFast™

Key Release Cable Locking Hanger

Safe Working Load: 715 lbs
Cable Compatibility: 1/16” to 1/4″
Suspension Drop Lengths: 5 ft – 30 ft (additional drop lengths available on request)
View Product

Related Downloads

C-Clip – Technical Data Pack (USA)
Construction Product Guide – Brochure – USA
Catenary Kit – Technical Data Pack (USA)

Frequently Asked Questions

The C-Clip is designed for quick and secure cable suspension, ideal for applications like lighting suspension, signage, and other overhead installations.

Yes, it features a tool-free, snap-on design that allows for fast installation and easy adjustment on-site.

The C-Clip allows for both horizontal and vertical repositioning, even at angles up to 60°.

It comes in 1/8″ and 1/4″ options to suit different cable gauge and load requirements.

Yes, C-Clips can be added to existing Gripple catenary system installations. Making it ideal for upgrades or changes to existing installations.

Each kit includes the C-Clip, pre-cut cable, and a Gripple hanger — everything you need for a complete suspension solution.
