HangFast™ Key Release Cable Locking Hanger

SKU # HF1, HF2, HF3, HF4, HF5

Explore our HangFast range, a versatile and tamper-proof, cable suspension system engineered for quick and efficient installation, with a simple loop-through attachment for fast, flexible cable hanging.

Safe Working Load

Safe Working Load:

715 lbs

Cable Compatibility

Cable Compatibility:

1/16” to 1/4"

Suspension Drop Lengths

Suspension Drop Lengths:

5 ft – 30 ft (additional drop lengths available on request)

Inquire now

Product Downloads

Hangfast - Technical Data Pack - USA
View all downloads
HangFast™ Key Release Cable Locking Hanger
SKU # HF1, HF2, HF3, HF4, HF5
1
1
1
1
1
1

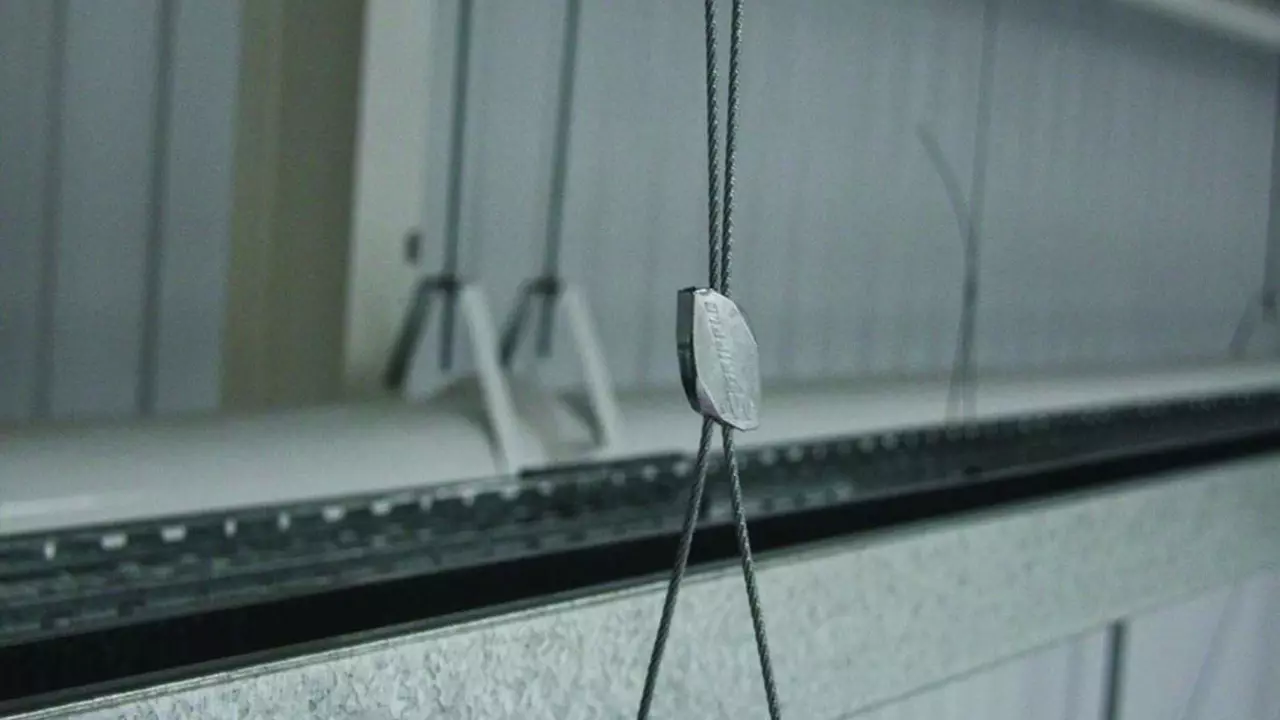

Fast, Flexible and Tamper-Proof Cable Suspension for a Range of Services

Designed for speed and simplicity, our HangFast cable suspension kits offer a smarter way to suspend. Whether you’re working on ductwork or acoustic installations, HangFast cable locks deliver a fast, professional finish with no cutting, threading, or specialist tools required.

Each kit includes pre-cut, fused cable, a pre-crimped attachment to structure, and your HangFast locking devices, making it a true plug-and-play solution. The twin-entry design allows for simple loop configuration around the service, while tool-free adjustment using the supplied release key makes re-levelling and realignment quick and easy. Available in five sizes with working loads up to 715 lbs, HangFast is tested with a 5:1 safety factor.

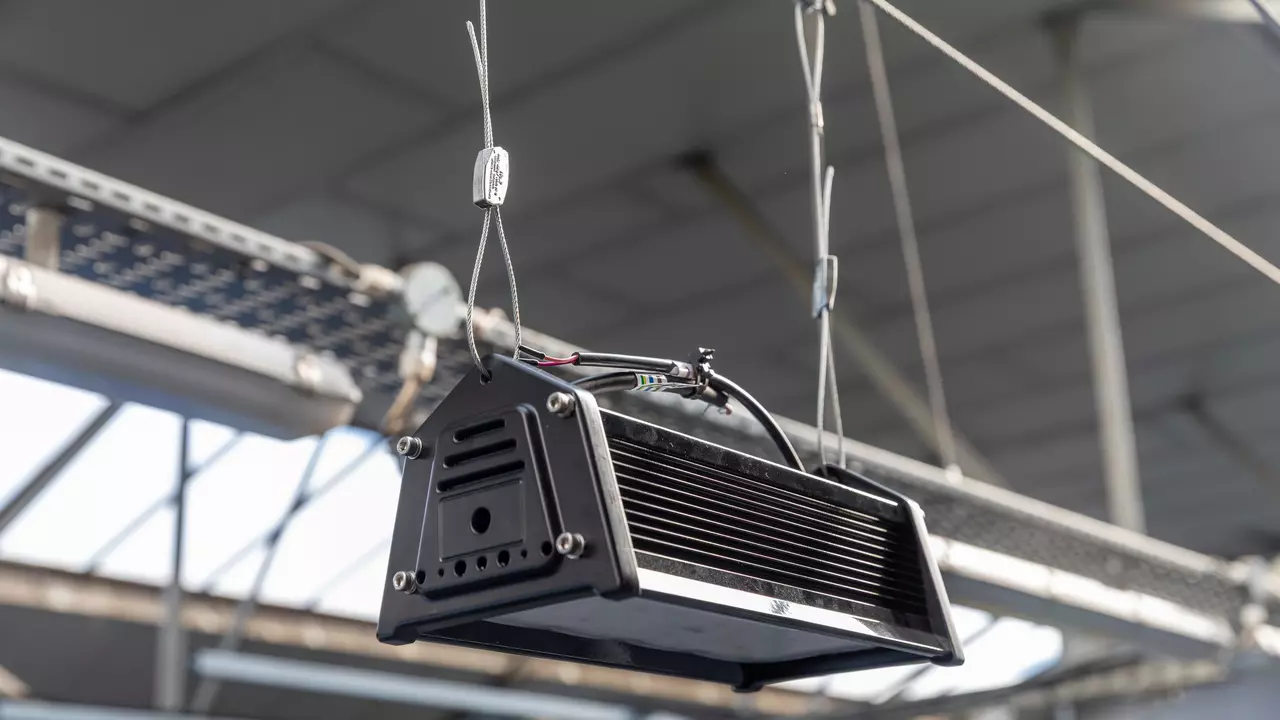

From heavy-duty mechanical services to intricate retail displays, HangFast helps you cut install time, reduce errors, and improve on-site safety. Thanks to its compact, lightweight design, it’s easier to store, transport, and handle than bulky rod and strut systems, saving space on-site and reducing off-site logistics costs.

Read More

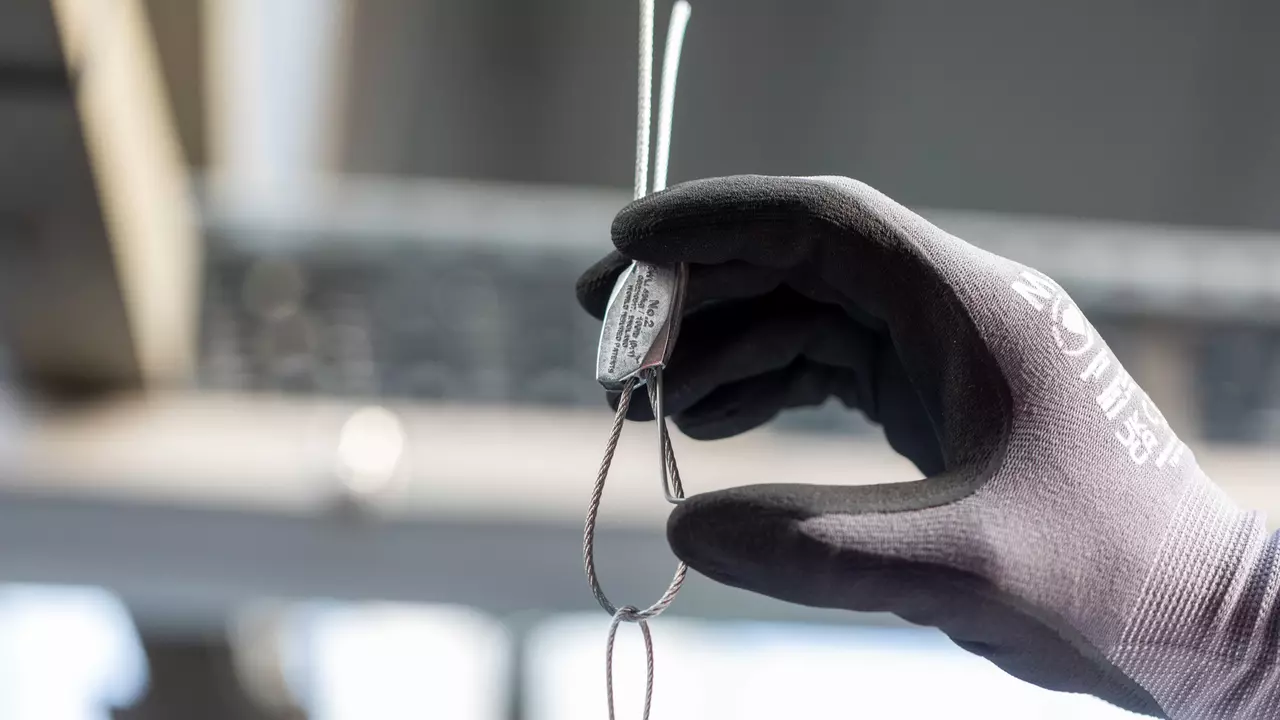

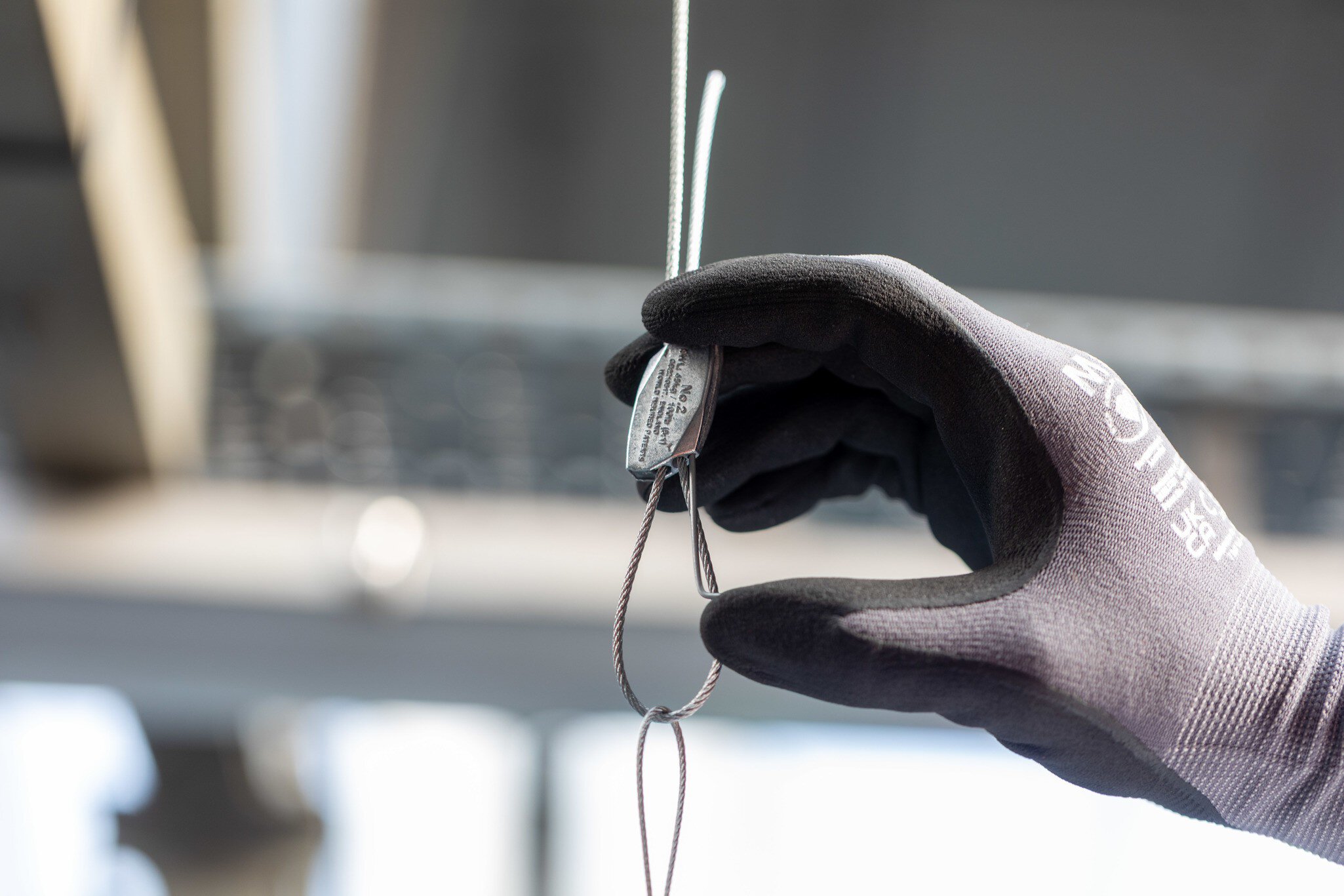

Speed and Convenience

Speed and Convenience

HangFast systems eliminate cutting, require minimal tools, and offer fast, simple adjustment, making them quicker and easier to install than threaded rod or traditional cable methods. Even for first-time users.

Available in 5 Sizes to Suit the Load Requirement

Available in 5 Sizes to Suit the Load Requirement

Suspend a range of items and services with safe working loads from 25lbs – 715lbs, all tested at a 5:1 safety factor for total peace of mind.

Your Ready to Install Kit

Your Ready to Install Kit

Supplied as a ready to install suspension kit including your choice of pre crimped attachment to structure, pre-cut and fused cable and your HangFast hangers.

Lockable Adjustment

Lockable Adjustment

Suspension drops can be easily adjusted using the supplied Gripple release key and are locked and tamper proof without.

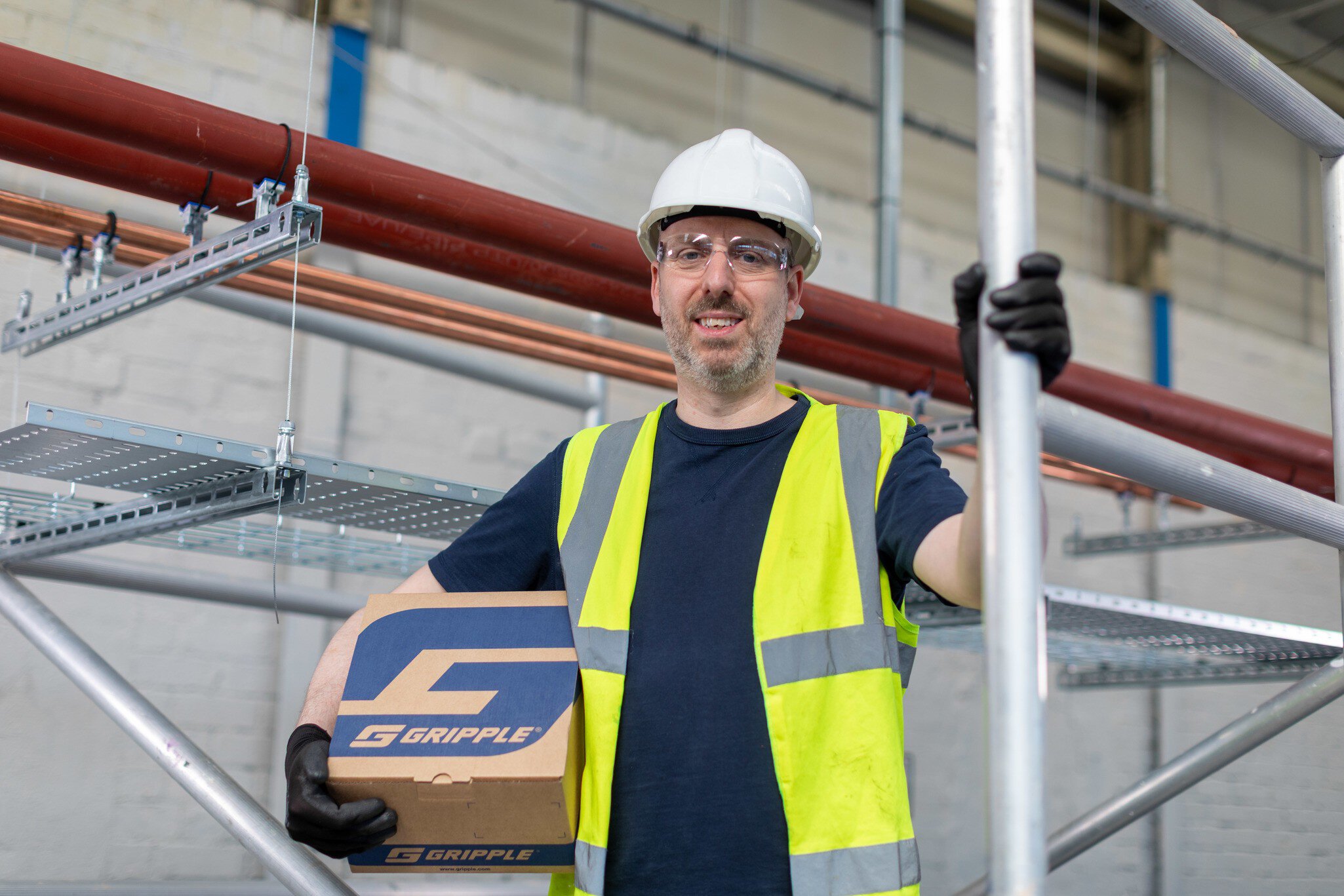

Simplified Handling and Logistics

Simplified Handling and Logistics

Compact, lightweight kits are easier to store, carry, and install on site, while also reducing transport and logistics costs compared to bulky rod and strut.

Improved Health and Safety

Improved Health and Safety

Our cable suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Speed and Convenience

Speed and Convenience

HangFast systems eliminate cutting, require minimal tools, and offer fast, simple adjustment, making them quicker and easier to install than threaded rod or traditional cable methods. Even for first-time users.

Available in 5 Sizes to Suit the Load Requirement

Available in 5 Sizes to Suit the Load Requirement

Suspend a range of items and services with safe working loads from 25lbs – 715lbs, all tested at a 5:1 safety factor for total peace of mind.

Your Ready to Install Kit

Your Ready to Install Kit

Supplied as a ready to install suspension kit including your choice of pre crimped attachment to structure, pre-cut and fused cable and your HangFast hangers.

Lockable Adjustment

Lockable Adjustment

Suspension drops can be easily adjusted using the supplied Gripple release key and are locked and tamper proof without.

Simplified Handling and Logistics

Simplified Handling and Logistics

Compact, lightweight kits are easier to store, carry, and install on site, while also reducing transport and logistics costs compared to bulky rod and strut.

Improved Health and Safety

Improved Health and Safety

Our cable suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Range Variants

Our HangFast range comes in 5 size variants, allowing suspension of a range of services.

Load Rating Safety Factor Wire Size
HangFast 1 25 lbs 5:1 1/16”
HangFast 2 100 lbs 5:1 5/64”
HangFast 3 200 lbs 5:1 1/8”
HangFast 4 495 lbs 5:1 3/16”
HangFast 5 715 lbs 5:1 1/4″

How it Works:

The HangFast range is simple to install and easy to adjust. For more information, refer to the Technical Data Pack

 Download the Technical Data Pack Here

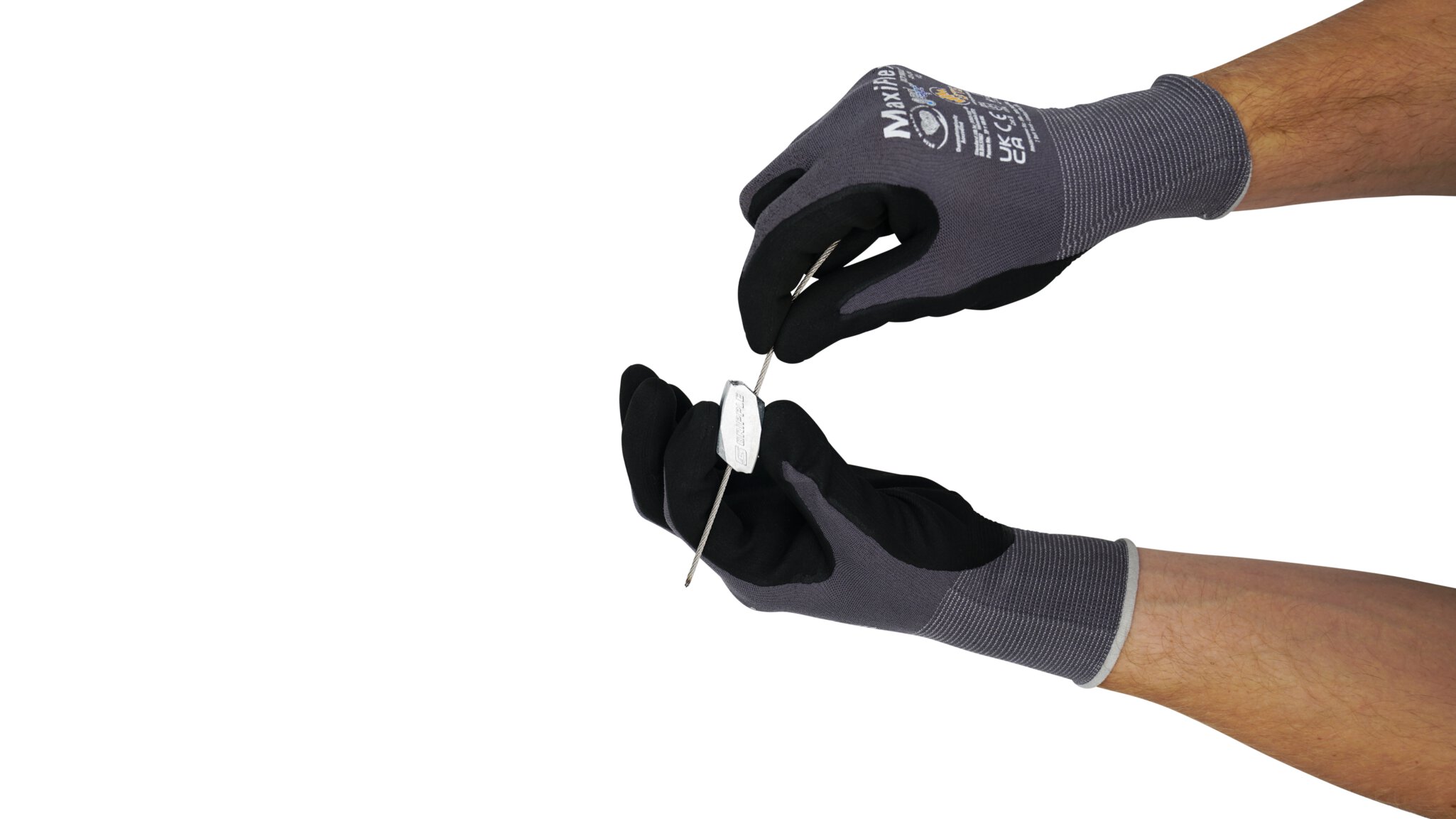

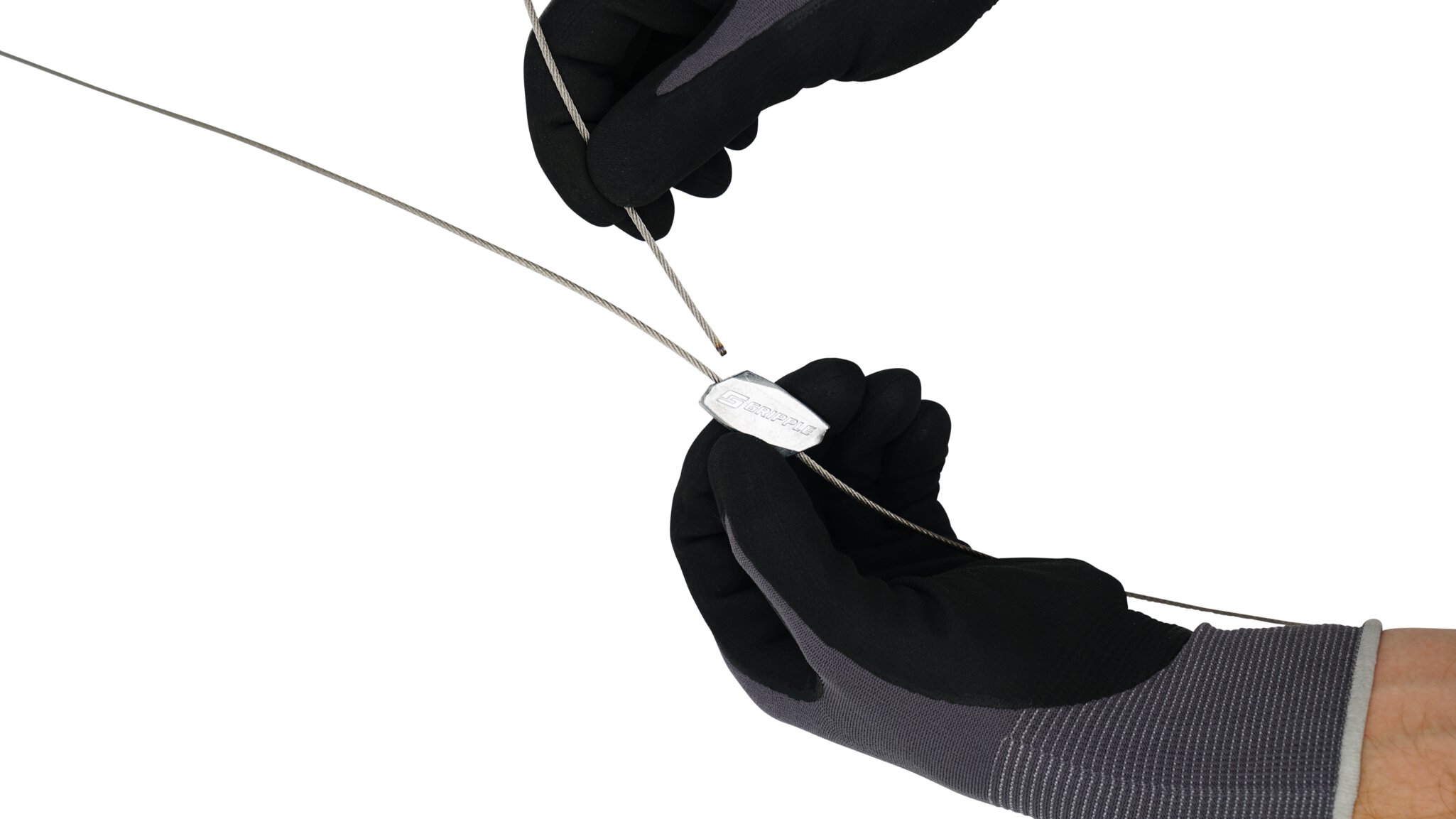

Step 1: Feed the fused end of your cable into one of the HangFast wire entry holes, This grips and locks the cable in place.

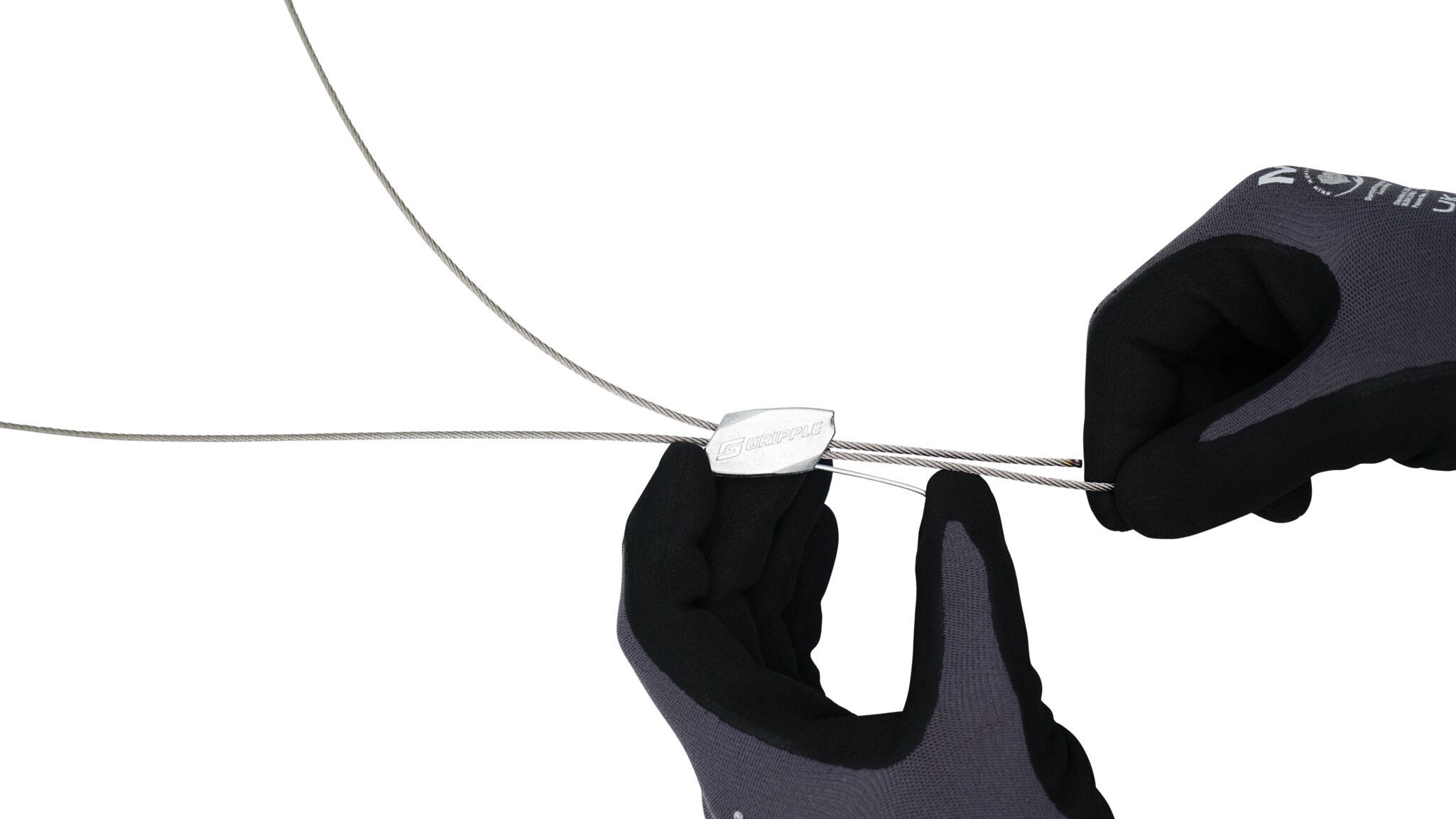

Step 2: Pull through enough cable to create a loop around the object or service you are looking to suspend.
Step 3: Feed the cable back through the other entry hole to create a suspension loop.

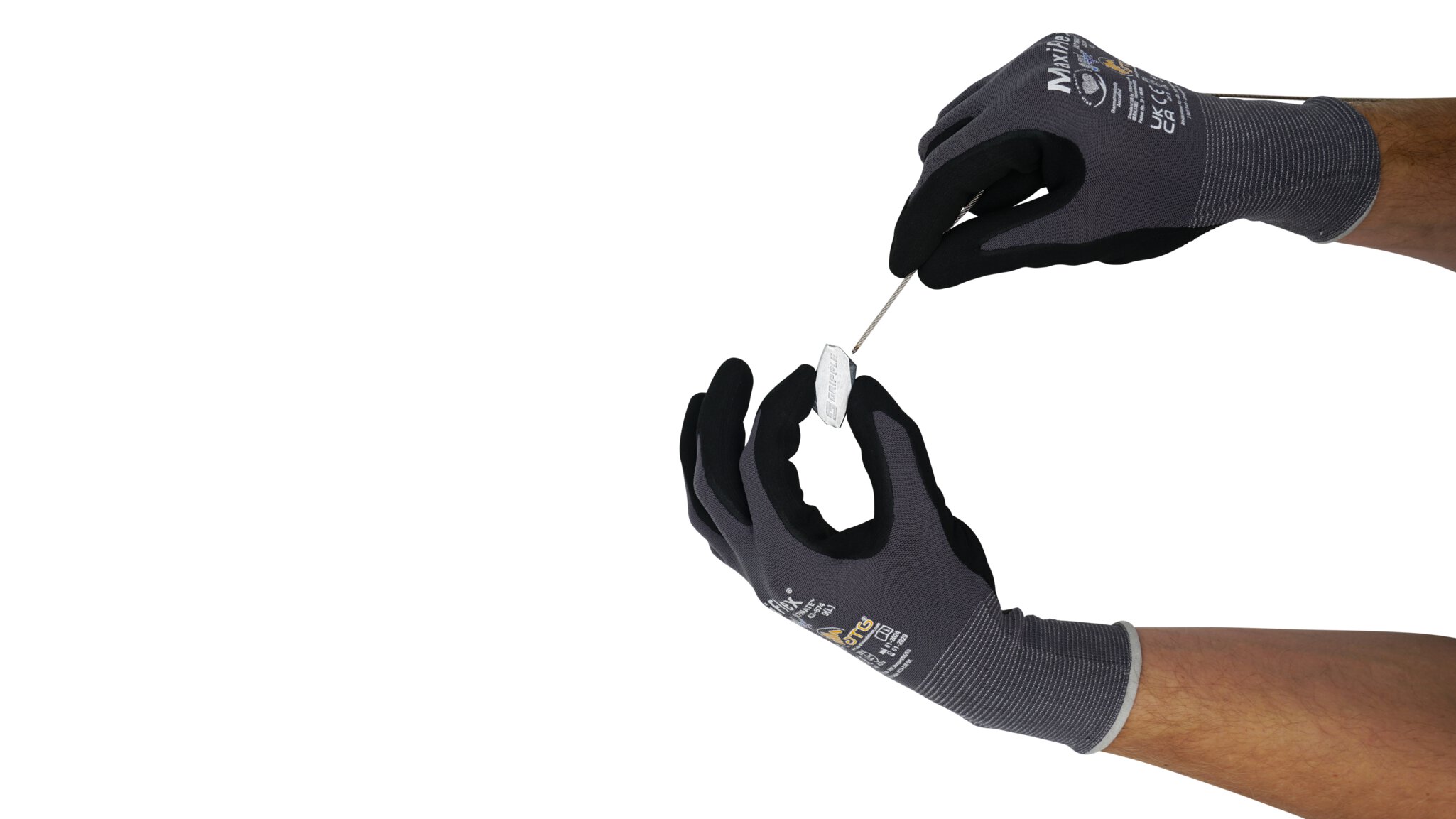

Step 4: Adjust using the supplied release key as needed.

Ready To Install
Suspension Kit

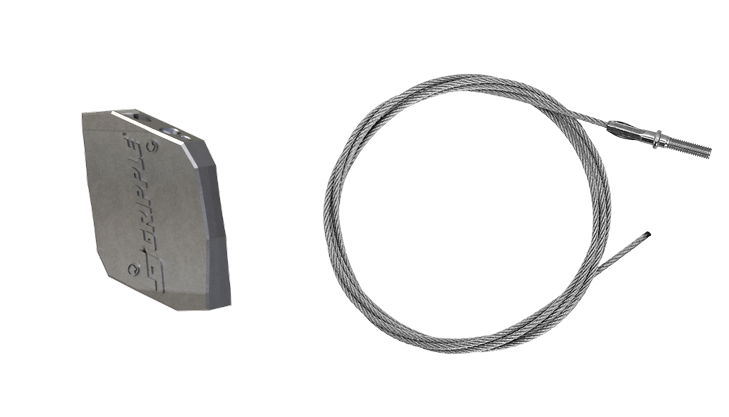

We supply HangFast hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Cable
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Snap Hook - 2

Mini Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 15 kg
Available Sizes:
No. 1: 1/16″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or lighting.

Available Sizes:
No.1: 1/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

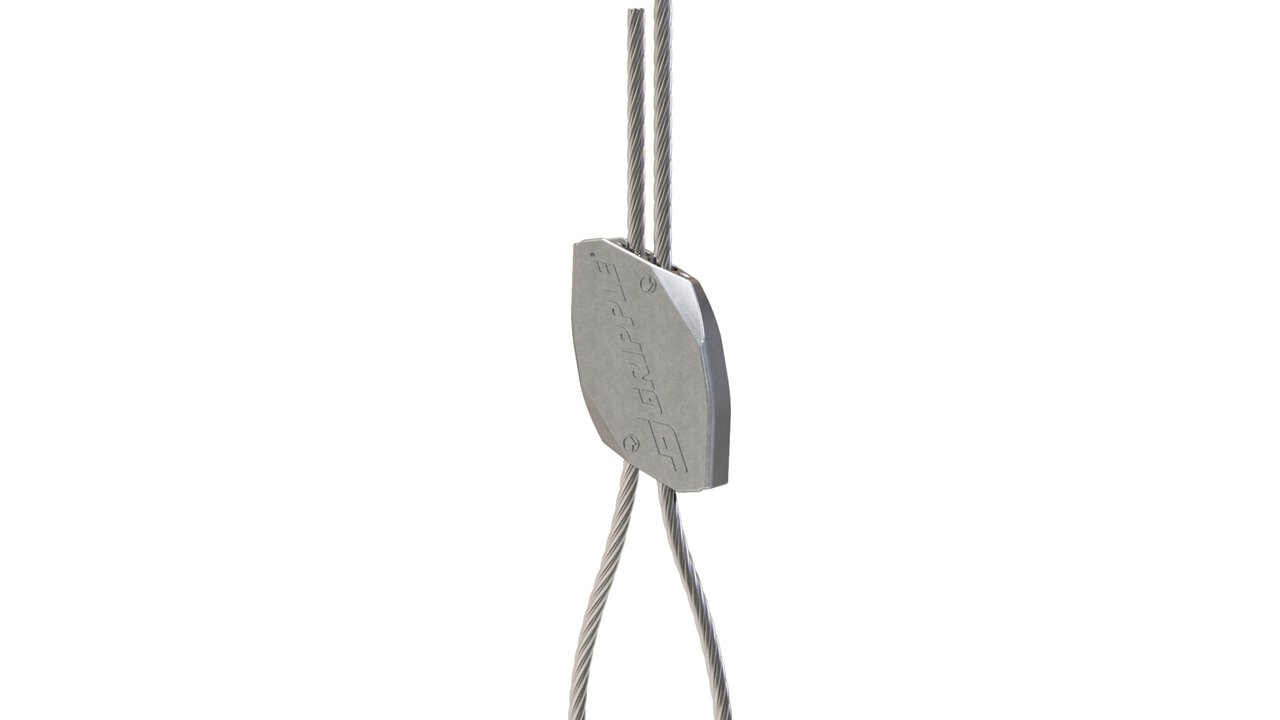

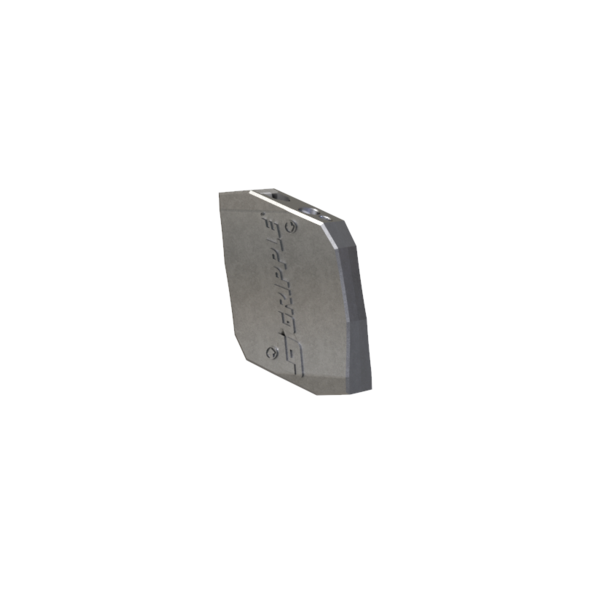

HangFast Hanger

Your go-to solution for creating secure, tamper proof and adjustable cable loop suspensions which are faster, simpler, and more reliable than traditional rod or cable systems.

Maximum Safe Working Load: 715 lbs

Wire Compatibility: 1/16” to 1/4″

Suspension Drop Lengths: 5ft – 30ft (additional drops available on request)
