UniGrip – Cable Basket Adaptor Single channel cable hanger with direct fix cable basket attachment

SKU # UG2-FN-CB6

Our custom solution for the suspension of cable basket hanging applications.

Max Working Load

Max Working Load:

120 lbs

Cable Compatibility

Cable Compatibility:

5/64"

Suspension Drop Lengths

Suspension Drop Lengths:

5 ft - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

UniGrip Cable Basket Adapter - Technical Data Pack - USA
View all downloads
UniGrip – Cable Basket Adaptor Single channel cable hanger with direct fix cable basket attachment
SKU # UG2-FN-CB6
1

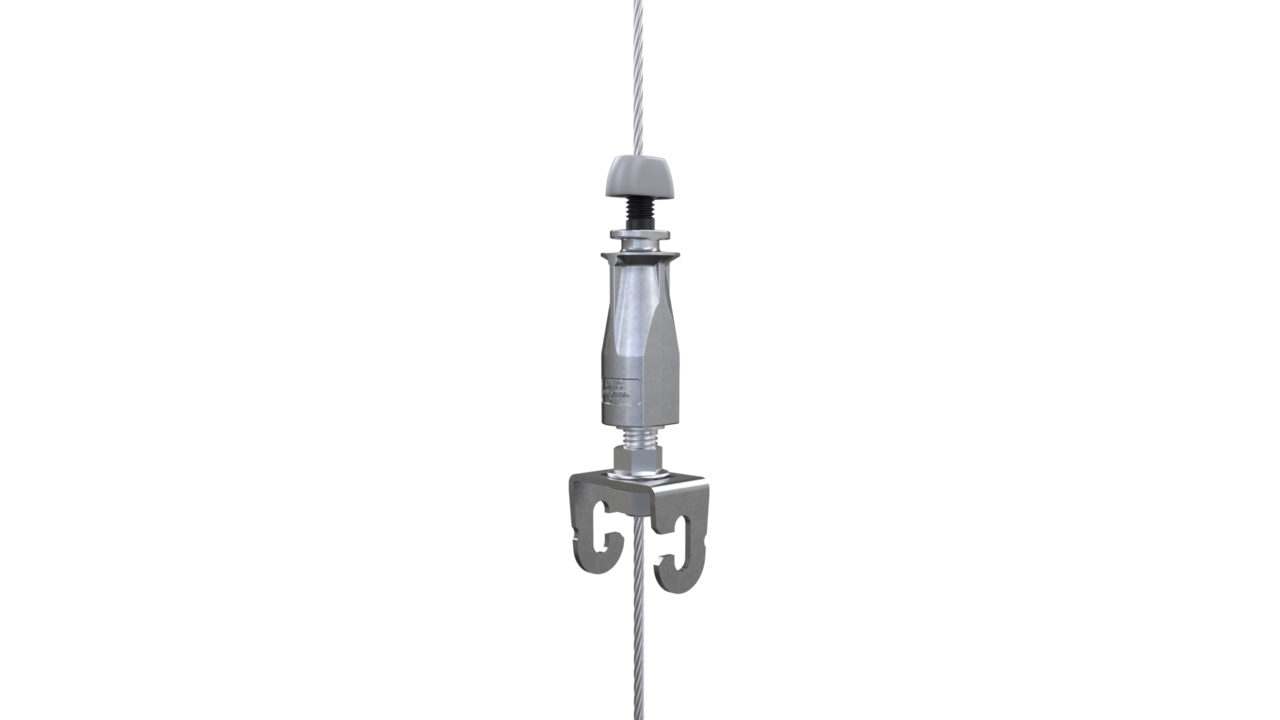

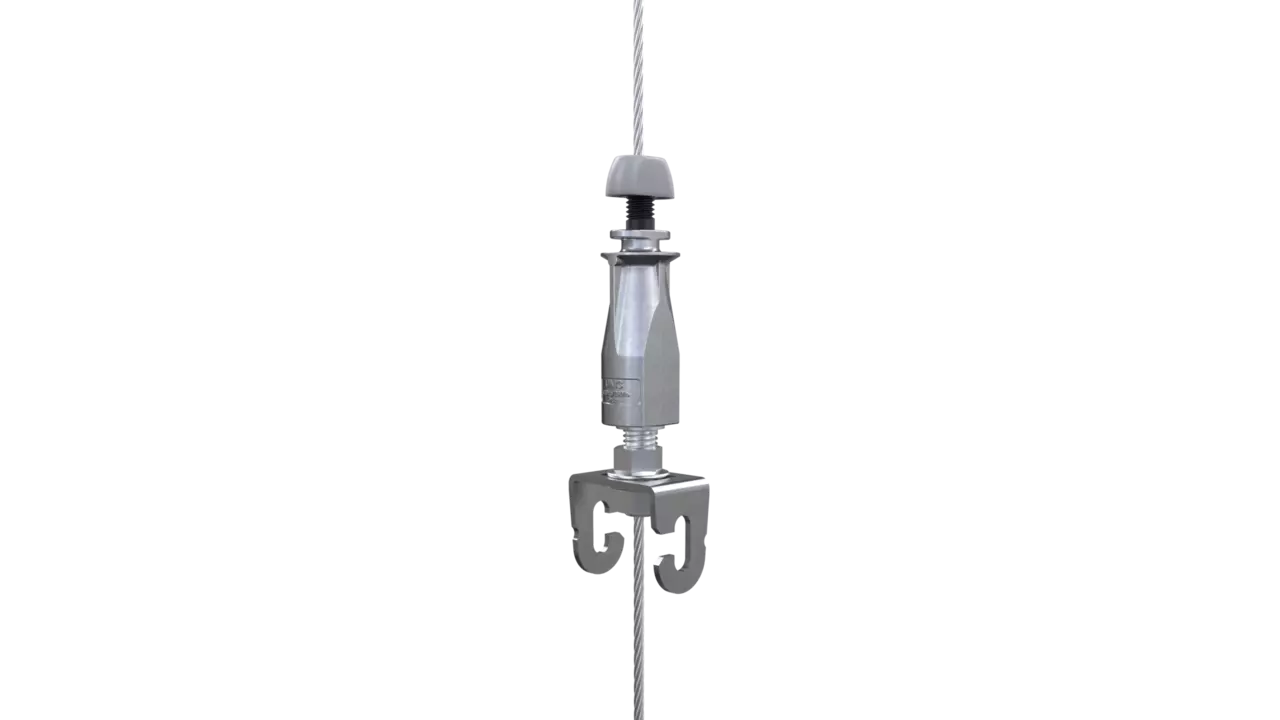

Designed to Transform Cable Basket Suspension

The Gripple UniGrip Cable Basket Adaptor is the next-generation solution for fast, secure suspension of cable basket, eliminating the need for traditional channel bearers. Engineered for speed and simplicity, it installs up to six times faster than conventional threaded rod methods, reducing labor costs.

Its central cable exit and ergonomic release button allow for easy height adjustment, while the integrated locking mechanism ensures maximum safety, and the speed of install requires less time in the air.

Available for our UniGrip No.2, the Cable Basket adaptor has a 120 lb load rating and a 5:1 safety factor.

Designed for versatility, it supports single or multi-tier installations. Whether you’re streamlining installations or improving site safety, the UniGrip Cable Basket Adaptor delivers strength, efficiency, and peace of mind.

Read More
Quick Install

Quick Install

Up to 6 times quicker cable basket suspension than traditional rod and strut methods.

Specifically Engineered

Specifically Engineered

The custom design from our in-house team means that the product is perfectly suited for its application.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Strong

Strong

Max working load of 120 lbs with 5:1 SWL.

Less Material Needed

Less Material Needed

The UniGrip Cable Basket Adaptor eliminates the need for channel or strut bearers.

Technical and Engineering Support

Technical and Engineering Support

Let our in-house expert team help you with your project, whether that’s with drawings, site visits, or during installation. The custom design from our in-house team means that the product is perfectly suited for its application.

Quick Install

Quick Install

Up to 6 times quicker cable basket suspension than traditional rod and strut methods.

Specifically Engineered

Specifically Engineered

The custom design from our in-house team means that the product is perfectly suited for its application.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Strong

Strong

Max working load of 120 lbs with 5:1 SWL.

Less Material Needed

Less Material Needed

The UniGrip Cable Basket Adaptor eliminates the need for channel or strut bearers.

Technical and Engineering Support

Technical and Engineering Support

Let our in-house expert team help you with your project, whether that’s with drawings, site visits, or during installation. The custom design from our in-house team means that the product is perfectly suited for its application.

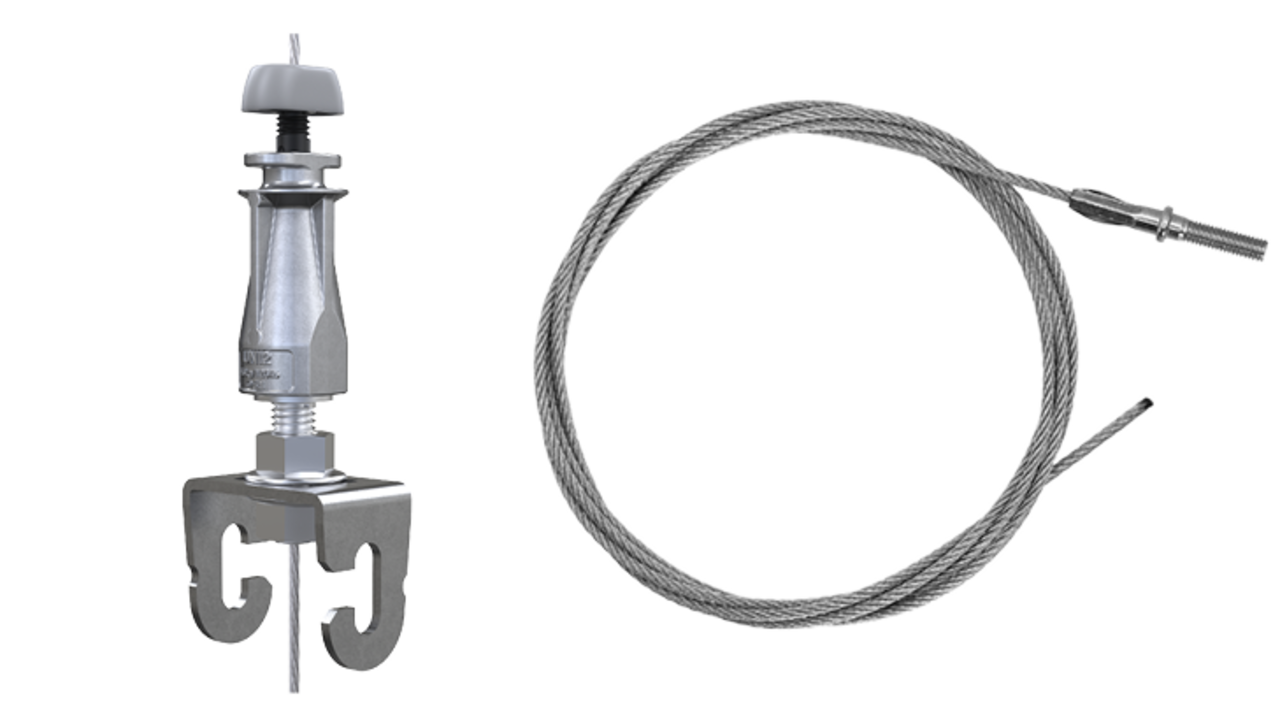

Ready To Install
Suspension Kit

We supply UniGrip Cable Basket Adaptor hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

UniGrip Cable Basket Adaptor

Our custom solution for the cable suspension of cable basket hanging applications.

  • Max Working Load: 120 lbs
  • Wire Compatibility: 5/64″
  • Suspension Drop Lengths: 5 – 30 ft (custom lengths available on request)

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1

UniGrip – Cable Basket Adaptor

SKU # UG2-FN-CB6

Our custom solution for the suspension of cable basket hanging applications.

The Gripple UniGrip Cable Basket Adaptor is the next-generation solution for fast, secure suspension of cable containment, eliminating the need for traditional channel bearers. Engineered for speed and simplicity, it installs up to six times faster than conventional threaded rod methods, reducing labor costs.

Key Specifications

Max Working Load: 120 lbs
Cable Compatibility: 5/64″
Suspension Drop Lengths: 5 ft – 30 ft (custom lengths available on request)

Available Sizes

No.2 : 120 lbs
Find a SupplierView Product Page

Product Downloads

UniGrip Cable Basket Adapter – Technical Data Pack – USA

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

Common Applications

Cable Containment

Cable Containment

Related Downloads

UniGrip Cable Basket Adapter – Technical Data Pack – USA
Construction Product Guide – Brochure – USA

Related Products & Accessories

UniGrip – Range

Single Channel Cable Hanger

Maximum Safe Working Load: 800 lbs
Cable Compatibility: 5/64″ – 1/4″
Suspension Drop Lengths: 5 ft – 30 ft (additional lengths available on request)
View Product

UniGrip Y-Fit

Cable Hanger with Dual Fixing Points

Max Working Load: 240 lbs
Leg Length Size Range: 6″, 12″ and 18″
Maximum Off Axis Suspension: 15º
View Fixing Variant

Y-Fit Accessory

Ideal for balanced cable containment, lighting and pipework.

View Accessory

Fast Trak™ – Range

Prefabricated Trapeze Bracket System

Maximum System Load: 440 lbs
Suspension Space: 9″ – 61″
Drop Height Range: 8″ – 59″
View Product

Frequently Asked Questions

The UniGrip Cable Basket Adaptor features an integral locking mechanism that grips instantly and securely. Its push-release system ensures reliable cable basket suspension while allowing controlled adjustment, providing both strength and flexibility in your basket tray fixings.

The UniGrip Cable Basket Adaptor is designed to fit a wide range of cable basket sizes, making it suitable for most standard cable basket suspension and basket tray fixing applications. It’s available in our UniGrip 2 size, making it compatible with 5/64″ diameter wire.

Unlike standard cable basket brackets, the UniGrip adaptor offers fast, tool-free installation, adjustable height, and reduced on-site labor, all helping contractors save time without compromising on strength or compliance.
