Duct Trapeze Rectangular Ductwork Hanger

SKU # DT2

A quicker, cleaner way to suspend rectangular ductwork. Our smart duct cable lock system features integrated vibration pads and comes ready to install with no cutting, no hassle.

Safe Working Load

Safe Working Load:

100 lbs

Ductwork Compatibility

Ductwork Compatibility:

Ducting made from 5/64” to 1/16” gauge steel

Suspension Drop Lengths

Suspension Drop Lengths:

5 - 30 ft (custom lengths available on request)

Inquire Now

Product Downloads

Duct Trapeze - Technical Data Pack - USASMACNA -Duct Trapeze - Verification Letter - USA
View all downloads
Duct Trapeze Rectangular Ductwork Hanger
SKU # DT2
1
1
1
1
1
1

Fast-fit Rectangular Duct Hanger with Optional Built-in Vibration Control

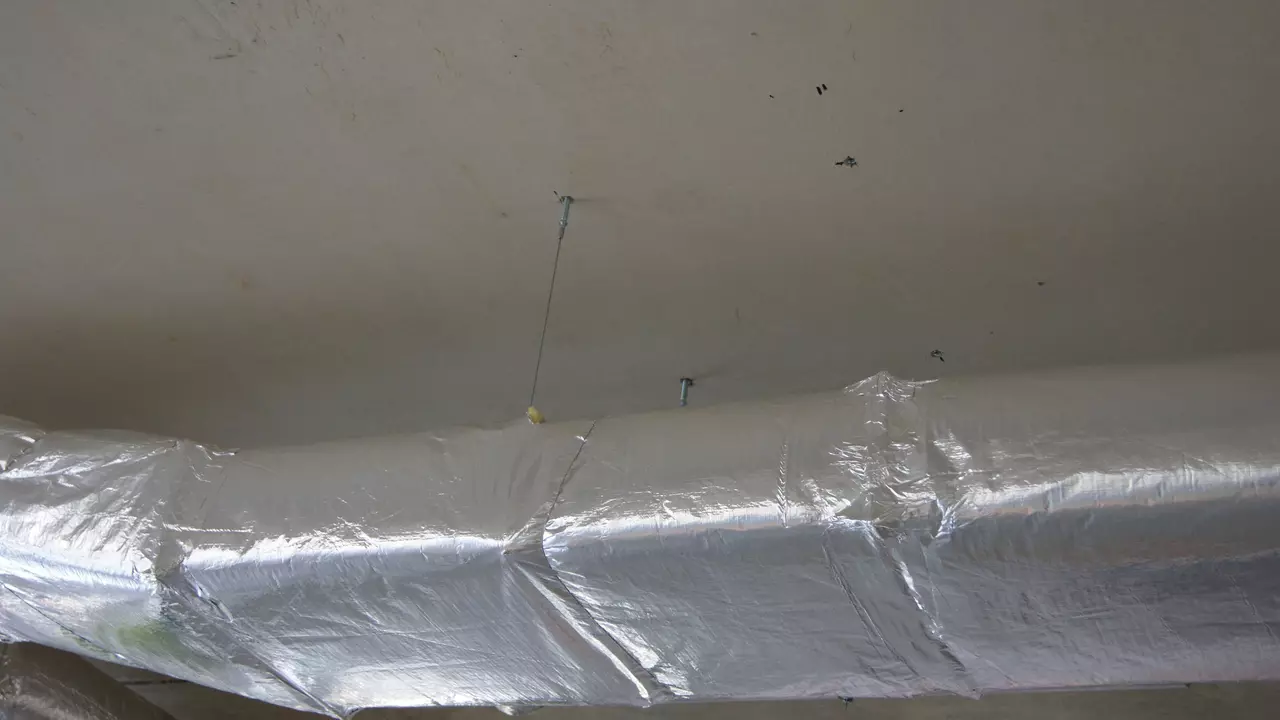

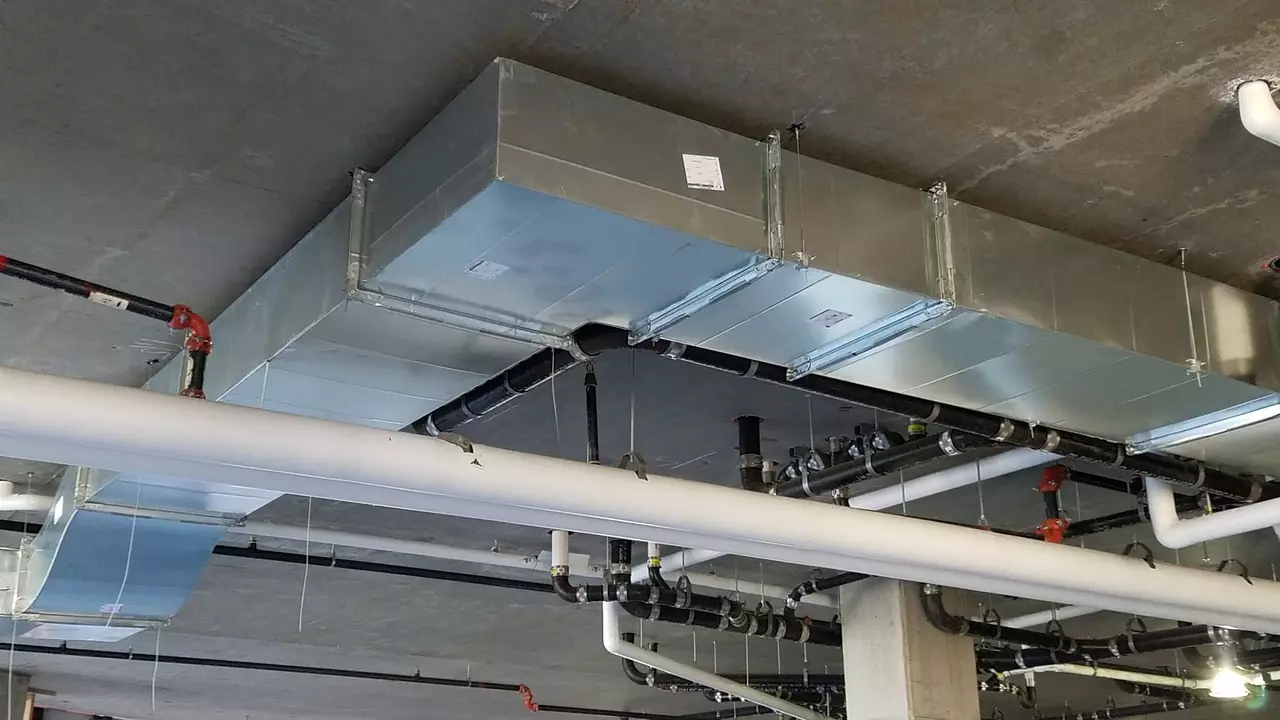

The Gripple Duct Trapeze is a purpose-built rectangular duct hanger designed for fast and easy suspension of ductwork and other rectangular steel sections 5/64” to 1/16”gauge.

Unlike traditional threaded rod & strut methods, there’s no cutting or measuring on site, just a compact, pre-assembled hanger kit with a simple L-shaped fastener bracket and optional integrated EPDM rubber pads to reduce vibration and prevent air leakage.

With three fixing points for screws or rivets, and a release pin for easy height adjustment, it’s faster to install, easier to handle, and more flexible on-site. Whether you’re looking for cable hangers for ductwork, a smarter square duct hanger, or a more efficient duct hanger system overall, this is your solution.

Read More
Speed

Speed

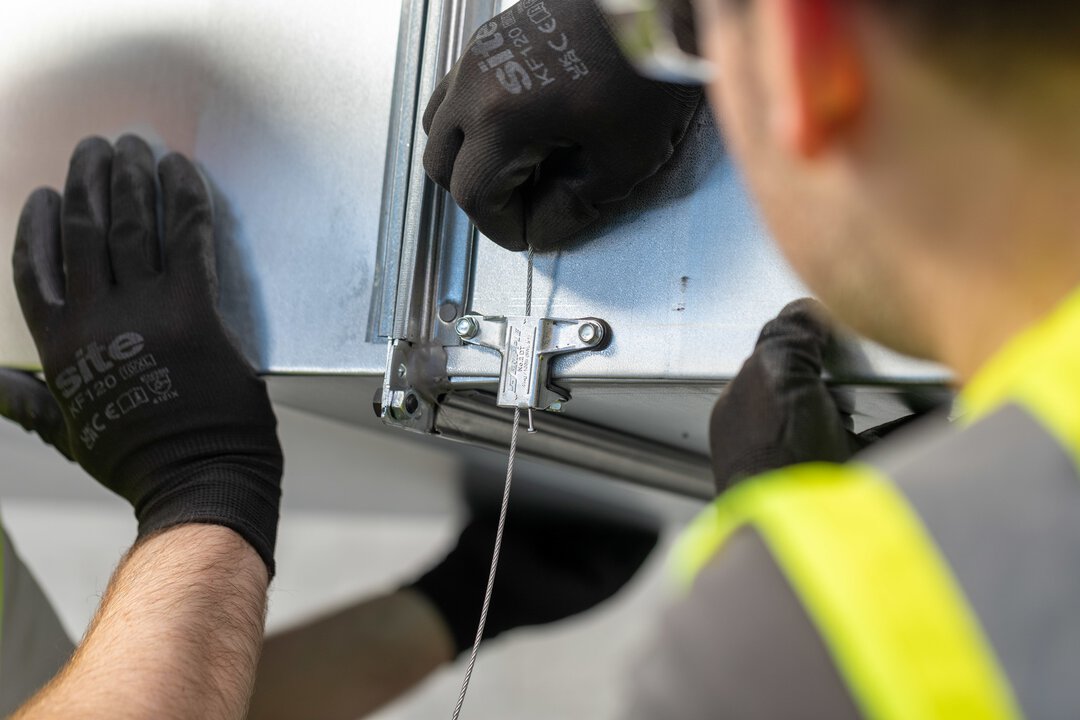

Over 50% faster to install than traditional rod and strut methods. Say goodbye to cutting, de-burring, and hot works.

Quick Attachment

Quick Attachment

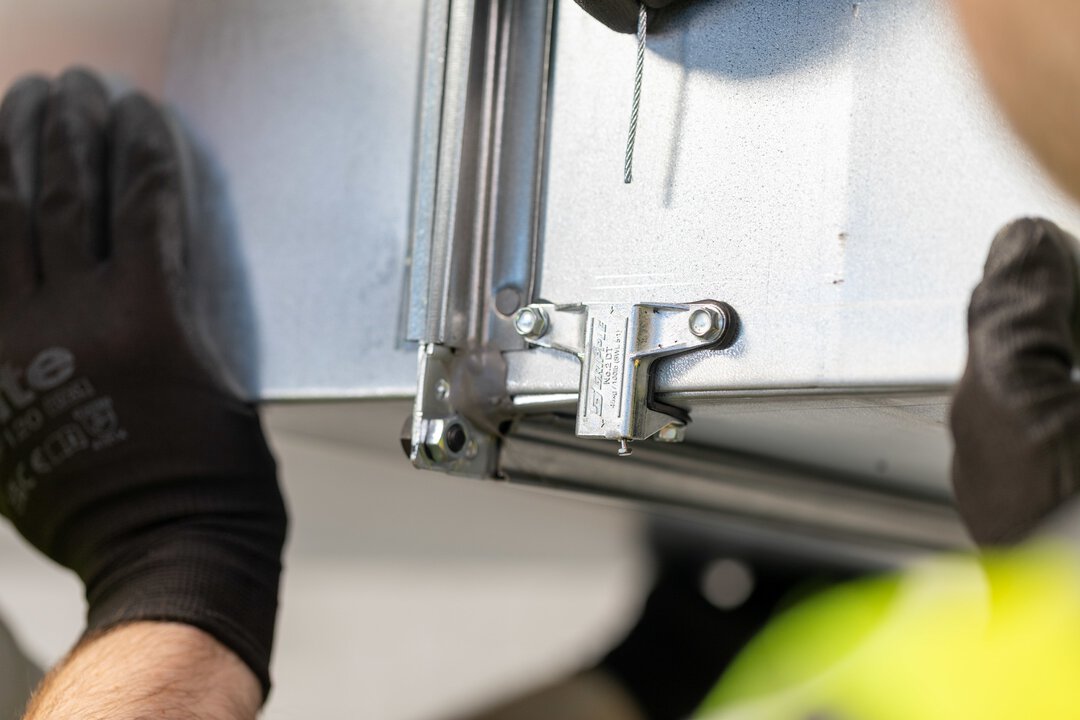

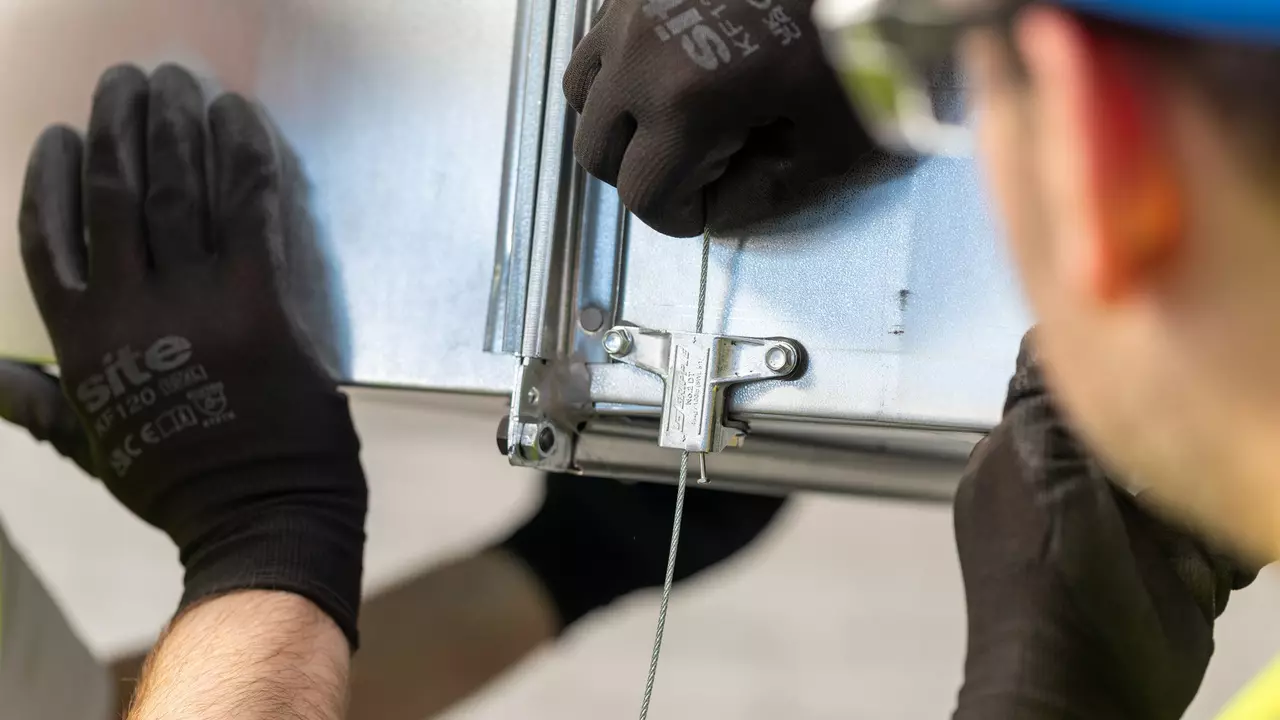

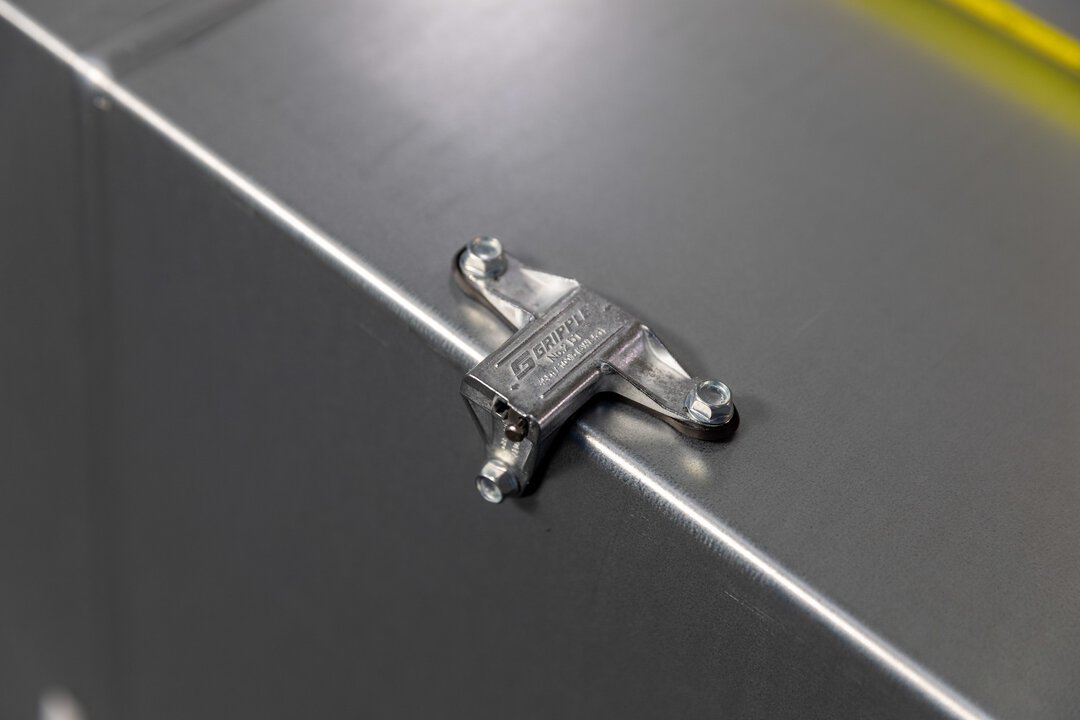

L-shaped design allows for quick attachment to bottom corner of ductwork and other rectangular services.

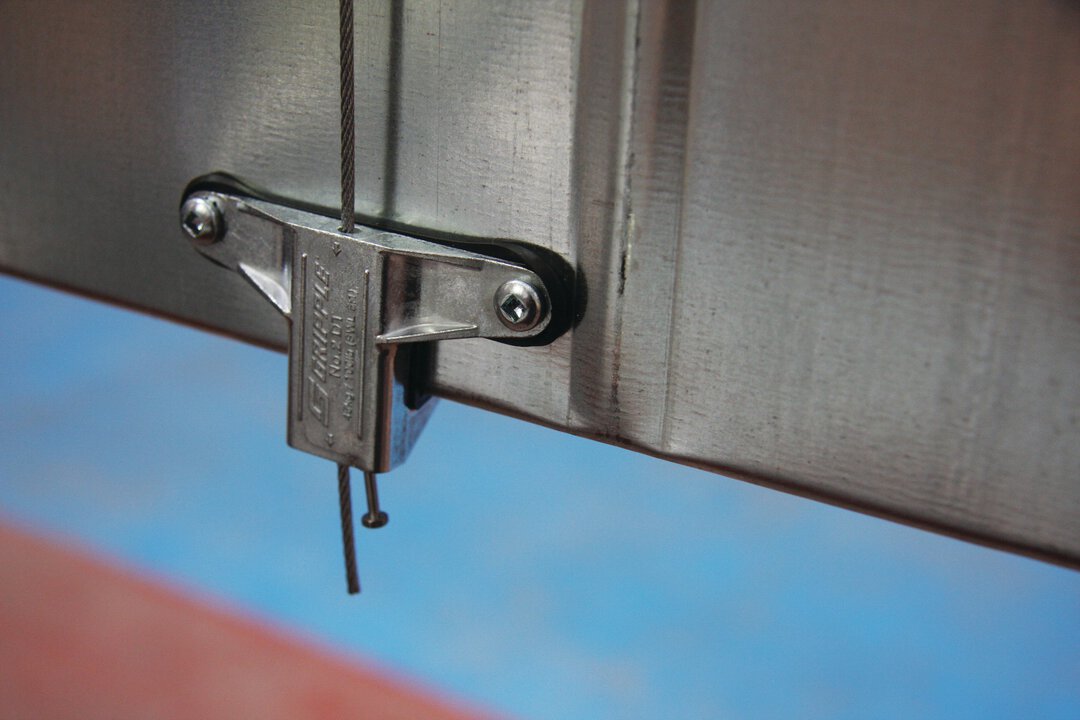

Optional Vibration Dampening

Optional Vibration Dampening

Gripple Duct Trapeze comes with the option of EPDM vibration dampening pads to reduce unwanted noise from vibrating services.

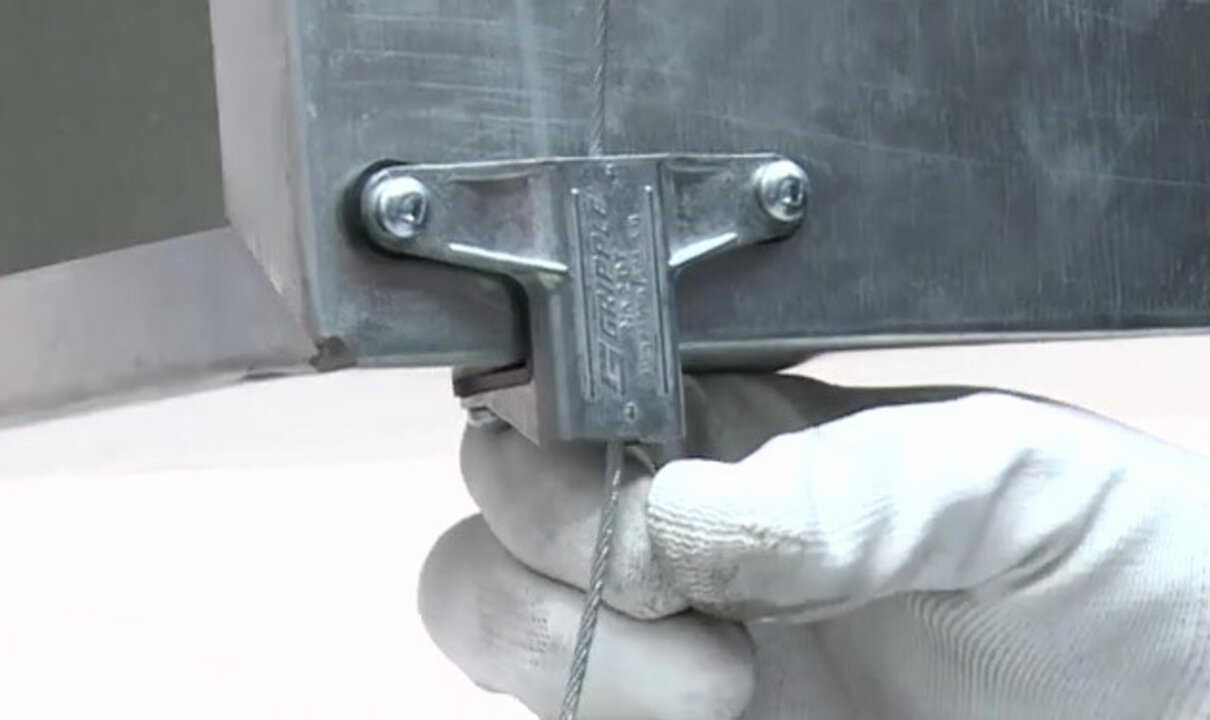

Simple, Flexible Installation

Simple, Flexible Installation

Built-in release pin release allows for easy height adjustment, reducing your margin for error.

High-Quality US and UK Manufacturing

High-Quality US and UK Manufacturing

Thanks to our vertically integrated manufacturing process you can rely on Gripple to deliver product quality time after time.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams can be on hand from start to finish to provide project engineering drawings, take offs, on-site inspections, training, and support where needed.

Speed

Speed

Over 50% faster to install than traditional rod and strut methods. Say goodbye to cutting, de-burring, and hot works.

Quick Attachment

Quick Attachment

L-shaped design allows for quick attachment to bottom corner of ductwork and other rectangular services.

Optional Vibration Dampening

Optional Vibration Dampening

Gripple Duct Trapeze comes with the option of EPDM vibration dampening pads to reduce unwanted noise from vibrating services.

Simple, Flexible Installation

Simple, Flexible Installation

Built-in release pin release allows for easy height adjustment, reducing your margin for error.

High-Quality US and UK Manufacturing

High-Quality US and UK Manufacturing

Thanks to our vertically integrated manufacturing process you can rely on Gripple to deliver product quality time after time.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams can be on hand from start to finish to provide project engineering drawings, take offs, on-site inspections, training, and support where needed.

How it Works:

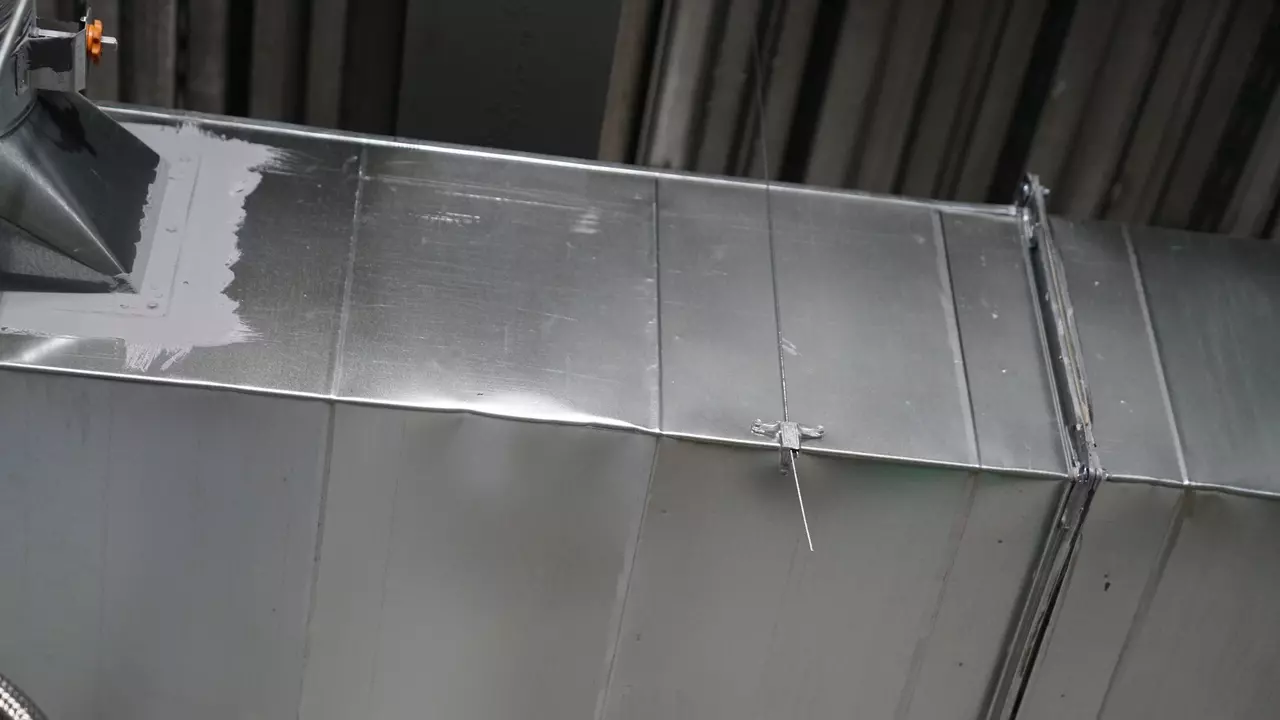

Quickly attach to square or rectangular ductwork for fast and secure suspension. See how it installs below, or for more information download the Technical Data Pack.

 Download the Technical Data Pack Here

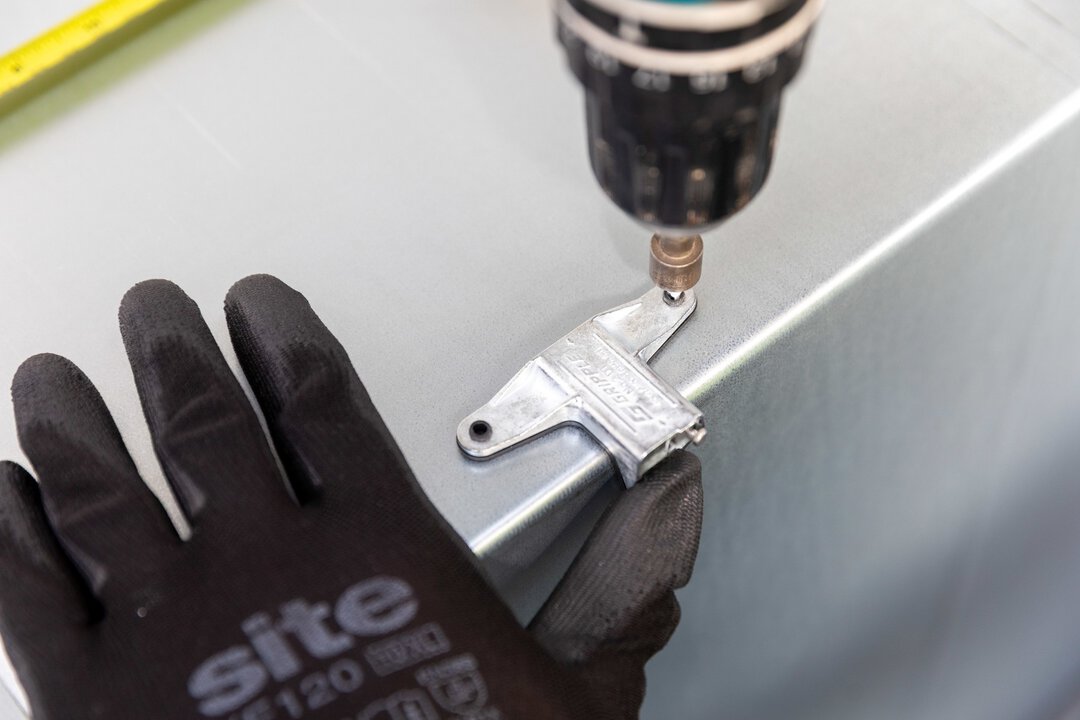

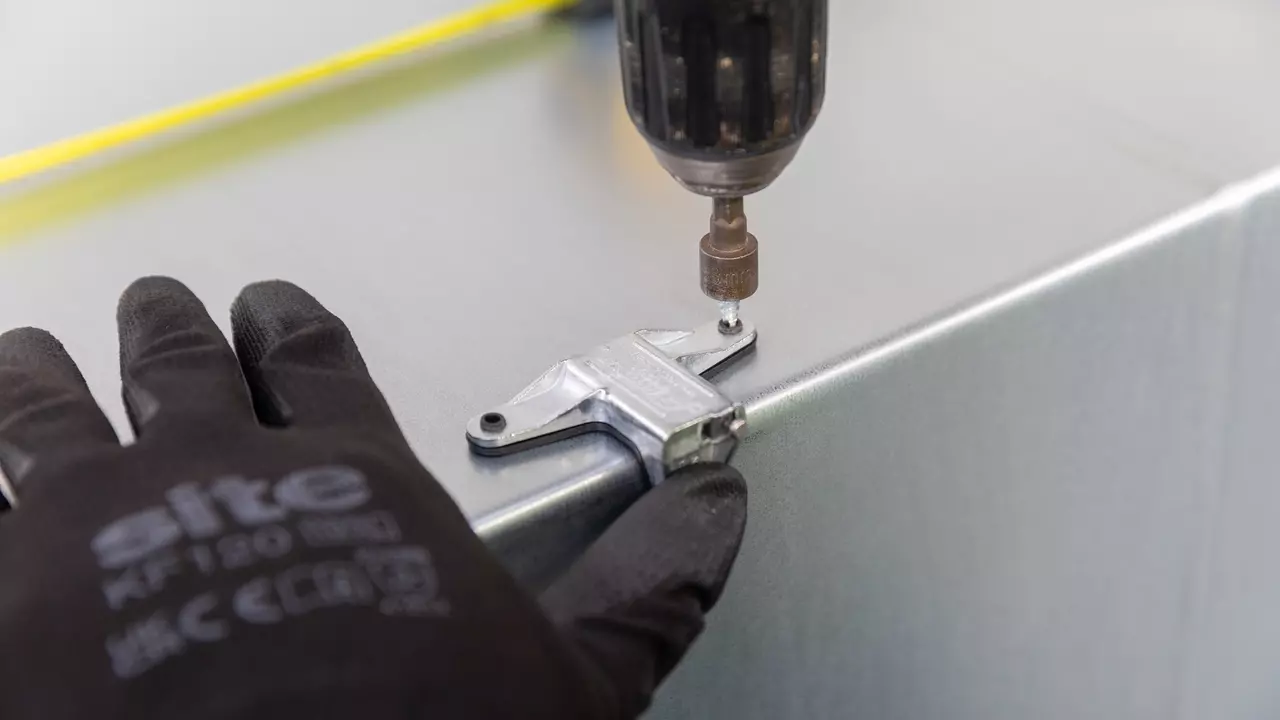

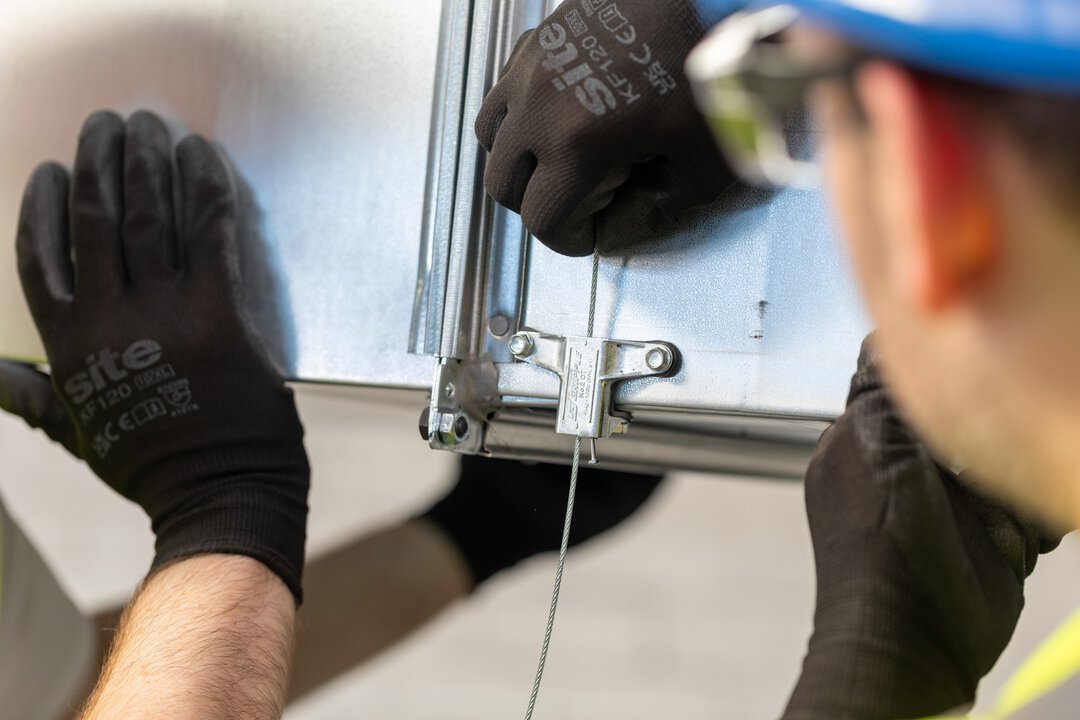

Step 1: Fix bracket to duct using three self-drilling screws or rivets.
Step 2: Insert cable through the hanger, leaving at least 3 inches of tail for adjustment.
Step 3: Raise the duct to the desired height and feed through the cable to secure at your desired height.
Step 4: Adjust the height lower if needed by pulling the release pin (ensure the duct is supported at this point).

Ready To Install
Suspension Kit

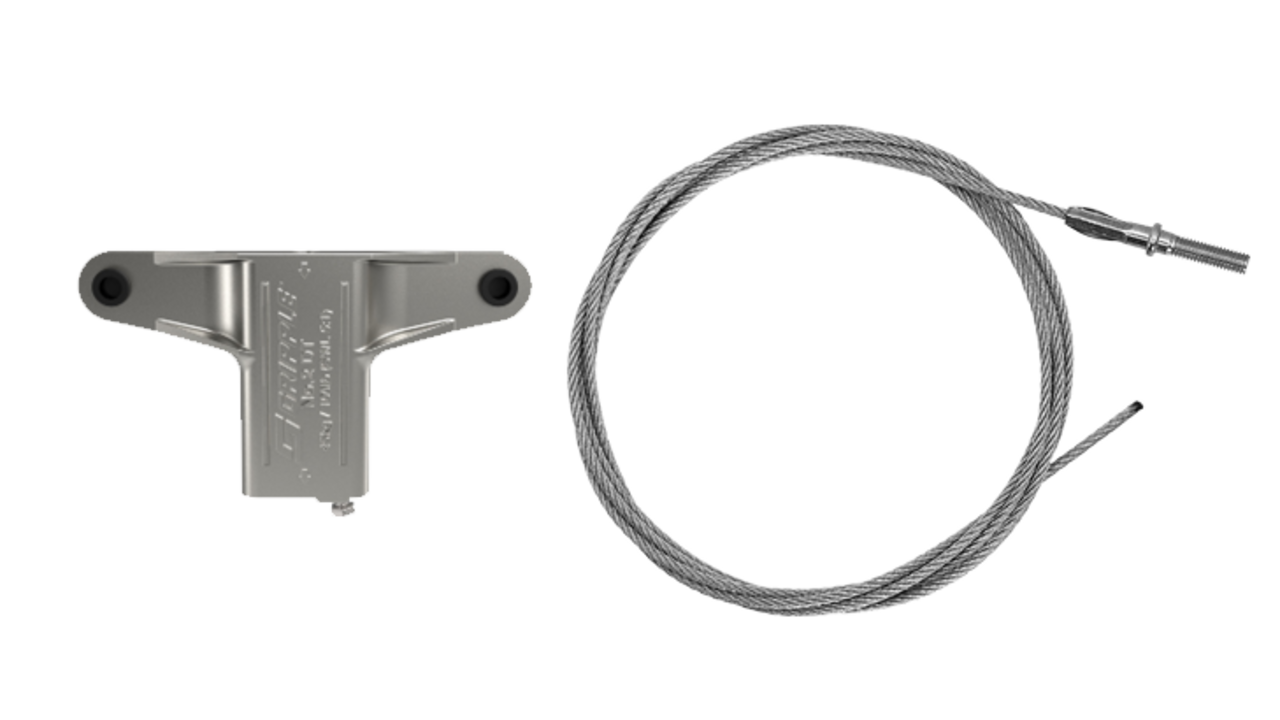

We supply Duct Trapeze hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

Duct Trapeze Hanger

A quicker, cleaner way to suspend rectangular ductwork. Our smart duct wire lock system features integrated vibration pads and comes ready to install with no cutting, no hassle.

Max Working Load: 100 lbs

Suspension Drop Lengths: up to 30 ft (custom lengths available on request)

Ductwork Compatibility: Ducting made from 0.6 – 1.5 mm gauge steel
