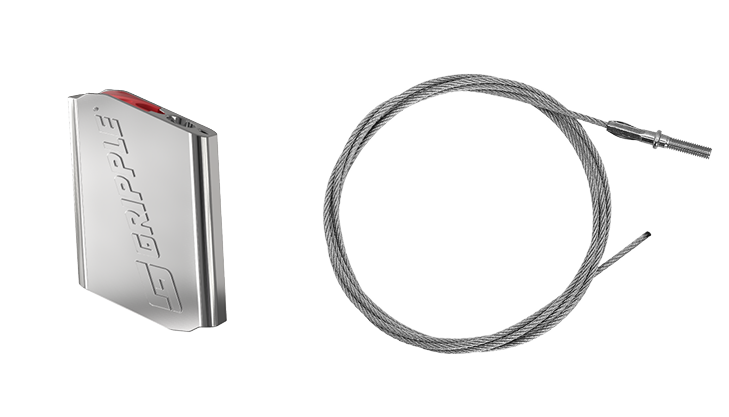

Stainless Steel Hanger Corrosion Resistant Wire Hanger

SKU # HF2-*SS, HF3-*SS

Engineered with corrosion resistant materials, the Stainless-Steel Hanger is ideal for humid indoor environments and is suitable for C1-C3 indoor areas, excluding swimming pools and chlorinated environments.

Max Working Load

Max Working Load:

200 lbs

Safety Factor

Safety Factor:

5:1

Suitability

Suitability:

Humid and C1-C3 Corrosive Environments (excluding swimming pool and chlorinated environments)

Inquire Now

Product Downloads

Stainless Steel Hanger - Technical Data Pack - USA
Stainless Steel Hanger Corrosion Resistant Wire Hanger
SKU # HF2-*SS, HF3-*SS
1
1
1

Stronger, Faster, and Smarter; the Stainless Steel Hanger is the Modern Solution for Effortless Cable Suspension

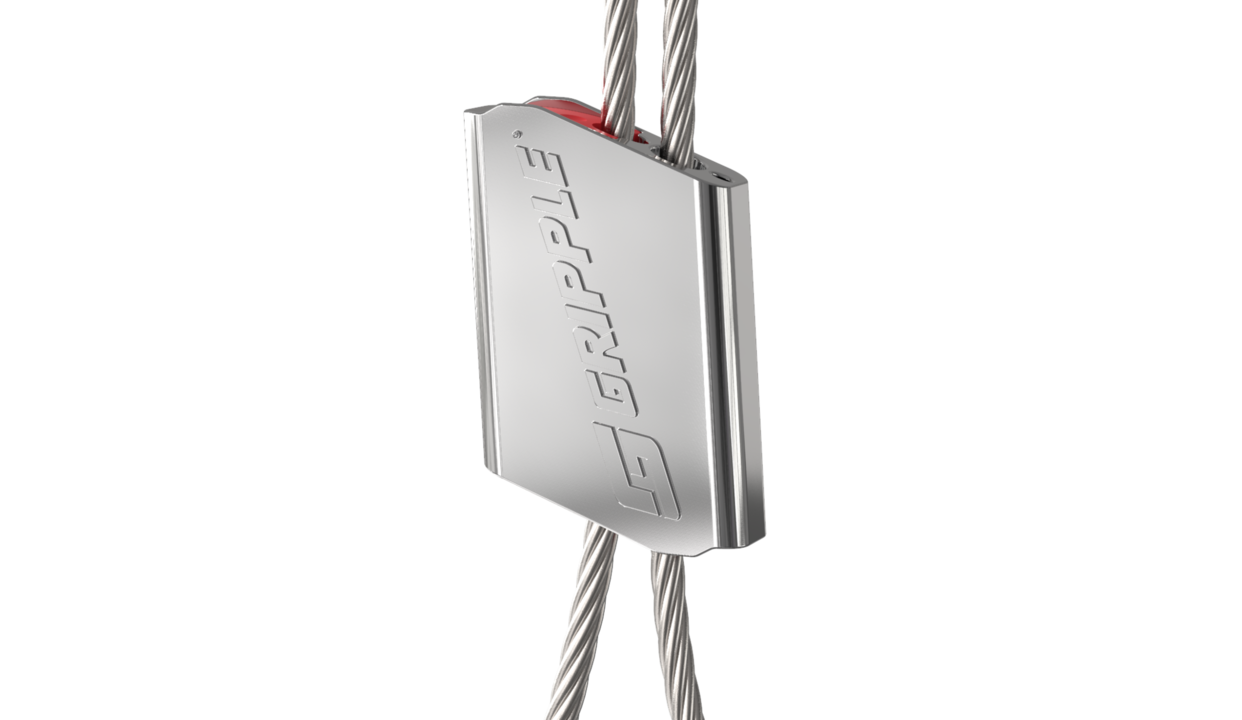

The Stainless-Steel Hanger is a high-performance cable locking device designed for the efficient suspension of a wide variety of services and equipment. Engineered for strength, speed, and simplicity, it allows users to create secure loops for hanging or suspending items up to 200 lbs, making it ideal for applications such as ductwork, pipework, and cable containment.

Unlike traditional suspension methods like threaded rods and strut systems — which are time-consuming, inflexible, and prone to on-site errors — the Stainless-Steel Hanger offers a faster, more flexible, and easier-to-install solution. Supplied as a compact, ready-to-use kit, it includes pre-cut and fused cable and a choice of structural attachments for a quick and professional installation with minimal tools.

Manufactured in the US and the UK to the highest standards, the system features corrosion-resistant stainless-steel components and ceramic gripping rollers, making it suitable for use in humid, saturated, or even food industry environments (not suitable for swimming pool or chlorinated environments). With assured working loads, a 5:1 safety factor, and tamper-proof adjustability via a Gripple release key, the Stainless-Steel Hanger combines safety, durability, and performance.

With over 30 years of industry experience, Gripple supports every project with dedicated technical and engineering services, including take-off assistance, on-site testing, and design support — ensuring reliable and efficient suspension solutions from start to finish.



Read More
Fast Installation

Fast Installation

Over 80% quicker to install than traditional rod and strut systems.

Easy Adjustability

Easy Adjustability

Easily fine-tune suspension height with tamper-proof adjustability.

Corrosion Resistant

Corrosion Resistant

Stainless steel components and ceramic rollers ideal for humid or saturated environments, and C1-C3 indoor environments.

Ready-to-Use Kits

Ready-to-Use Kits

Supplied with pre-cut wire, hangers, and fixings for a plug-and-play solution.

Technical Support

Technical Support

Full engineering, design, and on-site assistance provided from start to finish.

Improved Health and Safety

Improved Health and Safety

Our wire suspension kits minimise time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Fast Installation

Fast Installation

Over 80% quicker to install than traditional rod and strut systems.

Easy Adjustability

Easy Adjustability

Easily fine-tune suspension height with tamper-proof adjustability.

Corrosion Resistant

Corrosion Resistant

Stainless steel components and ceramic rollers ideal for humid or saturated environments, and C1-C3 indoor environments.

Ready-to-Use Kits

Ready-to-Use Kits

Supplied with pre-cut wire, hangers, and fixings for a plug-and-play solution.

Technical Support

Technical Support

Full engineering, design, and on-site assistance provided from start to finish.

Improved Health and Safety

Improved Health and Safety

Our wire suspension kits minimise time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Range Variants

Our Stainless Steel Hanger comes in 2 sizes allowing for suspension of a range of services.

No.2 No.3
Load Rating 100 lbs 200 lbs
Safety Factor 5:1 5:1

How it Works:

See how our Stainless Steel Hanger works below, or for full product specifications and guidance, download the Technical Data Pack.

 Download the Technical Data Pack
Step 1: Insert the cable into the hanger
Step 2: For looped applications, feed the cable around the service being suspended or end fixing, and back into the hanger to form a secure loop. Leave at least 3” of tail cable.
Step 3: Adjust the hanger to the desired position, using the release key to make any final adjustments.

Ready To Install
Suspension Kit

We supply Stainless Steel hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Available Sizes:
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

Stainless Steel Hanger

Engineered with corrosion-resistant materials, the Stainless-Steel Hanger ideal for humid indoor environments and is suitable for C1-C3 indoor areas, excluding swimming pools and chlorinated environments.

  • Max working load: 200 lbs
  • Safety Factor: 5:1
  • Suitability: Humid and C1-C3 Corrosive Environments (excluding swimming pool and chlorinated environments)

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1
1

Stainless Steel Hanger

SKU # HF2-*SS, HF3-*SS

Engineered with corrosion resistant materials, the Stainless-Steel Hanger is ideal for humid indoor environments and is suitable for C1-C3 indoor areas, excluding swimming pools and chlorinated environments.

Key Specifications

Max Working Load: 200 lbs
Safety Factor: 5:1
Suitability: Humid and C1-C3 Corrosive Environments (excluding swimming pool and chlorinated environments)
Find a SupplierView Product Page

Product Downloads

Stainless Steel Hanger – Technical Data Pack – USA

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

Common Applications

Ductwork

HVAC Equipment

Pipework

Busbar Suspension

Ductwork

HVAC Equipment

Pipework

Busbar Suspension

Trusted by the Experts:

“I would recommend Gripple for anyone who is looking to get their process of construction done quicker.”
Allan Schmaltz – Assistant Superintendent
Read the full case study here
“We’ve used a different cable system in the past and Gripple saves more time and is easier to adjust than other systems. We really saved on the piping side by not having to cut rod and messing with all of that, huge savings.”
Danny Todd, General Superintendent
Read the full case study here

FAQ’s

It comes in two sizes: No.2 supports up to 100lbs/45 kg, and No.3 supports up to 200lbs/90 kg, both with a 5:1 safety factor.

No, it can’t be used on chlorine cleansed environments such as swimming pools.

Yes, it’s built with stainless steel components and ceramic rollers, making it ideal for high humidity, or C1-C3 corrosive conditions. The hanger should not be used in swimming pool or chlorinated environments.

No specialist training or tools are needed. It’s a plug-and-play system that’s quick and easy to install with minimal tools. Please speak to a Gripple representative or our Technical team if you do need some guidance or are unsure on an installation.

Yes, the system allows for fine-tuned adjustability using a Gripple release key, offering flexibility even after installation.

Each kit includes: pre-cut and fused stainless steel cable rope, and your choice of end fixing to suit the substrate (end fixing)

It’s over 80% faster to install, requires fewer tools, offers greater flexibility, and reduces on-site errors and material waste.
