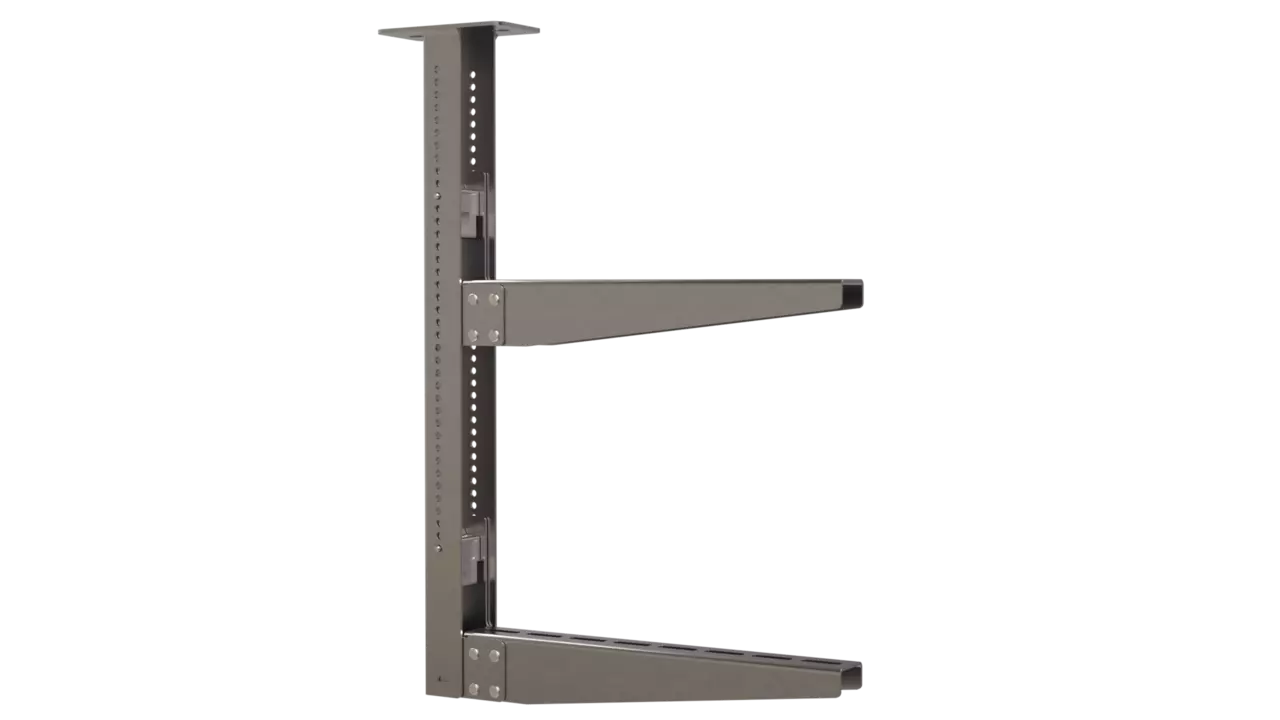

SidePro Side Loaded Cantilever Suspension

SKU # SIDEPRO-SP, SIDEPRO-B

SidePro is a side-loaded suspension system which is the fastest and easiest method supporting high-load electrical and mechanical services.

Single Pendant System Max Load

Single Pendant System Max Load:

200 kg

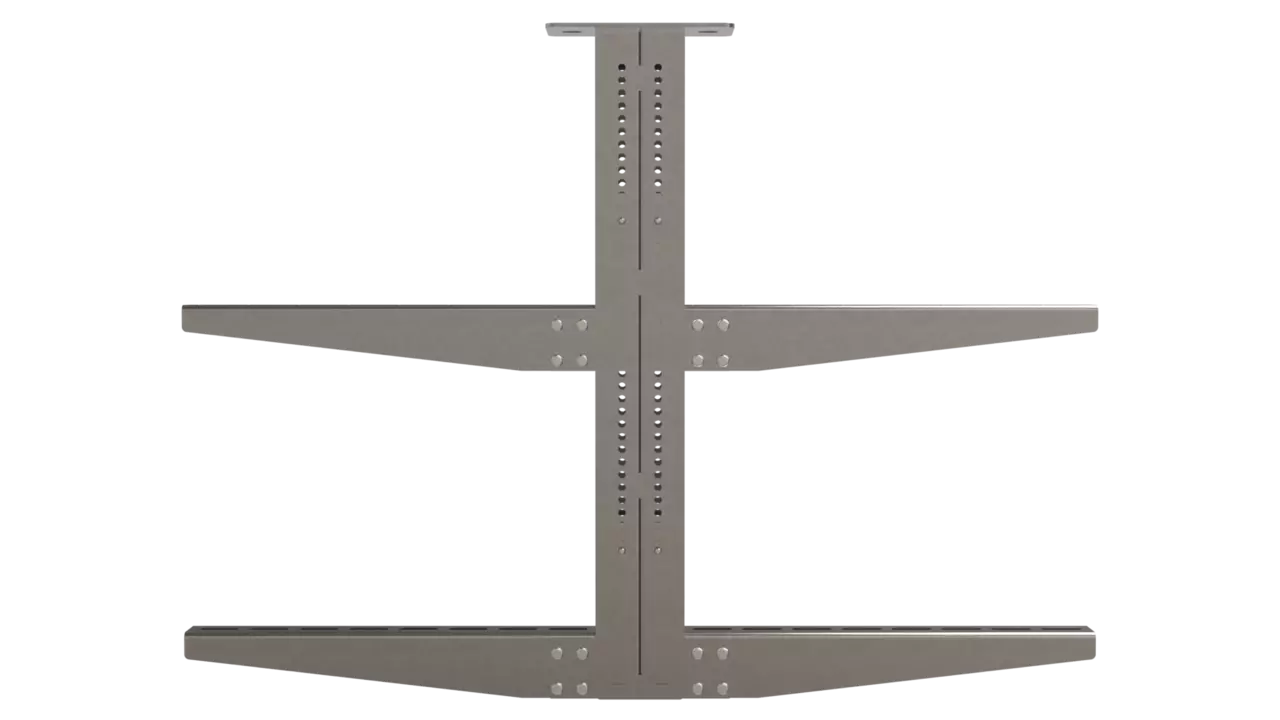

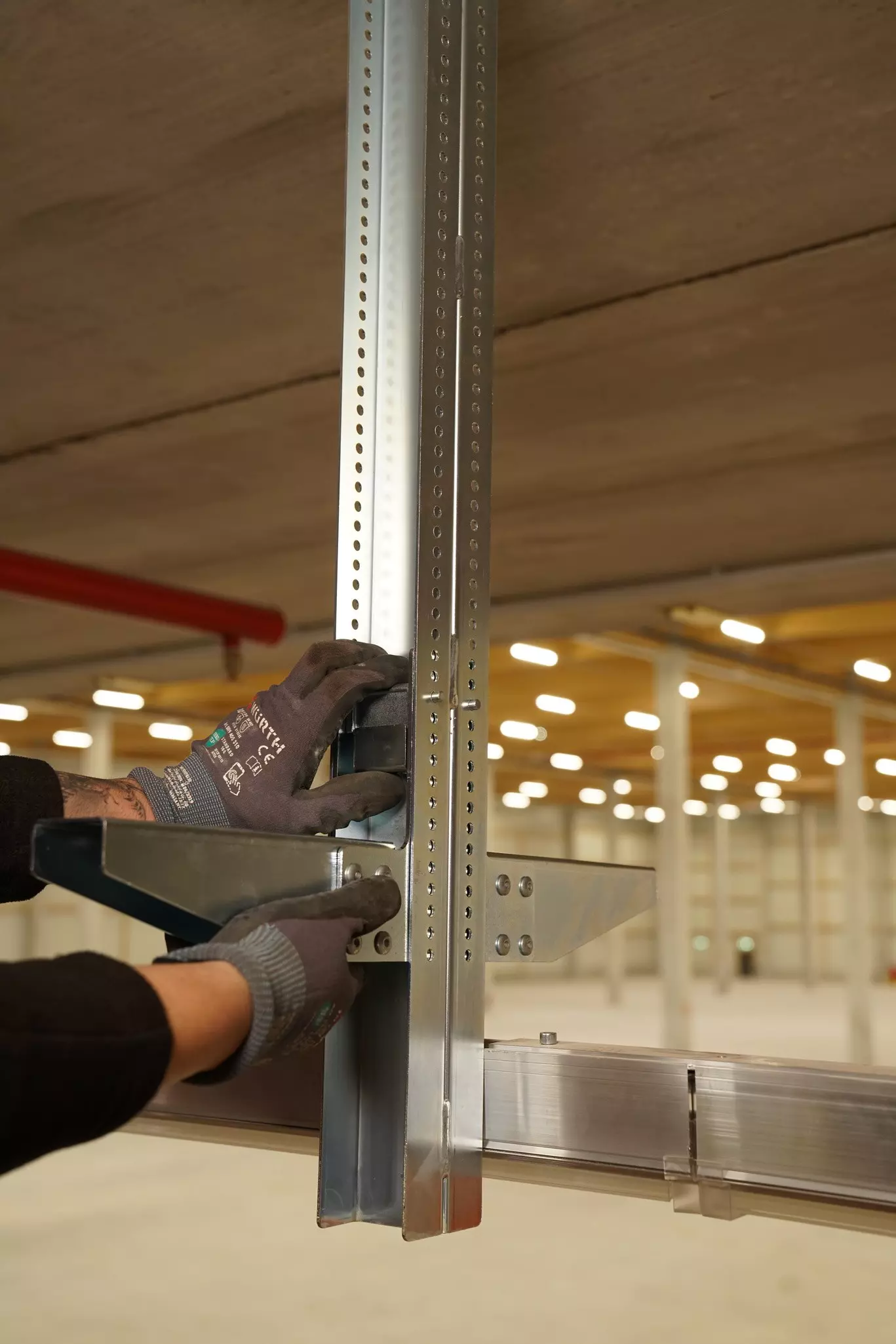

Back-To-Back Pendant System Max Load

Back-To-Back Pendant System Max Load:

400 kg

Maximum Pendant Drop Length

Maximum Pendant Drop Length:

1,565 mm

Enquire Now

Product Downloads

SidePro - Technical Data Pack - ENG
View all downloads
SKU # SIDEPRO-SP, SIDEPRO-B
1
1
1
1
1
1
1
1

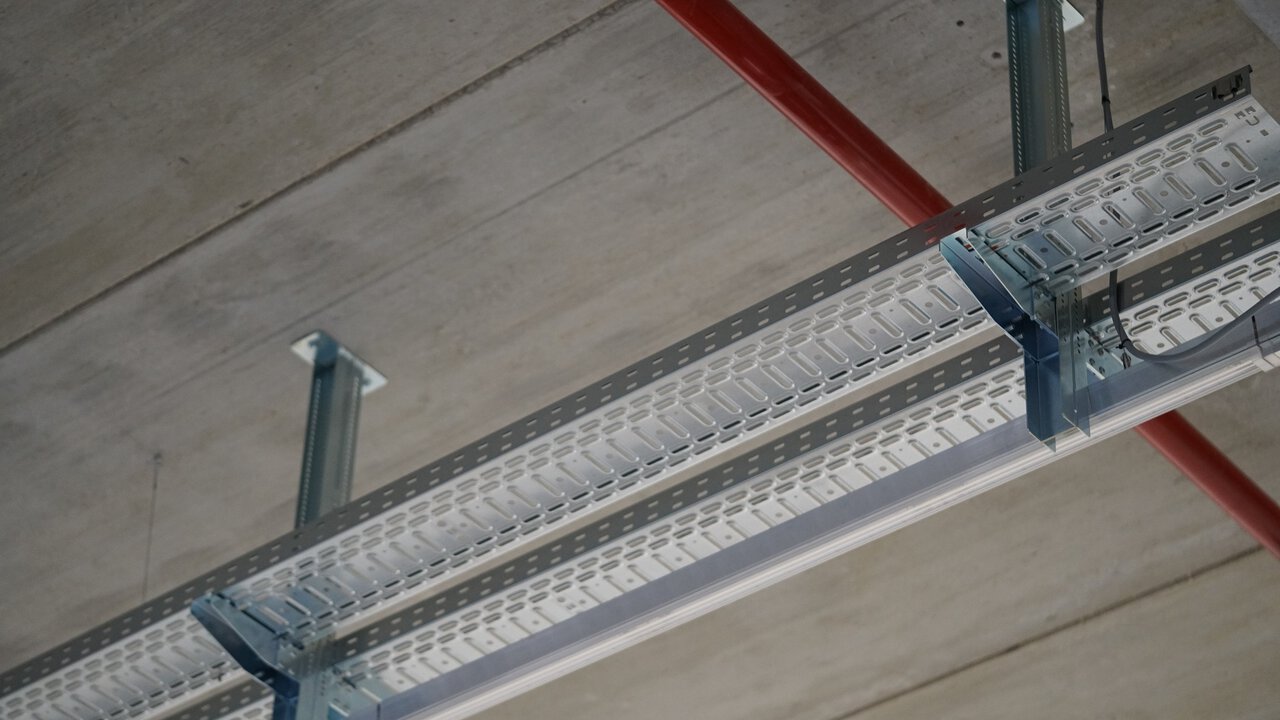

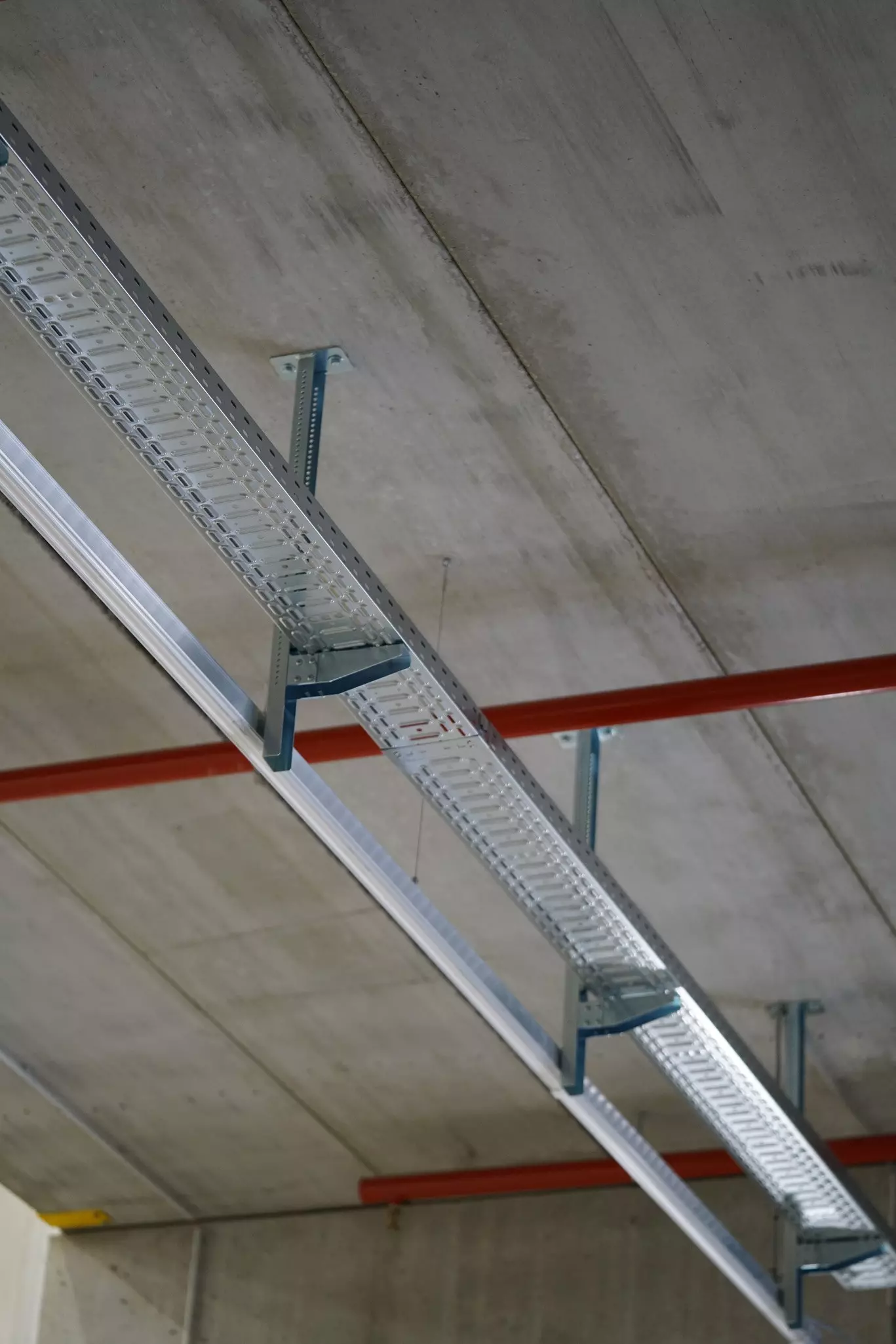

Side-Loaded Support System for Heavy-Duty Applications

SidePro has been developed as a fast and secure, side-loaded method of installing cable trays which will become subject to high loads following installation.

Suitable for use on projects such as data centres and warehouses, where high-load cables are likely to be needed, SidePro is designed to quicken installations whilst offering the highest level of performance of any cantilever product on the market.

The product’s push-button installation method ensures that no tools are needed for installation, whilst its simplicity means that only minimal training is needed before a confident installation can take place. Supplied in various installation formations, including single and back-to-back pendants, SidePro’s versatility means that it can be used on even the most complicated projects.

Whilst installation speed and simplicity are non-negotiables, so is the product’s performance and longevity. Offering system load capabilities of up to 400 kg and full fire ratings, installation teams can improve their efficiencies by side-loading their cables without having to compromise on system performance.

SidePro is changing the game when it comes to the installation of electrical cable trays.

Read More
Fully Adjustable

Fully Adjustable

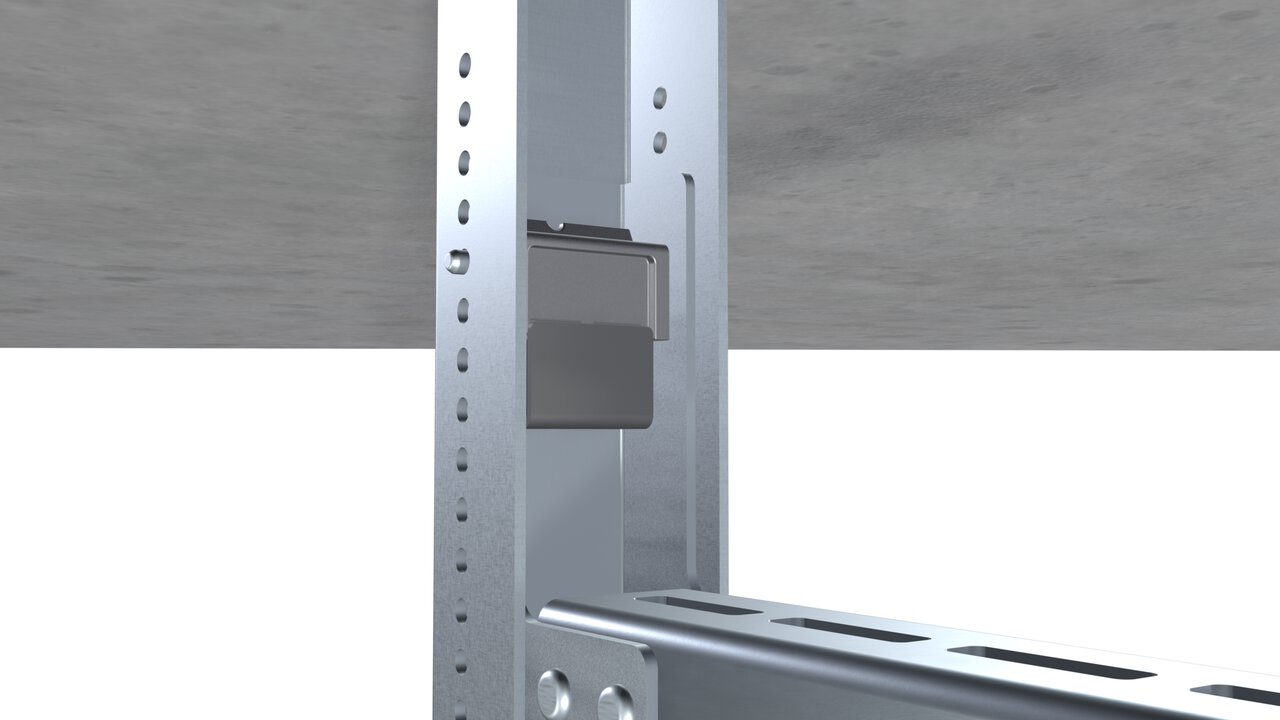

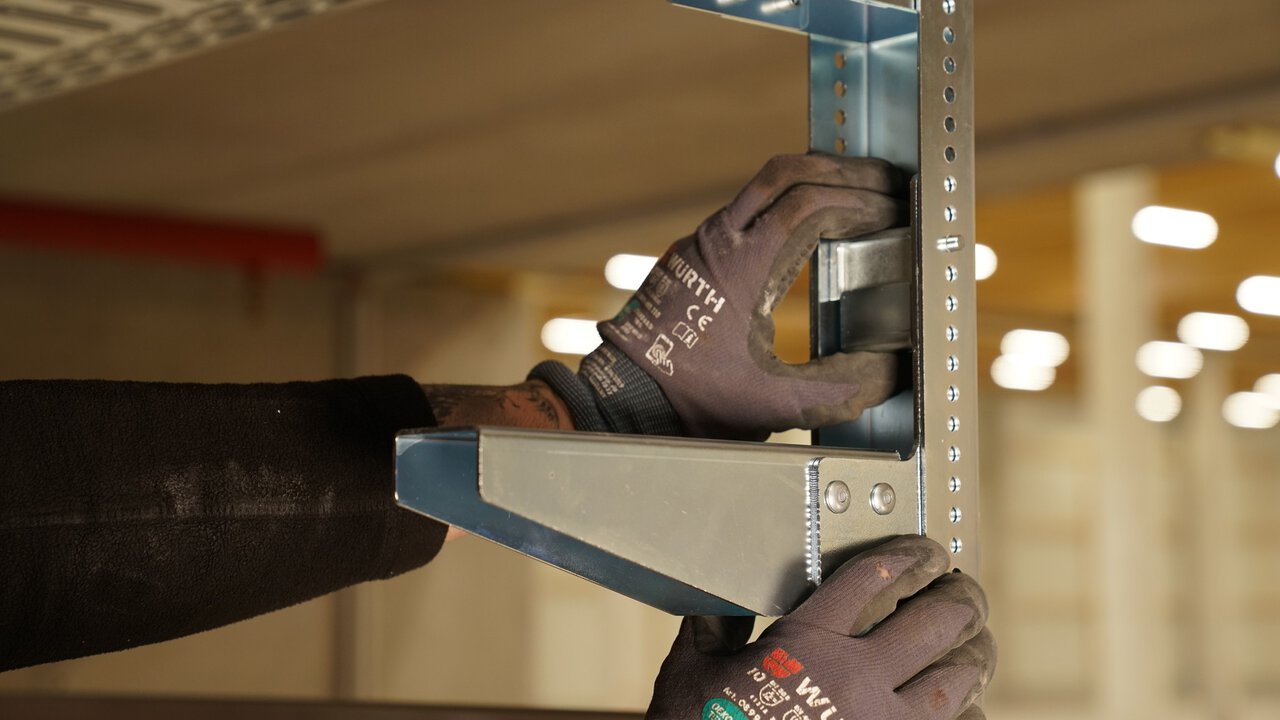

Push-button cartridge allows the bracket to be adjusted to the correct height on the pendant, without the need for tools.

Easy Installation

Easy Installation

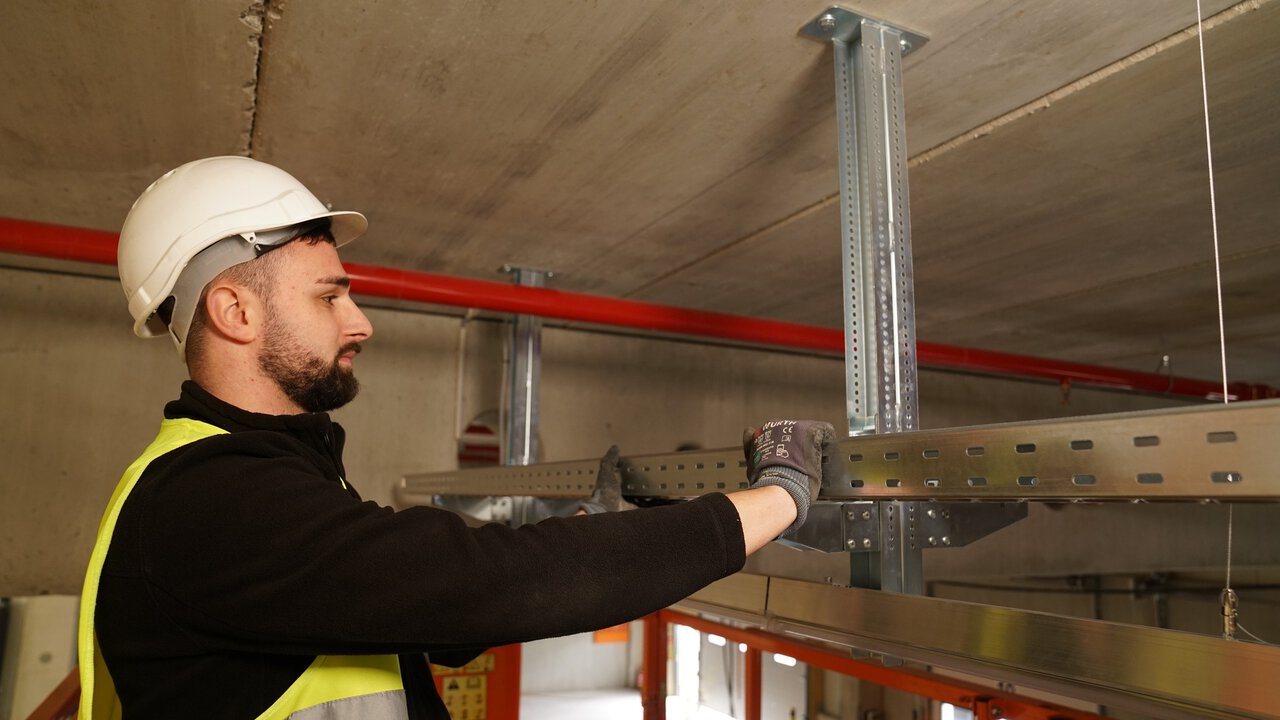

The simplicity of installation and minimal spacing between the pendant holes assist with levelling on uneven surfaces.

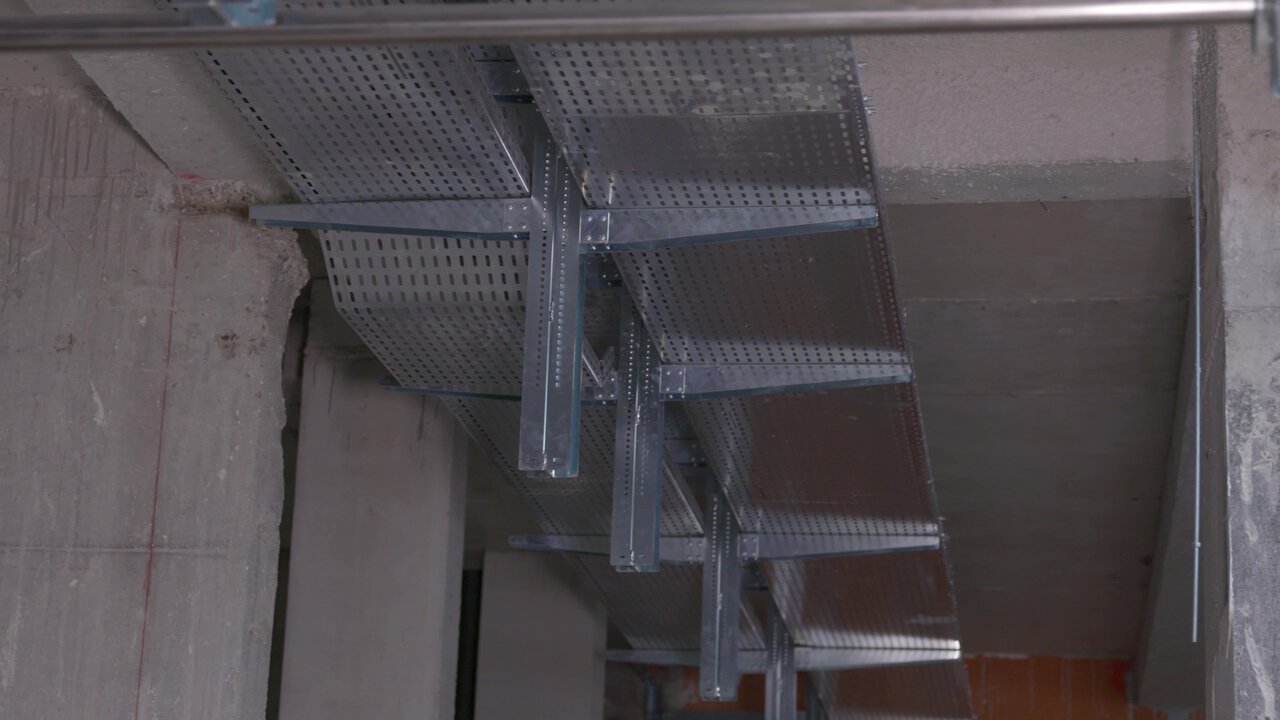

Space-Saving

Space-Saving

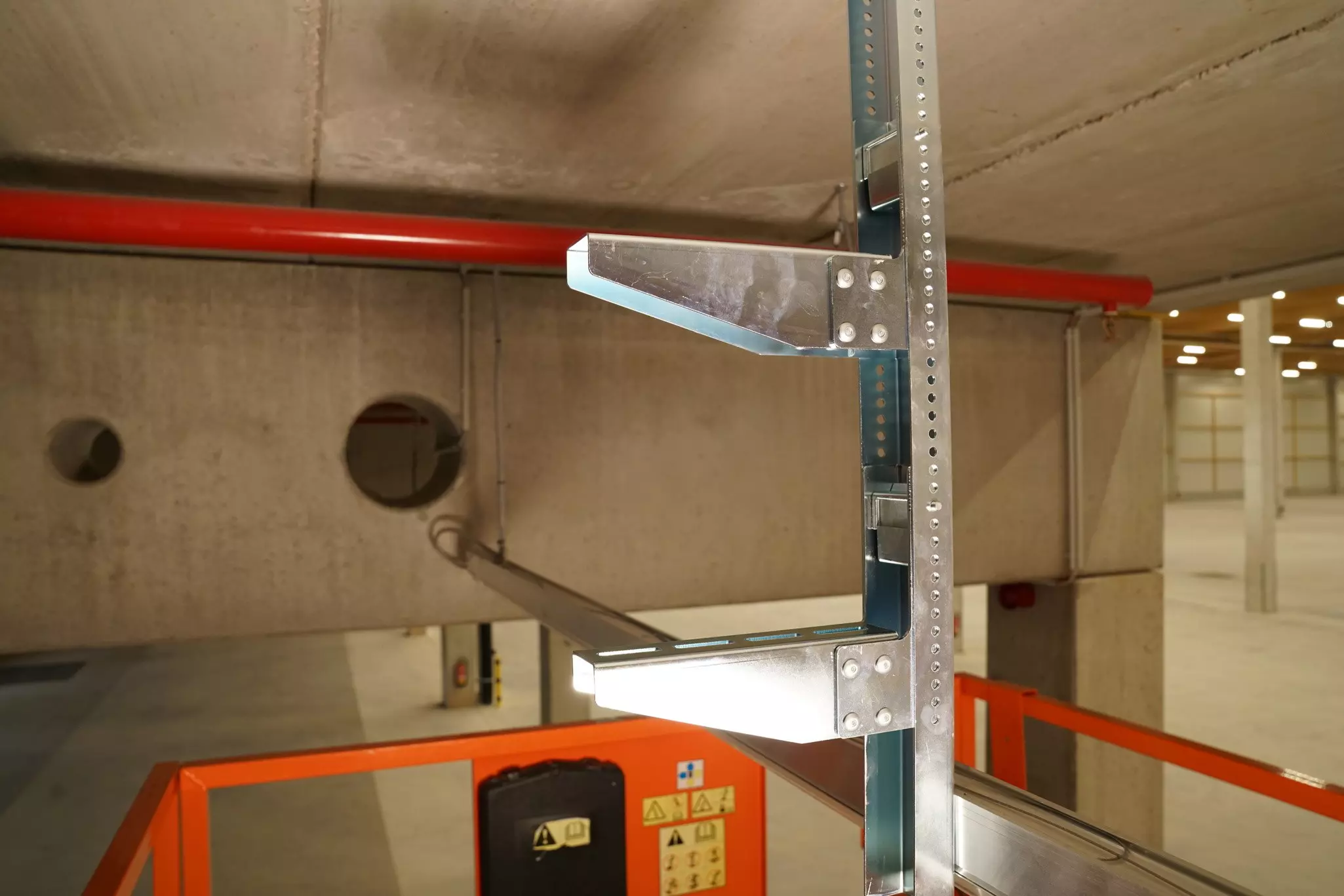

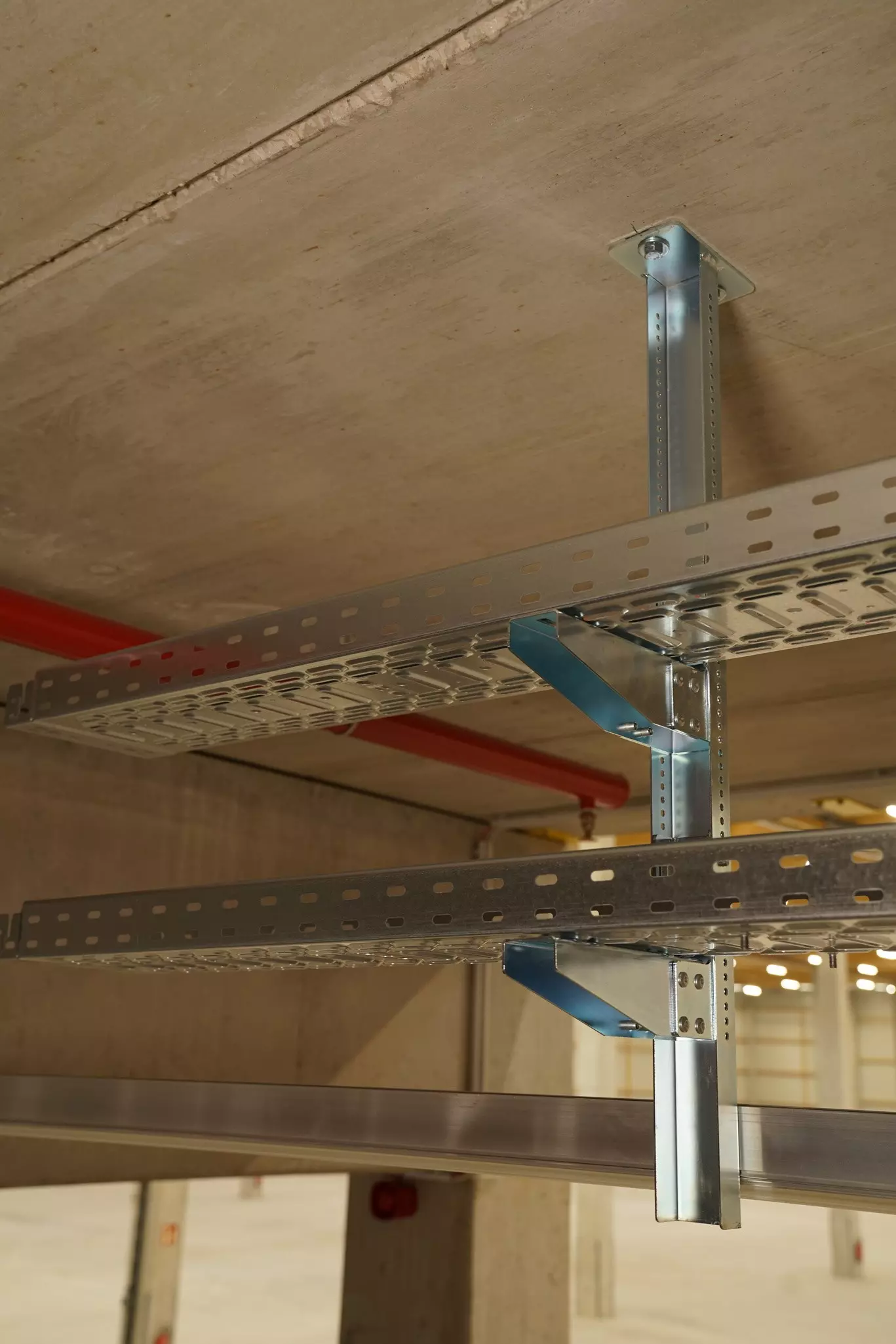

High-load services can be side-loaded and brackets can be multi-tiered to accommodate additional suspensions.

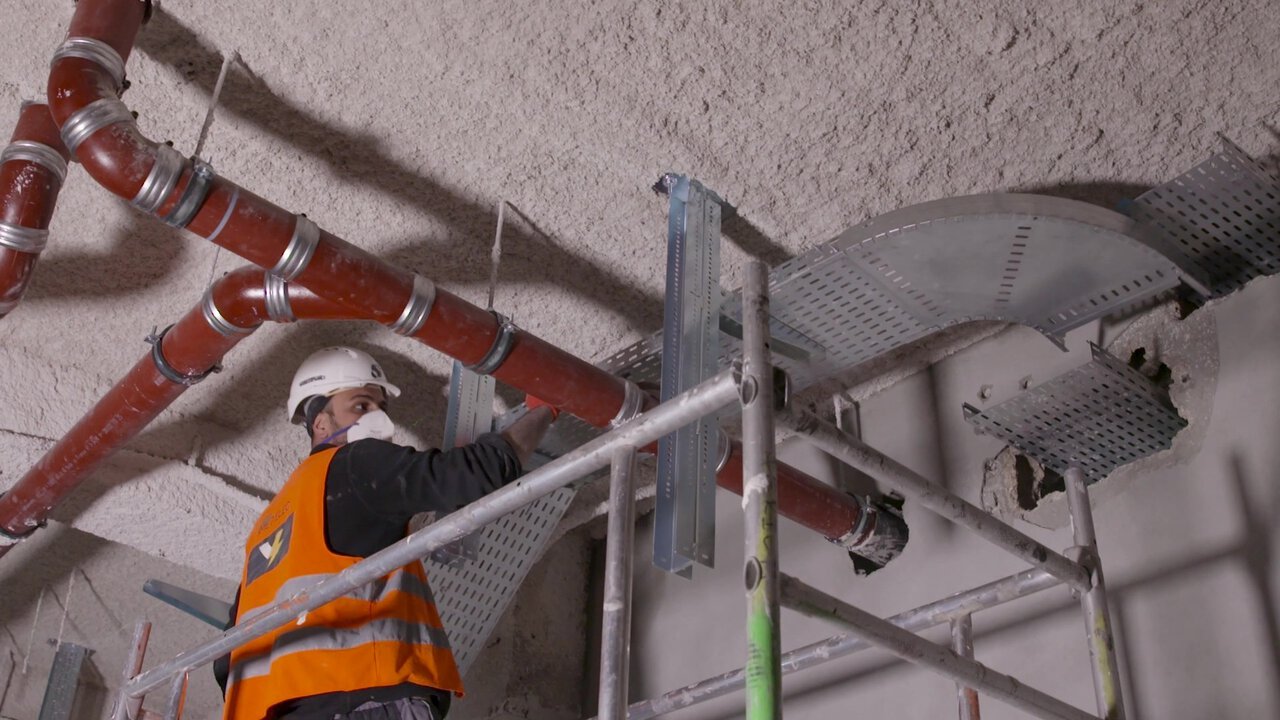

Strong

Strong

Can hold weight of up to 200kg at a safety factor of 1:7.

Versatile

Versatile

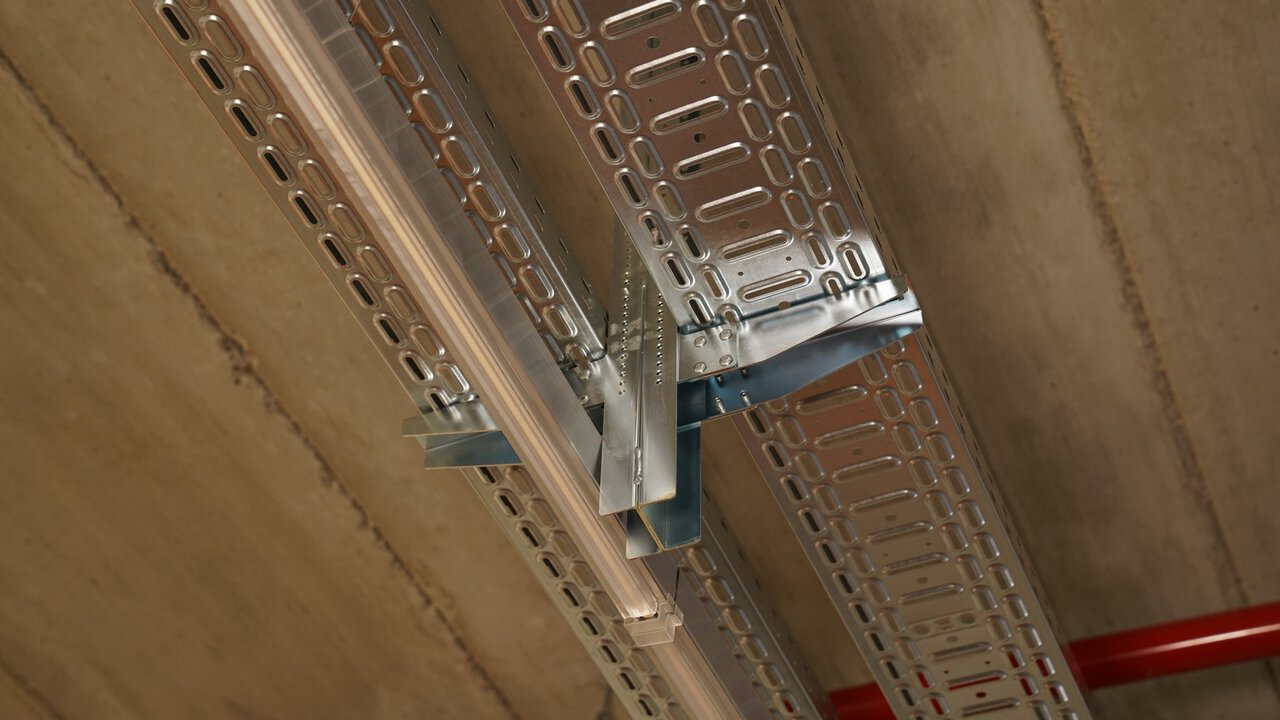

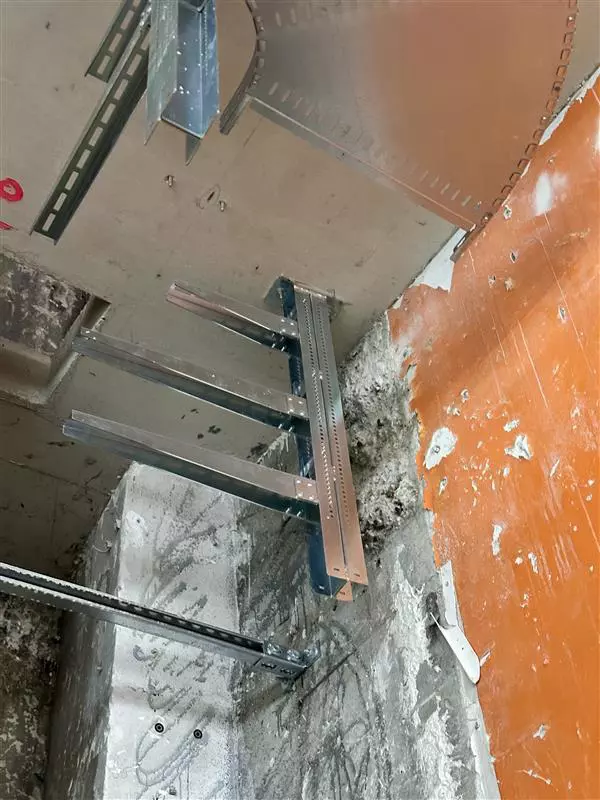

Supplied in multiple installation orientations, and including a wall-fixed variant, SidePro is a one-stop, problem-solving solution for complicated projects.

Safe

Safe

The system is provided as a pre-fabricated, cut-to-length solution which eliminates the need for on-site cutting and hot permits.

Fully Adjustable

Fully Adjustable

Push-button cartridge allows the bracket to be adjusted to the correct height on the pendant, without the need for tools.

Easy Installation

Easy Installation

The simplicity of installation and minimal spacing between the pendant holes assist with levelling on uneven surfaces.

Space-Saving

Space-Saving

High-load services can be side-loaded and brackets can be multi-tiered to accommodate additional suspensions.

Strong

Strong

Can hold weight of up to 200kg at a safety factor of 1:7.

Versatile

Versatile

Supplied in multiple installation orientations, and including a wall-fixed variant, SidePro is a one-stop, problem-solving solution for complicated projects.

Safe

Safe

The system is provided as a pre-fabricated, cut-to-length solution which eliminates the need for on-site cutting and hot permits.

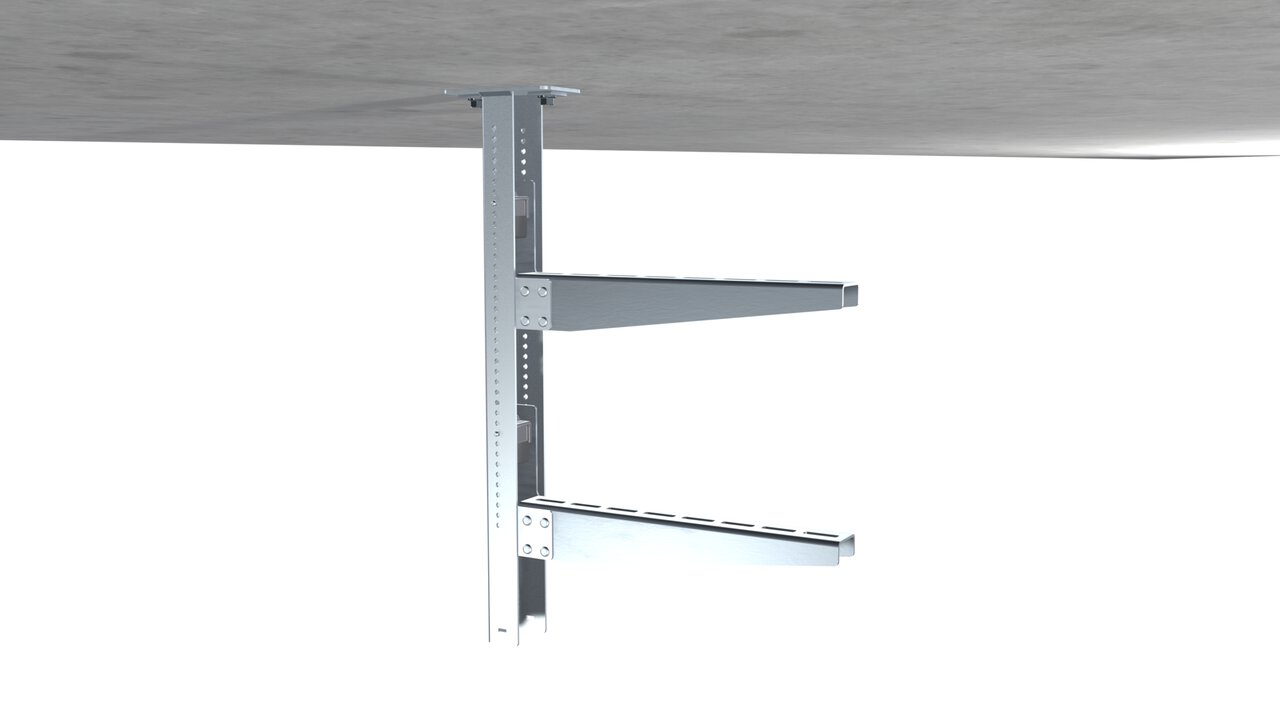

How it Works:

See how our SidePro cantilever arm bracket suspension works below, or download the technical data pack for full install guidance.

 Download the Technical Data Pack Here

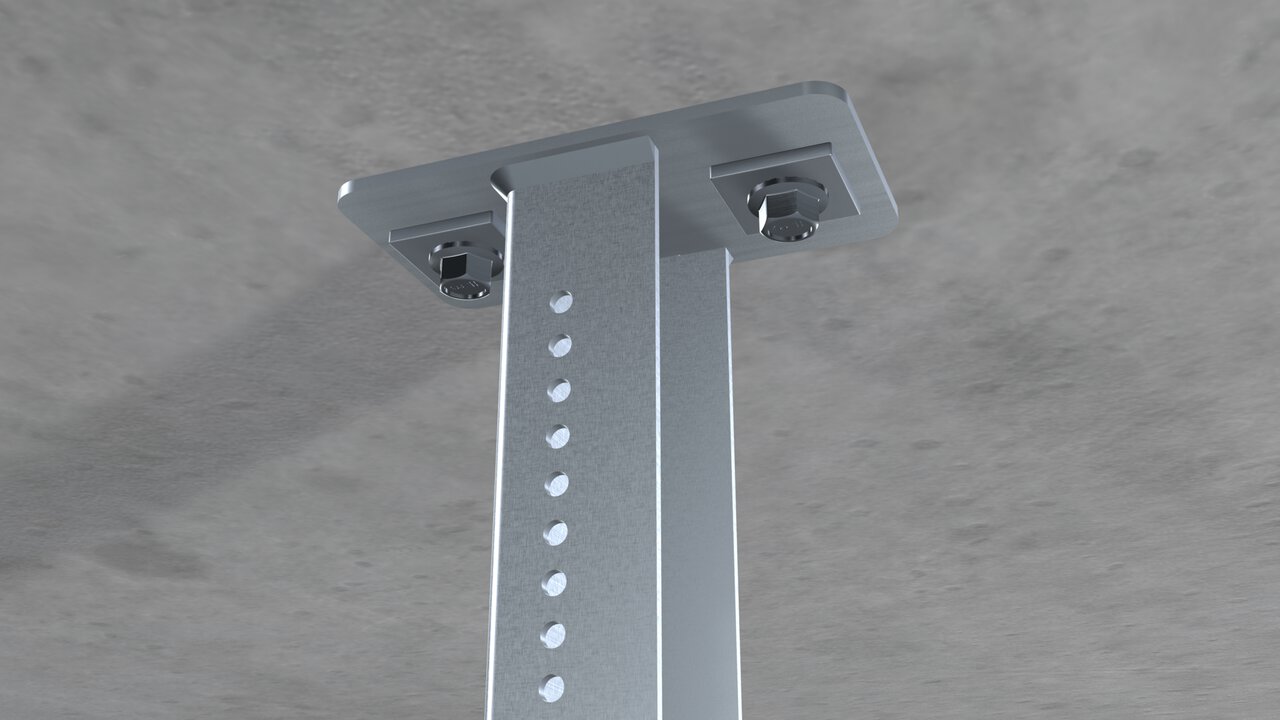

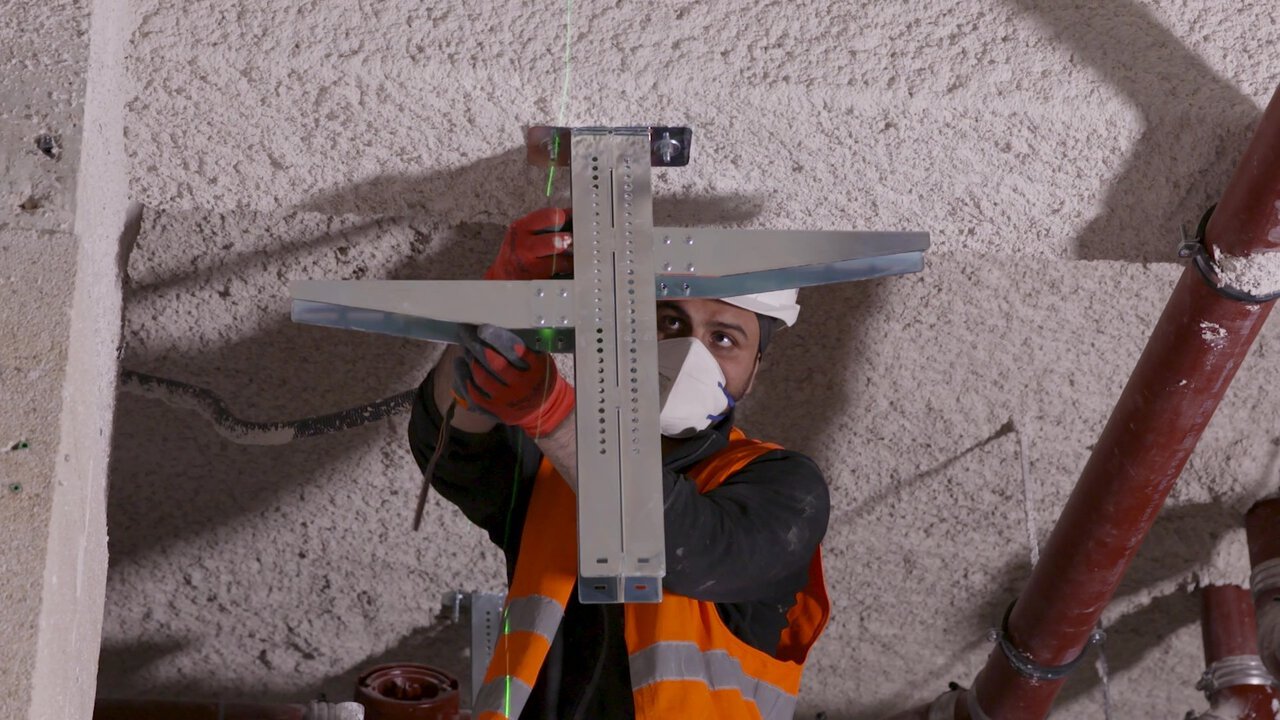

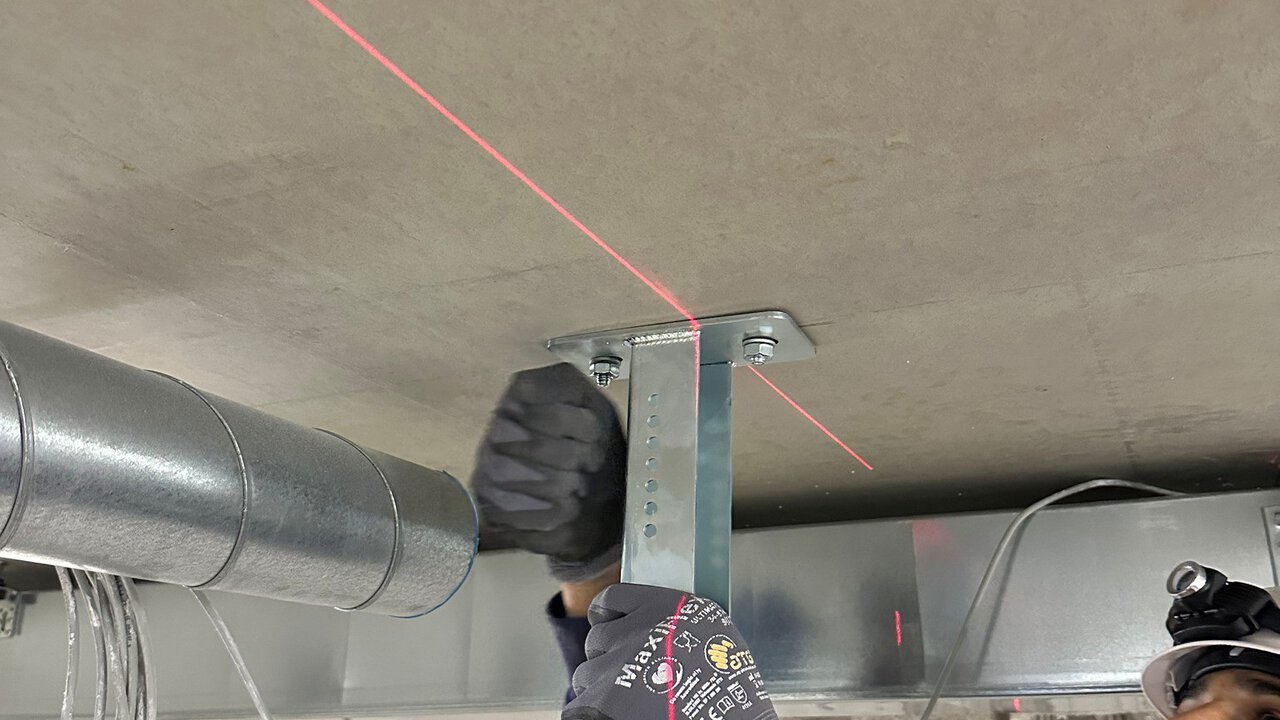

Step 1. Mark out the pendant drill locations using the cutter guide. Drill the fixing holes to the required depth/diameter and anchor the pendant into place (using a square washer if necessary).

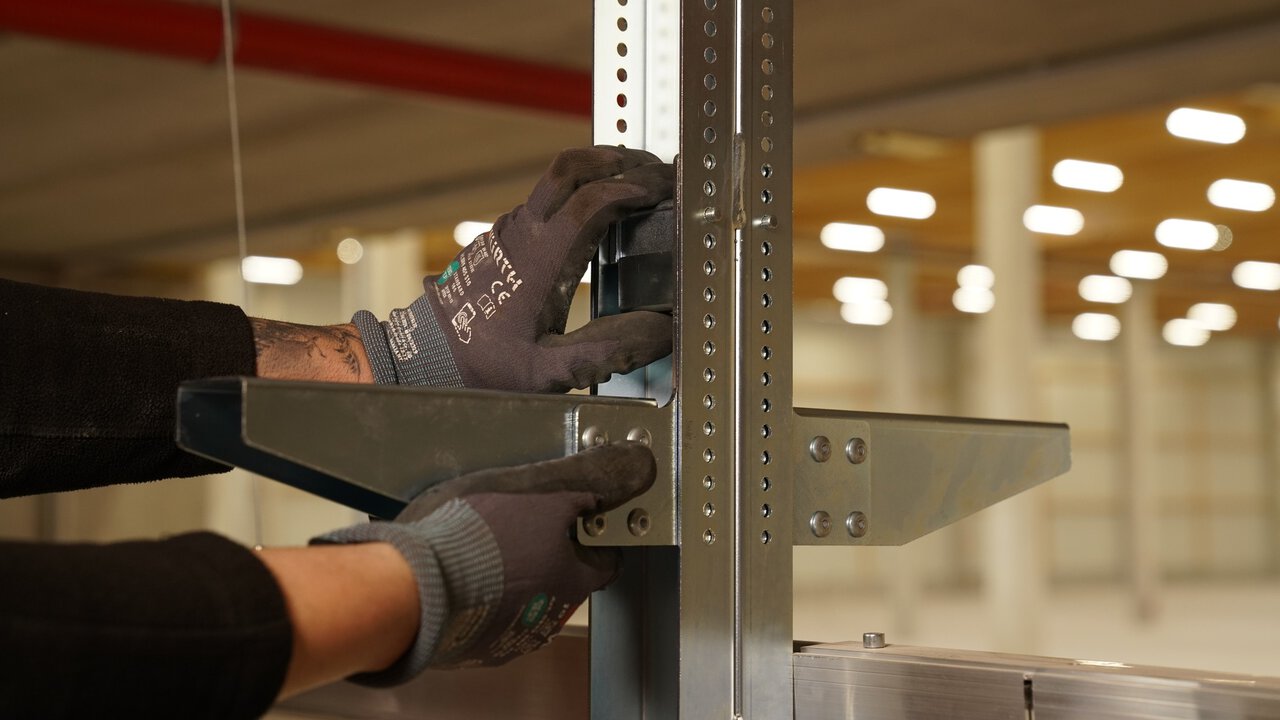

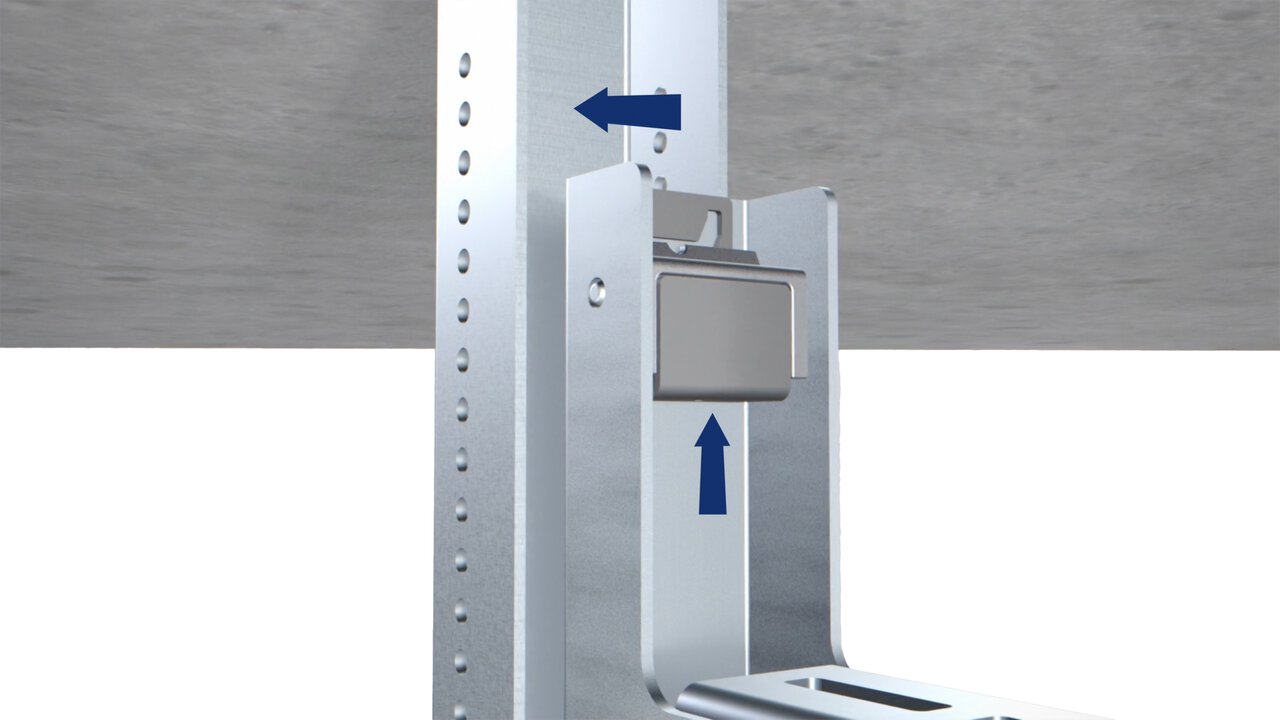

Step 2. Support the bracket’s weight and push the cartridge’s button to retract the fixing pins.

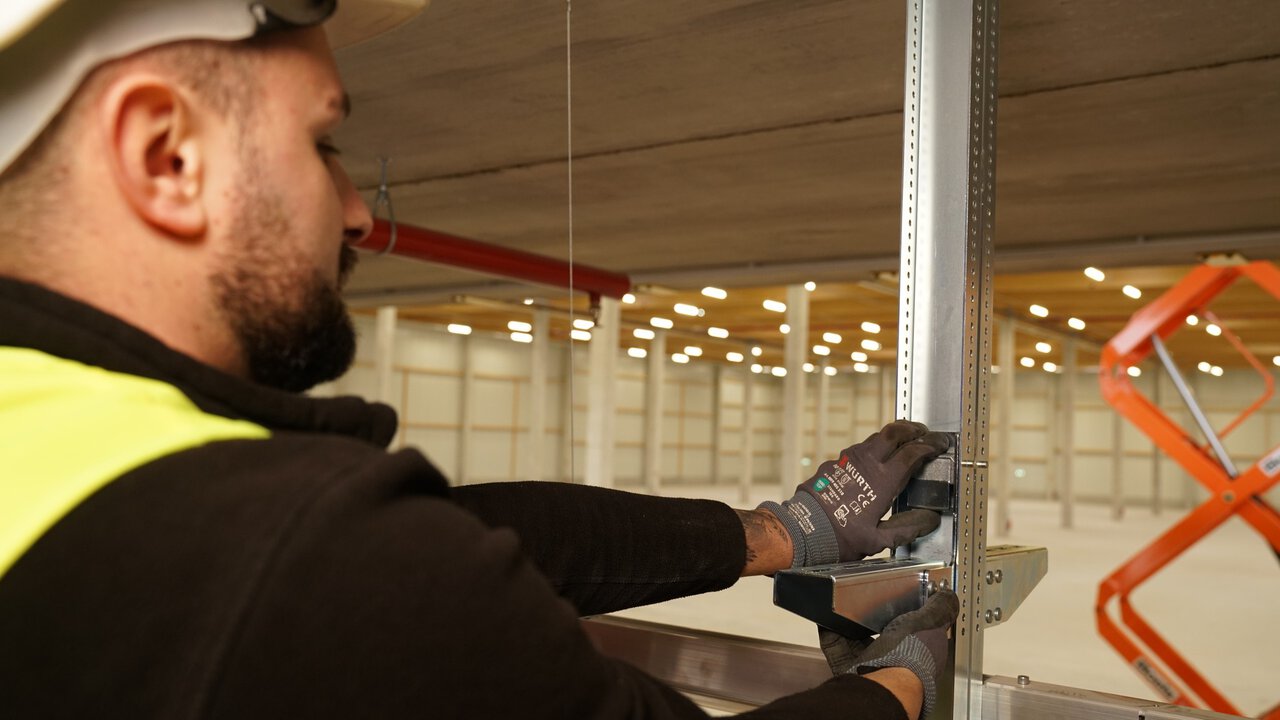

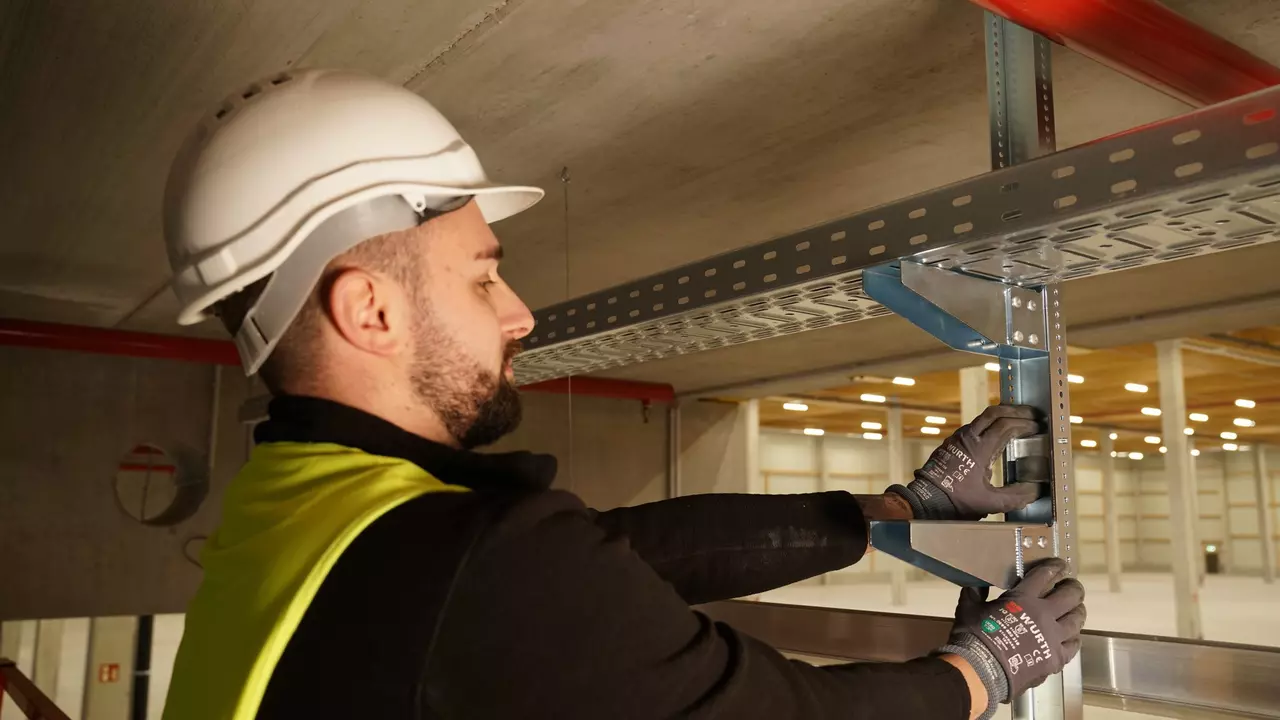

Step 3. Locate the bracket to the right height on the pendant and release the cartridge’s button to release the pins, locking the bracket into place. Ensure that the ‘locked line’ is visible. Use the button to adjust the height as necessary.
Step 4. Repeat the first and second steps to add additional brackets as necessary.

Trusted by the Experts:

“Gripple offered solutions that were quick to implement, generated less environmental waste, and were overall very cost effective.”
Riadh Barbouchi, Project Manager | CEREL
“SidePro is light, flexible, and quick to install. The push-button technology saved us around 50% in installation time.”
Aleksander Durdevic, Installation Manager | G.P. Elektrokonzept

Common Applications

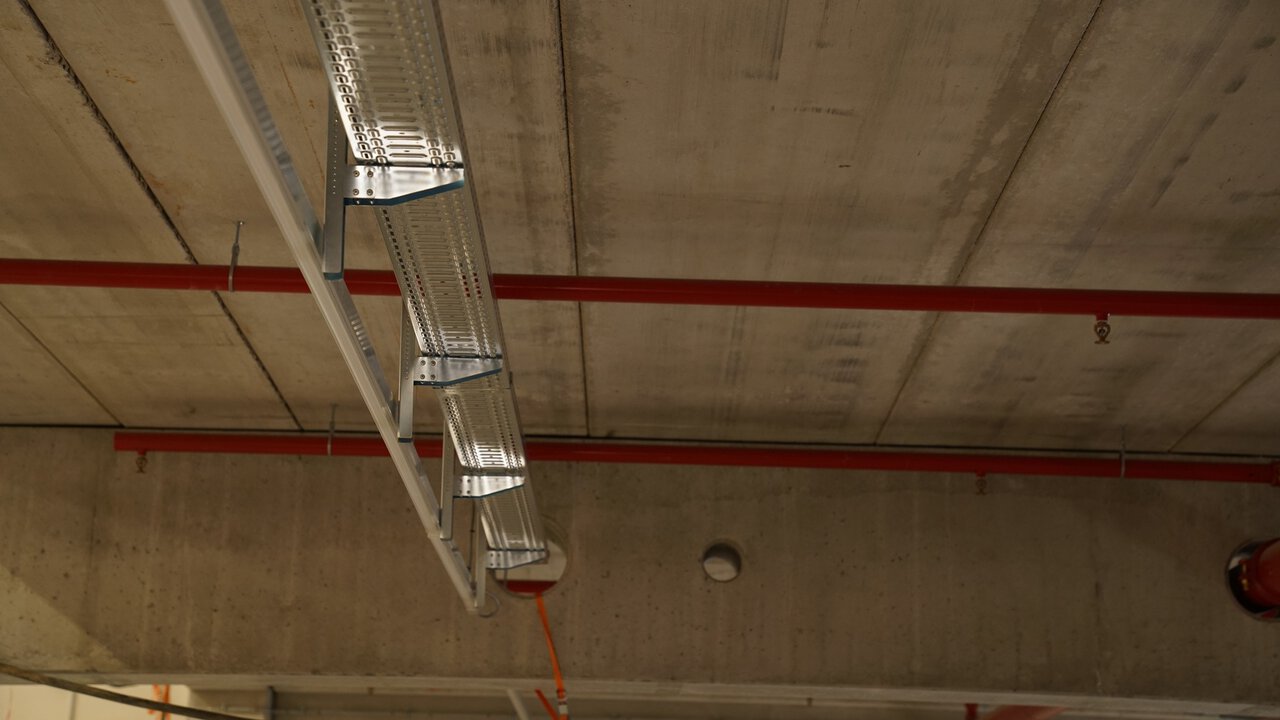

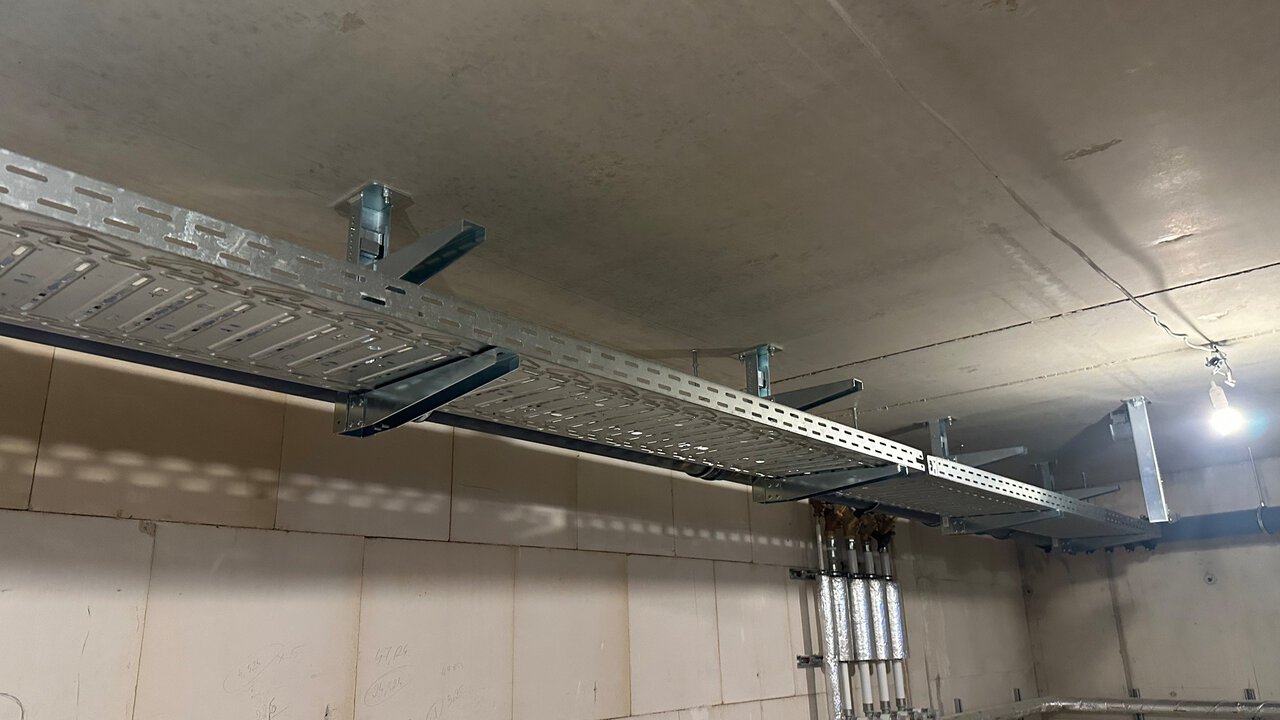

Cable Containment

Busbar Suspension

Ductwork Suspension

Pipework Suspension

Cable Containment

Busbar Suspension

Ductwork Suspension

Pipework Suspension

Related Products

Fast Trak® – Standard

Bracketry Suspension System for MEP Services

Max System Load : 200 kg
Suspension Space: 170mm – 1470mm
Drop Height Range: 200mm – 1500mm
View Fixing Variant
Untitled design - 1 Untitled design - 1 Untitled design - 1

Fast Trak® – Side Load

Side-loaded, bracketry suspension system for MEP services

Max Single Point Load: 15 kg
Max Uniformly Distributed Load: 30 kg
Track Lengths: 200 mm – 600 mm
View Fixing Variant

Fast Trak® – Segregated

A Pre-Fabricated Bracket with Integrated Separation

Max System Load: 90 kg
Suspension Space: 130 – 300 mm
Drop Height Range: 200 – 600mm
View Accessory

Fast Trak® J-Hook

Cable Routing & Support

Maximum No. of Cables: 90
Safe Working Load: 5 kg (3:1 Safety Factor)
Wire Material: Steel-HS3 Wire
View Product

FlexiStak®

Adjustable Suspension Solution for VRF and Piping

Safe Working Load: 35 kg (3:1 Safety Factor)
Suspension Lengths: 200 mm – 1,500 mm
Usable Width: 76 mm
View Product

Downloads

SidePro – Technical Data Pack – ENG
Building Services Product Guide

Frequently Asked Question’s

The product has been developed to remove the risk of any user error and improve the simplicity of the installation process through features and benefits provided.

The product has been extensively mechanically tested and meets all of the requirements for BS EN 61537:2007.

The product has been fire tested to meet the EU standard DIN-4102-12.

After conducting an assessment process called the “LMM-HHT” for assessing the risks which are posed by lifting certain weights, we fall into the very lower end of the moderate risk category, with the only recommended action being “For people with reduced resilience, design measures and other preventative measures are useful”.

The product’s welding is completed by an automated welder and meets the necessary ISO welding standards. The product meets all necessary load requirements which are outlined in BS EN 61537:2007 and DIN-4102-12.

The product has been laser cut and welded prior to the plating process. This means that the product will be fully plated, including all small components, laser cut areas and welded areas.
