Fast Trak® – Side Load Side-loaded, bracketry suspension system for MEP services

SKU # FTBS, FTBT

Designed for areas where post-install cable adjustments or additions might be needed, Fast Trak – Side Load is our pre-fabricated, easy-to-adjust bracketry system, which allows installers to save time by side-loading their MEP services.

Max Single Point Load

Max Single Point Load:

15 kg

Max Uniformly Distributed Load

Max Uniformly Distributed Load:

30 kg

Track Lengths

Track Lengths:

200 mm - 600 mm

Enquire Now

Product Downloads

Fast Trak Side Loading - Technical Data Pack - ENGFast Trak Range Brochure
View all downloads
SKU # FTBS, FTBT
1
1
1

Quick and easy, side-loaded suspension of MEP services

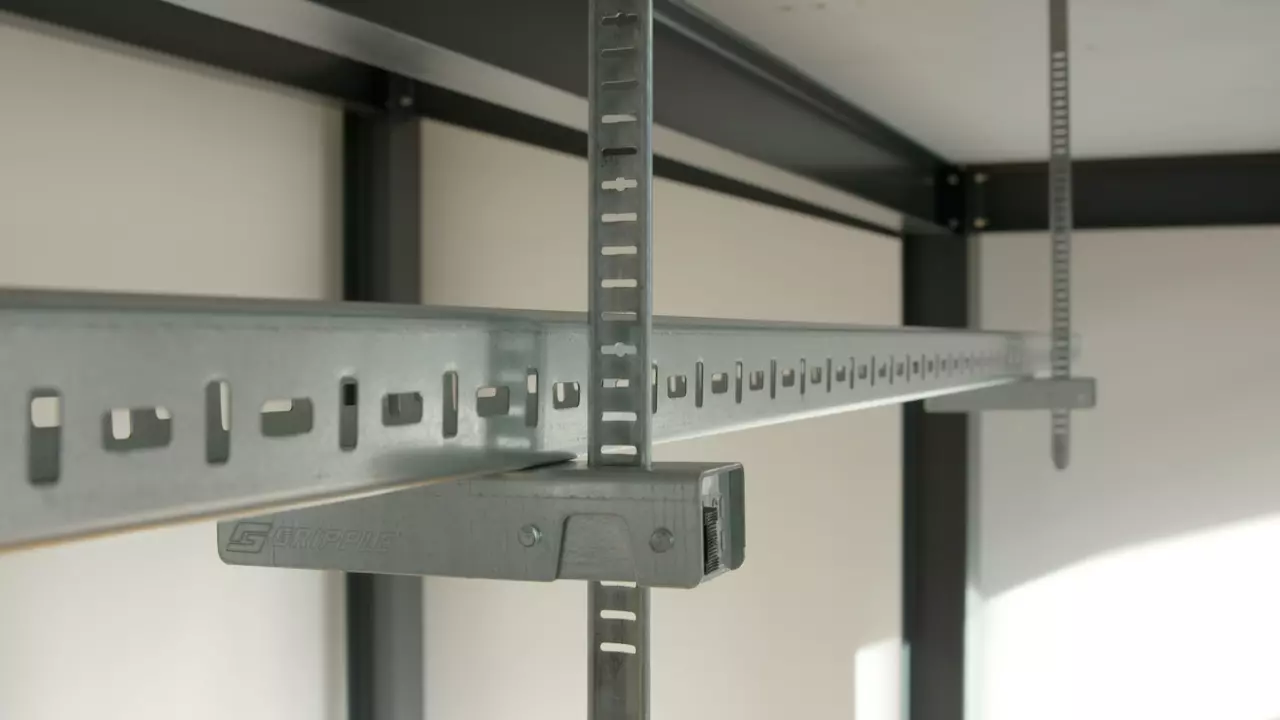

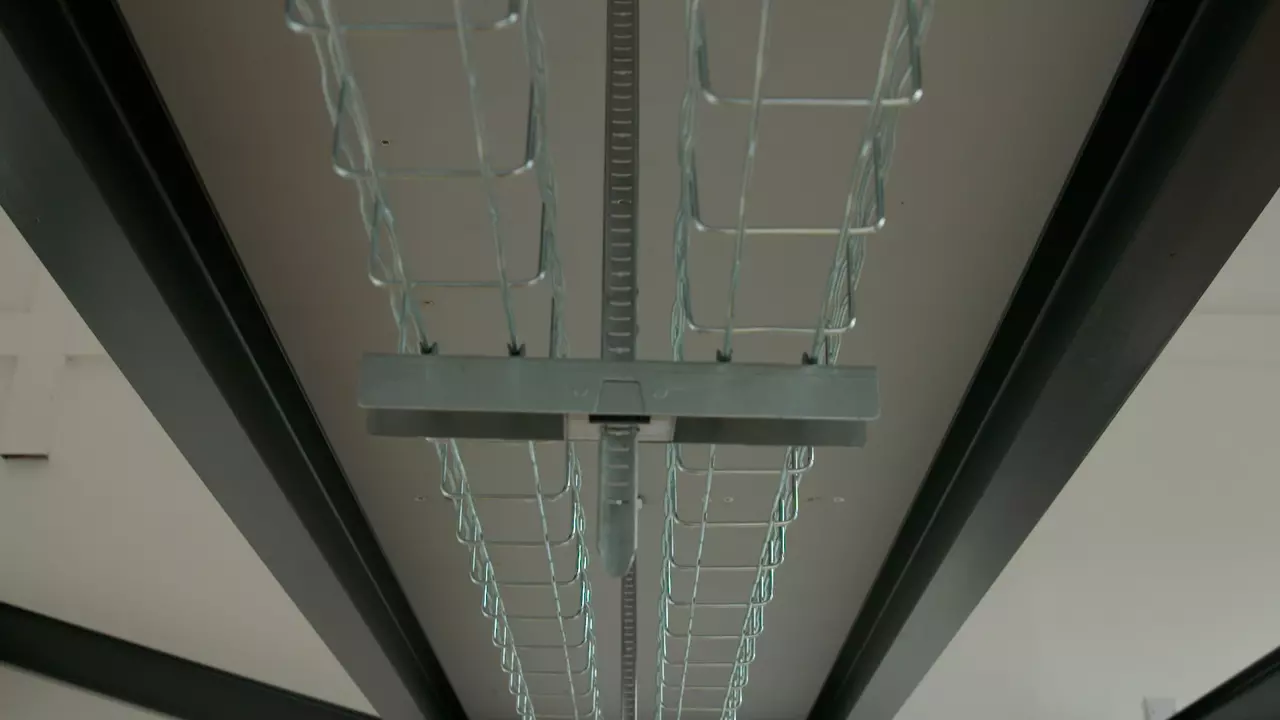

Our Fast Trak – Side Load is a pre-fabricated, fire-rated bracketry system that simplifies the installation of electrical containment, ductwork, and pipework in site environments where space is at a premium. Designed with side cable access in mind, it’s ideal for retrofit or restricted-access projects where traditional trapeze-style installations just aren’t possible.

The system features pre-cut vertical tracks which interact with a slide-in side bracket, allowing quick positioning without tools or hot works. The brackets simply click into place at the required height, offering a secure and adjustable solution that dramatically cuts down installation time by offering easy access to loaded cables.

With fewer components, no cutting on-site, and clean, consistent installations every time, Fast Trak – Side Load reduces labour costs and waste while improving safety and compliance. It’s the smart, professional alternative to traditional strut and channel, helping you deliver projects on time and on budget.

Engineered to support a wide range of M&E services, its versatility makes it suitable for even the most difficult-to-navigate site environments.

Read More

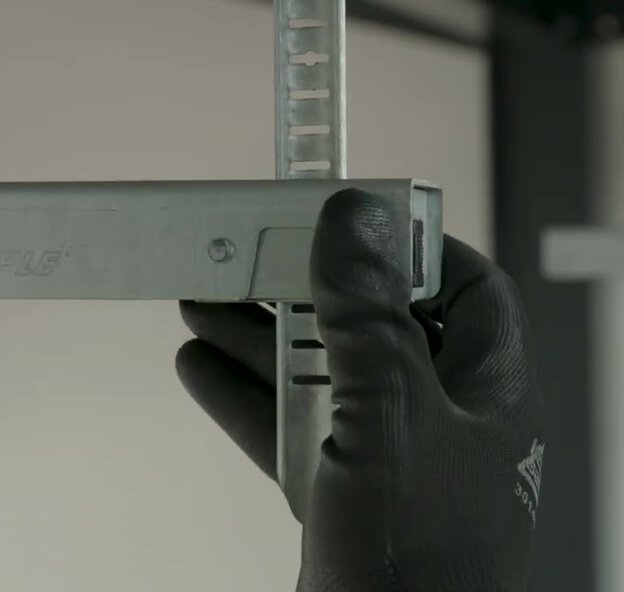

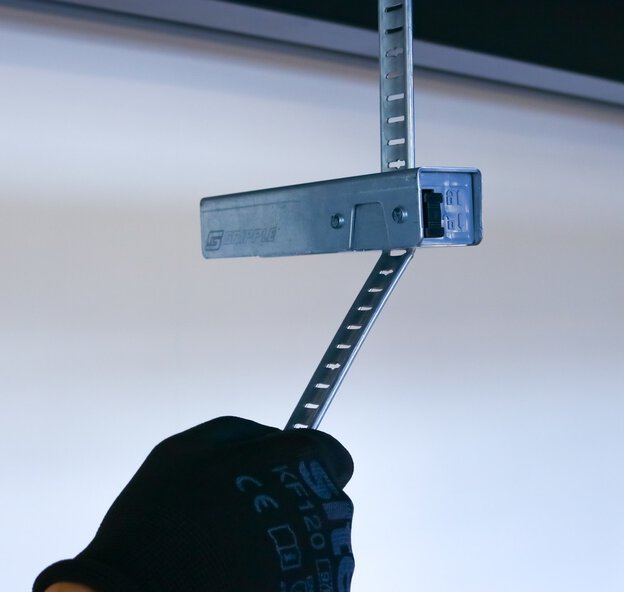

Quick, Tool-Free Installation

Quick, Tool-Free Installation

Provided as a pre-fabricated solution, with no cutting, drilling, or hot works required, saving valuable time on-site.

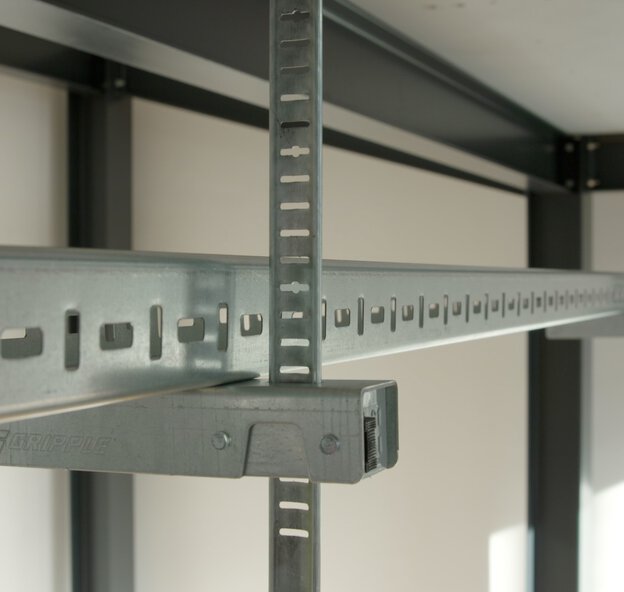

Ideal for Confined Spaces

Ideal for Confined Spaces

Side-loading design makes it perfect for tight or congested ceiling voids where traditional trapeze systems can’t be used.

Improves On-Site Safety

Improves On-Site Safety

Pre-fabricated and pre-cut components reduce the need for cutting tools, sparks, and working at height, helping to create a safer working environment.

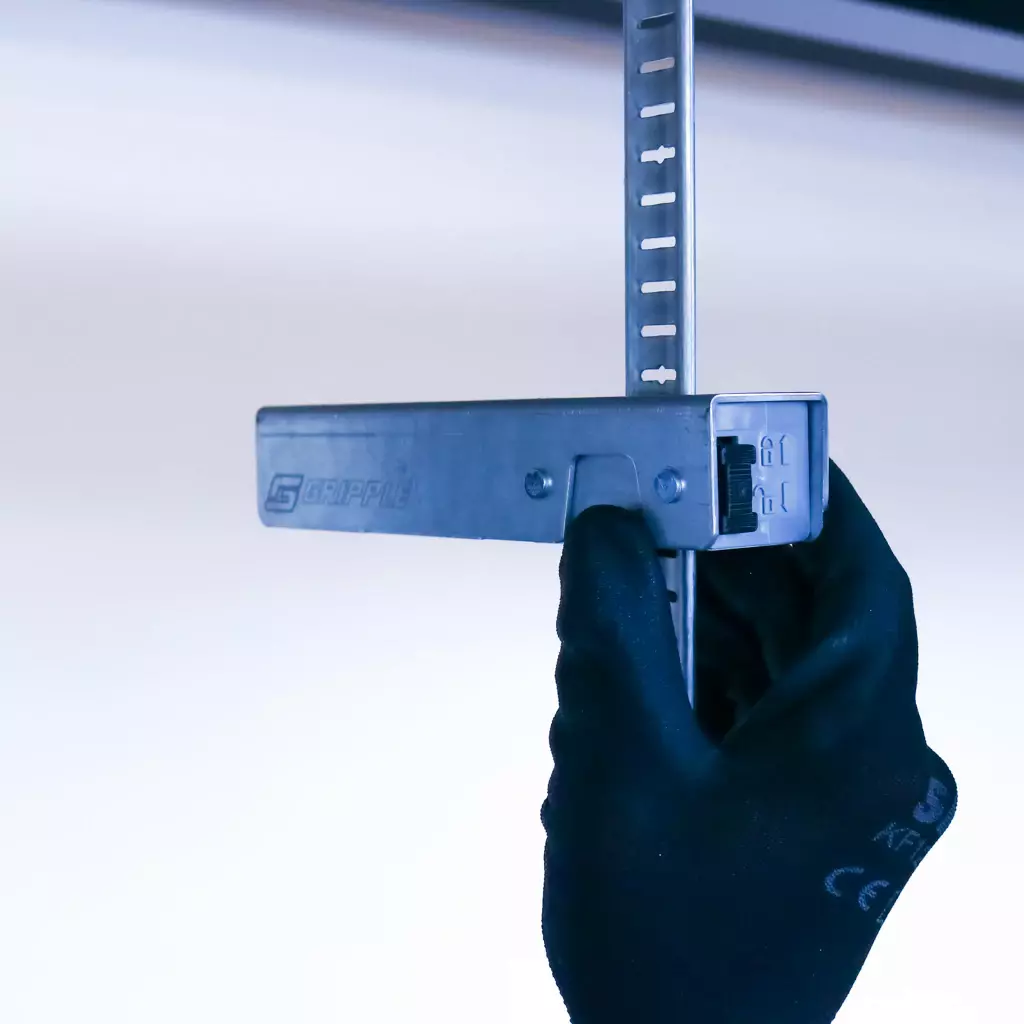

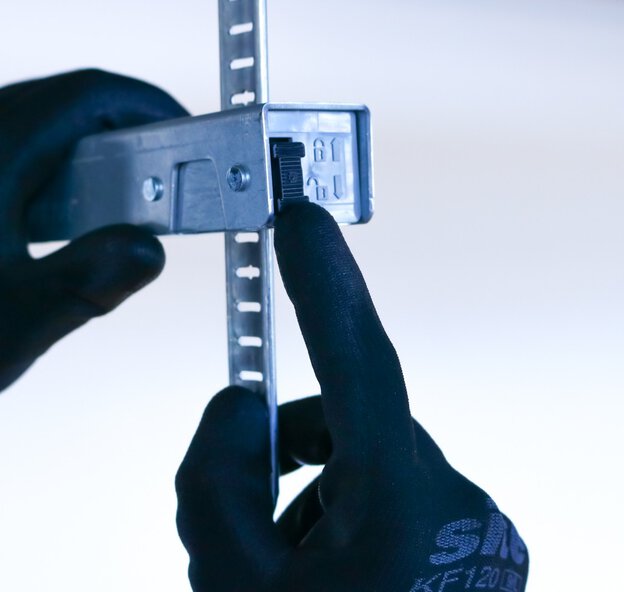

Adjustable and Reusable

Adjustable and Reusable

Push-button cartridge ensures brackets can be repositioned easily without tools, offering flexibility during install and allowing for changes late in the build.

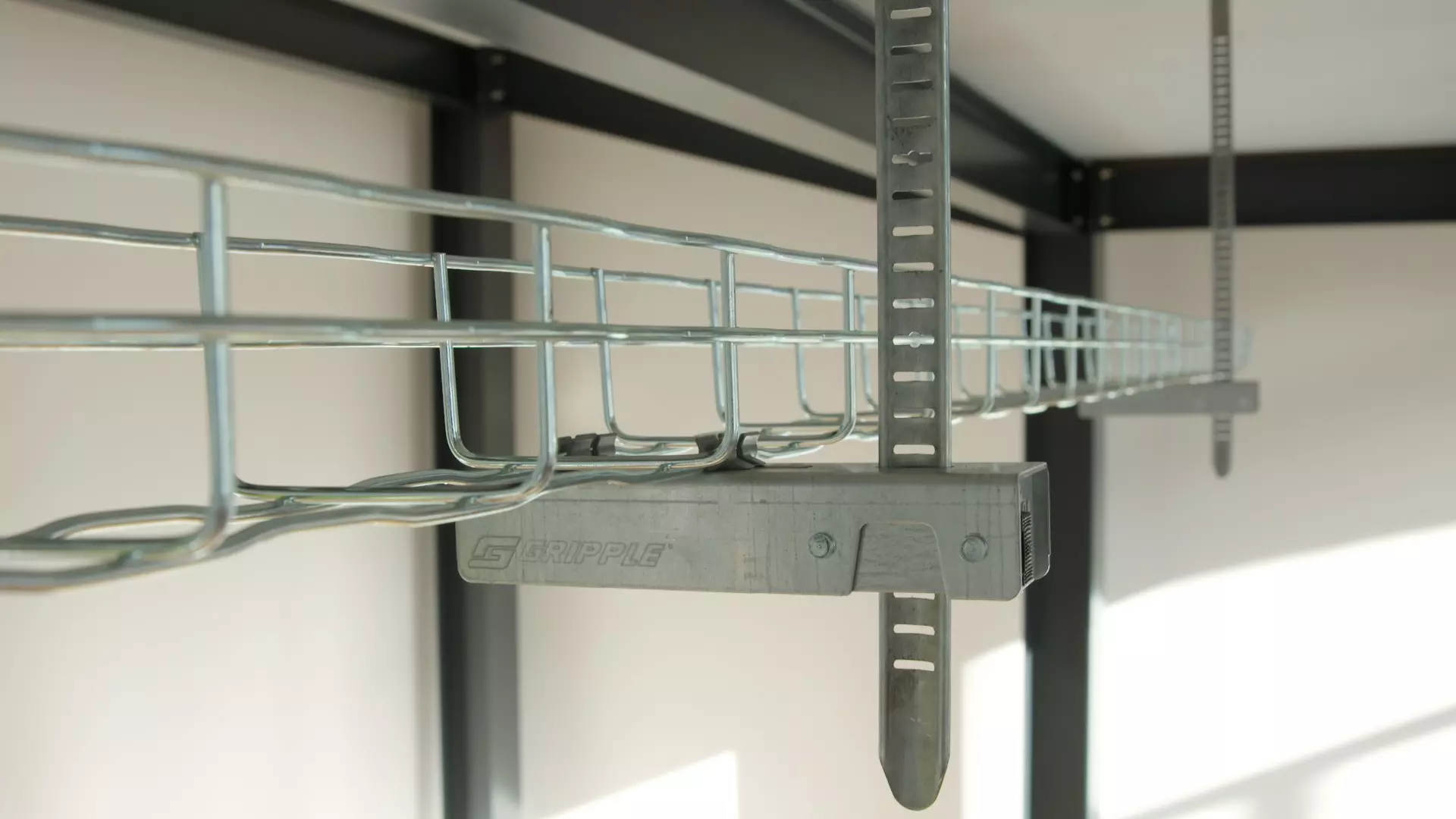

Cleaner, Consistent Finish

Cleaner, Consistent Finish

Engineered components ensure a uniform appearance across the installation, meaning a professional finish every time.

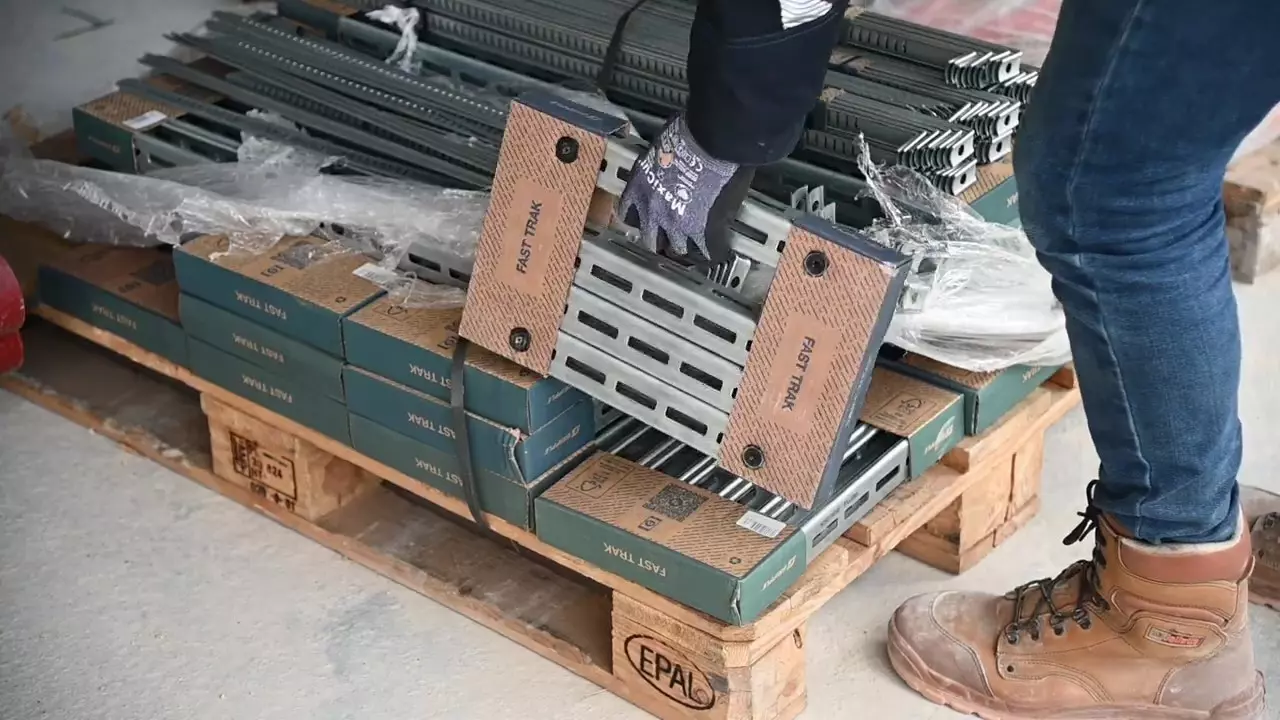

Reduces Labour and Waste

Reduces Labour and Waste

Fewer components and no need for cutting or measuring on-site means less material waste and lower labour costs.

Quick, Tool-Free Installation

Quick, Tool-Free Installation

Provided as a pre-fabricated solution, with no cutting, drilling, or hot works required, saving valuable time on-site.

Ideal for Confined Spaces

Ideal for Confined Spaces

Side-loading design makes it perfect for tight or congested ceiling voids where traditional trapeze systems can’t be used.

Improves On-Site Safety

Improves On-Site Safety

Pre-fabricated and pre-cut components reduce the need for cutting tools, sparks, and working at height, helping to create a safer working environment.

Adjustable and Reusable

Adjustable and Reusable

Push-button cartridge ensures brackets can be repositioned easily without tools, offering flexibility during install and allowing for changes late in the build.

Cleaner, Consistent Finish

Cleaner, Consistent Finish

Engineered components ensure a uniform appearance across the installation, meaning a professional finish every time.

Reduces Labour and Waste

Reduces Labour and Waste

Fewer components and no need for cutting or measuring on-site means less material waste and lower labour costs.

Range Variants

The max load rating of Fast Trak – Side Load varies depending on the load point. They can be used with a variety of track lengths. For more information, download our technical data pack.

Download the Technical Data Pack
Single Load Bracket Twin Load Bracket
Load Rating 15 kg (FTSB-180) 15 kg (FTBT-200 / FTBT-300 / FTBT-400)
Safety Factor Single Point Load @ 3:1 Single Point Load @ 3:1

How it works:

Installing the Fast Trak Side Load  is quick and straightforward. Just follow these simple steps:

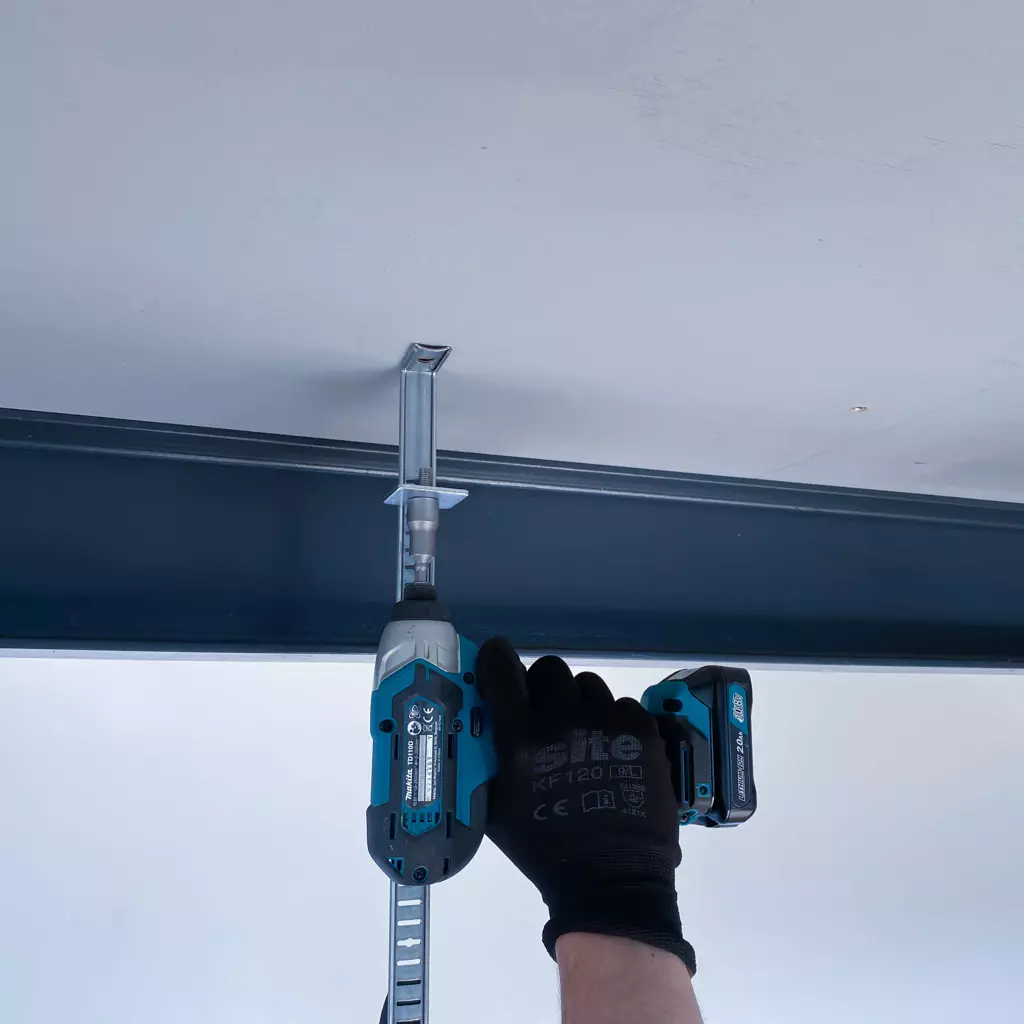

Step 1. Use the screws provided to fix the tracks to the soffit.

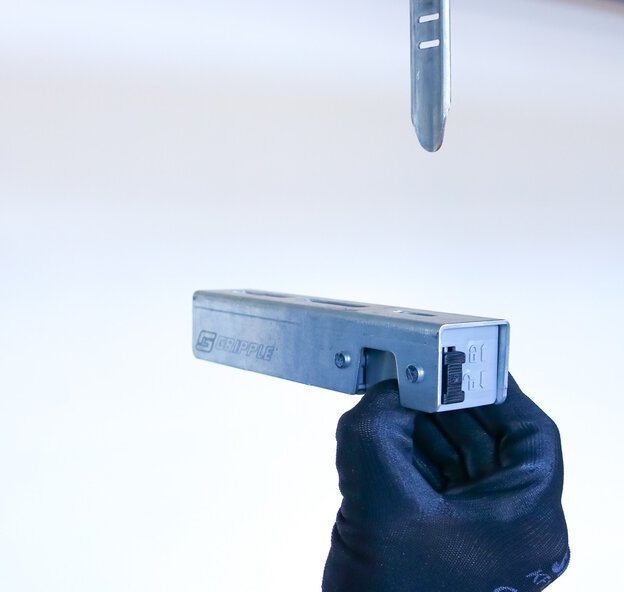

Step 2. Press and hold the Fast Trak cartridge's button inwards to retract the latches. Locate the track into the cartridge slot and continue to press the cartridge inwards whilst the bracket is lifted to the correct height. When the bracket is at the correct height, release the cartridge to lock the bracket in position.

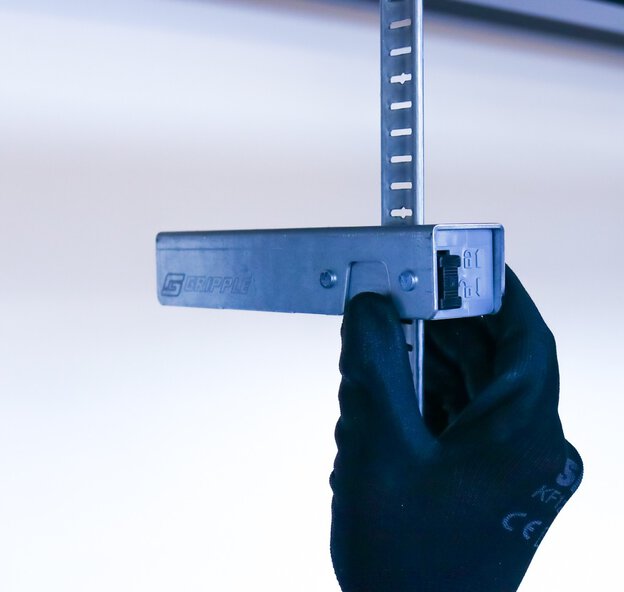

Step 3. Continue to press and hold the Fast Trak cartridge button whilst raising or lowering the bracket to the correct height. When the bracket is at the correct height, release the cartridge to lock the bracket in position.
Step 4. Slide the locking button on the cartridge upwards to the lock the bracket in position and finalise the installation.
Step 5. Fold the tracks underneath the bracket for a tidy finish.

Related Products & Accessories

Fast Trak® – Range

Prefabricated Trapeze Bracket System

Maximum System Load: 200 kg
Suspension Space: 170 mm – 1470 mm
Drop Height Range: 200 mm – 1500 mm
View Product

Fast Trak® – Bracket Cover

Neatly hide tracks to further enhance the aesthetics of the Fast Trak® system.

View Accessory

Fast Trak® – Track Protector

The Fast Trak® – Track Protector is an end cap designed for protruding tracks to reduce the risk of injury after the installation of the system.

View Accessory

Vibration Dampener Pad

Designed for vibration reduction when installing rectangular ducting on Fast Trak.

View Accessory

FlexiStak®

Adjustable Suspension Solution for VRF and Piping

Safe Working Load: 35 kg (3:1 Safety Factor)
Suspension Lengths: 200 mm – 1,500 mm
Usable Width: 76 mm
View Product

Fast Trak® – Fire Fastener

The Fast Trak – Fire Fastener is a fire rated push-fit clip designed to allow the use of Fast Trak in the ‘channel-side up’ orientation where fire rating is required.

View Accessory

Fast Trak® – Metal Decking Adaptor

Versatile adaptor that can be used in conjunction with Gripple Fast Trak system and a range of decking wedges to assist in the suspension of Gripple products into any metal decking type.

View Accessory

Cable Basket Clip

Developed for the quick fastening of cable basket to Gripple Fast Trak and Universal Bracket. Utilising a quick twist design, the product is tool free and simple to use.

View Accessory

Cable Tray Clip

For quick fastening of cable tray to Gripple Fast Trak, Universal and G Brackets.

View Accessory

Gripple Clamp for Strut (GCS)

Universal Adjustable Pipe Clamp

Maximum Pipe Outside Diameter: 12” | 30 cm
Safe Working Load (Above Mount/Racked): 850 lbs | 385 kg
Safe Working Load (Below Mount)*: 120 lbs | 54 kg *Not Applicable to GCS-Extended Strap
View Product

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Universal Clamp QT – (Quarter Turn Height Adjustable)

Height Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm
Noise Reduction: > 23 dB (depending on variant)
View Product

Universal Clamp – Threaded M8 / M10

Adjustable Pipe Clamp

Max Load Rating : 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Common Applications

Pipework

Cable Containment

Ductwork

Pipework

Cable Containment

Ductwork

Downloads

Fast Trak Side Loading – Technical Data Pack – ENG
Fast Trak Range Brochure
Fire Rated Product Matrix
Electrical Solutions Brochure
Building Services Product Guide

Frequently Asked Questions

Fast Trak Side Load is a pre-engineered bracket and wire suspension system designed for installing building services such as electrical containment, pipework, and ductwork, especially in tight or congested spaces where side-access would be beneficial.

The side load design allows cables to access the support bracket from the side rather than from above, making it ideal for areas where changes might need to be made after the initial installation.

No specialist tools are required. Fast Trak systems are designed for fast, tool-free installation. Simply click and secure into place.

Yes, brackets are fully adjustable without tools. This allows for quick changes on-site if services need repositioning. Just don’t readjust once the bracket is load-bearing!

Absolutely. Fast Trak Side Load is suitable for a wide range of services, including cable containment, HVAC systems, and pipework.

Yes, the system is independently tested and certified to meet or exceed relevant building and safety standards, including fire resistance and load ratings.

Fast Trak brackets are made from high-strength steel with a corrosion-resistant finish. For more information, see the Technical Data sheet in the Downloads section.

Gripple offers technical guidance for specific applications. Our technical team can provide advice and support on load capacities and approvals where required.

Yes, Gripple provides on-site training, installation guides, and full technical support to ensure the successful deployment of the system.

Contact your local Gripple representative or visit our website to request a quote or more information. Our sales and support teams are ready to help.
