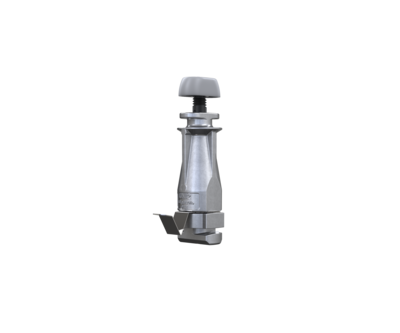

UniGrip – QT (Quarter Turn) Inner Hanger for Gripple Universal Bracket

SKU # UGQT

UniGrip QT (Quarter Turn) is our rapid-install wire suspension solution that locks into our Gripple Universal Bracket with a simple quarter turn, no tools required fixing.

Max Working Load

Max Working Load:

110 kg

Wire Compatibility

Wire Compatibility:

2.00 mm and 3.00 mm

Suspension Drop Lengths

Suspension Drop Lengths:

1 – 10m (additional drops available on request)

Enquire Now

Product Downloads

UniGrip QT (Quarter Turn) Technical Data Pack - ENG
View all downloads
UniGrip – QT (Quarter Turn) Inner Hanger for Gripple Universal Bracket
SKU # UGQT
1

Fast, Tool Free Suspension for Gripple Universal Bracket

UniGrip QT is designed for speed and simplicity. Using Gripple’s innovative quarter turn technology, it connects directly to the internal slots of the Gripple Universal Bracket in seconds.

This makes it ideal for fast-paced installations where time and precision matter.

Whether you’re working on electrical containment, HVAC, or multi-tiered trapeze brackets, UniGrip QT delivers a smarter, faster way to suspend services. When every second counts, trust UniGrip QT to turn efficiency into your advantage.

Read More
Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

High Working Loads

High Working Loads

With safe working loads up to 110kg per suspension point UniGrip is ideal for heavy duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or traditional wire methods. Even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our wire suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

High Working Loads

High Working Loads

With safe working loads up to 110kg per suspension point UniGrip is ideal for heavy duty suspension projects.

Speed and Convenience

Speed and Convenience

UniGrip systems eliminate cutting, require minimal tools, and offer tool-free adjustment, making them quicker and easier to install than threaded rod or traditional wire methods. Even for first-time users.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

Lockable Adjustment

Lockable Adjustment

Simple to use release button allows you to adjust drop height and when you're done just screw down to lock in place and prevent tampering.

Improved Health and Safety

Improved Health and Safety

Our wire suspension kits minimize time spent working at height and with power tools, and eliminates the need for hot works permits, helping your teams work safer and stay compliant.

Range Variants

UniGrip QT comes in two size variants allowing for suspension of a range of services. For further technical information, download our technical data pack below.

Load Rating Safety Factor Wire Size
UniGrip 2 55 kg 5:1 2.0 mm
UniGrip 3 110 kg 5:1 3.0 mm

How it Works:

See how our UniGrip QT works below or download the Technical Data Pack for full installation guidance.

 UniGrip QT (Quarter Turn) Technical Data Pack – ENG

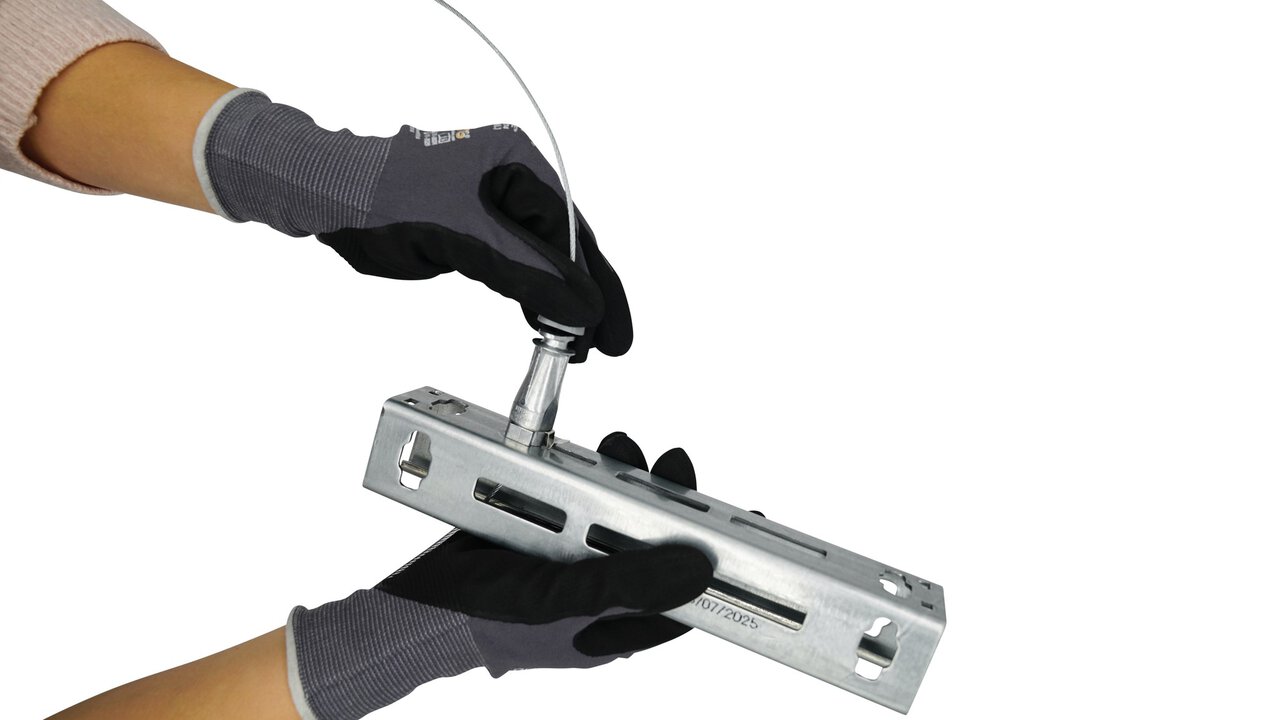

Step 1. Use the UniGrip quarter turn fixing point to attach the hanger to your Gripple Universal Bracket.

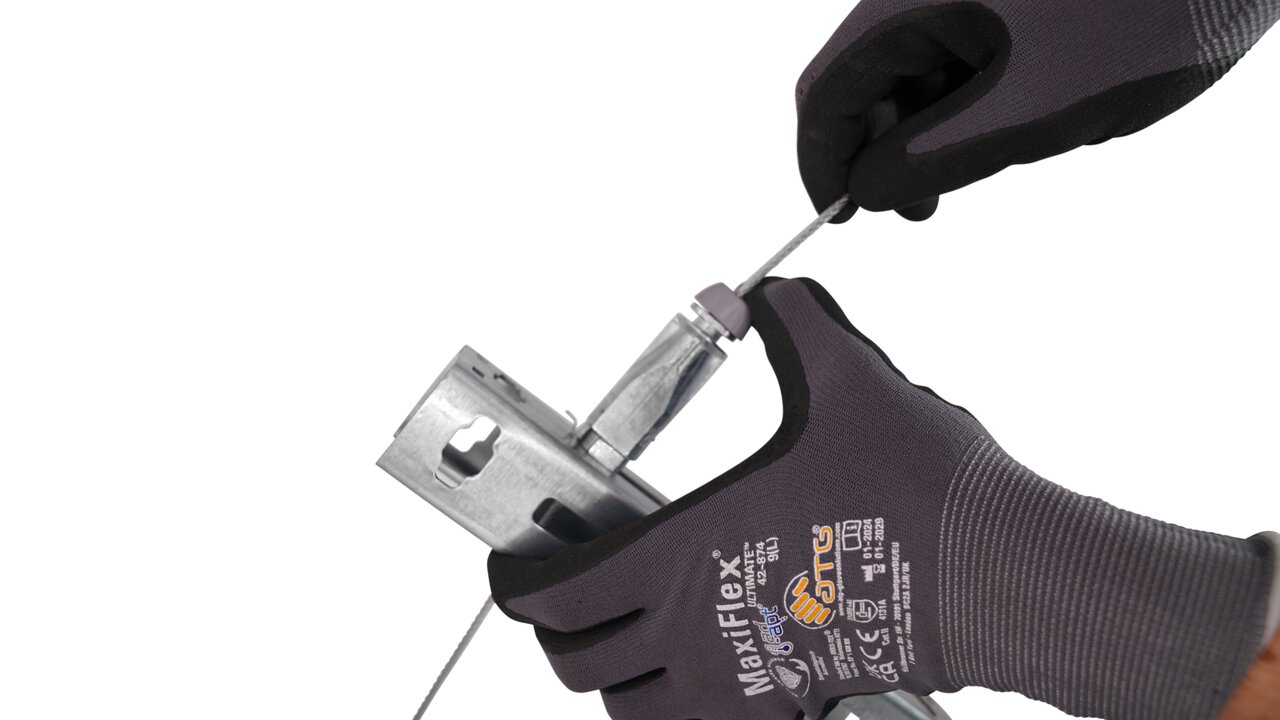

Step 2. Feed the wire into the entry channel at the top of the UniGrip and then back out of the other side leaving at least 100mm.

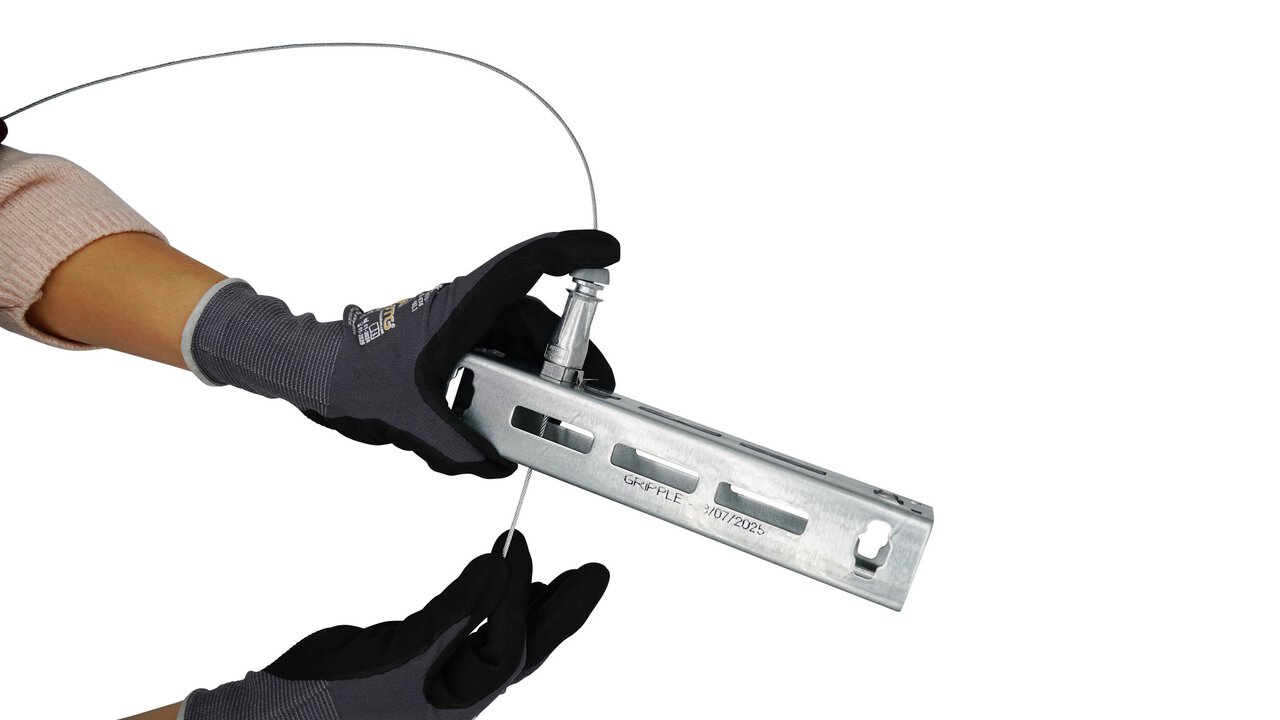

Step 3. This then grips and locks the wire in place.

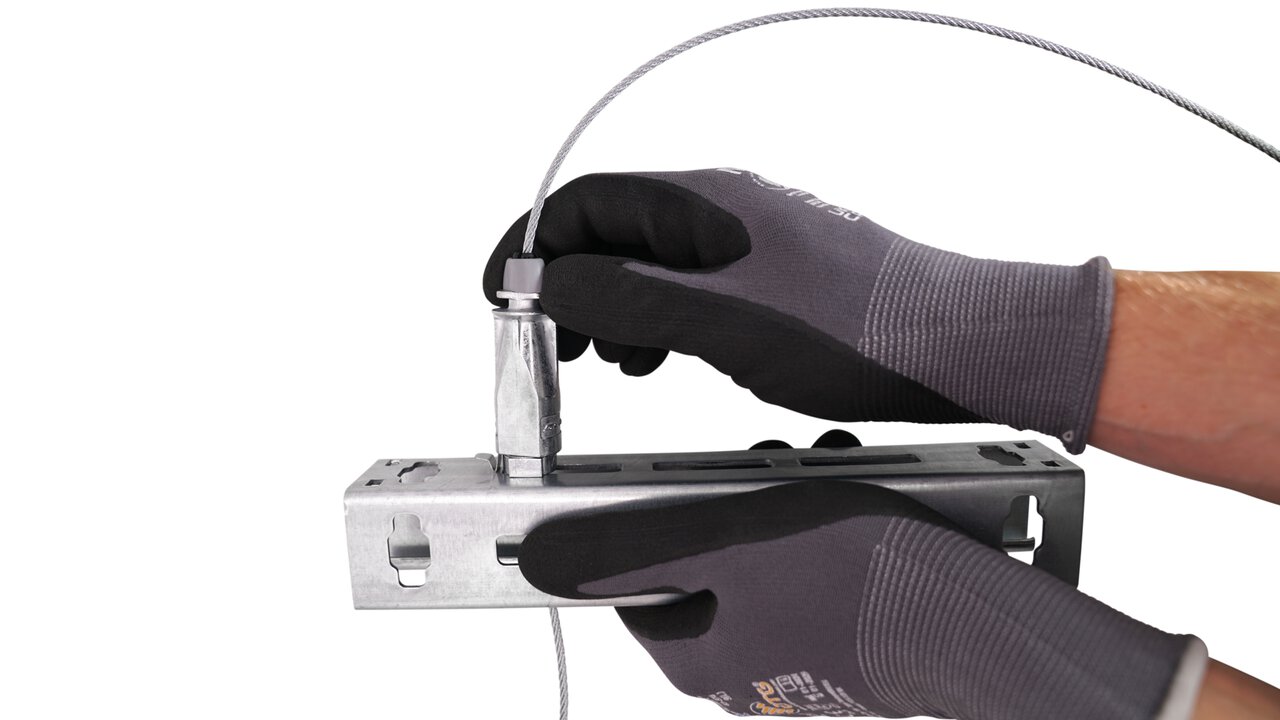

Step 4. Push down the end cap to allow adjustment up and down the wire.

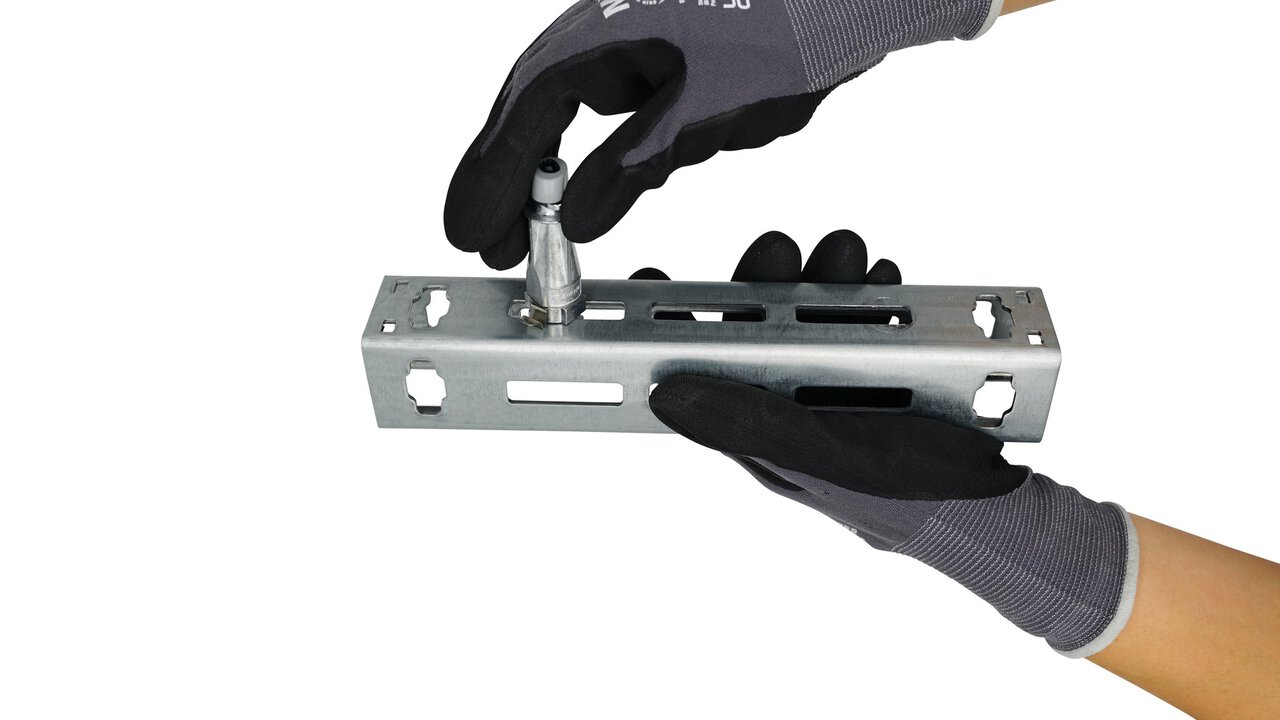

Step 5. Screw down the top end cap to prevent accidental adjustment once installed.

Ready To Install
Suspension Kit

We supply UniGrip QT hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Safe Working Load: 110 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Alphawedge

Designed for use with Ribdeck E60.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Max Safe Working Load: 45 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Safe Working Load: 250 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

MF Wedge

For the suspension of services from Metfloor® 60 and 80 profiles manufactured by Composite Metal Flooring

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Multiwedge 2

For quick and secure locking into Kingspan Multideck 60 and 80 decking.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ring Anchor

Set directly into cracked or non-cracked concrete with a hammer. Ideal for the fast suspension of services including electrical, HVAC and pipework.

Max Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2 : 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Shotfire

A shot-fired hanger solution with pre-mounted nail end fixing, for securing installation into concrete or composite metal decking.

Safe Working Load: 15 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

TR60 Wedge

Ideal for the suspension of services from Structural Metal Decks TR60+ and TR80+

Safe Working Load: 90 kg
Available Sizes:
No. 2: 2 mm (Wire Diameter)
No. 3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

18mm Decking Wedge

Designed for use with Ribdeck S60 and Ribdeck 80

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

25mm Decking Wedge

Designed for use with SMD R51, Comflor 51, Holorib, Multideck 50 and Metfloor 55.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load: 90 kg
Available Sizes:
No. 1: 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 4 Snap Hook - 4

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Wire Length

From 1 – 10 m

(Other lengths available on request)

All our ready‑to‑install suspension kits include pre‑cut, looped, and fused wire in your chosen length. Standard options are available from 1 – 10 m.

3

UniGrip QT Hanger

UniGrip QT (Quarter Turn) is our rapid-install wire suspension solution that locks into our Gripple Universal Bracket with a simple quarter turn, no tools required fixing.

  • Max Working Load: 110 kg
  • Wire Compatibility: 2.00 mm and 3.00 mm
  • Suspension Drop Lengths: 1 – 10m (additional drops available on request)

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1

UniGrip – QT (Quarter Turn)

SKU # UGQT

UniGrip QT (Quarter Turn) is our rapid-install wire suspension solution that locks into our Gripple Universal Bracket with a simple quarter turn, no tools required fixing.

Key Specifications

Max Working Load: 110 kg
Wire Compatibility: 2.00 mm and 3.00 mm
Suspension Drop Lengths: 1 – 10m (additional drops available on request)

Available Sizes

No.2: 55 kg
No.3: 110 kg
Find a SupplierView Product Page

Product Downloads

UniGrip QT (Quarter Turn) Technical Data Pack – ENG

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

Downloads

UniGrip QT (Quarter Turn) Technical Data Pack – ENG
UniGrip Range Technical Data Pack – ENG
UniGrip – Lloyds Approval
Building Services Product Guide

Common Applications

Ductwork Suspension

Pipework

Cable Containment

Busbar & Busduct

Combined Modules

Exhibition Rigging

Ductwork Suspension

Pipework

Cable Containment

Busbar & Busduct

Combined Modules

Exhibition Rigging

Related Products

Universal Bracket

Pre-cut Channel Alternative

Bracket Widths: 200 mm – 1500 mm
Max Single Point Load: 200 kg
Max Uniformly Distributed Load: 200 kg
View Product

UniGrip – QTUB (Quarter Turn)

Outer Hanger for Gripple Universal Bracket

Max Working Load: 110 kg
Wire Compatibility: 2.00 mm and 3.00 mm
Suspension Drop Lengths: 1 – 10 m (additional drops available on request)
View Fixing Variant

UniGrip – Range

Single Channel Wire Hanger

Maximum Safe Working Load: 360 kg
Wire Compatibility: 1.5 mm to 6 mm
Suspension Drop Lengths: 1 – 10 m (additional drops available on request)
View Product

Trapeze Plus FR – Range

Fire Rated Cable Hanger Tested to F120

Max Working Load: 225 kg
Fire Testing: BRE tested to F120
Available Drop Lengths: 1 – 10 m (bespoke lengths available on request)
View Product

Universal Clamp QT – (Quarter Turn Height Adjustable)

Height Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm
Noise Reduction: > 23 dB (depending on variant)
View Product

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Universal Clamp – Threaded M8 / M10

Adjustable Pipe Clamp

Max Load Rating : 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Contact the Gripple Experts

Enquire Now

"*" indicates required fields

*
We’d love to stay in touch with info we think you’ll find useful?*

See our Privacy Policy here for more details.

Got a question or need help choosing the right products for your next project? Get in touch and our expert team is here to offer tailored advice and technical support.

UK Sales

Contact dedicated UK sales and distributor support team.

HQ & Export Sales

Contact our UK head office and export sales team.

Technical Support

Contact our UK technical team for project or product advice or support.
