M6 Loop Adaptor Wire Rope Mounting Accessory

SKU # M6-LOOP-ADP-10BB

The M6 Looping Point Accessory is a versatile solution for securely mounting Gripple wire-rope hangers to a variety of building services. Designed for strength and reliability, it supports loads up to 20 kg with a 5:1 safety factor.

Max Working Load

Max Working Load:

20 kg

Wire

Wire:

1.5 mm

Safety Factor

Safety Factor:

5:1

Enquire Now

Product Downloads

M6 Loop Adaptor - Technical Data Pack
View all downloads
M6 Loop Adaptor Wire Rope Mounting Accessory
SKU # M6-LOOP-ADP-10BB
1
1
1

M6 Loop Adaptor – Seamless Suspension, Designed for Versatility



M6 Loop Adaptor —strong, versatile, and discreet with a 20 kg load rating and M6 thread for fast, secure installation.

Read More

How it Works:

Installing the M6 Loop Adaptor is quick and easy with these steps:

 M6 Loop Adaptor – Technical Data Pack

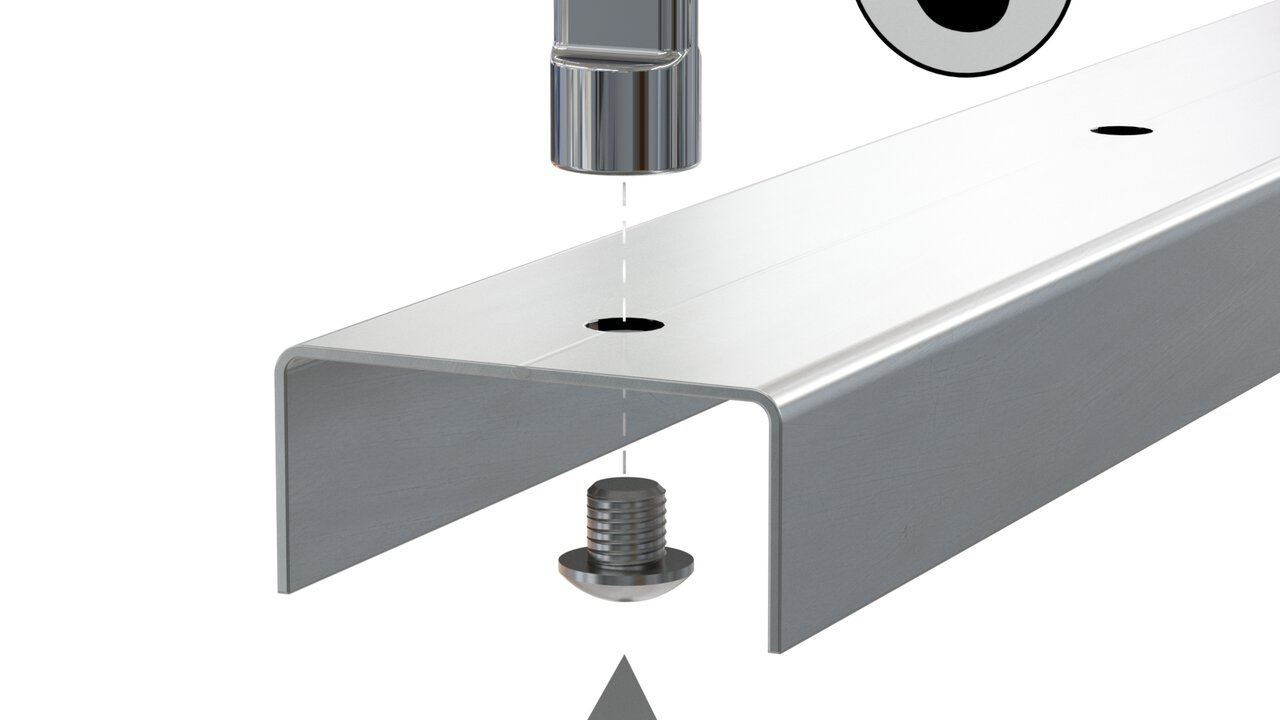

Step 1: Snap the track clip onto the track

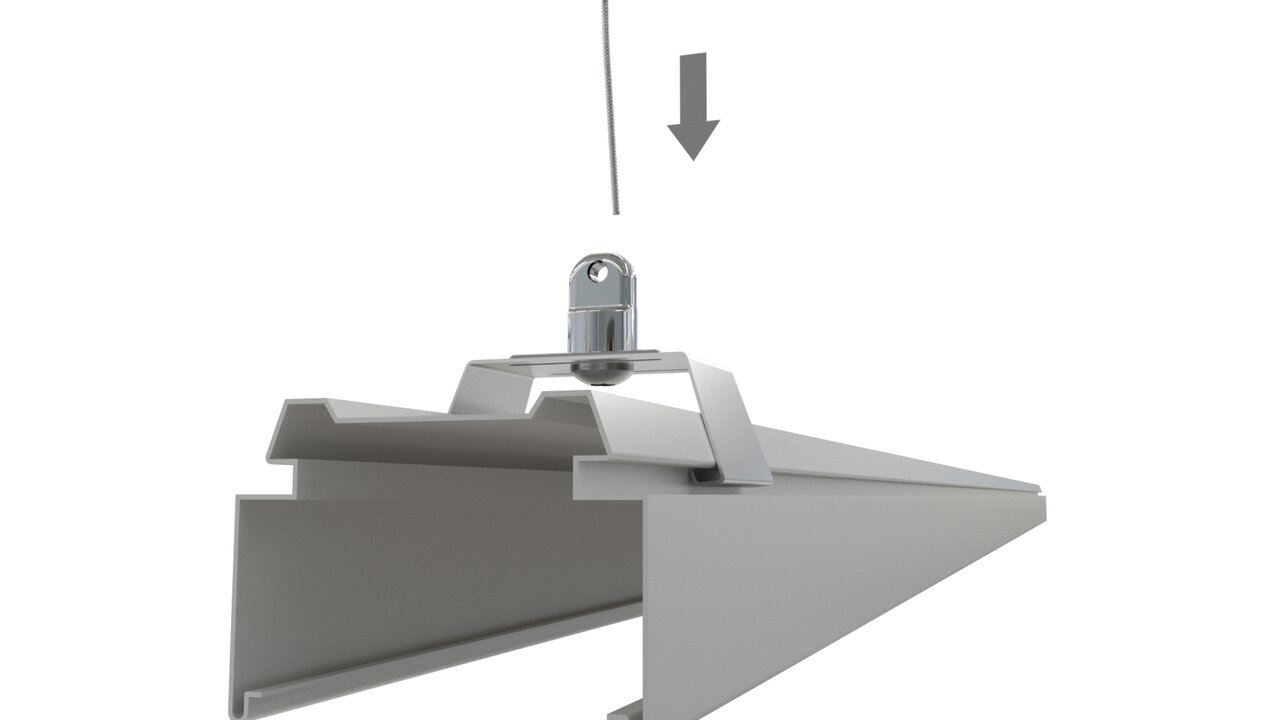

Step 2: Lift track into the install position and with the hanger pre-installed to the suspension wire

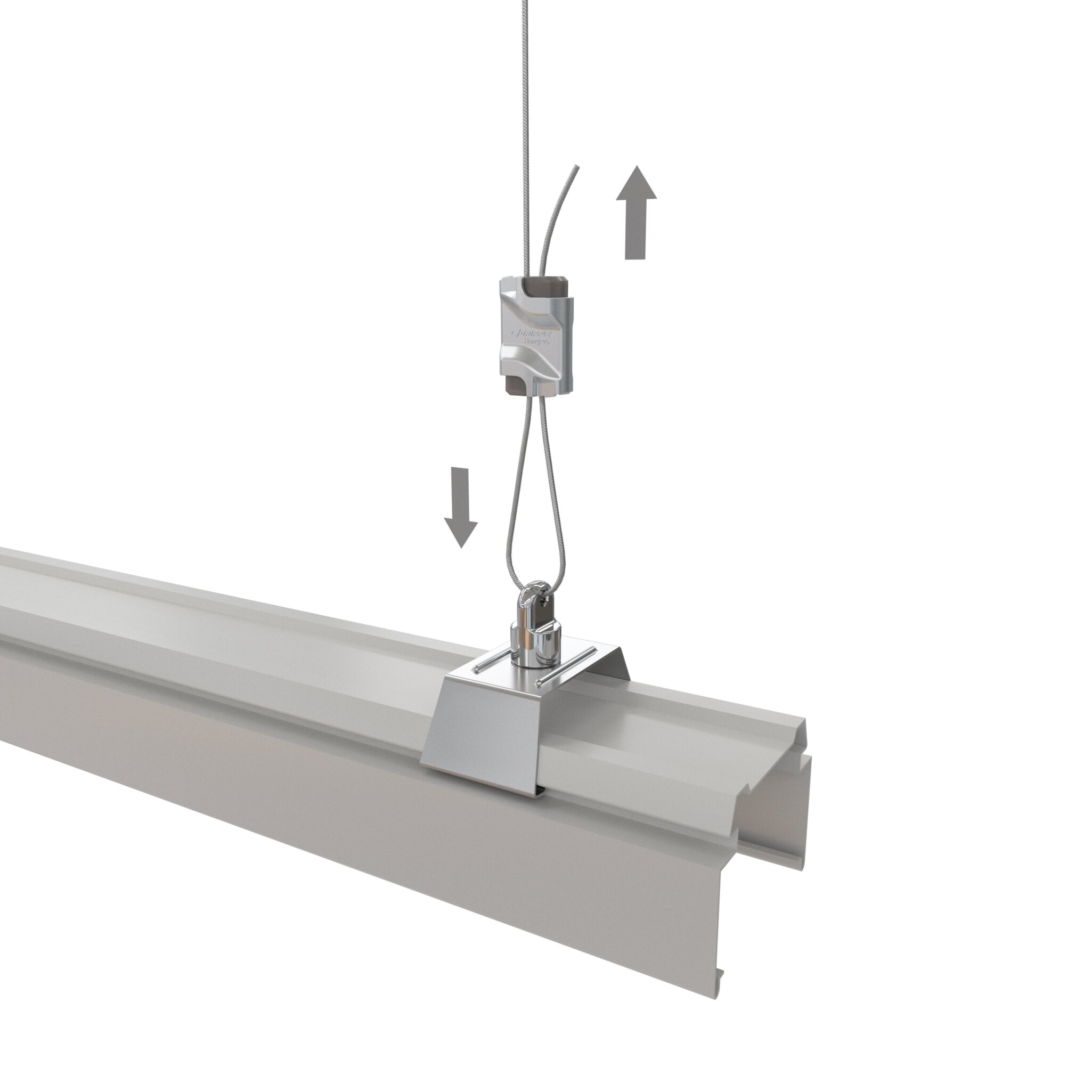

Step 3: Loop through the M6 Loop Adaptor and secure with the hanger

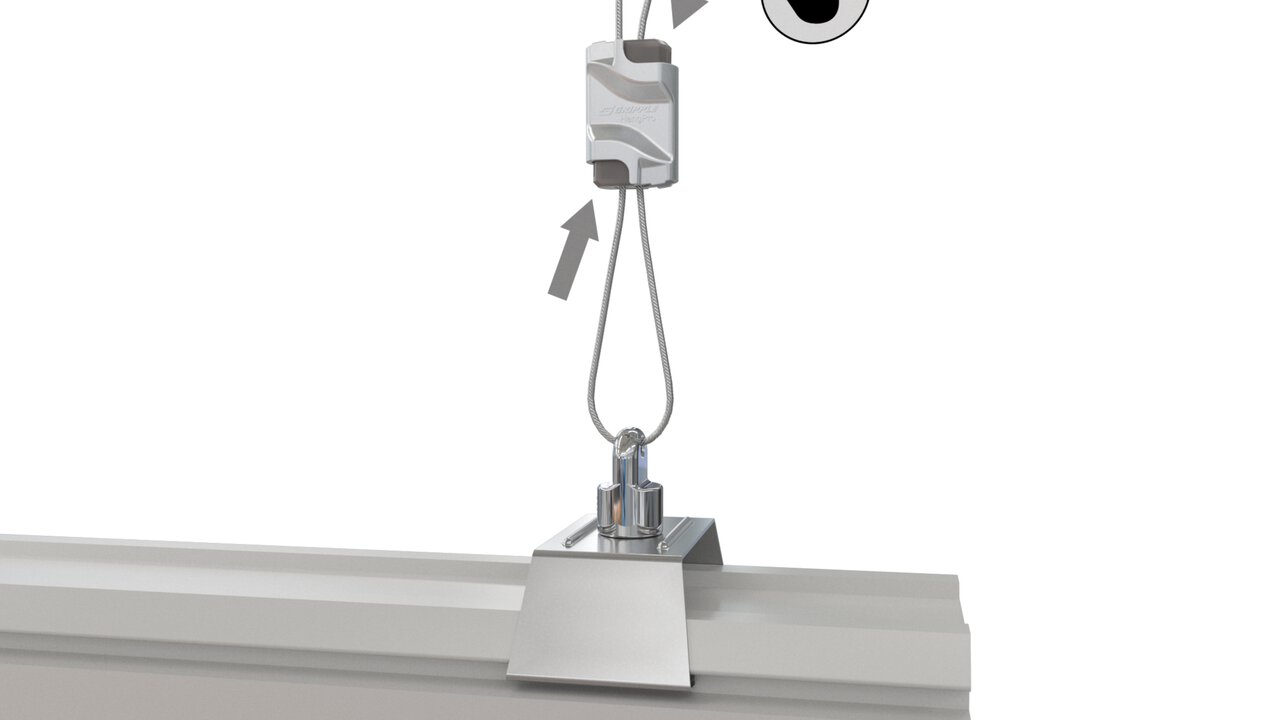

Step 4: Adjust the final suspension position using the hanger
Strong

Strong

20 kg load rating with 5:1 safety factor for heavy duty lighting applications

Versatile

Versatile

Accepts up to 2.5 mm diameter wire and is available pre-mounted to our range of track lighting clips supplied as a ready to use hanger

Simple

Simple

M6 female thread for easy fixture to a range of services

Strong

Strong

20 kg load rating with 5:1 safety factor for heavy duty lighting applications

Versatile

Versatile

Accepts up to 2.5 mm diameter wire and is available pre-mounted to our range of track lighting clips supplied as a ready to use hanger

Simple

Simple

M6 female thread for easy fixture to a range of services

Ready To Install
Suspension Kit

We supply M6 Loop Adaptor as a ready to install suspension kit.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Max Safe Working Load: 45 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ring Anchor

Set directly into cracked or non-cracked concrete with a hammer. Ideal for the fast suspension of services including electrical, HVAC and pipework.

Max Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2 : 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Shotfire

A shot-fired hanger solution with pre-mounted nail end fixing, for securing installation into concrete or composite metal decking.

Safe Working Load: 15 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or luminaires.

Safe Working Load: Refer to hanger load ratings and safe working loads
Available Sizes:
No.1: 1.5 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Wire Length

From 1 – 10 m

(Other lengths available on request)

All our ready‑to‑install suspension kits include pre‑cut, looped, and fused wire in your chosen length. Standard options are available from 1 – 10 m.

3

M6 Loop Adaptor

The M6 Looping Point Accessory offers a strong, versatile, and discreet solution for mounting Gripple wire-rope hangers to a variety of services

  • Max Working Load: 20 kg
  • Wire: 1.5 mm
  • Safety Factor: 5:1
