Angel™ Hanger – T19 Suspension System for Track Lighting

SKU # AL1-ST19

The Angel T19 hanger is designed specifically for smaller track profiles of up to 19 mm internal width using the threaded fixing point which can be inserted and tightened to secure by hand.

Max Working Load

Max Working Load:

15 kg

Wire

Wire:

1.5 mm stainless steel, fused end

Safety Factor

Safety Factor:

5:1

Enquire Now

Product Downloads

Angel T19 - Technical Data Pack - ENGAngel T19 - Lloyds Certificate
View all downloads
Angel™ Hanger – T19 Suspension System for Track Lighting
SKU # AL1-ST19
1
1

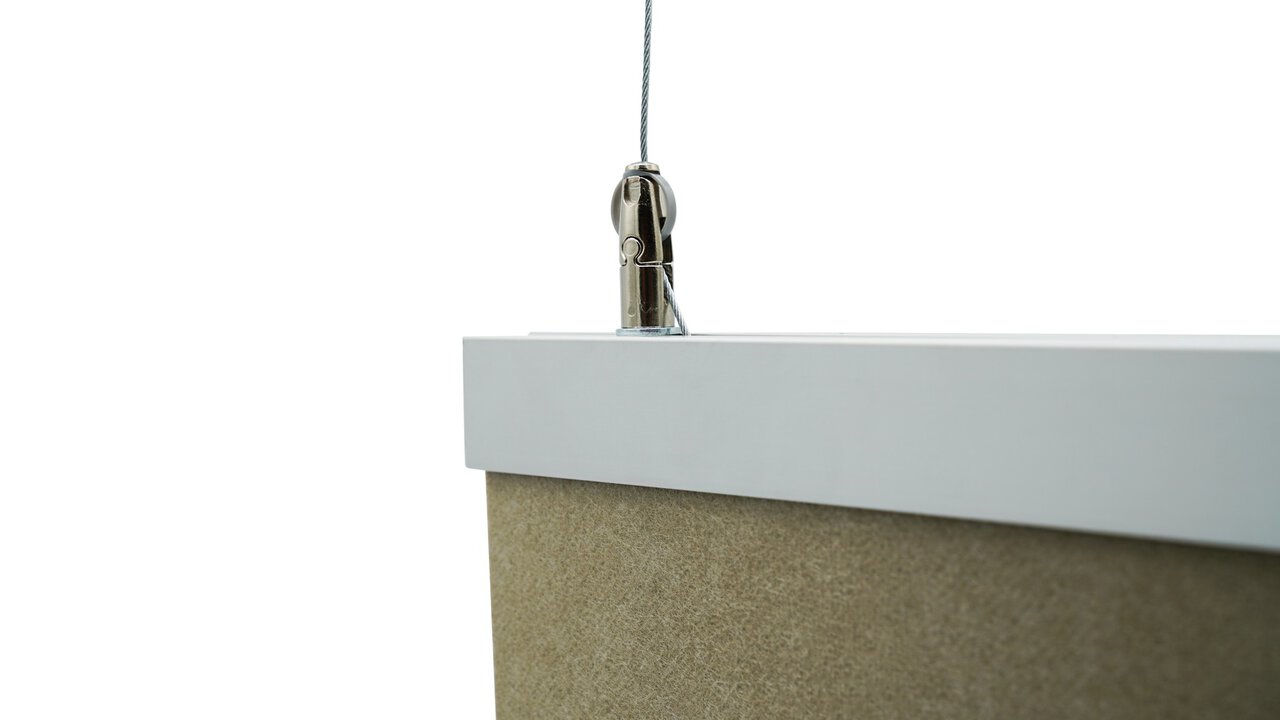

Angel™ T19 – Seamless Track Suspension, Designed for Precision



Angel T19 offers a versatile and reliable solution for suspending building services with ease and precision. Designed for quick installation and aesthetic appeal, Angel T19 is designed to accommodate smaller track profiles of up to 19 mm internal width for the suspension of acoustic, display, signage and lighting solutions.

Read More

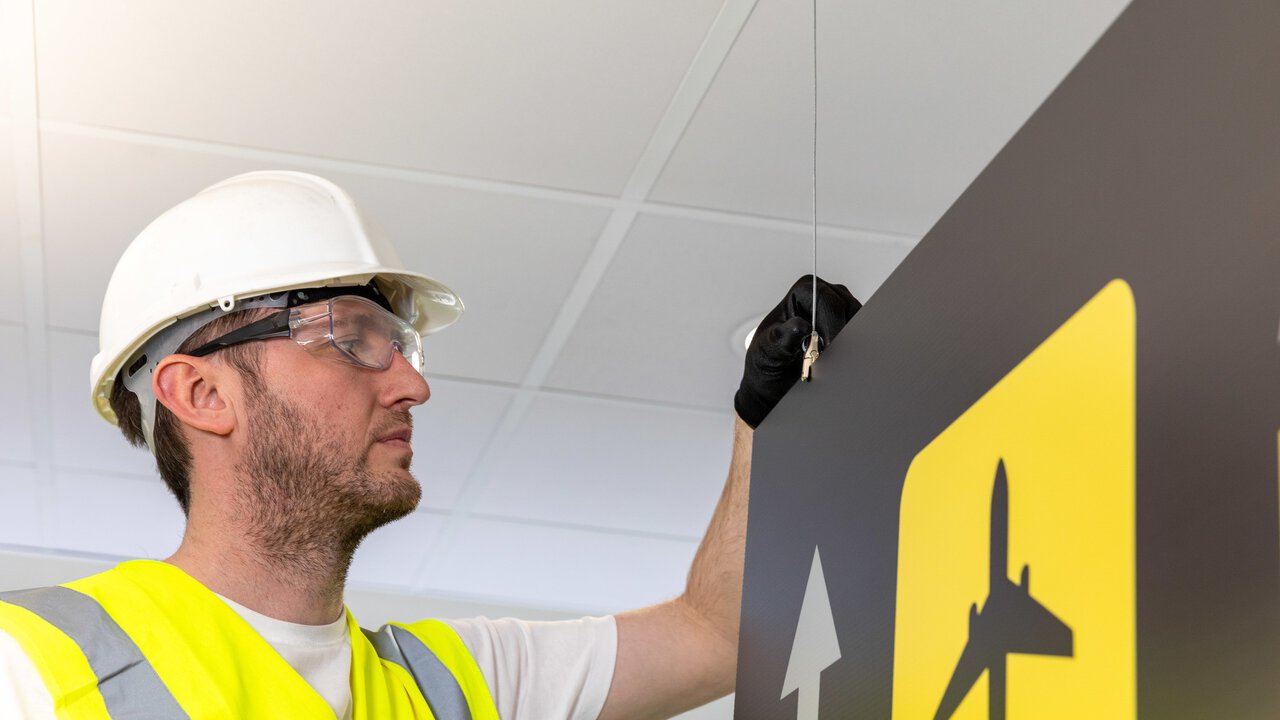

Easily Adjustable

Easily Adjustable

Ergonomic wings allow effortless, one-handed height adjustment.

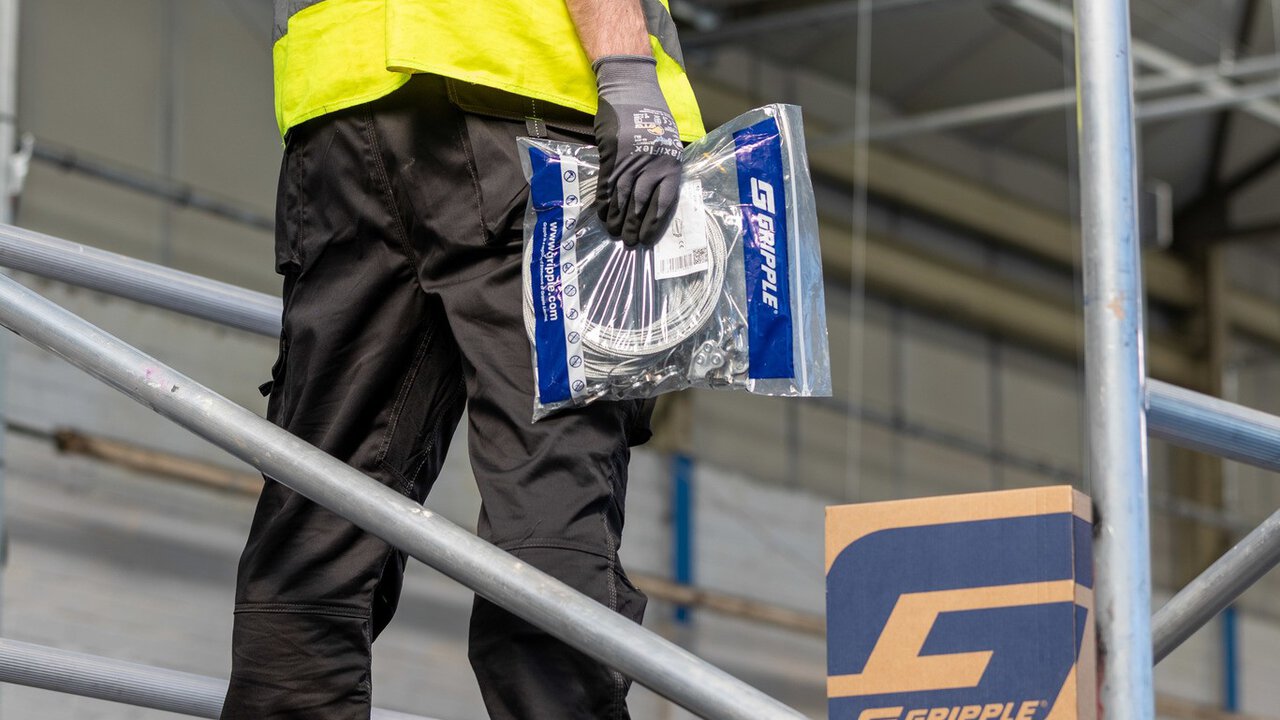

Ready to Use

Ready to Use

Supplied as a complete kit with wire and selected end.

Aesthetic

Aesthetic

A sleek design that complements and enhances any suspension system.

Versatile

Versatile

Compatible with a wide range of tracks, available with two thread lengths and washer options to suit different requirements.

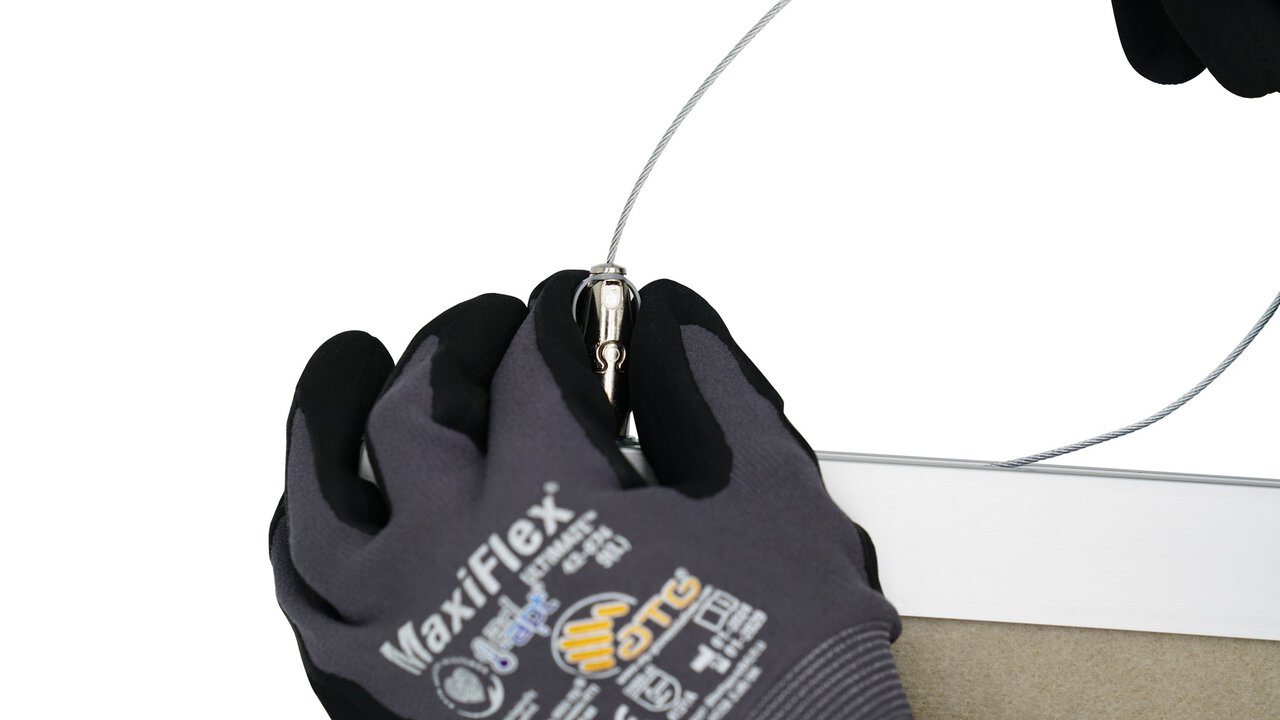

Quick & Hassle-Free

Quick & Hassle-Free

Threaded foot attachment enables the Angel body to be secured by hand, with no additional tools required.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

Easily Adjustable

Easily Adjustable

Ergonomic wings allow effortless, one-handed height adjustment.

Ready to Use

Ready to Use

Supplied as a complete kit with wire and selected end.

Aesthetic

Aesthetic

A sleek design that complements and enhances any suspension system.

Versatile

Versatile

Compatible with a wide range of tracks, available with two thread lengths and washer options to suit different requirements.

Quick & Hassle-Free

Quick & Hassle-Free

Threaded foot attachment enables the Angel body to be secured by hand, with no additional tools required.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

How it Works:

Quickly attach the Angel T19 to track lighting for fast and secure suspension. For full install guidance download the technical data pack.

 Angel T19 – Technical Data Pack – ENG

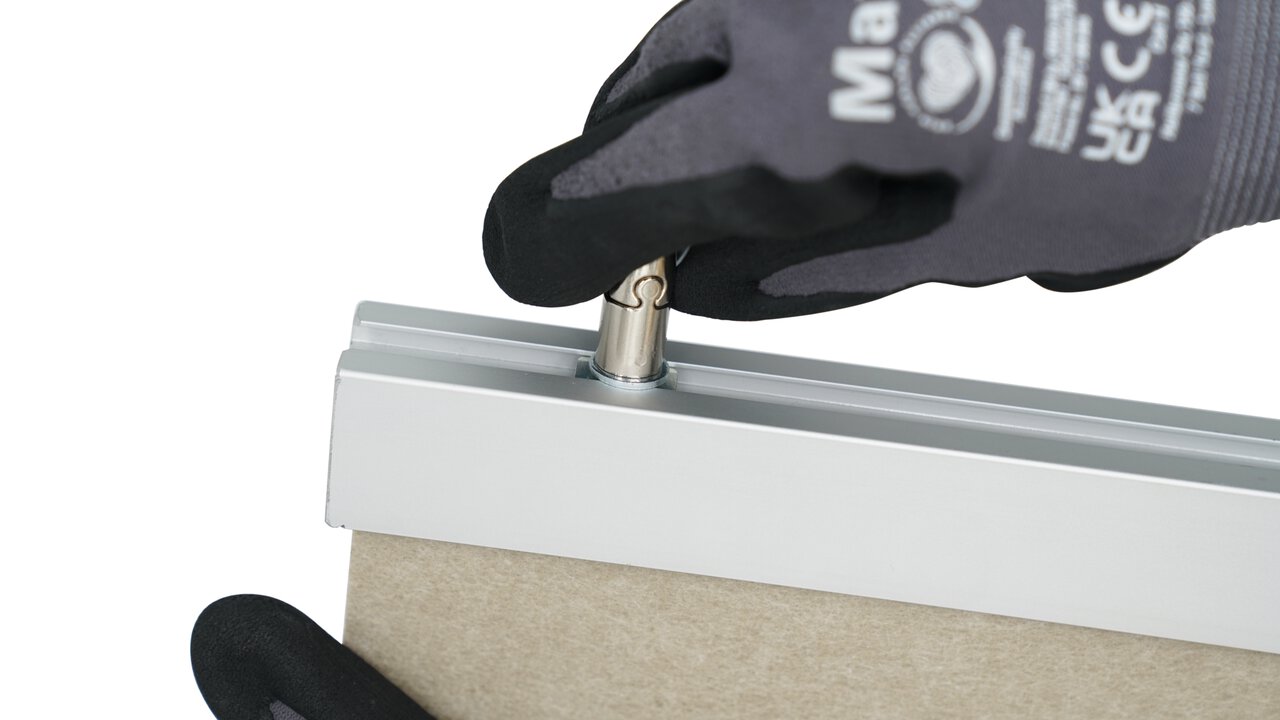

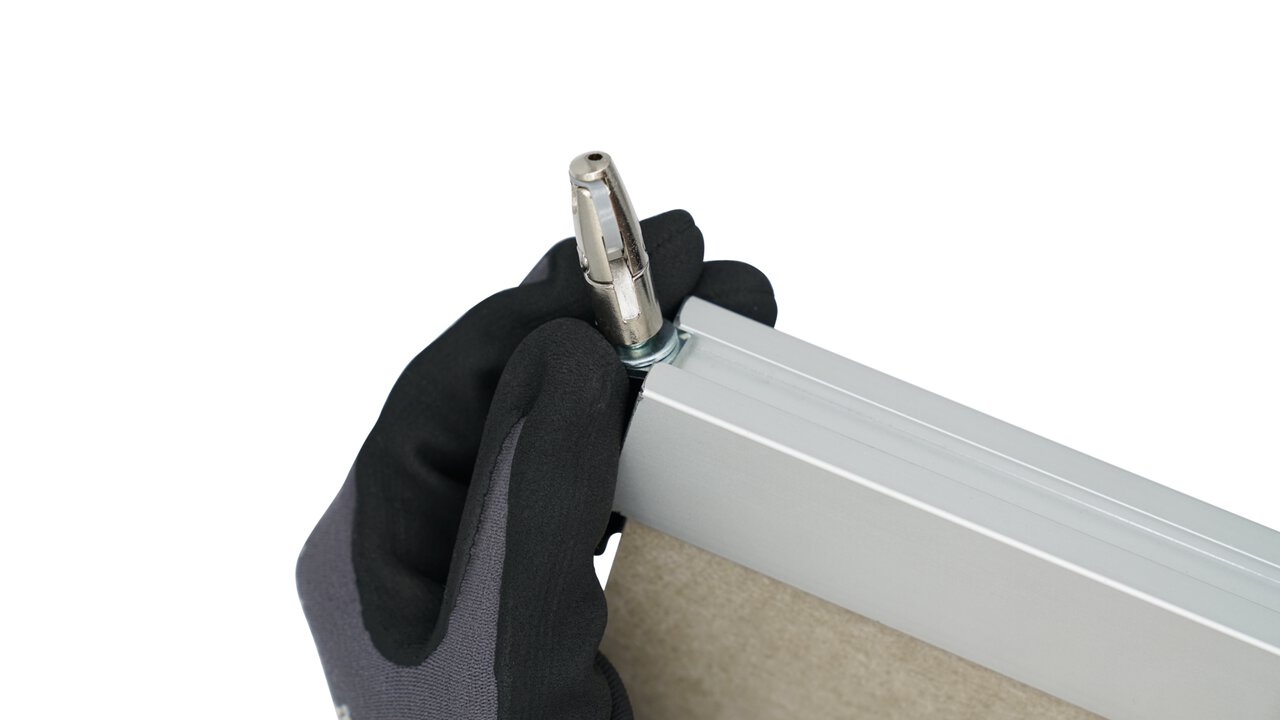

Step 1: Slot T19 into the track
Step 2: Twist the hanger to lock it into place

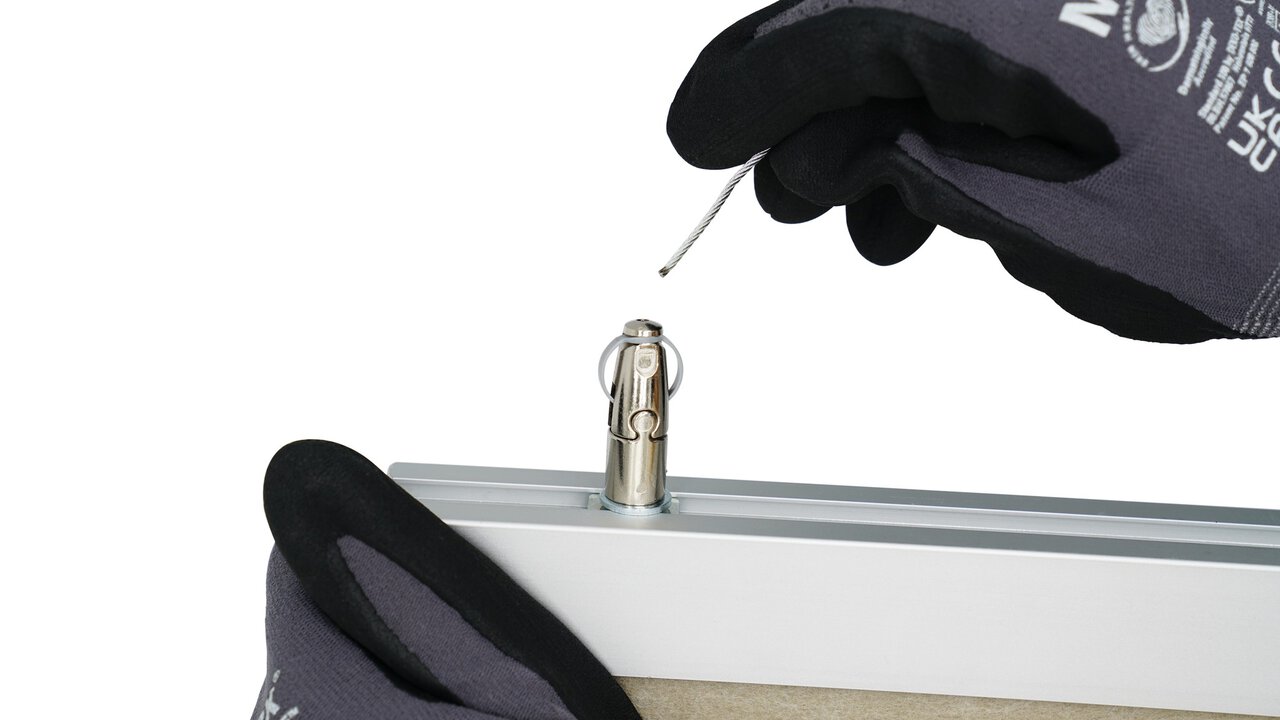

Step 4: Insert the wire into the top hole of the Angel T19
Step 4: Squeeze angel wings to adjust hanger height and level the track
Step 5: Repeat as necessary on multiple track sections

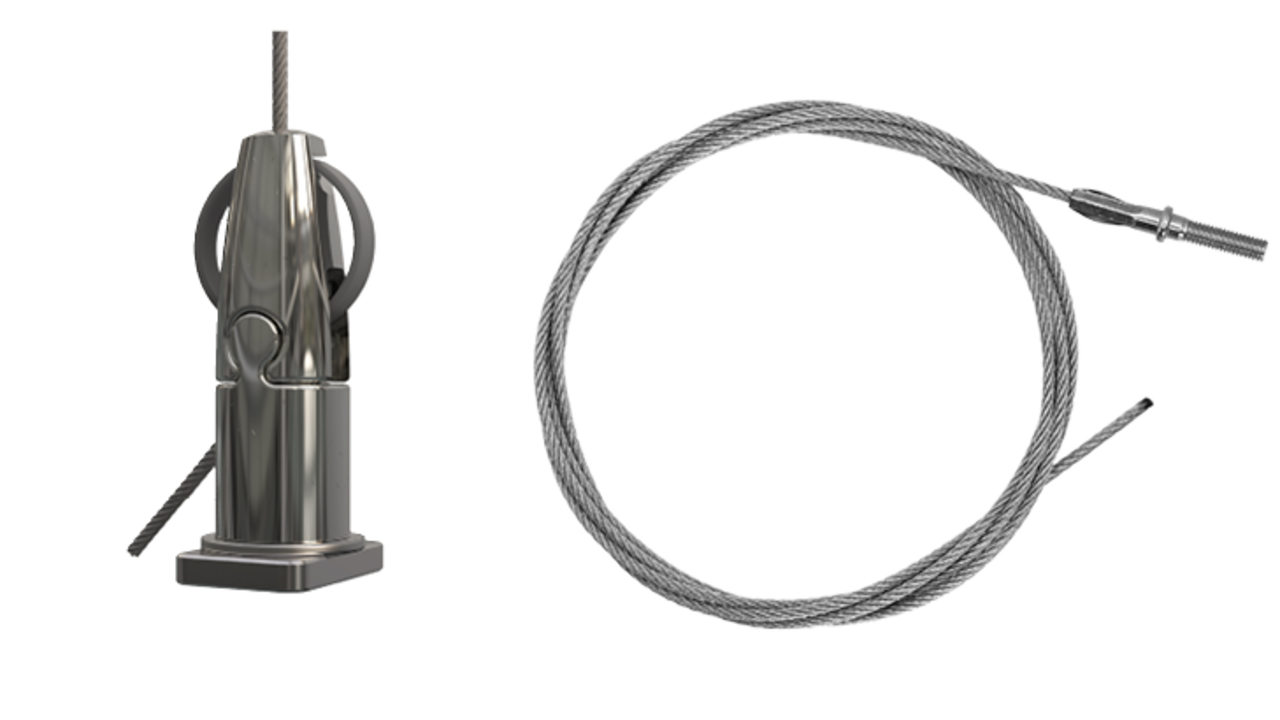

Ready To Install
Suspension Kit

We supply Angel T19 hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Max Safe Working Load: 45 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ring Anchor

Set directly into cracked or non-cracked concrete with a hammer. Ideal for the fast suspension of services including electrical, HVAC and pipework.

Max Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2 : 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Shotfire

A shot-fired hanger solution with pre-mounted nail end fixing, for securing installation into concrete or composite metal decking.

Safe Working Load: 15 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or luminaires.

Safe Working Load: Refer to hanger load ratings and safe working loads
Available Sizes:
No.1: 1.5 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 2

Mini Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load : 15 kg
Available Sizes:
No. 1: 1.5 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load: 90 kg
Available Sizes:
No. 1: 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 4 Snap Hook - 4

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Wire Length

From 1 – 10 m

(Other lengths available on request)

All our ready‑to‑install suspension kits include pre‑cut, looped, and fused wire in your chosen length. Standard options are available from 1 – 10 m.

3

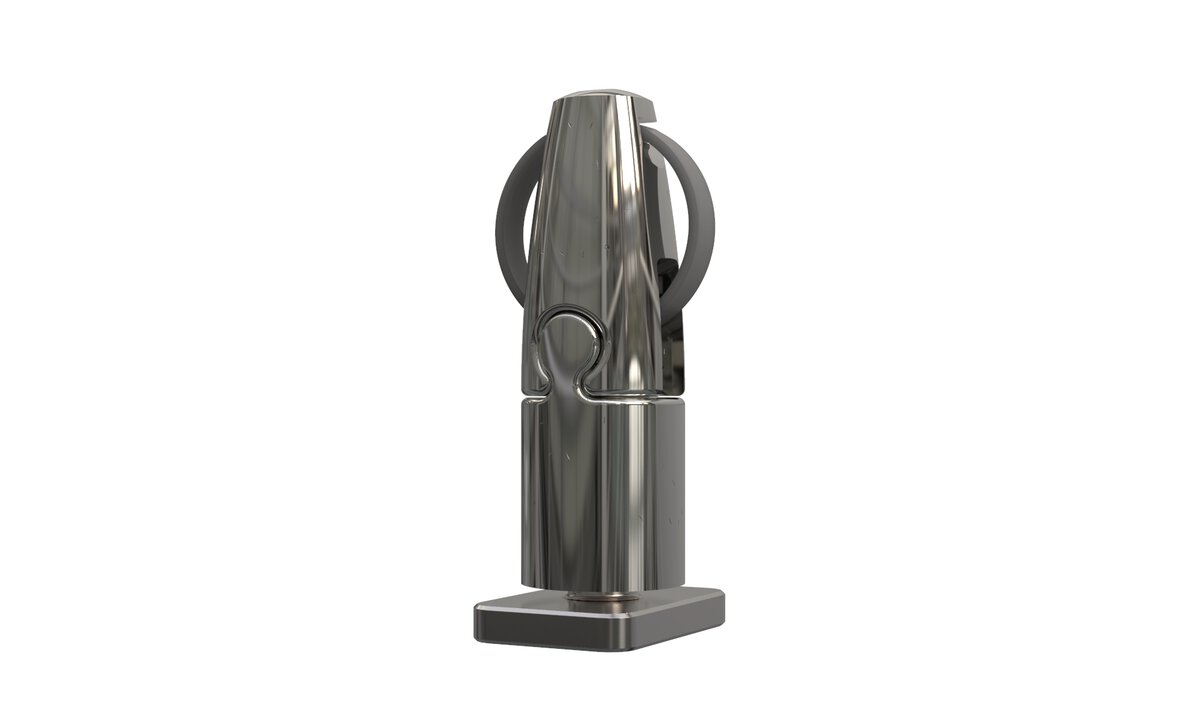

Angel T19

Designed for precision and style, our Angel Hanger suspension kits offer a discreet, tool-free solution for single-point wire suspension across a wide range of applications. Angel T19 is designed specifically for smaller track profiles of up to 19 mm internal width using the threaded fixing point which can be inserted and tightened to secure by hand.

  • Max Working Load: 15 kg / 33 lb
  • Wire: 1.5 mm stainless steel, fused end
  • Safety Factor: 5:1

Cutlery

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1
Cutlery

Angel™ Hanger – T19

SKU # AL1-ST19

The Angel T19 hanger is designed specifically for smaller track profiles of up to 19 mm internal width using the threaded fixing point which can be inserted and tightened to secure by hand.

Key Specifications

Max Working Load: 15 kg
Wire: 1.5 mm stainless steel, fused end
Safety Factor: 5:1

Available Sizes

No. 1: 15 kg
Find a SupplierView Product Page

Product Downloads

Angel T19 – Technical Data Pack – ENGAngel T19 – Lloyds Certificate

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

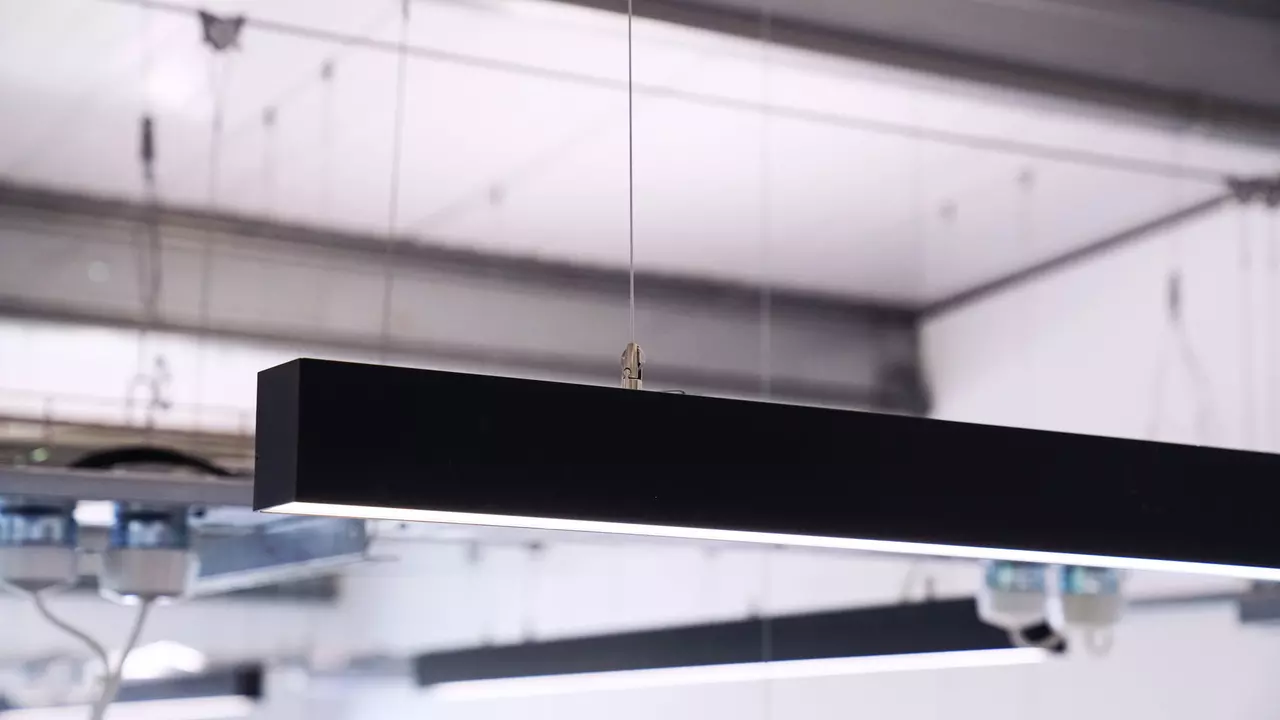

Common Applications

Architectural Lighting

Commercial Lighting

Industrial Lighting

Architectural Lighting

Commercial Lighting

Industrial Lighting

Trusted by the Experts

“Having used Gripple solutions in the past, I felt that this was the ideal solution to provide a strong, discreet fixing that gave the illusion of the light fitting being suspended in thin air. We also found the project assistance from Gripple was superb.”
Building Services Manager | GC Project Manager
Discover the full case study
JTP’s imaginative transformation of the 200-year-old Pennington Street Warehouse has created a healthy and sustainable studio, and collaborative workplace. To reduce installation times, the lighting was suspended using Angel Hangers. The neat design complemented the open-plan office and showcasing an aesthetically pleasing finish.
