Spider Cable Push-In Toggles Cable Concrete Insert Attachment

SKU # SXT2G, SXT3G, SXT4G, SXT5G

Designed for fast, secure below-deck installation. The Push-In Toggle connects directly to our Spider concrete inserts using our patented push-in toggle technology. Its universal design accepts multiple cable sizes and is compatible with both metal and wood form inserts, delivering flexible, reliable performance across applications.

Safe Working Load

Safe Working Load:

up to 1700 lbs | 770 kg

Available Sizes

Available Sizes:

Rod sizes 3/8-3/4, and No.2-No.5 Toggle Kits

Forms

Forms:

Metal

Enquire Now

Designed for Fast Below Deck Installation



Designed for fast below-deck installation, it connects directly to our Spider concrete inserts using push-in toggle technology for quick and secure fixing.

Its universal design accepts multiple cable sizes, allowing cable selection to be finalized after the concrete is poured. Compatible with both Spider metal and wood form concrete inserts, it offers excellent adaptability across applications.

Once installed, the push-in toggle mechanism locks securely in place, preventing accidental removal or displacement. Do not load the Spider insert until the concrete has been poured and fully cured to the recommended compressive strength.

Each kit includes a Spider Cable Push-In Toggle, a Gripple hanger (such as UniGrip, Express, or HangFast), and a pre-cut cable length (available in 5 ft, 10 ft, 15 ft, 20 ft, or 30 ft options).

Read More

How it Works:

Installation of the Spider Cable Push-In Toggle with our Spider Cast-In-Place Metal Deck Concrete Insert is shown below. Download the technical data pack for complete installation instructions and full product capabilities.

View All Downloads

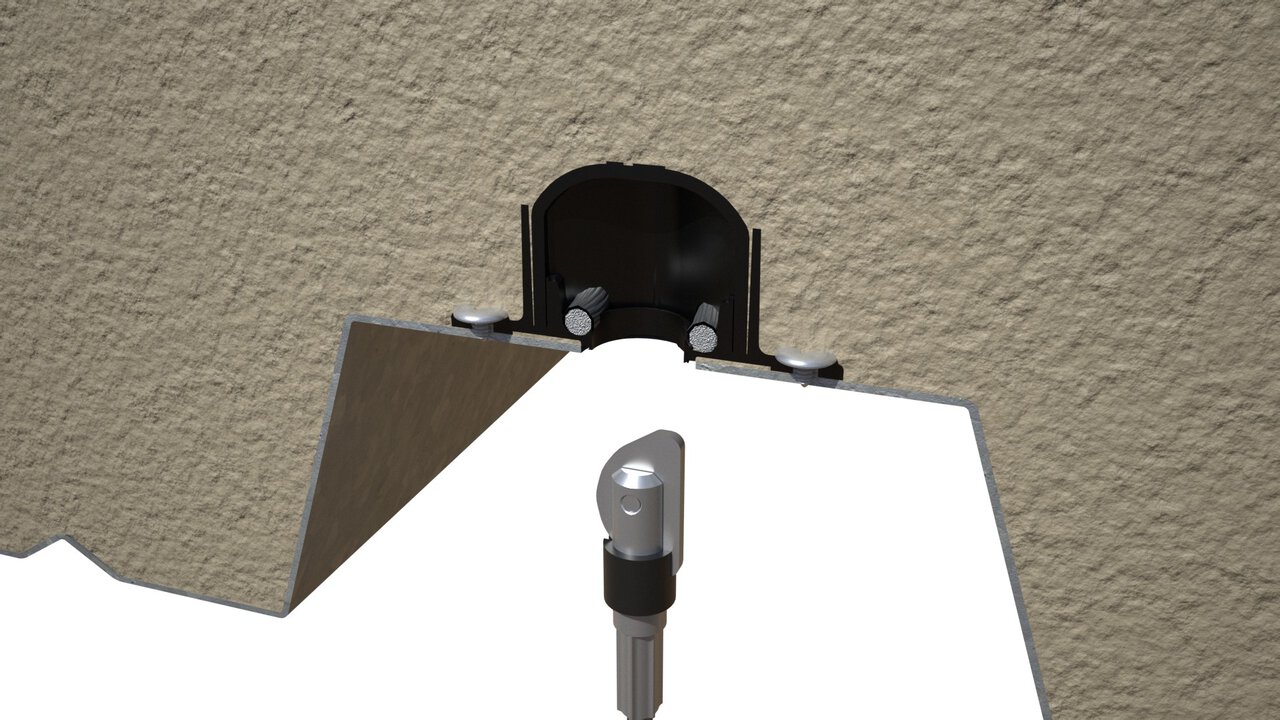

Step 1. Insert Spider Cable Push-In Toggle into the base of the Spider Insert.

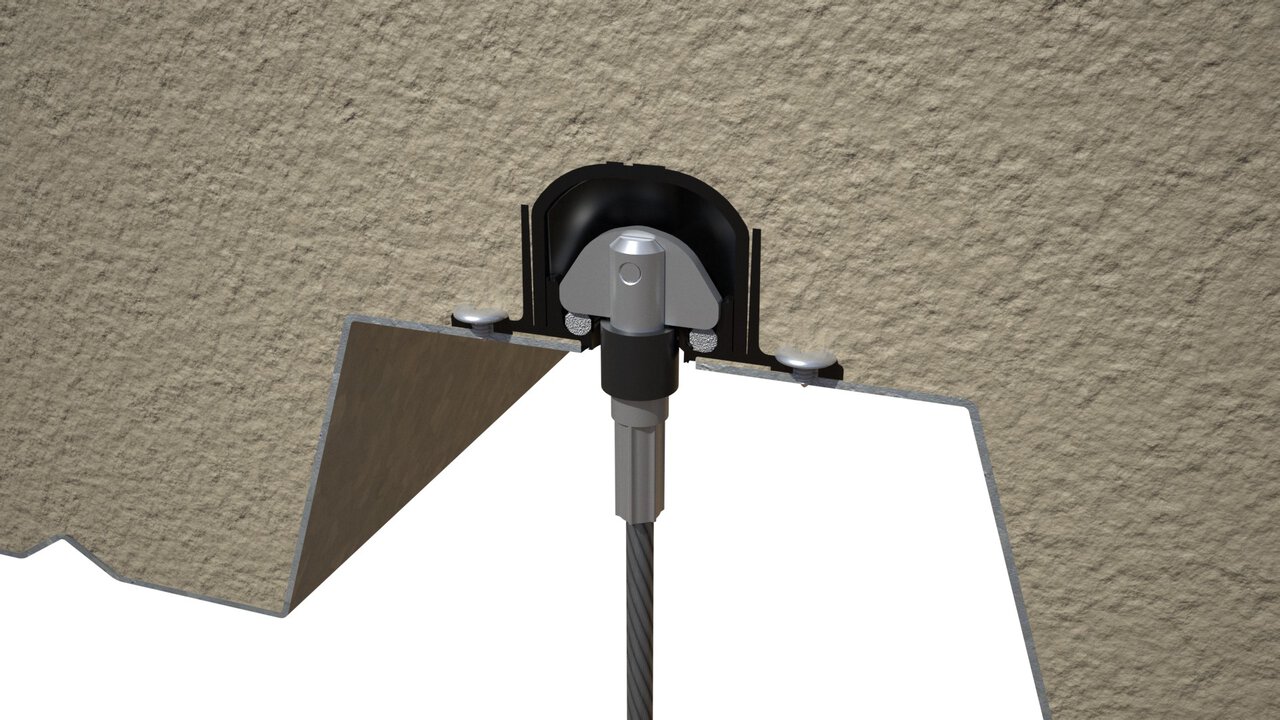

Step 2. Set Spider Cable Push-In Toggle, once inserted completely, always apply downward force to ensure toggle is set.

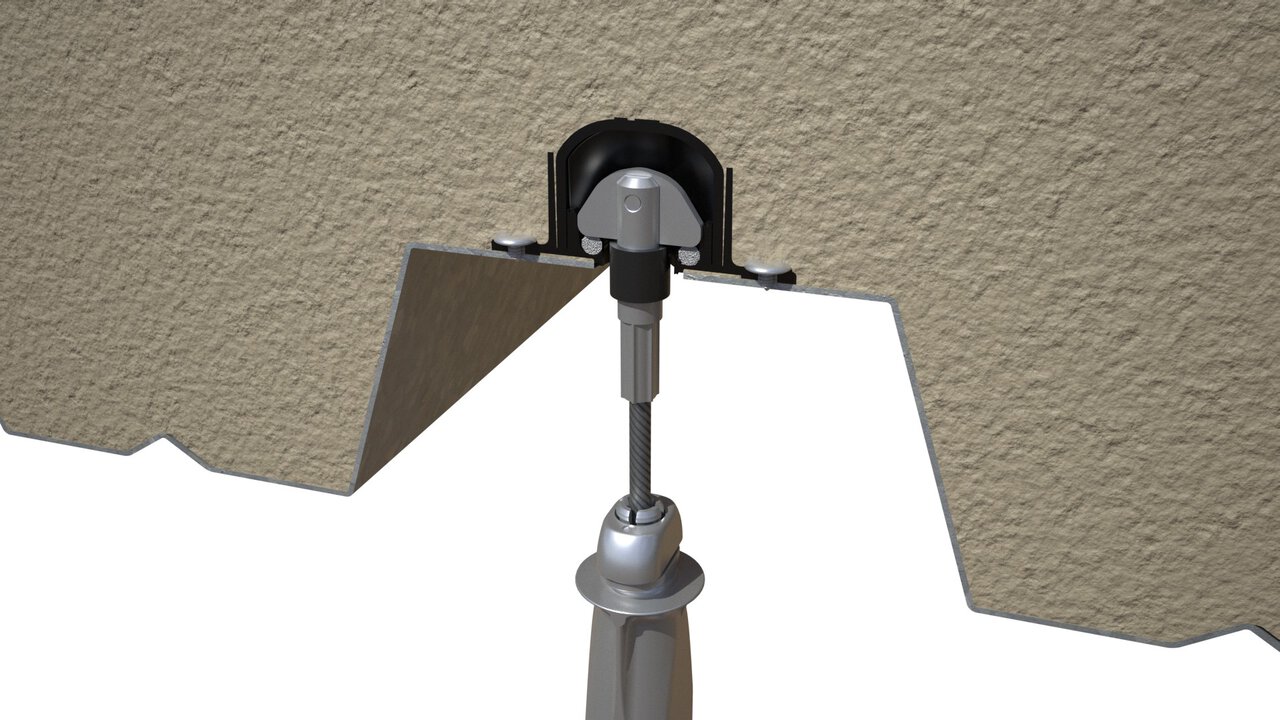

Step 3. Install chosen hanger for suspending service (example shown using Gripple UniGrip hanger).

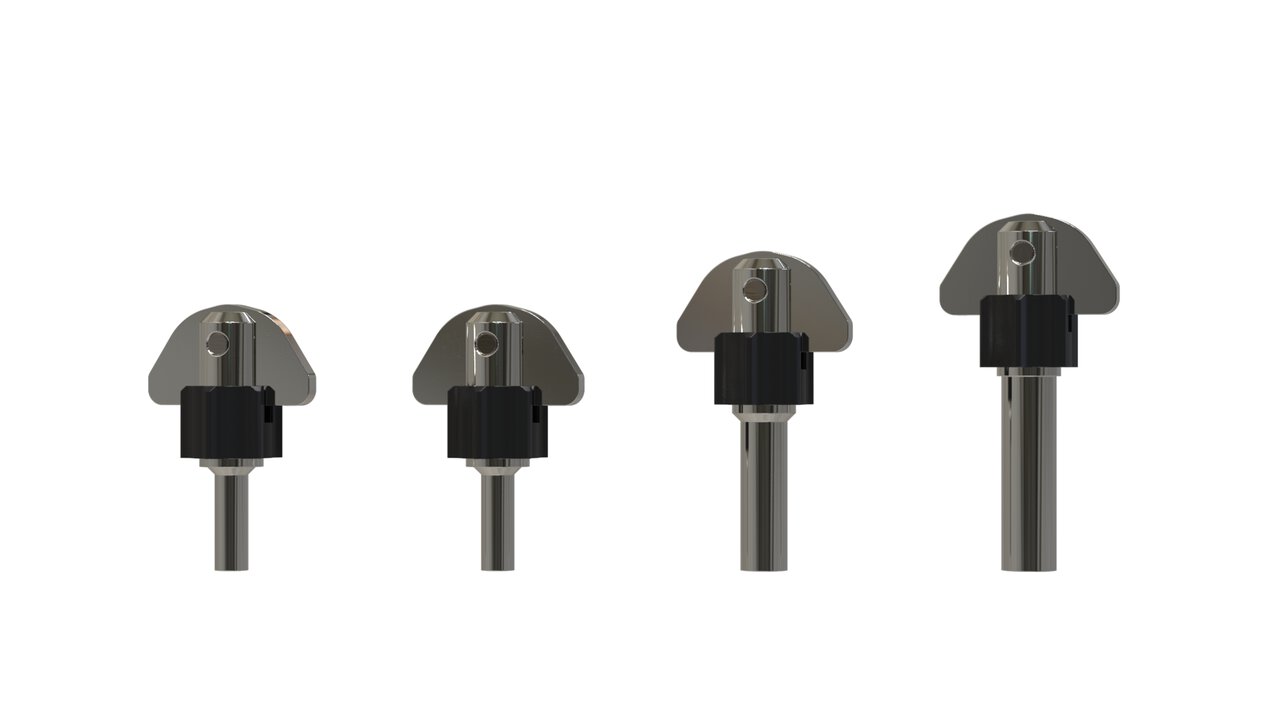

Spider Cable Push-In Toggle Variants

Our Spider Cable Push-In Toggles are available in 4 variants, see load ratings here, or download the technical data packs for full product specifications.

Spider Variant Safe Working Load
Spider Cable Push-In Toggle No. 2 up to 120 lbs | 54 kg
Spider Cable Push-In Toggle No. 3 up to 240 lbs | 108 kg
Spider Cable Push-In Toggle No. 4 up to 550 lbs | 249 kg
Spider Cable Push-In Toggle No. 5/ No. 6 up to 800 lbs | 362 kg

Related Products

Spider Metal Deck Anchor

Cast in Place Concrete Insert

Safe Working Load: up to 1700 lbs | 770 kg
Available Sizes: Rod sizes 3/8-3/4, and No.2-No.5 Toggle Kits
Forms: Metal

Spider Wood Form Anchor

Cast in Place Wood Form Concrete Insert

Safe Working Load: up to 3000 lbs | 1360 kg
Available Sizes: Rod sizes 3/8-3/4, and No.2-No.5 Toggle Kits
Forms: Wood

Spider Rod Push-In Toggles

Safe Working Load:: up to 1700 lbs | 770 kg
Available Sizes: Rod sizes 3/8″ – 3/4″
Forms: Metal & Wood Form

Spider Seismic Bracing Push-In Toggle Adapter

Seismic Bracing Structural Attachment

Safe Working Load:: up to 1155 lbs | 523 kg
Forms: Metal & Wood Inserts
Compatibility: TecLoc Cable Bracing Kits GS10, GS12, GS19 & GS25

Spider Seismic Push-In Toggle Adapter

Seismic Vertical Rod Suspension Attachment

Safe Working Load: up to 1700 lbs | 770 kg
Available Sizes: Rod sizes 3/8-3/4
Forms: Metal & Wood Inserts
