Angel™ Hanger – T13 Suspension System for Track Lighting

SKU # AL1-T13

Designed for precision and style, our Angel Track Range offers a discreet, tool-free solution for single-point wire suspension across a wide range of applications.

Max Working Load

Max Working Load:

33 lb

Cable Size

Cable Size:

1/16" (1.5 mm) galvanized high tensile steel cable

Safety Factor

Safety Factor:

5:1

Inquire Now

Product Downloads

Angel T13 - Technical Data Pack - USA
View all downloads
Angel™ Hanger – T13 Suspension System for Track Lighting
SKU # AL1-T13
1
1
1

Angel™ T13 – Seamless Track Suspension, Designed for Precision

Angel T13 offers a versatile and reliable solution for suspending track with ease and precision.

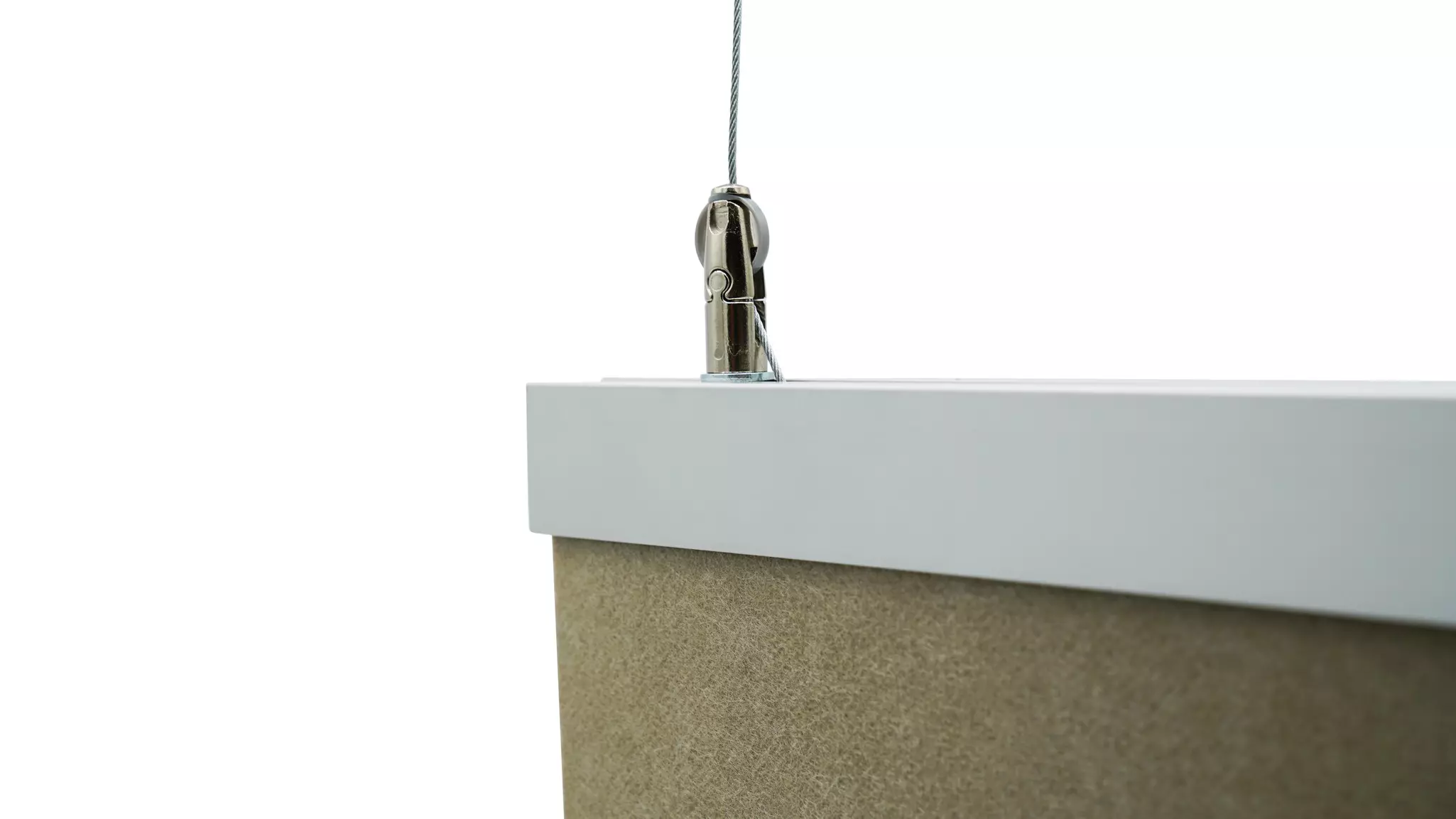

Designed for quick installation and aesthetic appeal, Angel T13 accommodates smaller track profiles of up to 1/2″ (13 mm) internal width for the suspension of acoustic, display, signage and lighting solutions.

Easily Adjustable

Easily Adjustable

Ergonomic wings allow effortless, one-handed height adjustment.

Ready-to-Use

Ready-to-Use

Supplied as a complete hanger kit with cable, pre-fixed structural attachment, and Angel fastener.

Aesthetic

Aesthetic

A sleek design that complements and enhances any suspension system.

Versatile

Versatile

Compatible with a wide range of tracks, available with two thread lengths and washer options to suit different requirements.

Quick & Hassle-Free

Quick & Hassle-Free

Threaded foot attachment enables the Angel body to be secured by hand, with no additional tools required.

High Quality US and UK Manufacturing

High Quality US and UK Manufacturing

Designed, engineered and manufactured in the US and the UK to the highest standards, delivering reliable performance every time.

Easily Adjustable

Easily Adjustable

Ergonomic wings allow effortless, one-handed height adjustment.

Ready-to-Use

Ready-to-Use

Supplied as a complete hanger kit with cable, pre-fixed structural attachment, and Angel fastener.

Aesthetic

Aesthetic

A sleek design that complements and enhances any suspension system.

Versatile

Versatile

Compatible with a wide range of tracks, available with two thread lengths and washer options to suit different requirements.

Quick & Hassle-Free

Quick & Hassle-Free

Threaded foot attachment enables the Angel body to be secured by hand, with no additional tools required.

High Quality US and UK Manufacturing

High Quality US and UK Manufacturing

Designed, engineered and manufactured in the US and the UK to the highest standards, delivering reliable performance every time.

How it Works:

Our Angel T13 Hanger is easy to install, simply follow the steps below. For more detail, refer to the Technical Data Pack.

 Angel T13 – Technical Data Pack – USA

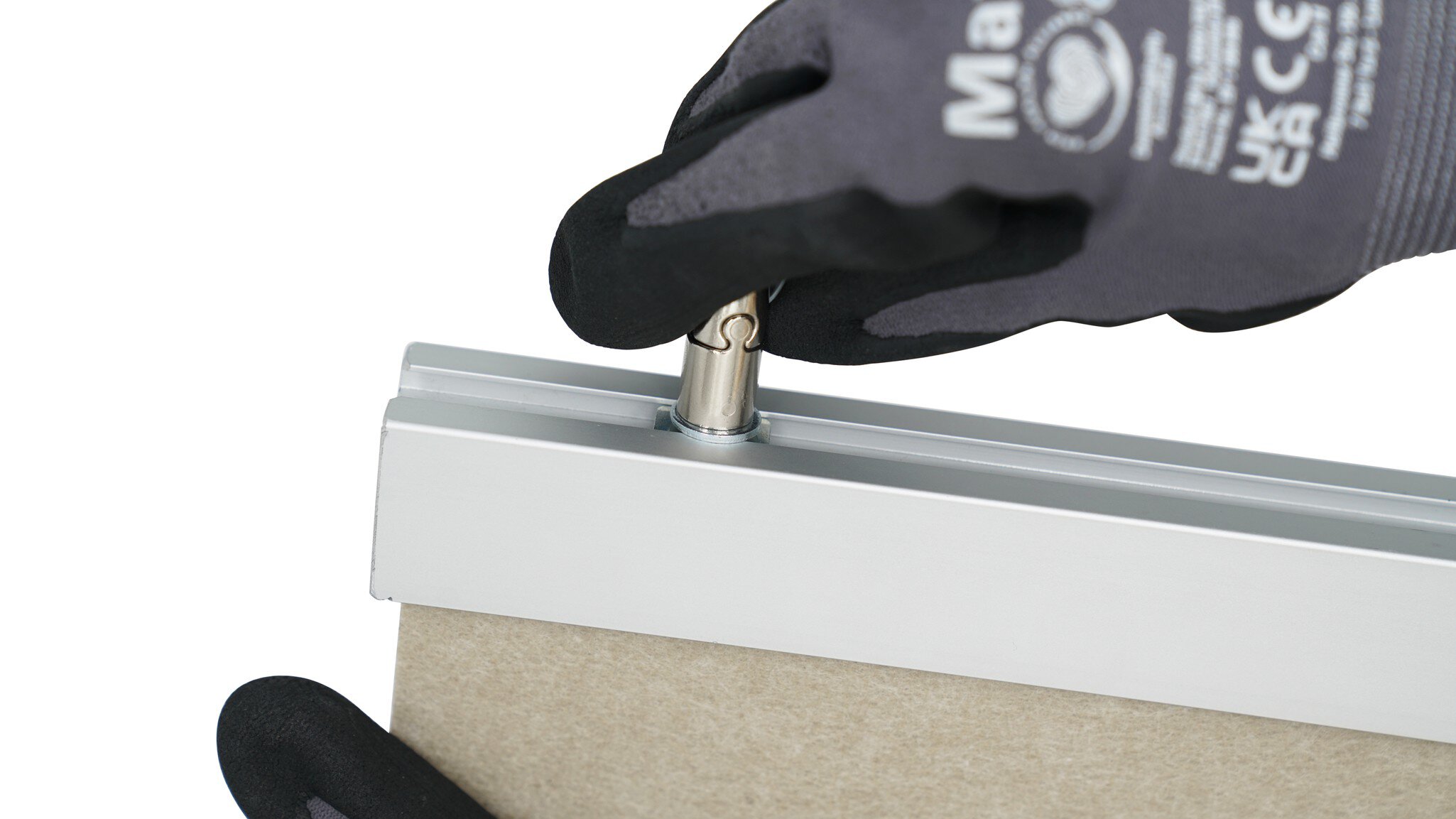

Step 1: Slot T13 into the track
Step 2: Twist the hanger to lock it into place

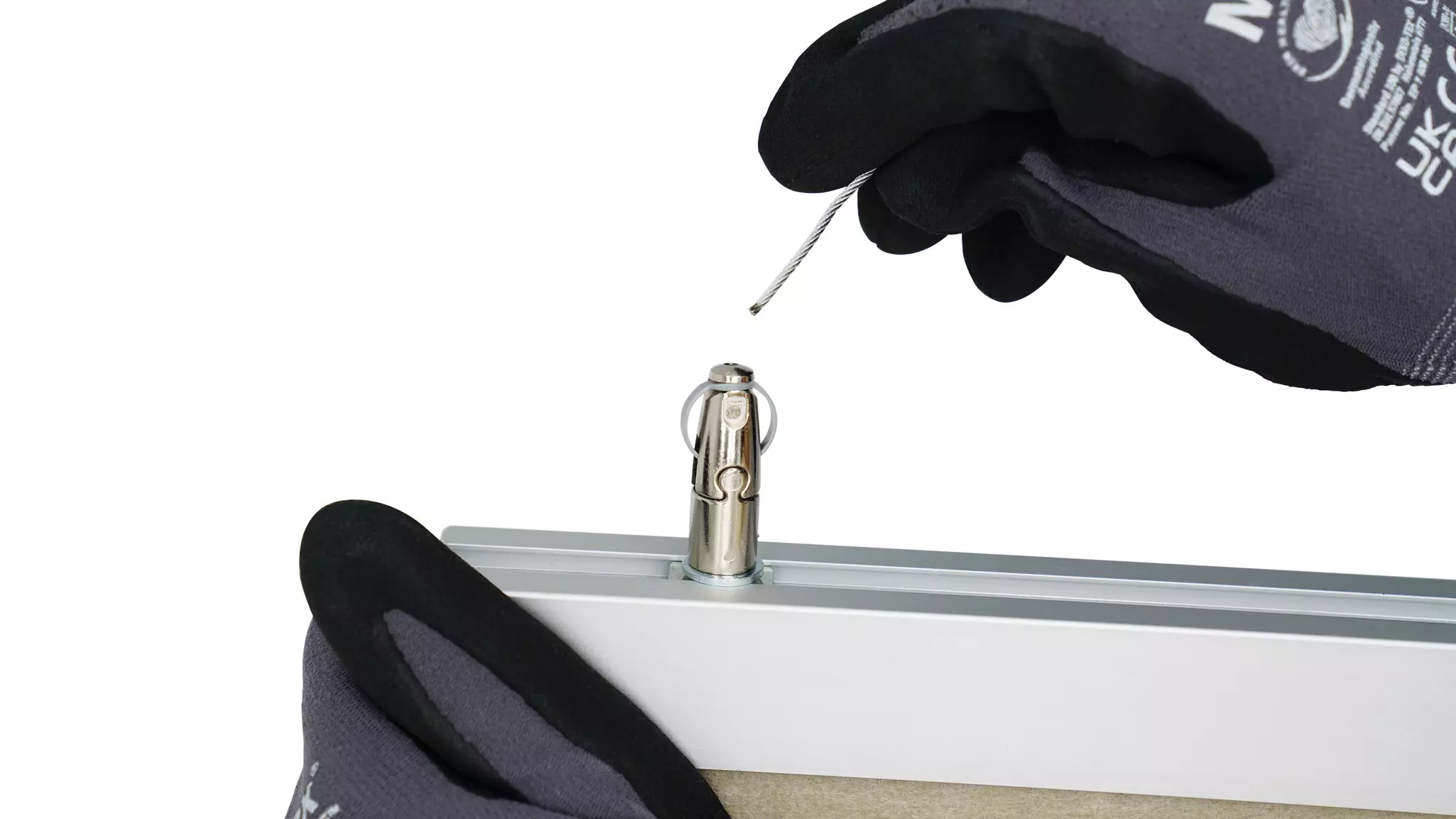

Step 3: Feed the cable into the top of the hanger
Step 4: Squeeze angel wings to adjust hanger height and level the track
Step 5: Repeat as necessary on multiple track sections

Ready To Install

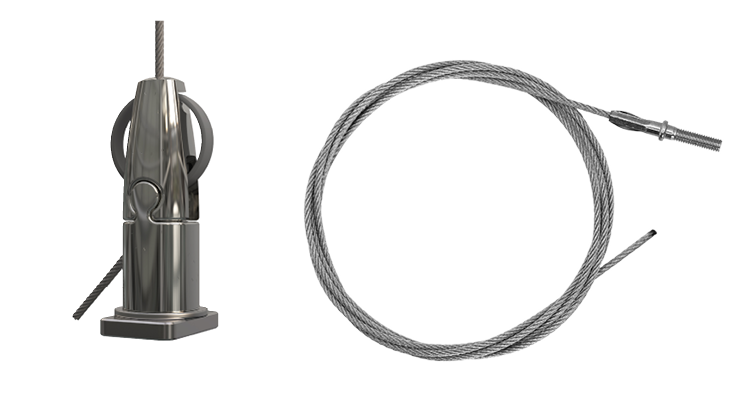

Suspension Kit

We supply Angel T13 hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or lighting.

Available Sizes:
No.1: 1/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

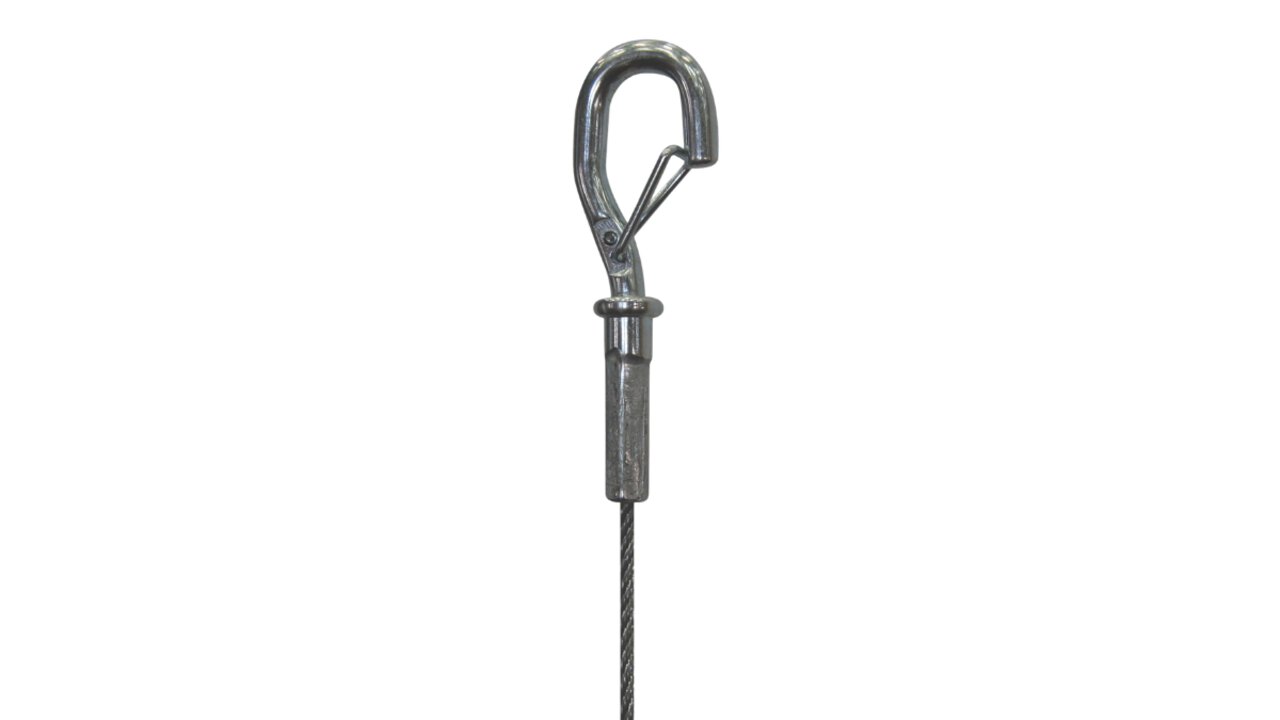

Snap Hook - 2

Mini Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 15 kg
Available Sizes:
No. 1: 1/16″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

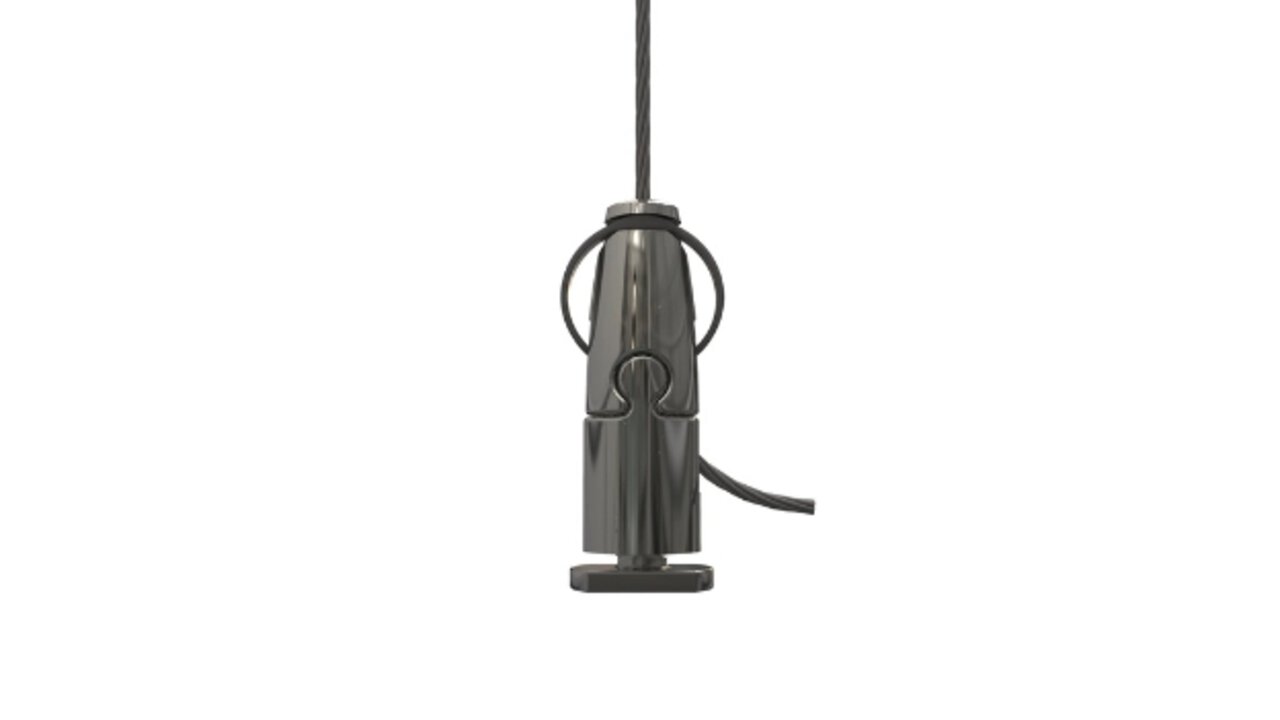

Angel T13

Angel T13 is a ready-to-use suspension solution designed for lighting and acoustic installations where clean aesthetics and performance matter. It offers fast, tool-free adjustment, a discreet finish, and reliable load capacity; making it ideal for commercial spaces where precision and efficiency are key.

• Max Working Load: 33 lb
• Cable: 1/16″ (1.5 mm) galvanized high tensile steel cable
• Safety Factor: 5:1
