Angel™ Hanger – Signage Rail (Side Exit) Suspension System for Signage

SKU # AL1-SR

Designed for precision and style, our Angel Hanger range offers a discreet, tool-free solution for single-point cable suspension across a wide range of applications. Angel Signage Rail is fixed in place using either two screw holes for direct fixing or via insertion into suspension rail.

Max Working Load

Max Working Load:

33 lbs

Cable

Cable :

1/16" galvanized high tensile steel cable

Safety Factor

Safety Factor:

5:1

Inquire Now

Product Downloads

Angel Signage - Technical Data Pack - USA
View all downloads
Angel™ Hanger – Signage Rail (Side Exit) Suspension System for Signage
SKU # AL1-SR
1

Angel™ Signage Rail – Designed for Clean, Accurate Signage Installation



The Angel™ Signage Rail is a clean, efficient solution for suspending signage from ceilings or overhead structures. Designed for quick installation and a minimal look, it offers side-exit cable routing for discreet display in a variety of commercial spaces.

Side Exit Wire Routing

Side Exit Wire Routing

Allows cable to exit neatly from the side of the rail, creating a clean and unobtrusive signage installation that reduces clutter.

Tool-Free Installation

Tool-Free Installation

The quick-connect system requires no tools, speeding up installation and cutting down labor costs for faster project completion.

Strong Load Capacity

Strong Load Capacity

Engineered to securely support heavy signage loads, ensuring safety and reliability in commercial environments.

Compatible with Full Range

Compatible with Full Range

Seamlessly integrates with other Angel™ suspension products, providing flexibility for complex setups and varied signage applications.

Discreet, Low-Profile Design

Discreet, Low-Profile Design

Slim rail profile maintains a minimal appearance, keeping the focus on the signage and blending smoothly into any environment.

Durable Construction

Durable Construction

Made from high-quality materials for long-lasting performance, reducing maintenance and ensuring longevity in demanding settings.

Side Exit Wire Routing

Side Exit Wire Routing

Allows cable to exit neatly from the side of the rail, creating a clean and unobtrusive signage installation that reduces clutter.

Tool-Free Installation

Tool-Free Installation

The quick-connect system requires no tools, speeding up installation and cutting down labor costs for faster project completion.

Strong Load Capacity

Strong Load Capacity

Engineered to securely support heavy signage loads, ensuring safety and reliability in commercial environments.

Compatible with Full Range

Compatible with Full Range

Seamlessly integrates with other Angel™ suspension products, providing flexibility for complex setups and varied signage applications.

Discreet, Low-Profile Design

Discreet, Low-Profile Design

Slim rail profile maintains a minimal appearance, keeping the focus on the signage and blending smoothly into any environment.

Durable Construction

Durable Construction

Made from high-quality materials for long-lasting performance, reducing maintenance and ensuring longevity in demanding settings.

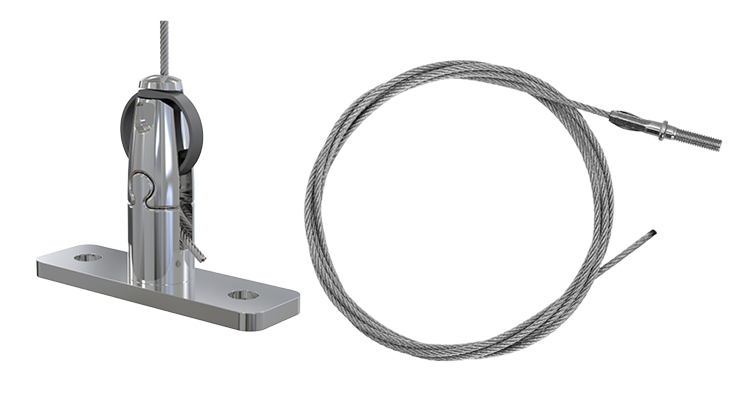

Ready To Install
Suspension Kit

We supply Angel Signage Rail hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Cable
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Ideal for looping around purlins, beams, roof trusses and other suitable building features

Available Sizes:
No. 1 : 1/16″
No. 2: 5/64″
No. 3: 1/8″
No. 4: 3/16″
No. 5: 1/4″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Stud

For anchoring into concrete ceilings, metal decking and pressed metal.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/18″ (Cable Diameter)
No.4: 3/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Toggle

For fastening through profile roof cladding, light fixtures and other cavities

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)
No.3: 1/8″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Concrete Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Shotfire

A shot-fired hanger solution with pre-mounted nail structural attachment, for securing installation into concrete or composite metal decking.

Available Sizes:
No.1: 1/16″ (Cable Diameter)
No.2: 5/64″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Twist Clip

Ideal for hanging from suspended ceiling T-Bar, signage, acoustic baffles or lighting.

Available Sizes:
No.1: 1/16″ (Cable Diameter)

*System working load based on product and substrate fixing combined

View Attachment to Structure

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Available Sizes:
No.1: 1/16″
No.2: 5/64″

*System working load based on product and substrate fixing combined

View Attachment to Structure

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Available Sizes:
No.1: 1/16″
No.2: 5/64″
No.3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 2

Mini Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 15 kg
Available Sizes:
No. 1: 1/16″

*System working load based on product and substrate fixing combined

View Attachment to Structure
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fixtures.

: 90 kg
Available Sizes:
No. 1: 1/16″
No. 2: 5/64″
No. 3: 1/8″

*System working load based on product and substrate fixing combined

View Attachment to Structure

2 Cable Length

From 5ft – 30ft

(Other lengths available on request)

All our ready-to-install suspension kits include pre-cut, looped, and fused cable in your chosen length. Standard options are available from 5ft – 30ft

3

Angel Signage Rail

Angel Signage Rail is fixed in place using either two screw holes for direct fixing or via insertion into suspension rail. It has a side cable exit to provide access to adjust the suspension once installed. It is intended to be used for the fast and secure suspension of signage materials such as wood, fibre board, plastic and metal.

  • Max Working Load: 33 lbs
  • Wire: 1/16″ galvanized high tensile steel cable
  • Safety Factor: 5:1
