DPAK Bracing Kit Dynamic Post Bracing Kit

SKU # DPAK4, DPAK5, DPAK6, DPAK8

Our Gripple DPAK is the ultimate solution for fast, reliable, and professional-grade wire bracing across a wide range of structural and agricultural applications.

Max Load Rating

Max Load Rating:

6,170 lbs

Wire Range

Wire Range:

5/32” - 5/16”

Kit Contents

Kit Contents:

Dynamic Joiner, Fused Wire Rope, Release Key

Inquire Now

Product Downloads

DPAK - Technical Data Pack - USA Fruit Growing Application - Brochure - USA

SKU # DPAK4, DPAK5, DPAK6, DPAK8

Untitled design - 1

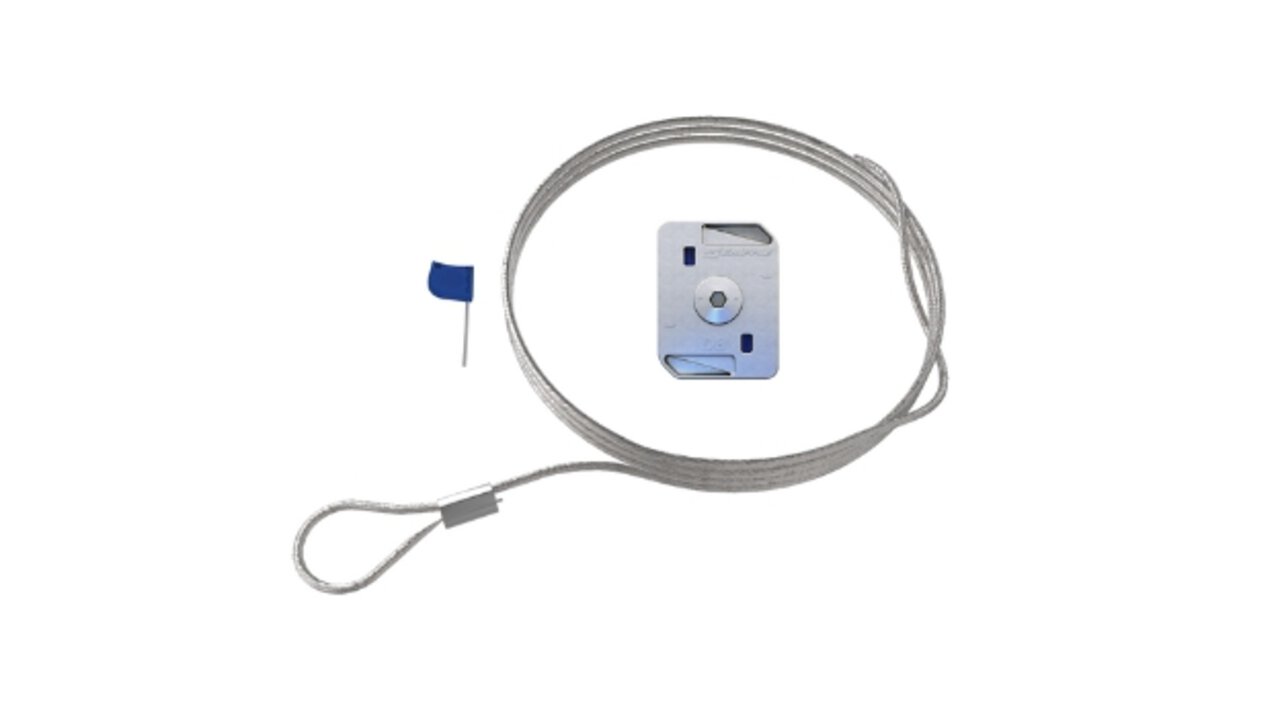

A ready-to-use Bracing Kit comprising a pre-cut fused length of wire rope and a dynamic wire joiner.

Our Gripple DPAK is a pre-cut, high-performance wire bracing kit designed to brace one point against another with ease and strength.

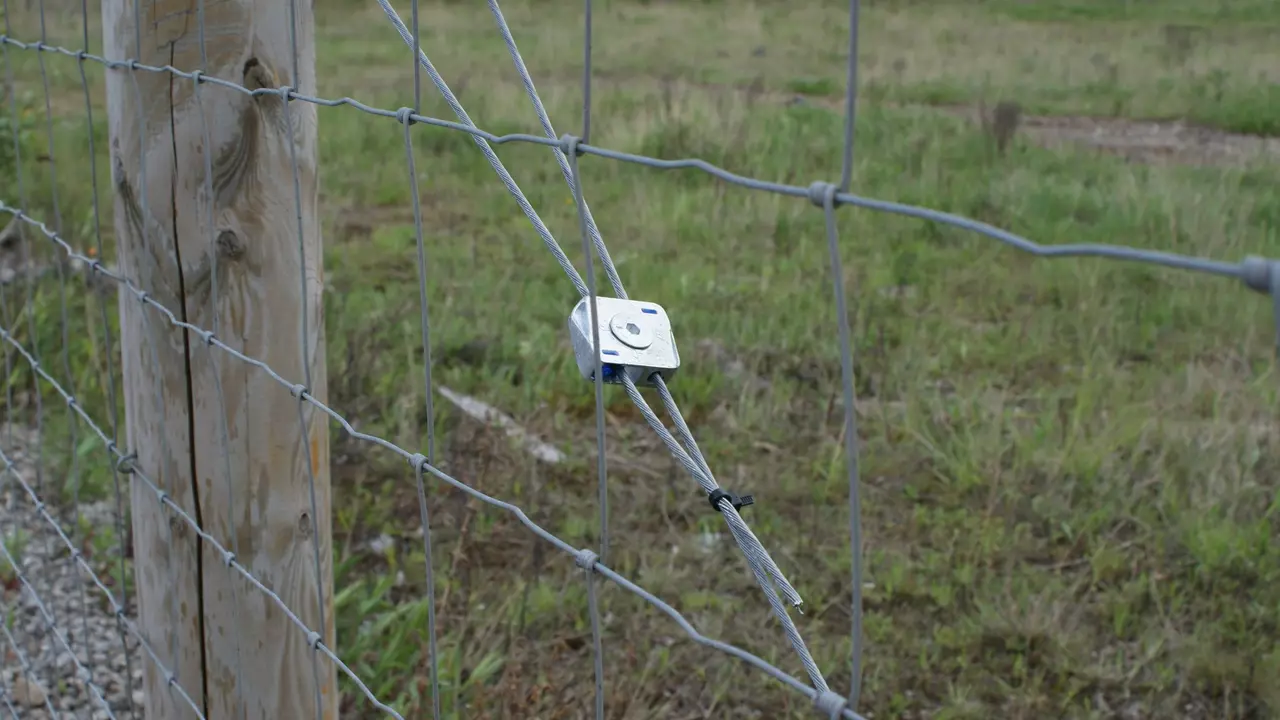

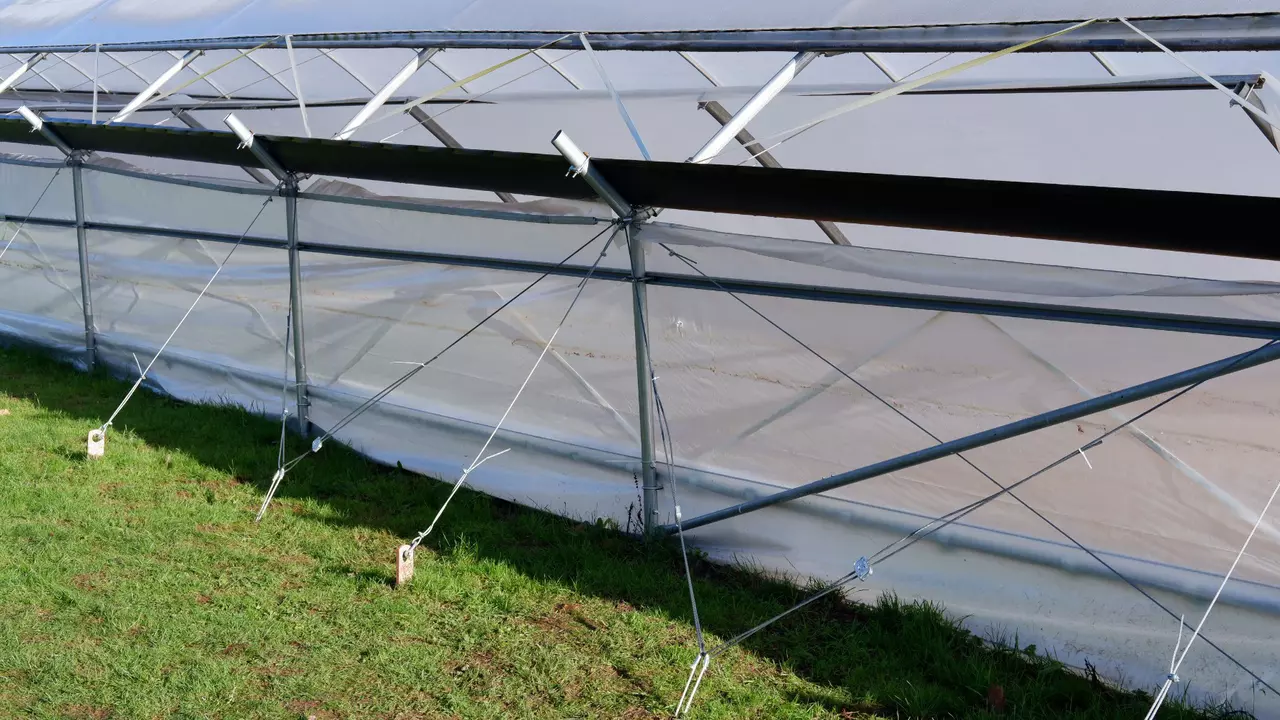

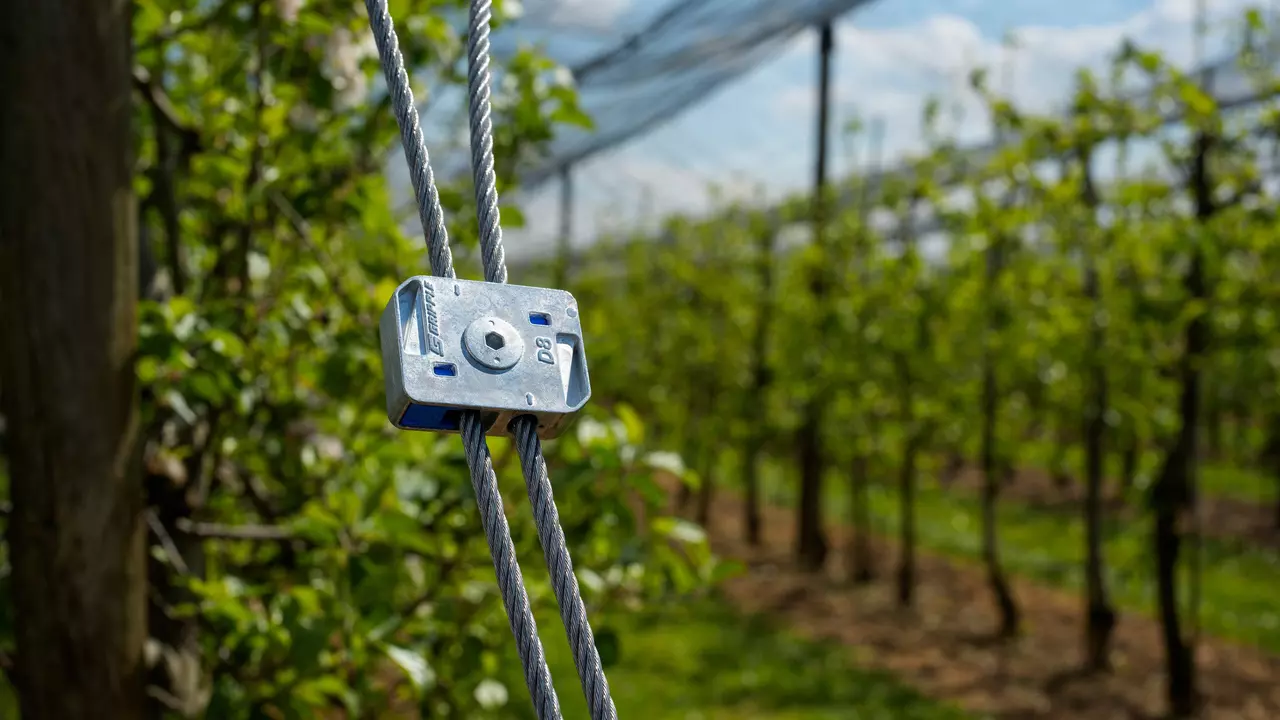

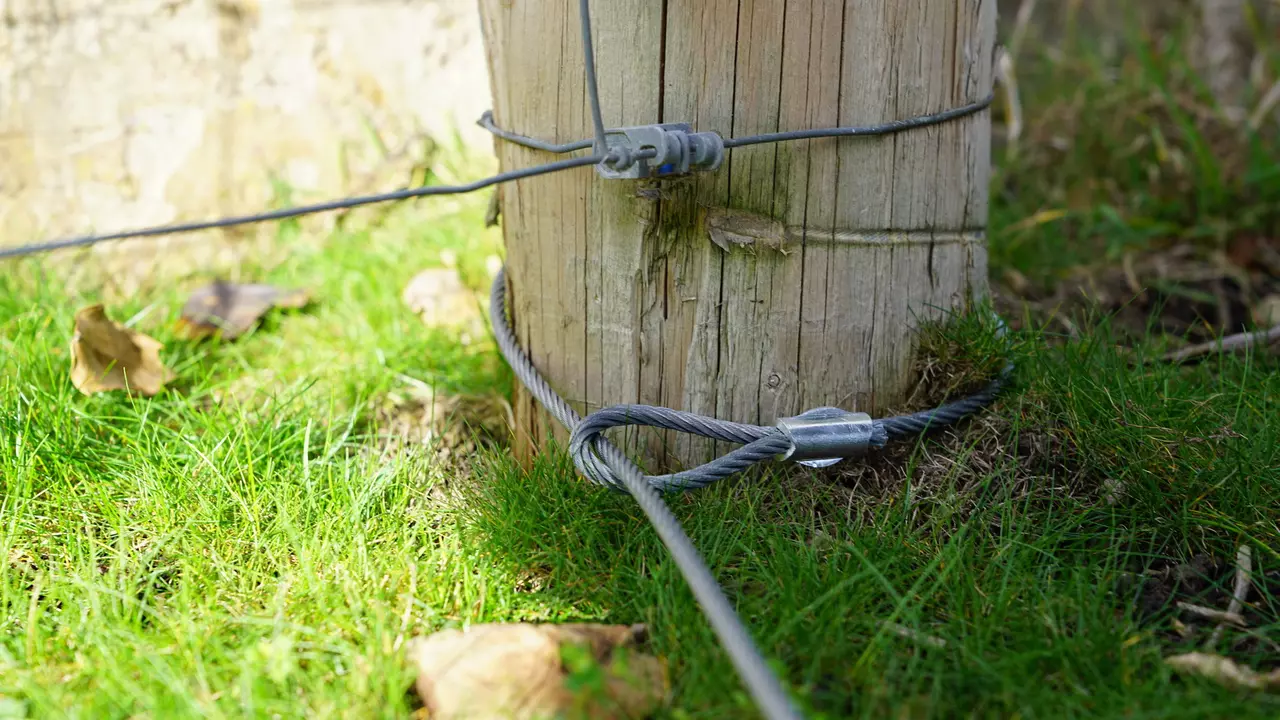

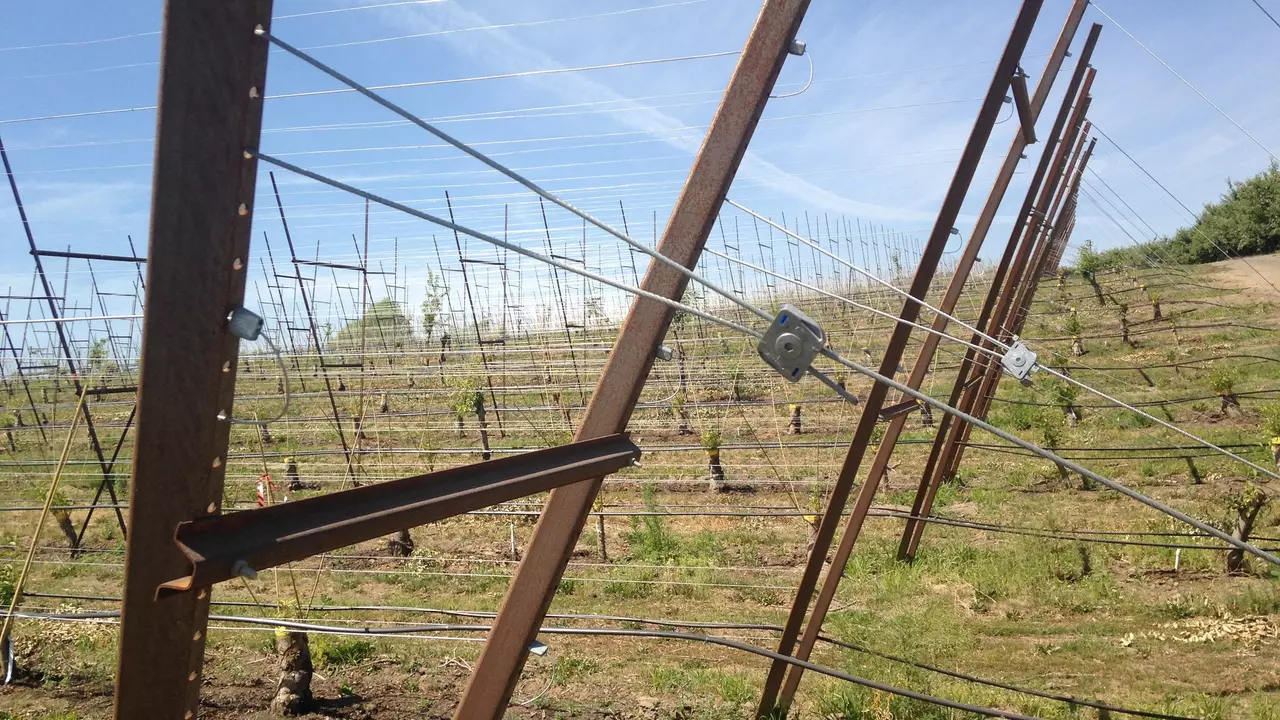

Whether you’re reinforcing fence strainer posts, stabilizing vineyard or orchard trellises, or bracing greenhouse and polytunnel structures, the DPAK delivers unmatched efficiency and durability.

At the heart of the system is the Gripple Dynamic wire joiner and tensioner, capable of handling working loads up to 6,170 lbs. Unlike traditional methods that rely on cumbersome turnbuckles, crimps, or additional posts, the DPAK installs quickly with minimal tools and no specialist training.

Its corrosion-resistant components and ceramic gripping rollers ensure long-lasting performance, while the included release key allows for easy adjustment and re-tensioning year after year.

Lightweight, neat, and manufactured to the highest standards, the Gripple DPAK is the smart choice for professionals seeking strength without complexity.

Read More

High Performance

High Performance

Up to 6,170 lbs load rating, ideal for high load bracing and anchoring applications.

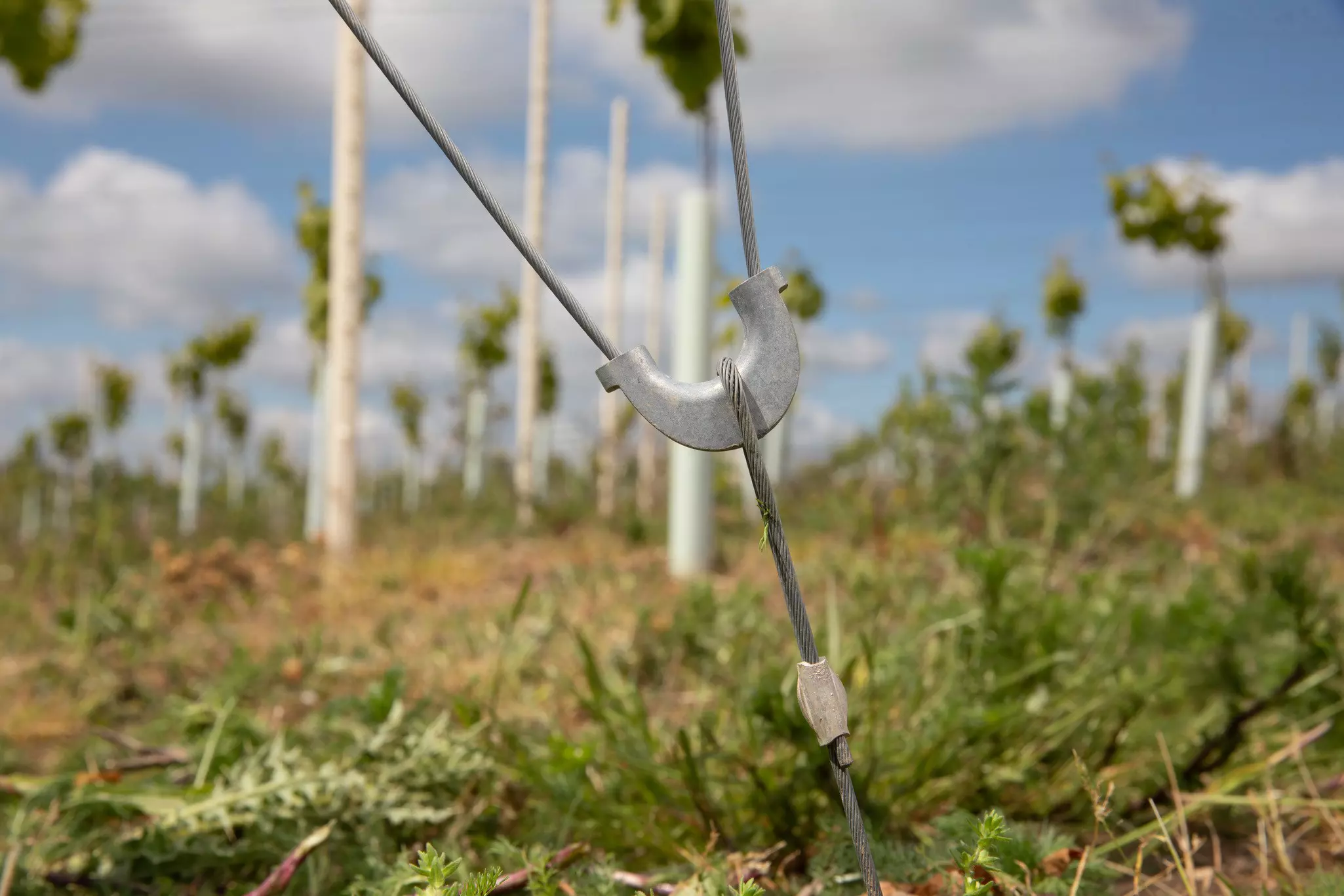

Flexible Installation Anywhere

Flexible Installation Anywhere

Pair with our Gripple APEX Anchors for flexible bracing even when a fixed anchor point isn’t available.

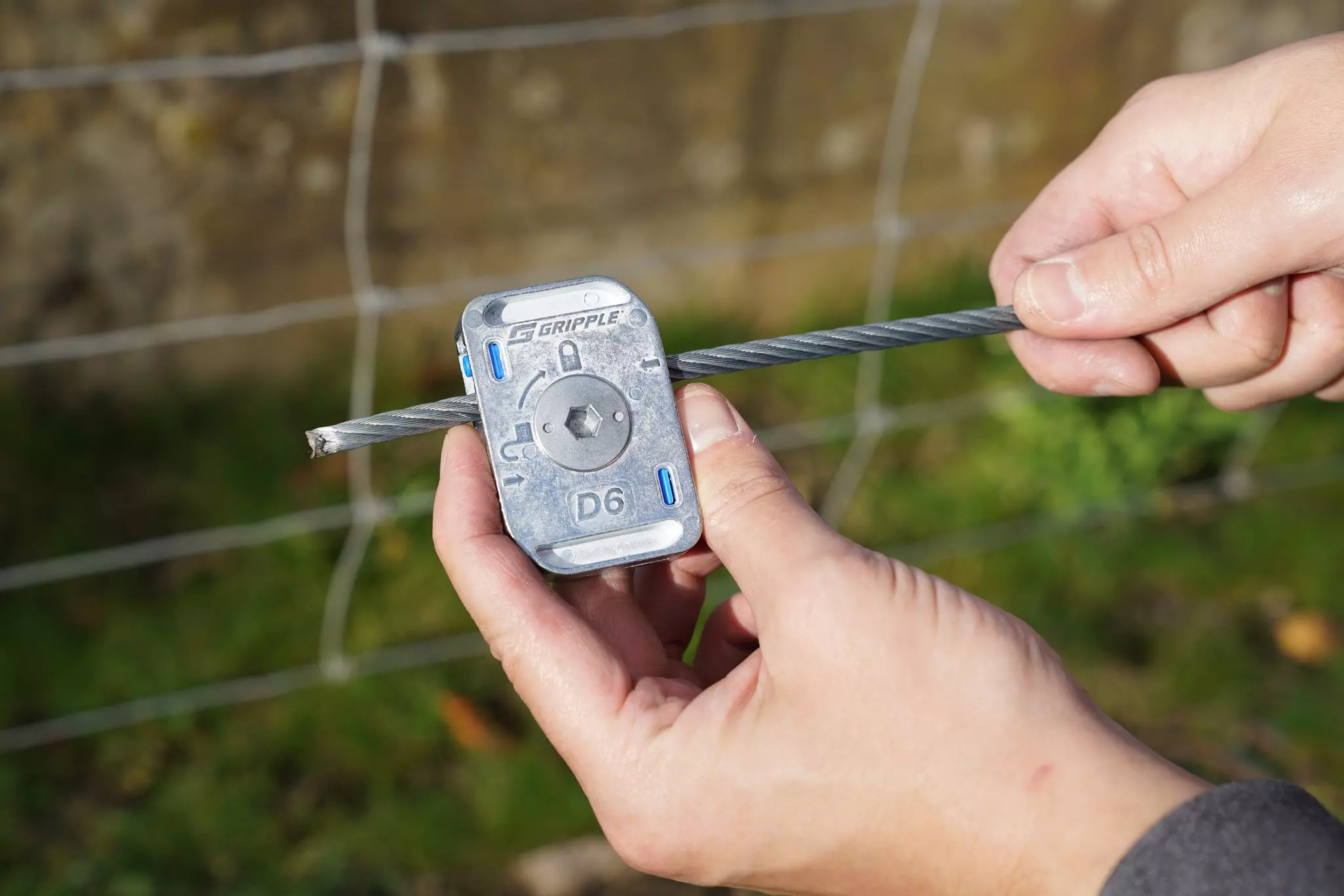

Deliver Professional Results

Deliver Professional Results

No matter your experience, you can deliver professional post bracing and tie back installs with our easy-to-use DPAK kit.

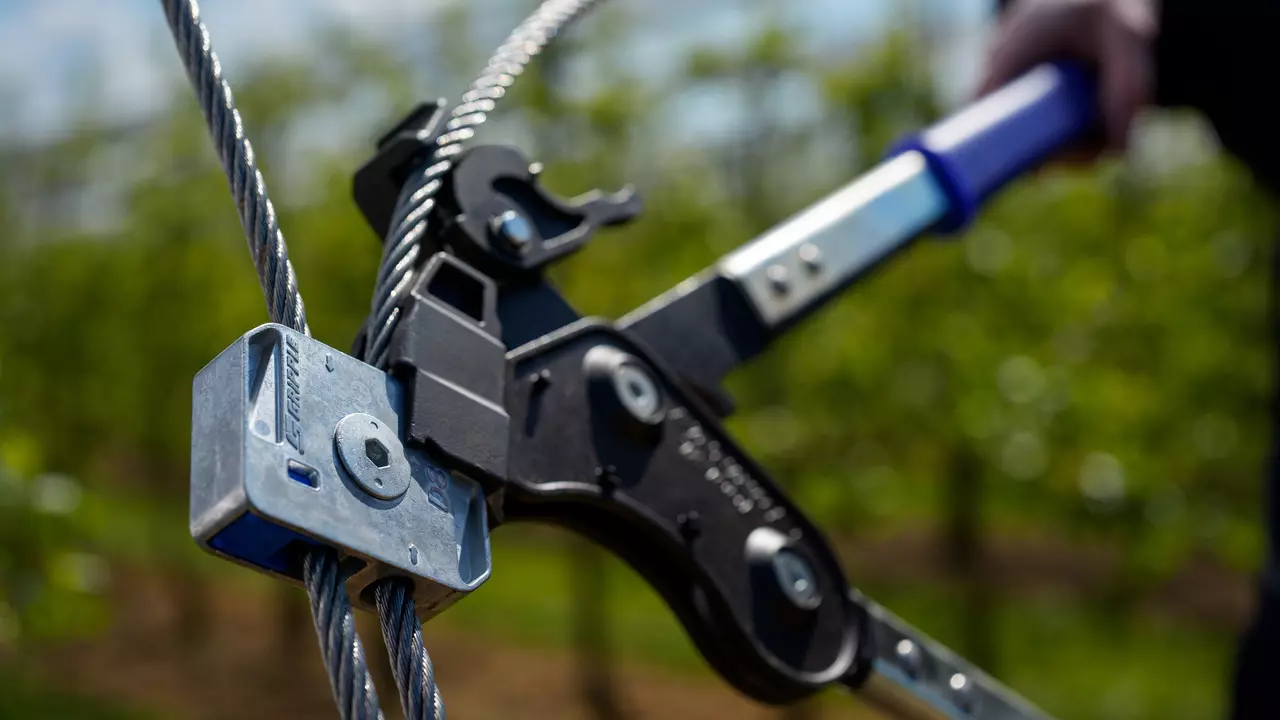

Re-Tension Year After Year

Re-Tension Year After Year

Re-tension in seconds year after year, using our Gripple tensioning tools with no need for re-installation.

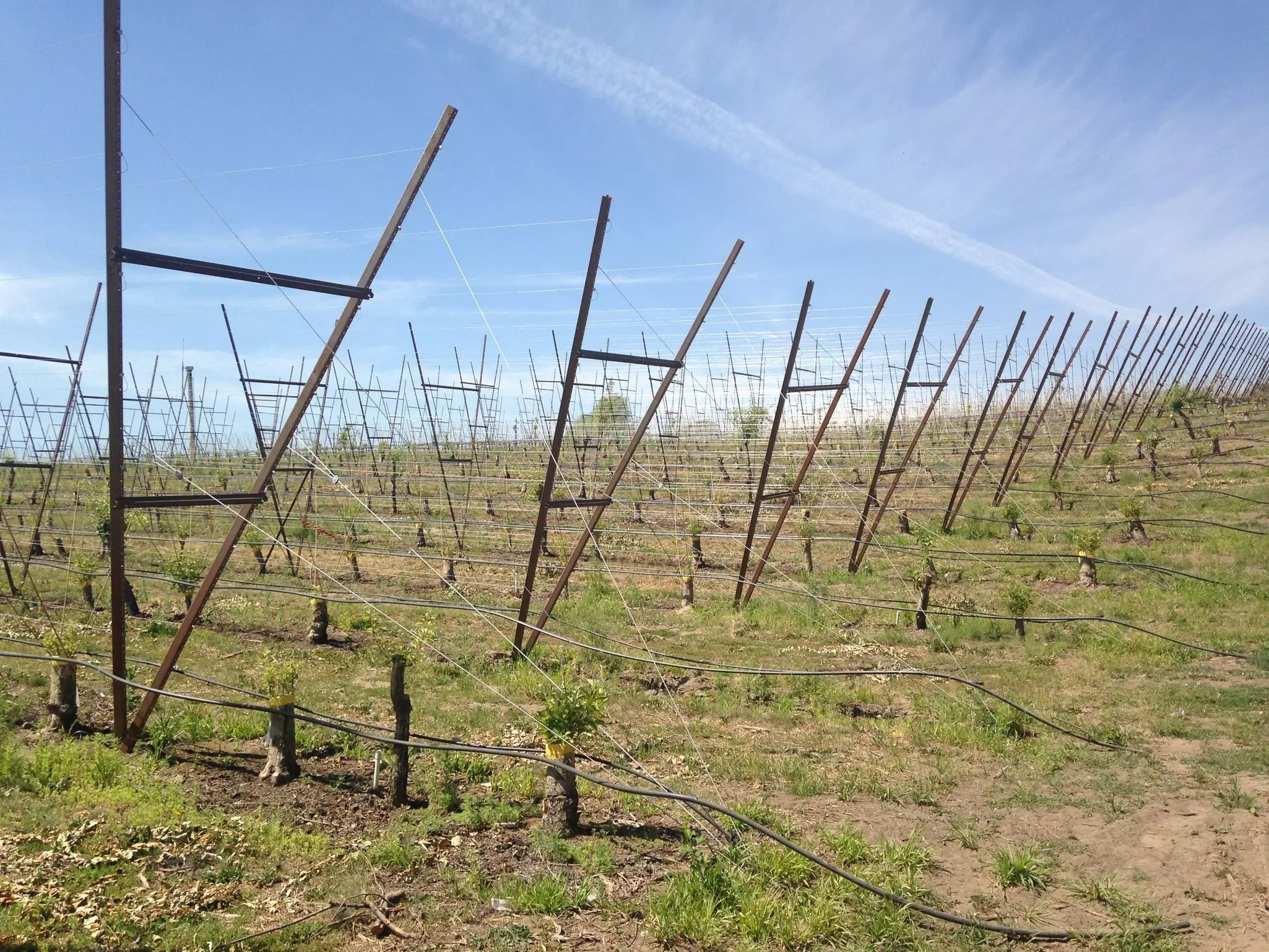

Wooden or Metal Posts

Wooden or Metal Posts

Available in kit variations to suit wooden and metal posts.

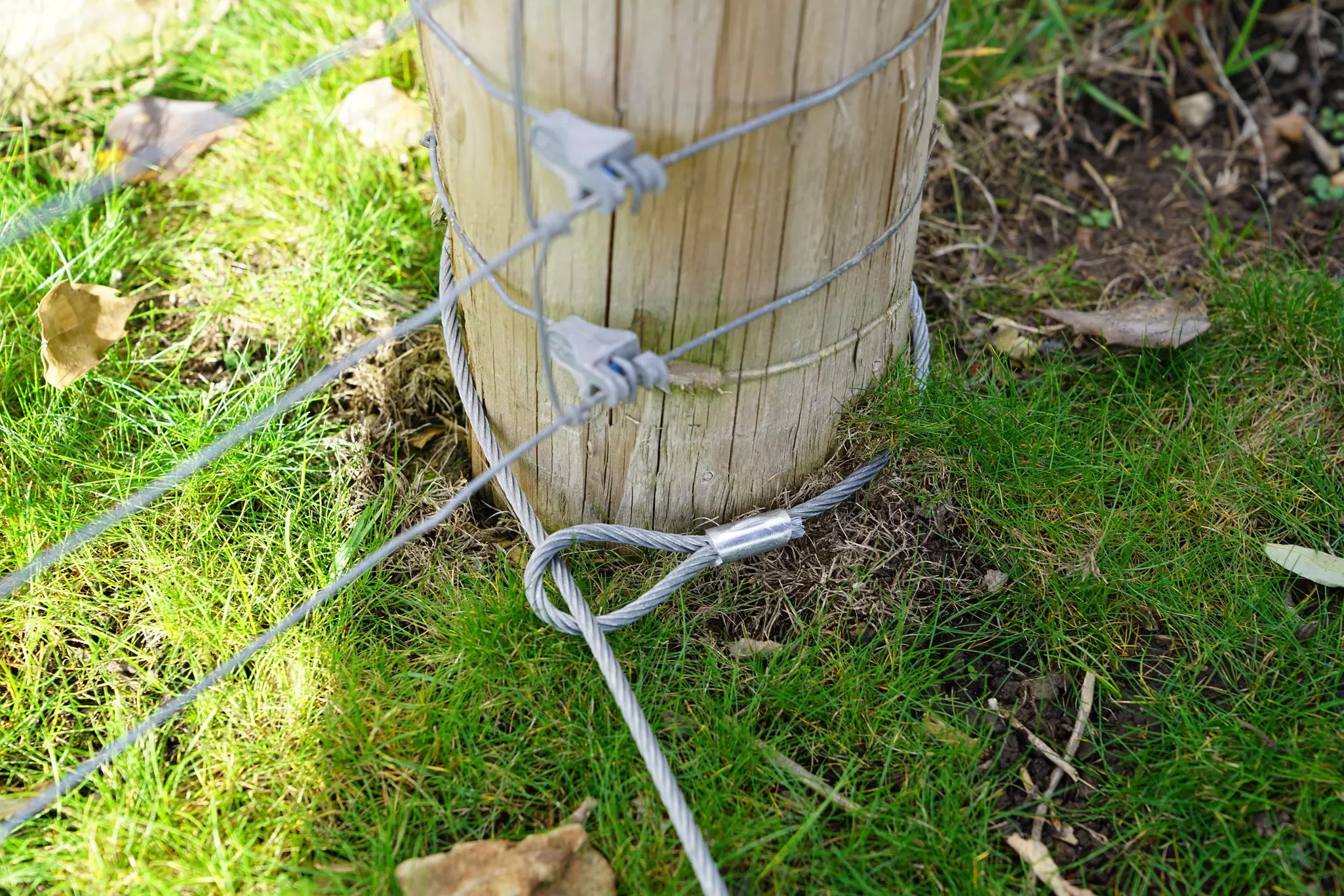

Versatile Bracing

Versatile Bracing

Use with any anchor point, e.g. strainer posts, end posts, or structural bracing points.

High Performance

High Performance

Up to 6,170 lbs load rating, ideal for high load bracing and anchoring applications.

Flexible Installation Anywhere

Flexible Installation Anywhere

Pair with our Gripple APEX Anchors for flexible bracing even when a fixed anchor point isn’t available.

Deliver Professional Results

Deliver Professional Results

No matter your experience, you can deliver professional post bracing and tie back installs with our easy-to-use DPAK kit.

Re-Tension Year After Year

Re-Tension Year After Year

Re-tension in seconds year after year, using our Gripple tensioning tools with no need for re-installation.

Wooden or Metal Posts

Wooden or Metal Posts

Available in kit variations to suit wooden and metal posts.

Versatile Bracing

Versatile Bracing

Use with any anchor point, e.g. strainer posts, end posts, or structural bracing points.

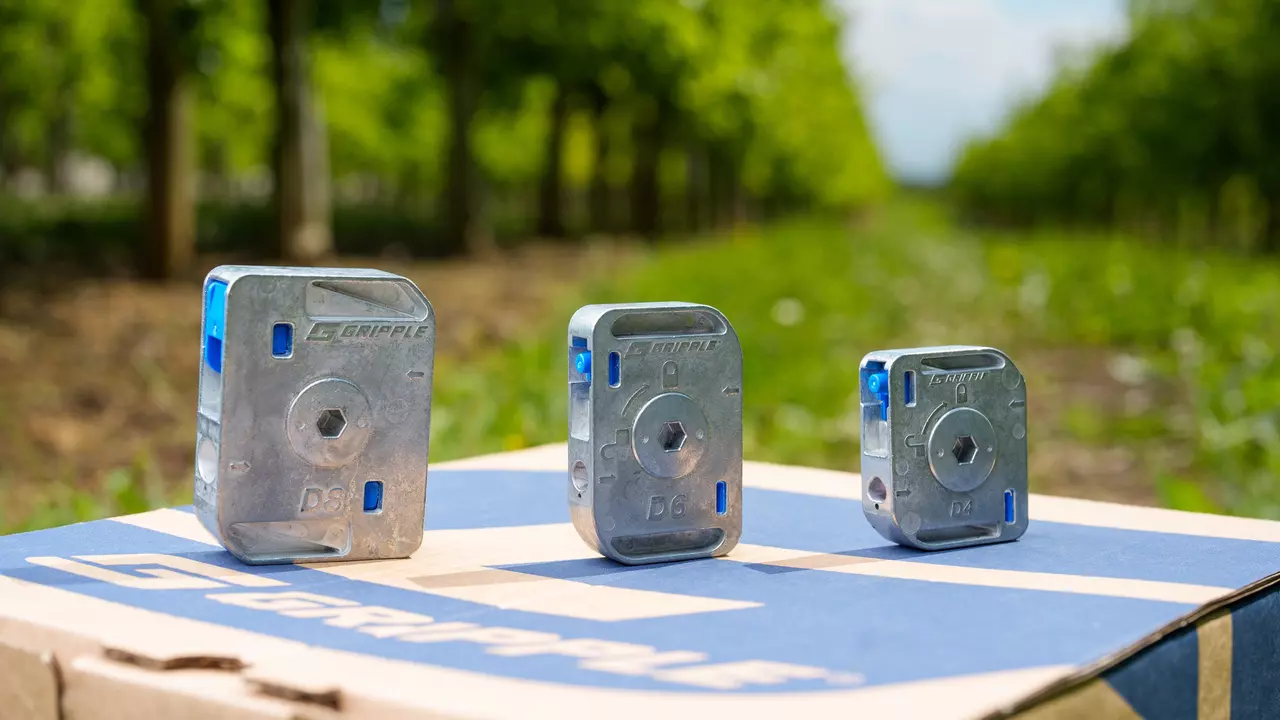

Range Variants

Our Gripple DPAK range comes in four variants to allow bracing at different load requirements. See the table for a range overview or download the technical data pack for full specification information.

Download the Technical Data Pack

Product	Load Rating	Wire Size	Kit Contents
DPAK 4	1,650 lbs	5/32″	Dynamic 4 wire joiner – 5/32 in wire loop – Release key
DPAK 5	2,200 lbs	3/16″	Dynamic 4 wire joiner – 7/19 in wire loop – Release key
DPAK 6	3,860 lbs	1/4″	Dynamic 6 wire joiner – 1/4 in wire loop – Release key
DPAK 8	6,170 lbs	5/16″	Dynamic 8 wire joiner – 5/16 in wire loop – Release key

How it Works:

See how our DPAK Bracing Kit works in the below fencing example, or download the technical data pack for full installation guidance.

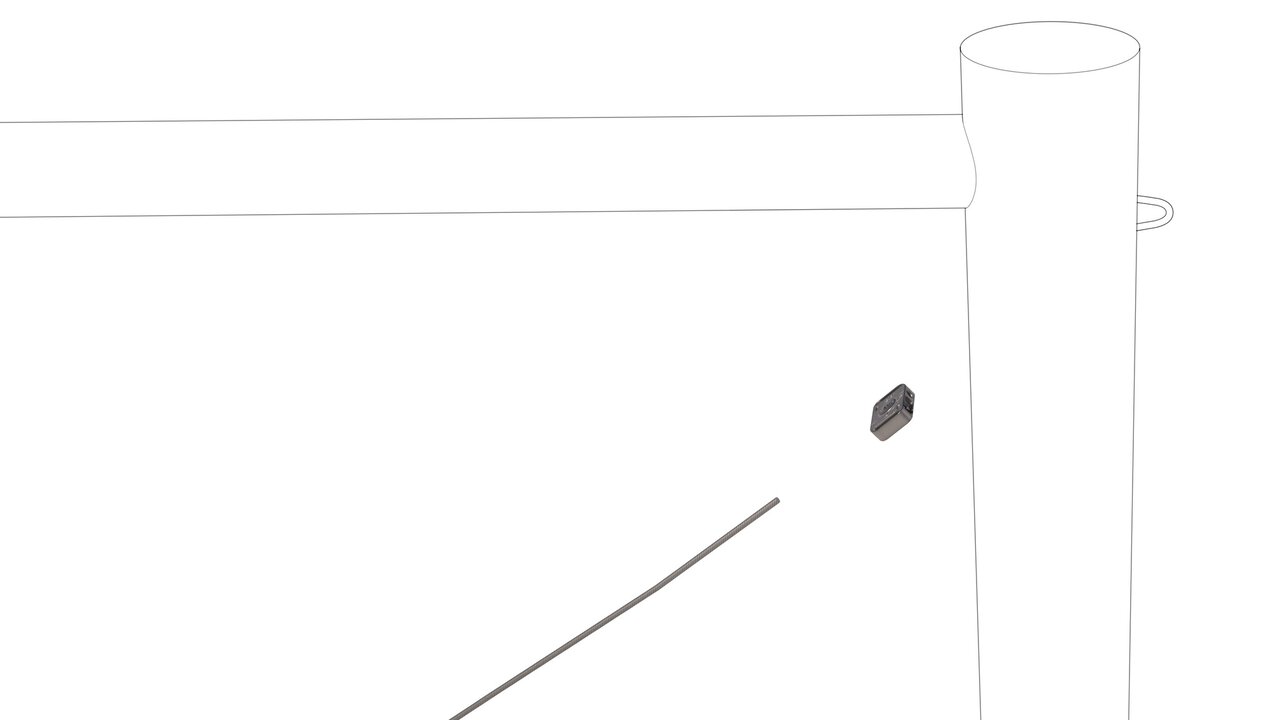

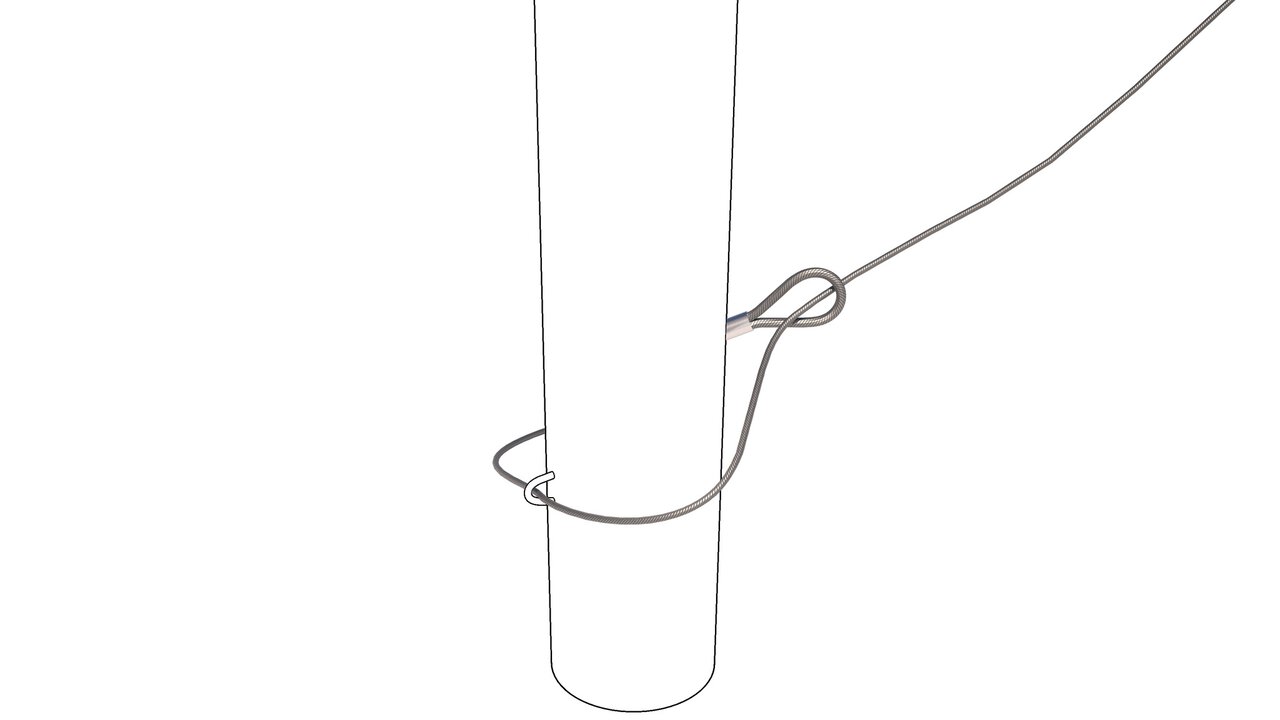

Step 1. Use the crimped loop at the end of your wire to create a loop around your “anchor point”.

Step 2. Feed the opposite end of the wire into one of the wire channels in your Dynamic wire joiner.

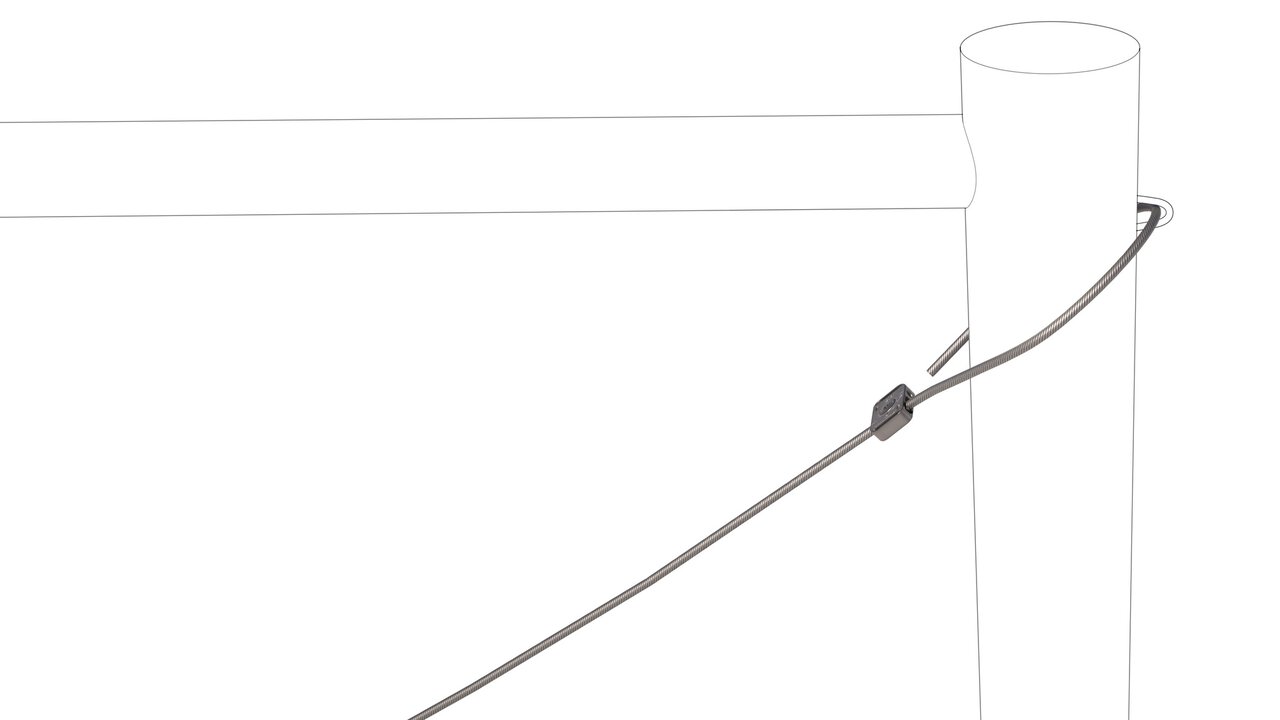

Step 3. Create a loop around (or through) your second fixing point by feeding the wire back through the opposite wire entry channel.

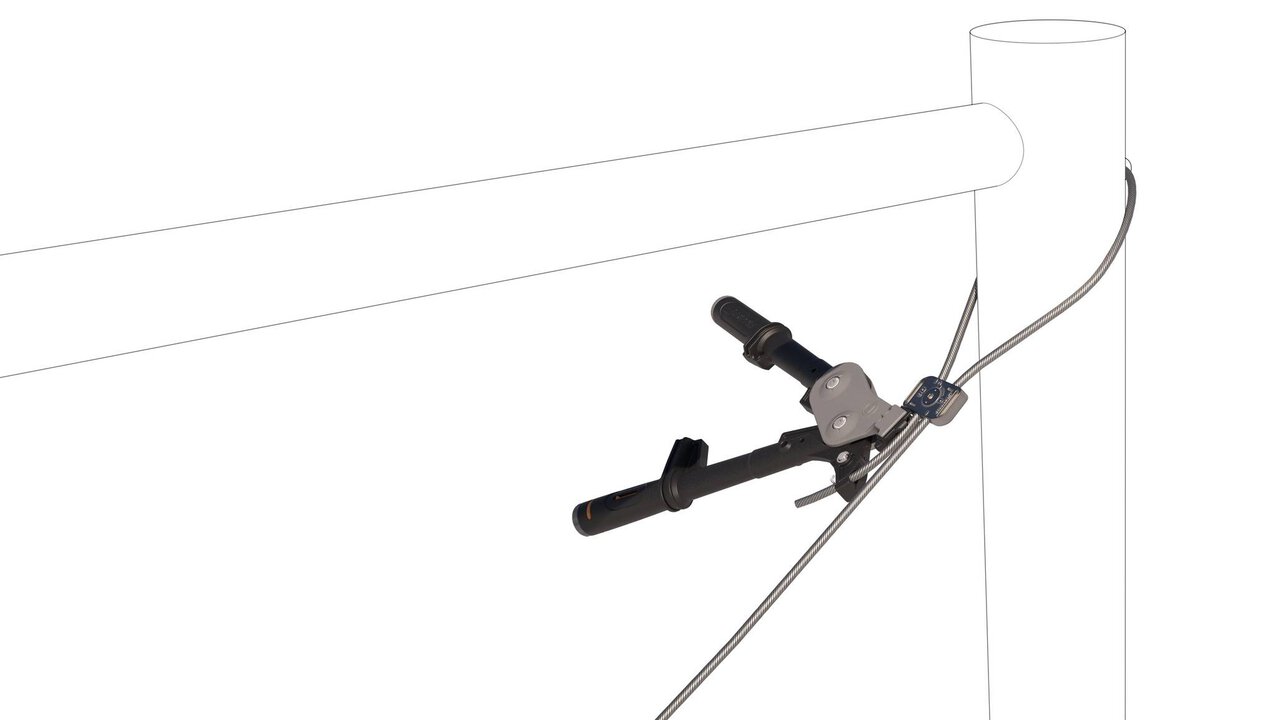

Step 4. Use the Gripple Tensioning Tool to tension your wire brace.

Related Products & Accessories

Torq Tensioning Tool

The Gripple Torq Tensioning Tool is a wire tensioner tool that regulates the load applied to it, delivering consistent results and maximizing the life of your wire. Ideal for wire fence tensioning and wire trellising tensioning.

Contractor Tool

A strong and robust wire tensioning tool built for contractors, producing low effort wire tensioning for wire fences and trellising applications.

GPAK Bracing Kit

Post Bracing Kit

Maximum Working Load: 1,320 lbs

Standard Wire Lengths: 8 ft – 19 ft (custom lengths a

Kit Variants: Wood Post Kit, Metal Post Kit

APEX

Secure Anchoring for Trellises, Vineyards & Fencing

Maximum Load Rating: 6,600 lbs

Tendon Types: Fiber and Wire

Standard Tendon Lengths: 0.9 m or 1.5 m

Gripple Plus

The Original Wire Joiner & Tensioner

Max Working Load: 1,320 lbs

Compatible Wire Sizes: 17 – 7.5 Gauge Plain Wire

Tensionable: Tension using the Gripple Torq or Contractor tools

Barbed

Barbed Wire Joiners

Max Working Load: 330 lbs Mild Steel / 880 lbs High Tensile

High Tensile Wire Range: 15-14.5-gauge

Mild Steel Wire Range: 12.5-gauge

T-Clip

Wire Fencing Termination Fixing

Wire Compatibility: Plain Wire, High Tensile Barbed, Mild Steel Barbed, Low Carbon Wire

Plain Wire Gauge Range: 14 – 7.5

High Tensile Barbed Range & Barbed Wire Gauge Range: 15.5 and 12.5

Large Wire Cutters

Wire cutters for larger diameter wire from 4 mm to 6 mm

Small Cutters

Purpose made for cutting wire up to 4 mm in diameter.

Trusted by the Experts

“Our workers loved when we switched to the Gripple tie-back system. It was way quicker and our employees were way happier. It’s what we’ll continue to do going forward.”

Nick Konen, Director of Operations

Watch the Full Case Study

Common Applications

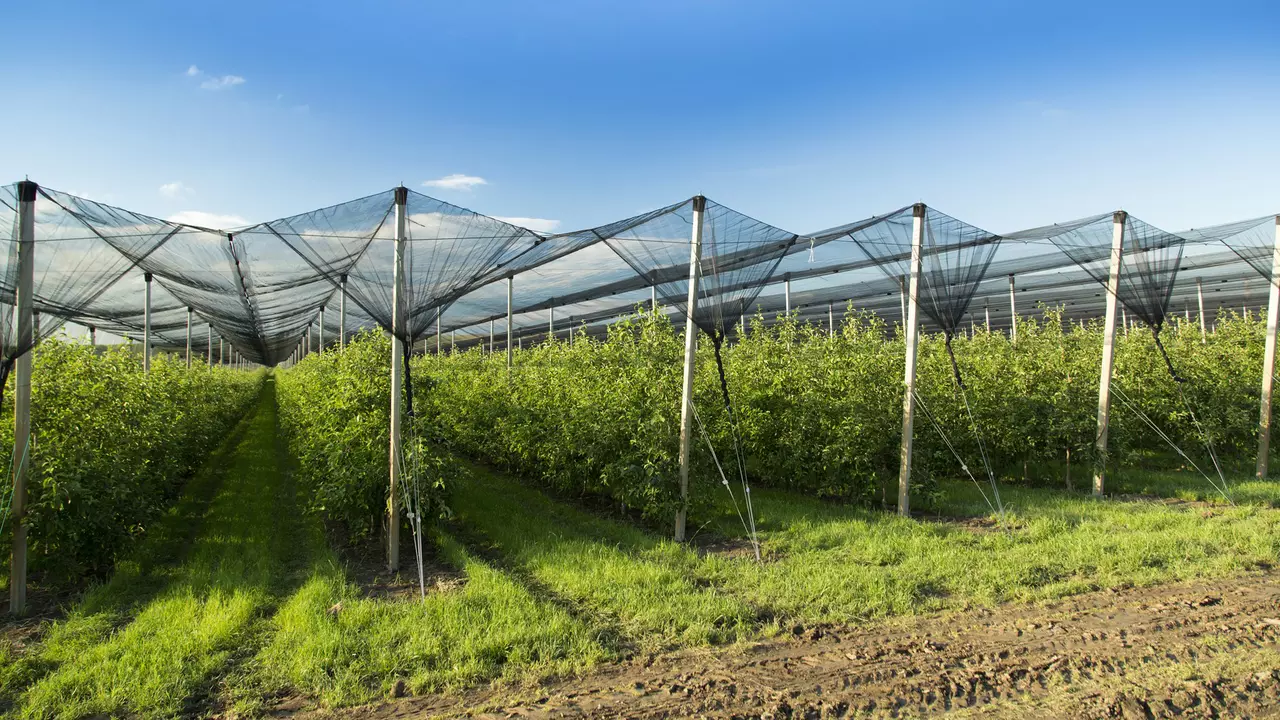

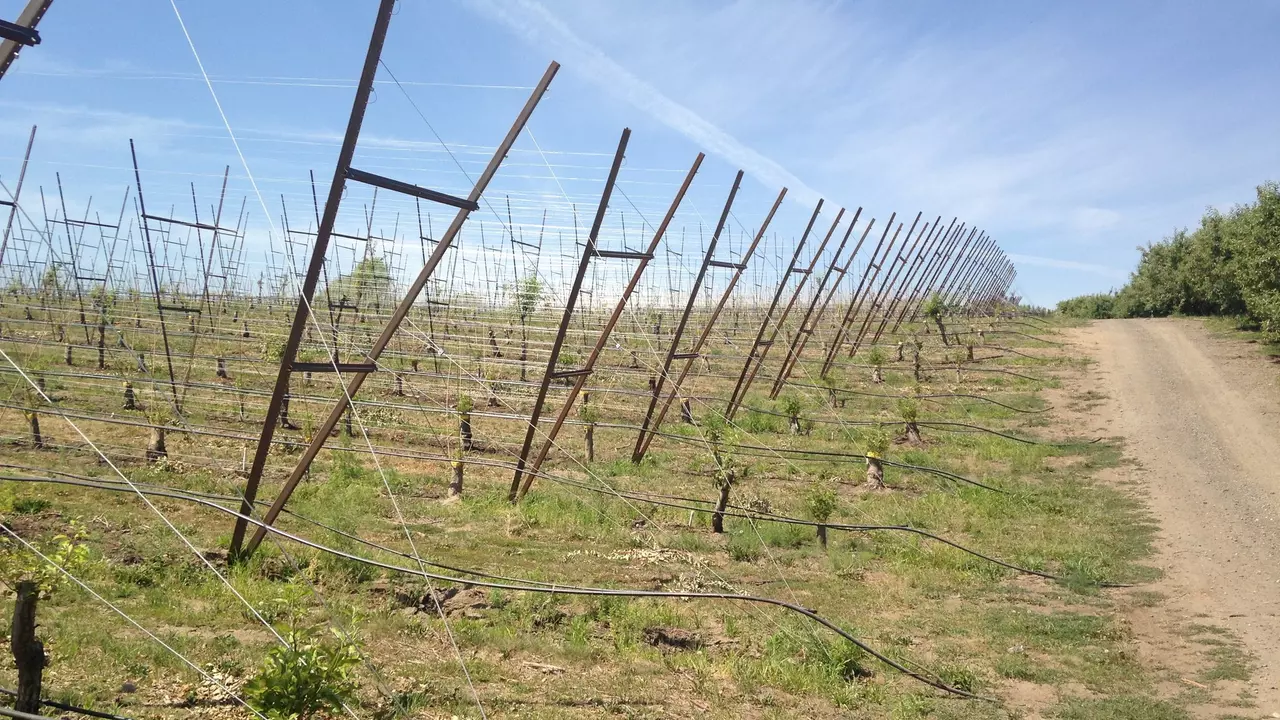

Fruit Growing Systems
