Spider Rod Push-In Toggles

SKU # SX-ADP-3/8, SX-ADP-1/2, SX-ADP-5/8, SX-ADP-3/4

Designed for fast, secure below-deck installation. The Push-In Toggle connects directly to our Spider concrete inserts using our patented push-in toggle technology. Its universal design accepts multiple rod sizes and is compatible with both metal and wood form inserts, delivering flexible, reliable performance across applications.

Safe Working Load:

Safe Working Load::

up to 1,700 lbs

Available Sizes

Available Sizes:

Rod sizes 3/8" - 3/4"

Forms

Forms:

Metal & Wood Form

Inquire Now

Designed for Fast Below Deck Installation



Designed for fast below-deck installation, it connects directly to our Spider concrete inserts using push-in toggle technology for quick and secure fixing.

It’s universal design accepts multiple rod sizes, allowing cable selection to be finalized after the concrete is poured. Compatible with both Spider metal and wood form concrete inserts, it offers excellent adaptability across applications.

Once installed, the push-in toggle mechanism locks securely in place, preventing accidental removal or displacement. Do not load the Spider insert until the concrete has been poured and fully cured to the recommended compressive strength.

Read More

How it Works:

Installation of the Spider Cable Push-In Toggle with our Spider Cast-In-Place Metal Deck Concrete Insert is shown below. Download the technical data pack for complete installation instructions and full product capabilities.

View All Downloads

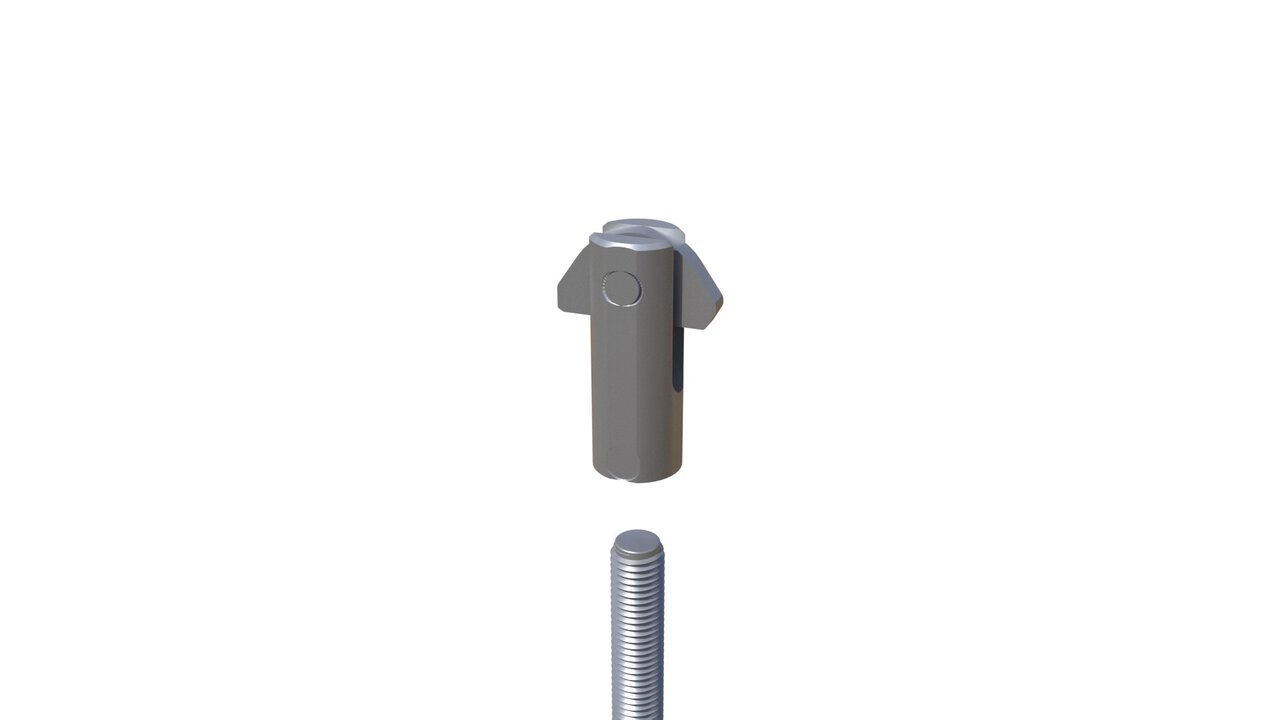

Step 1: Simply screw the threaded rod on to the Spider Rod Push-In Toggle.

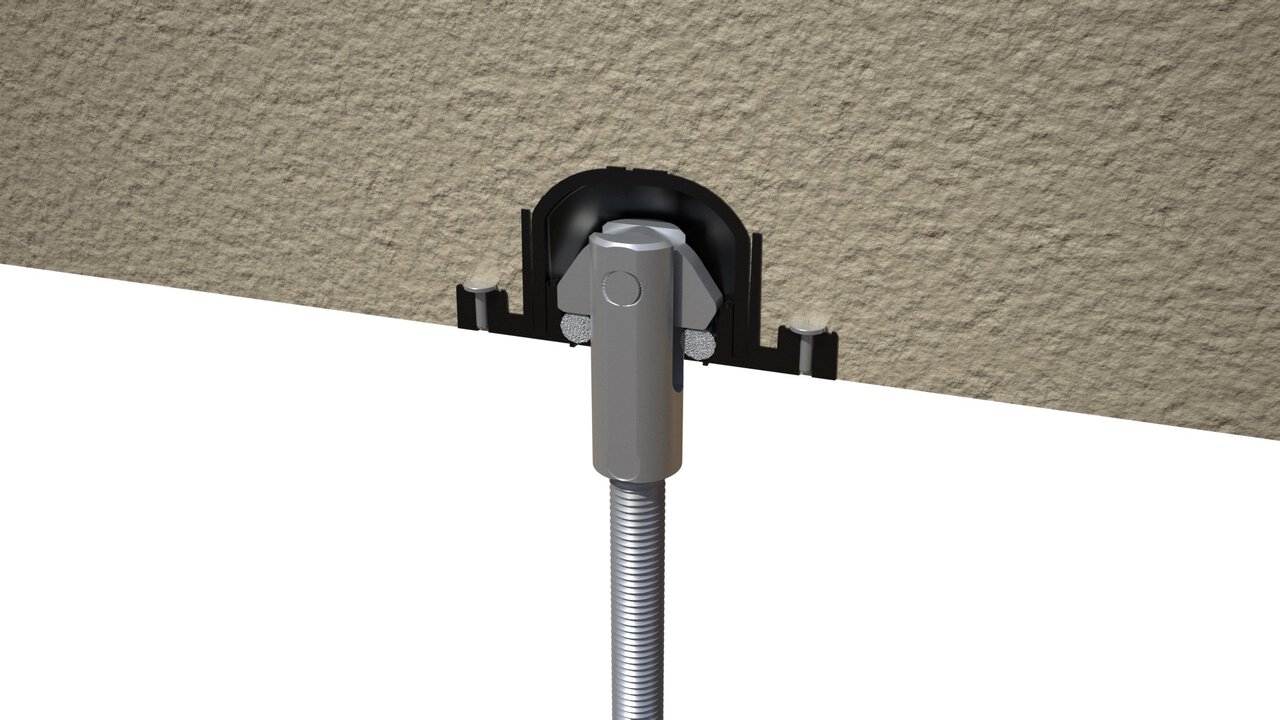

Step 2: Insert Spider Rod Push-In Toggle into Spider Insert with upward force with the toggle parallel to the nails/ screw.

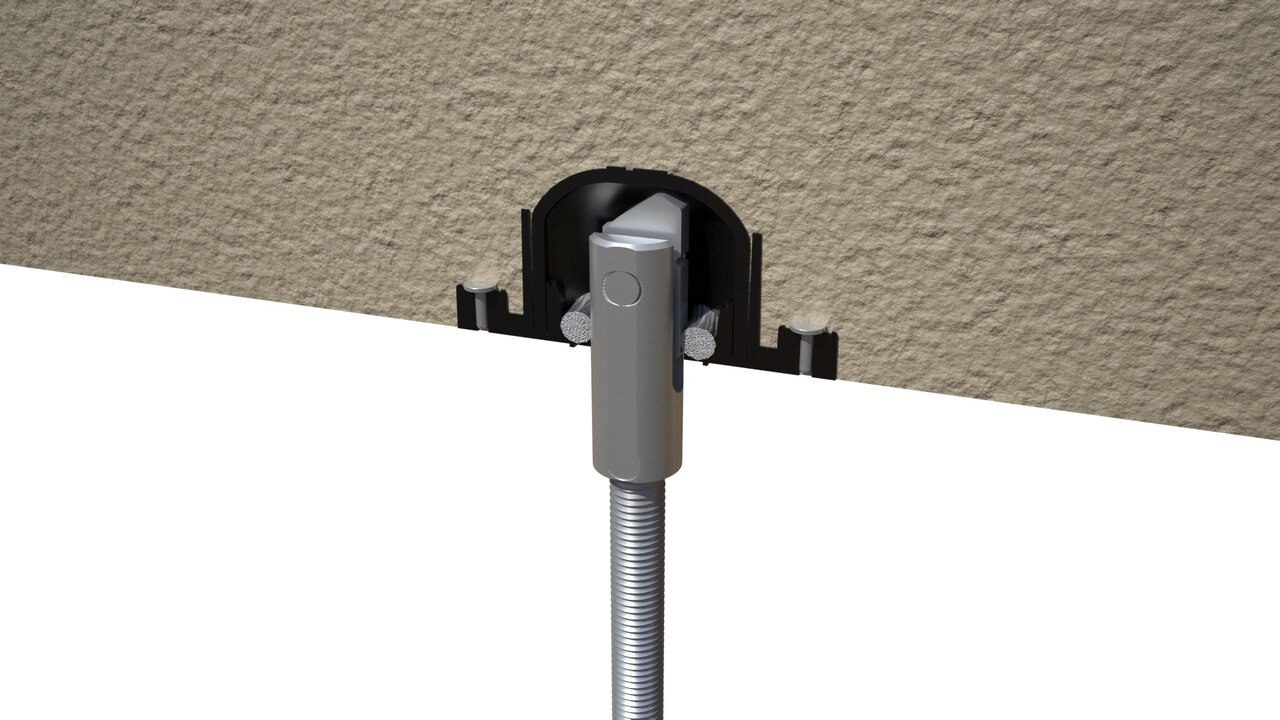

Step 3: Pull Spider Rod Push-In Toggle down with force 2-3 times to ensure it is set in the Spider Insert. Try to turn the rod again in its locking direction to ensure it is fully tightened into the Spider Rod Push-In Toggle.

Spider Rod Push-In Toggle Variants

Our Spider Rod Push-In Toggles are available in 4 variants, see load ratings here, or download the technical data packs for full product specifications.

Spider Variant Code Box Quantity
Spider Rod Push-In Toggle 3/8″ SX-ADP-3/8 160
Spider Rod Push-In Toggle 1/2″ SX-ADP-1/2 160
Spider Rod Push-In Toggle 5/8″ SX-ADP-5/8 100
Spider Rod Push-In Toggle 3/4″ SX-ADP-3/4 100

“The versatility (of Spider) with all the different attachments was one of the key things to this job. The toggle attachments mean we can use it with threaded rod, or switch back to cable. It makes it really versatile. I’ve been in the industry 27 years and this is definitely a game changer.”

Ryan Eder | Plumbing Superintendent – US Engineering

Watch the Full Case Study
