Tree Guying Kit Above-ground Tree Anchoring Solution

SKU # TGK2, TGK3, TGK4, TGK5

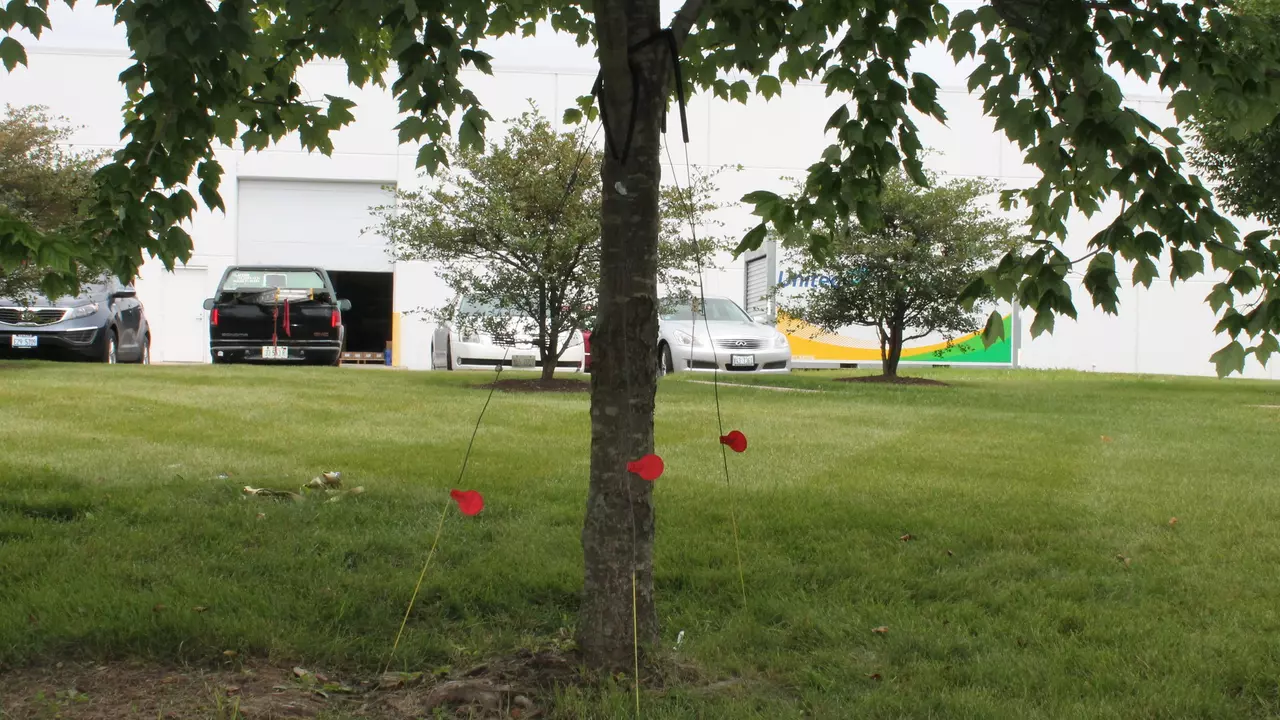

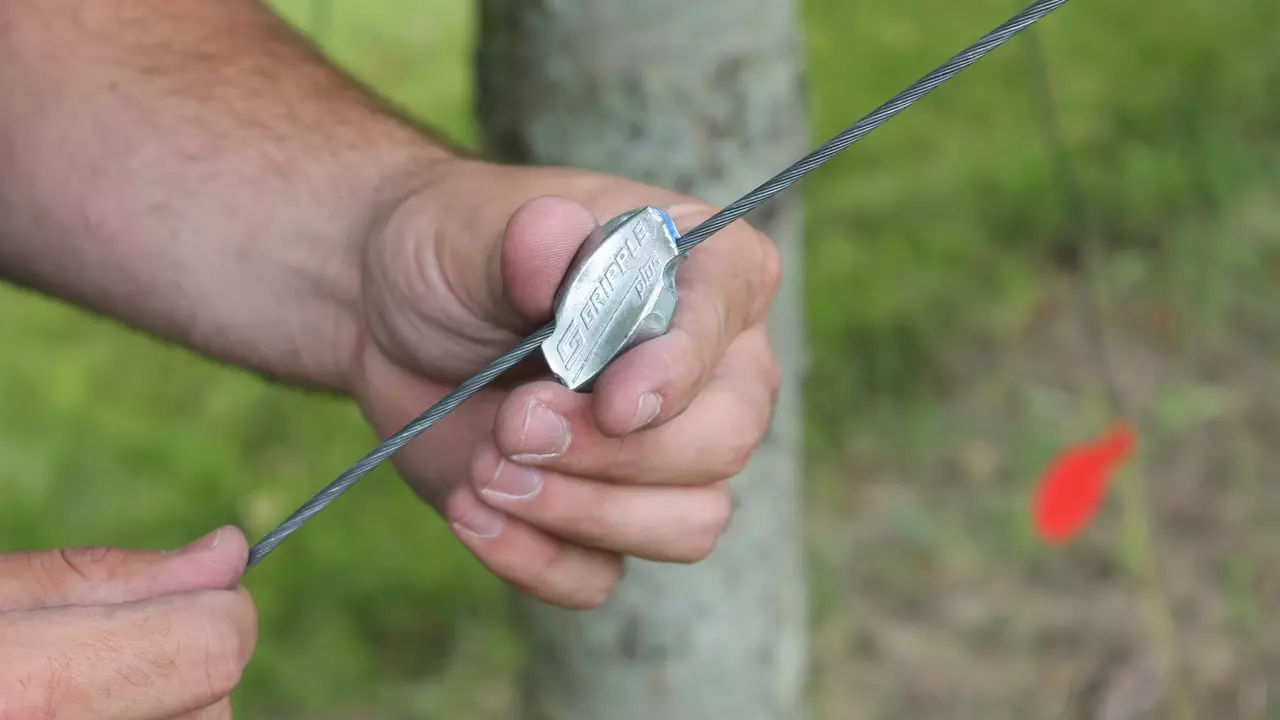

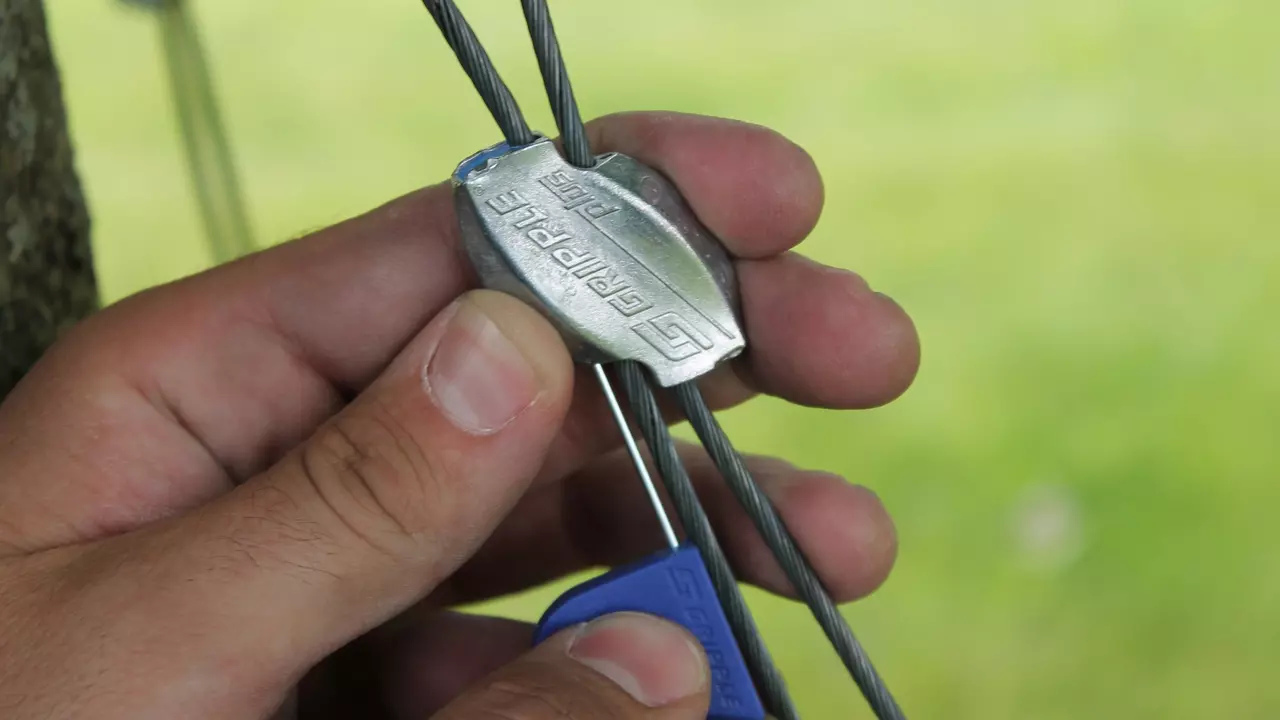

The Gripple Tree Guying Kit offers a rapid install, above-ground tree anchoring solution used to stabilize the tree in the ground. Additionally, by tensioning the included Gripple Plus joiner, the kit can also be used to straighten trees and plants, promoting vertical growth.

Max Tree Height

Max Tree Height:

40 ft.

Max Trunk Circumference

Max Trunk Circumference:

30 in.

Max Breaking Load

Max Breaking Load:

1,320 lbs

Inquire Now

Product Downloads

Tree Guying Kit - Technical Data Pack - USA Landscaping Solutions Brochure - USA

View all downloads

SKU # TGK2, TGK3, TGK4, TGK5

A Powerful, Above-Ground Solution for Stabilizing and Straightening Trees. Quick to Install and Built to Last.

The Gripple Tree Guying Kit is a high-performance anchoring system designed to support and align trees up to 40 feet in height and 30 inches in girth. Ideal for above-ground applications, it’s a smart alternative to traditional stake-and-rope methods, offering quicker installation, consistent results, and re-tensionable functionality for ongoing adjustment.

Engineered with a high-strength Gripple Terra-Lock® Anchor and robust rubber sleeves to prevent trunk damage, the kit ensures both performance and protection. Manufactured by Gripple with a maximum breaking load of 1,320 lbs, this professional-grade system delivers dependable strength and clean aesthetics for landscape contractors and arborists alike.

Read More

Avoids Tree Damage

Avoids Tree Damage

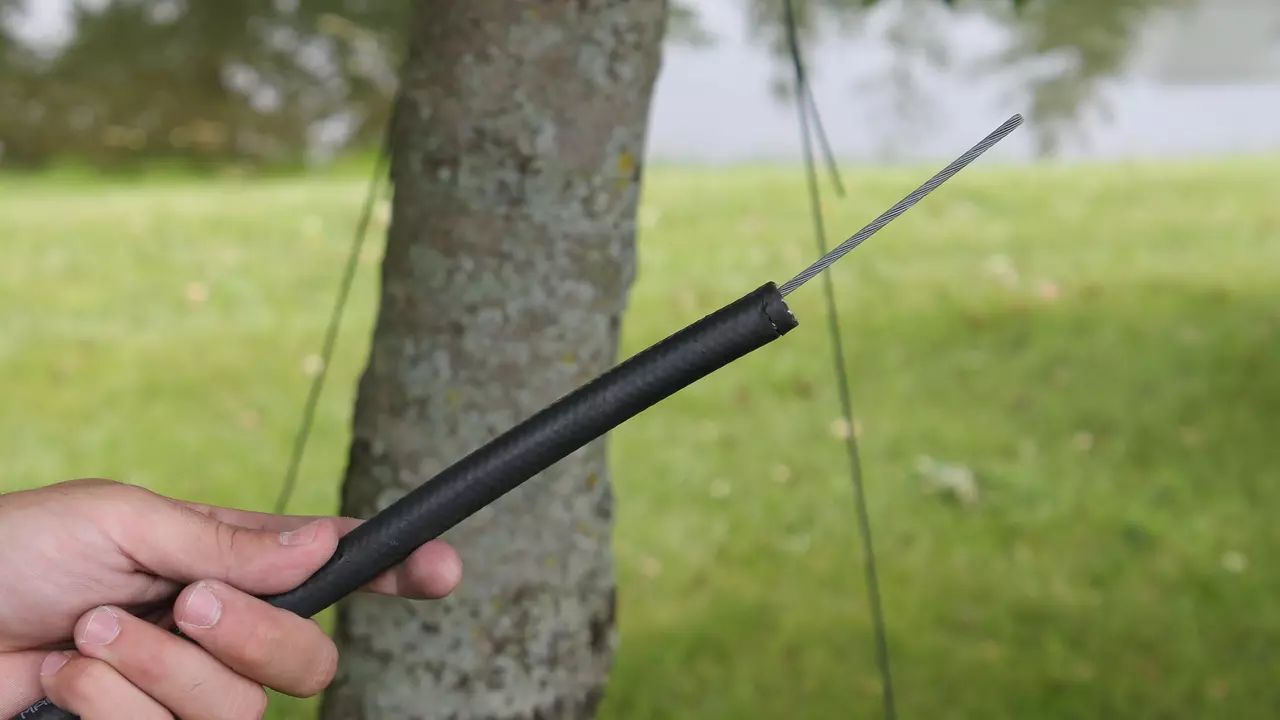

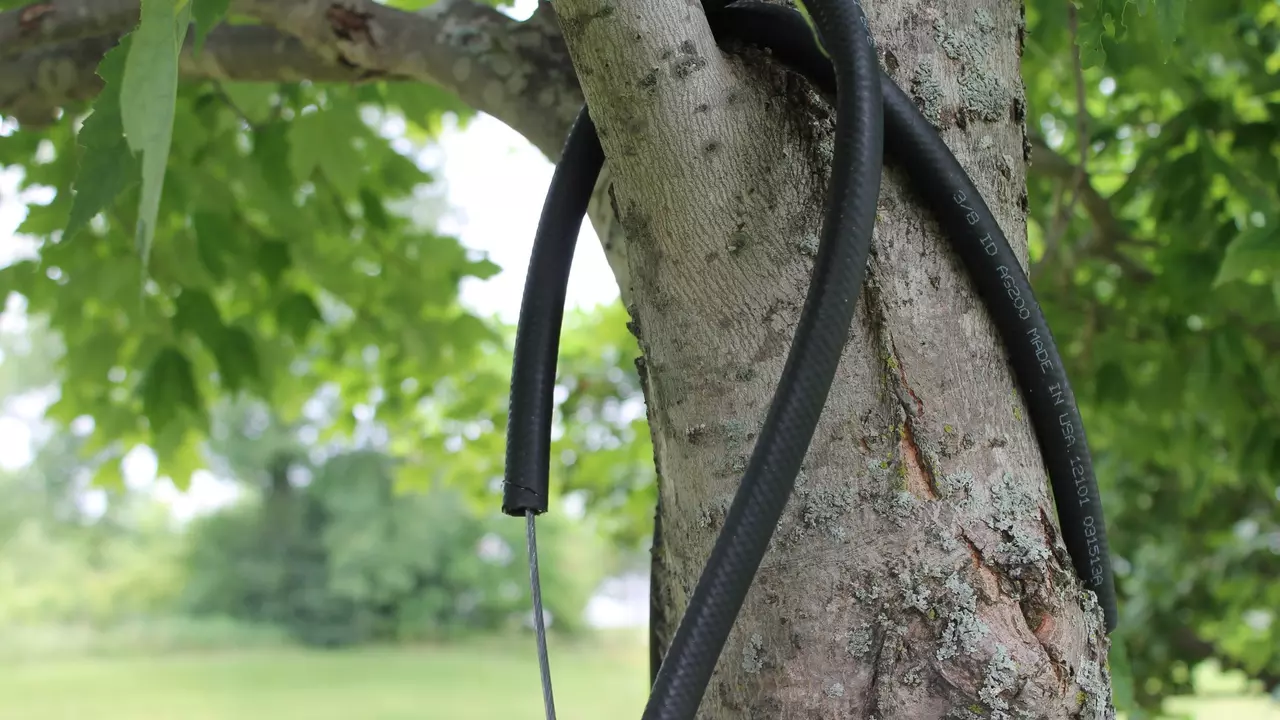

Includes safety sleeves to minimize friction on the trunk

US and UK Manufactured

US and UK Manufactured

Our vertical integration processes ensure a high quality product.

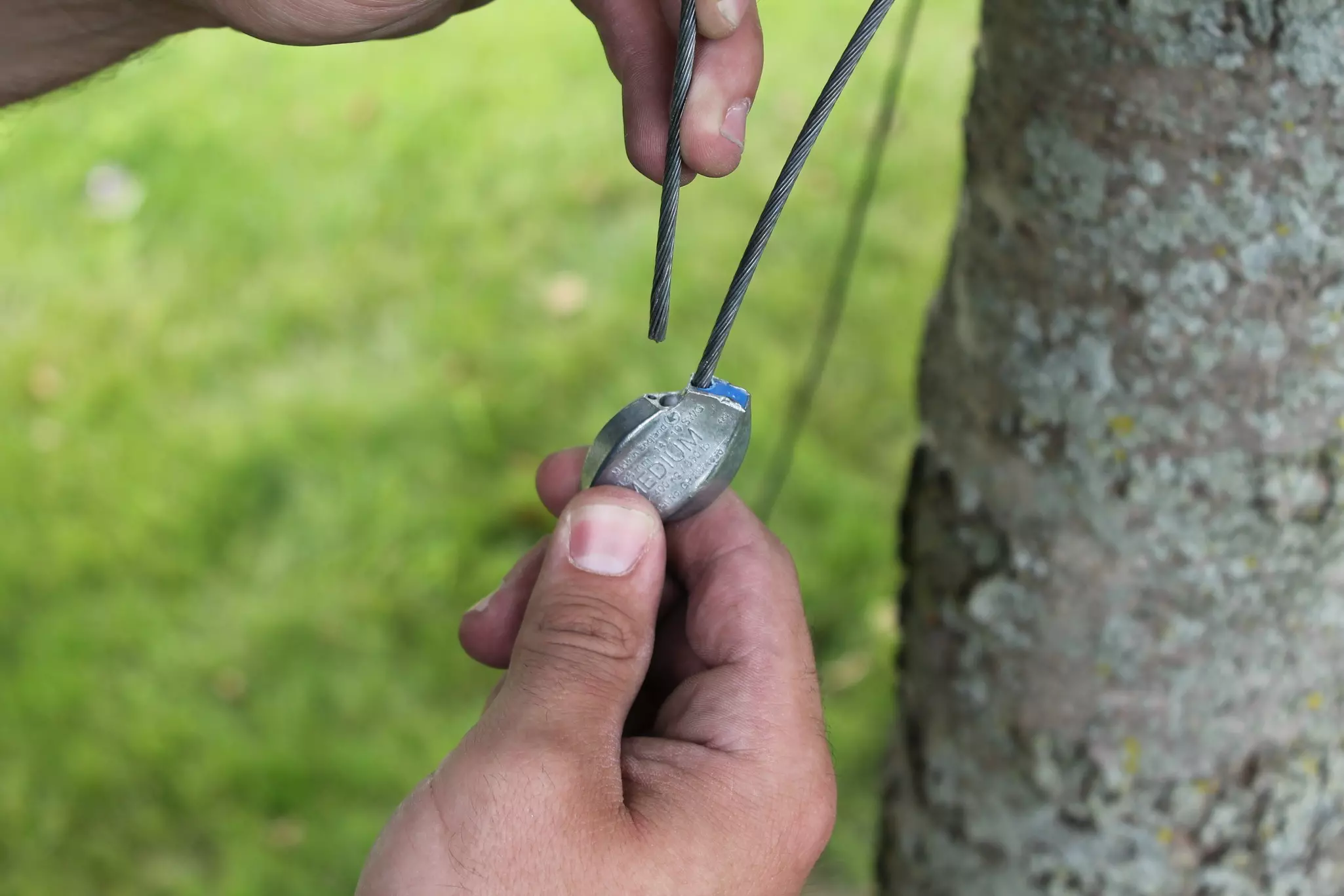

Quick and Simple Installation

Quick and Simple Installation

Minimal tools and minimal labor needed.

Adjustable

Adjustable

Designed to correct tree lean year after year.

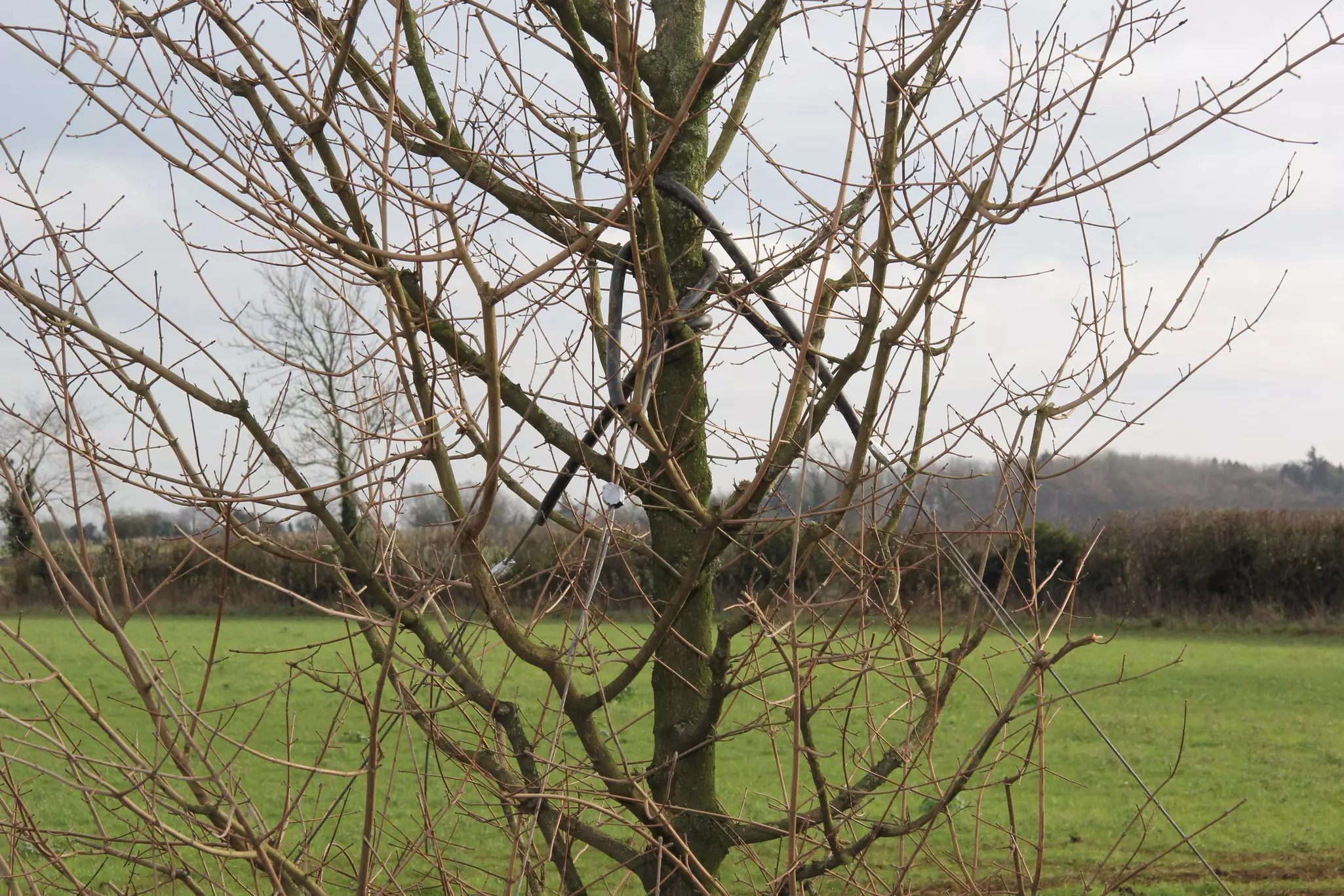

Professional Finish

Professional Finish

Our discreet kits provide a clean, unobtrusive look.

Strong

Strong

Our largest kit has a maximum working load of 1,320 lbs.

Avoids Tree Damage

Avoids Tree Damage

Includes safety sleeves to minimize friction on the trunk

US and UK Manufactured

US and UK Manufactured

Our vertical integration processes ensure a high quality product.

Quick and Simple Installation

Quick and Simple Installation

Minimal tools and minimal labor needed.

Adjustable

Designed to correct tree lean year after year.

Professional Finish

Professional Finish

Our discreet kits provide a clean, unobtrusive look.

Strong

Our largest kit has a maximum working load of 1,320 lbs.

Range Variants

We have a range of sizes within our Tree Guying Kits. The size variation of the kits means that we have a suitable solution for a wide range of trees, with max working loads up to 1,320 lbs.

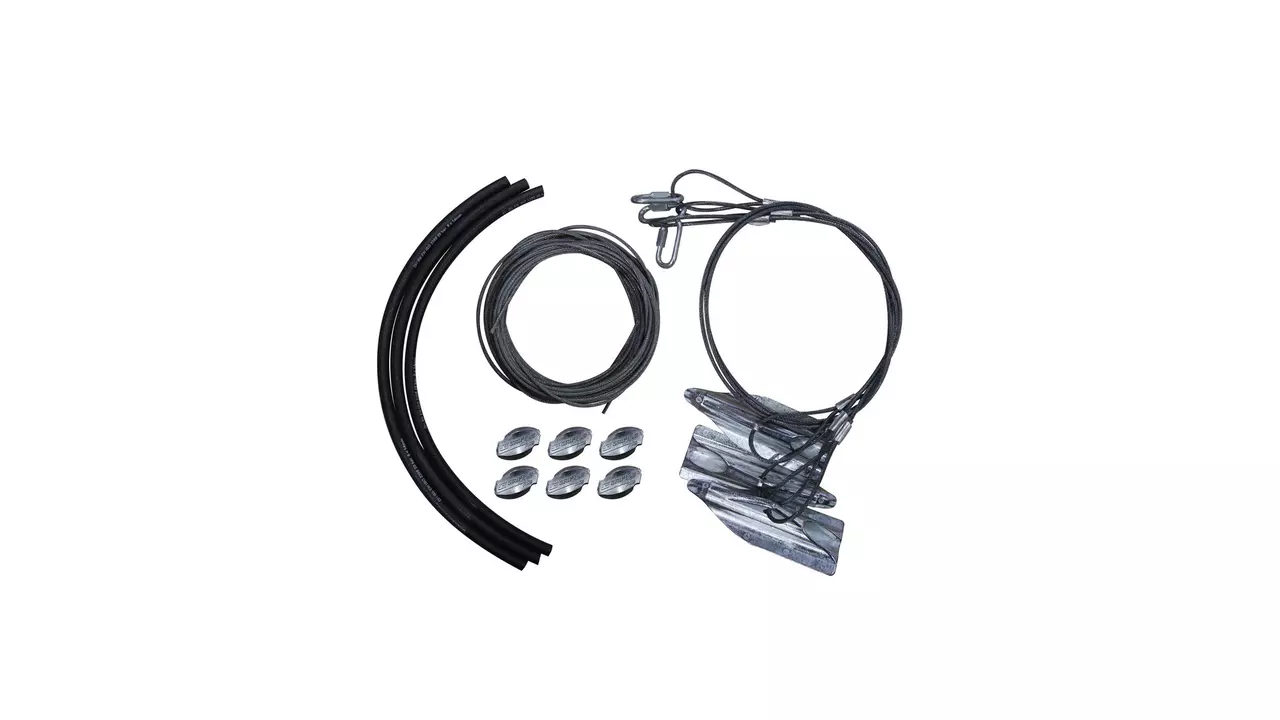

Product Name	Tree Height	Tree Girth	Description	Wire Information
TGK2	8 ft	5 in	• Gripple Anchor TL-A2 • Gripple Plus Small • Quick Links • Protective rubber sleeves • Safety Webbing	• 3 ft. x 5/64 in. • 7 x 7 galvanized wire. • System working load 660 lbs
TGK3	15 ft	10 in	• Gripple Anchor TL-A3 • Gripple Plus Medium • Quick Links • Protective rubber sleeves • Safety Webbing	• 4 ft. x 1/8 in. • 1x 19 strand ZnAL cable. • System working load 880 lbs
TGK4	25 ft	18 in	• Gripple Anchor TL-A4 • Gripple Plus Large • Quick Links • Protective rubber sleeves • Safety Webbing	• 4 ft x 5/32 in. • 1 x 19 strand ZnAL cable. • System working load 1,320 lbs
TGK5	40 ft	30 in	• Gripple Anchor TL-A4 • Gripple D6 • Quick Links • Protective rubber sleeves • Safety Webbing	• 5 ft x 1/4 in. • 7 x 19 strand ZnAL cable. • System working load 1,320 lbs

Related Products & Accessories

Drive Rod

A quick and simple means of ground anchor installation.

Premium Root Ball Kit

Underground Tree Anchoring Kit

Max Tree Size: 40 ft. and 30 in. circumference

Max Working Load: 3,850 lbs

Anchor Points: 3 as standard (4 available on request)

Deadman Kit (DM)

Below-ground Tree Anchoring Kit

Max Tree Height: 40 ft

Max Tree Girth: 30 in

Breaking Load: 4,960 lbs

Gas Powered Driver

Portable, powerful driver for ground anchor installations & Trellis posts installations.

Twister

Innovative system for securing tail wires, ideal for use in public areas

JackJaw®

A post, pole, stake, ground anchor and drive tool extractor, perfect for use in orchard, vineyard, erosion control and soil stabilization applications.

Blue Flag Key

Setting key with keyring attachment, for the adjustment and release of Gripple Fasteners, pre-load.

Large Wire Cutters

Wire cutters for larger diameter wire from 4 mm to 6 mm

Small Cutters

Purpose made for cutting wire up to 4 mm in diameter.

Contractor Tool

A strong and robust wire tensioning tool built for contractors, producing low effort wire tensioning for wire fences and trellising applications.

Torq Tensioning Tool

The Gripple Torq Tensioning Tool is a wire tensioner tool that regulates the load applied to it, delivering consistent results and maximizing the life of your wire. Ideal for wire fence tensioning and wire trellising tensioning.

Frequently Asked Questions

What is the Gripple Tree Guying Kit used for?

It’s used to stabilize newly planted trees, ensuring secure growth in above-ground applications. It can also be used to straighten trees throughout their lifespan.

What makes this kit better than traditional tree anchoring methods?

It offers faster, simpler installation, re-tensionable anchors, and a cleaner finish, removing the hassle of traditional stake and rope methods.

How strong is the Gripple Tree Guying Kit?

Expertly designed and engineered in the US and the UK, the kit supports trees up to 40 ft tall with a maximum system working load of 1,320 lbs.
