CombiCable Combined Power & Suspension

SKU # CombiCable™

CombiCable revolutionizes lighting suspension; a combined suspension and power supply for lighting. CombiCable has been designed for sleek visuals and simple installation.

Safe Working Load:

16 1/2 lb

Voltage Rating:

300V

Cable Configuration:

5 core + metal support member

Inquire Now

Product Downloads

CombiCable - Technical Data Pack - USA Lighting, Acoustics, & Displays Brochure - US

SKU # CombiCable™

CombiCable – Combined Lighting Suspension and Power Supply in One

CombiCable™ is a combined five core power supply and mechanical support system, integrated together to disguise the mechanical support. Utilizing a wire rope core, the five core cable safely transfers the weight of the luminaire to the ceiling.

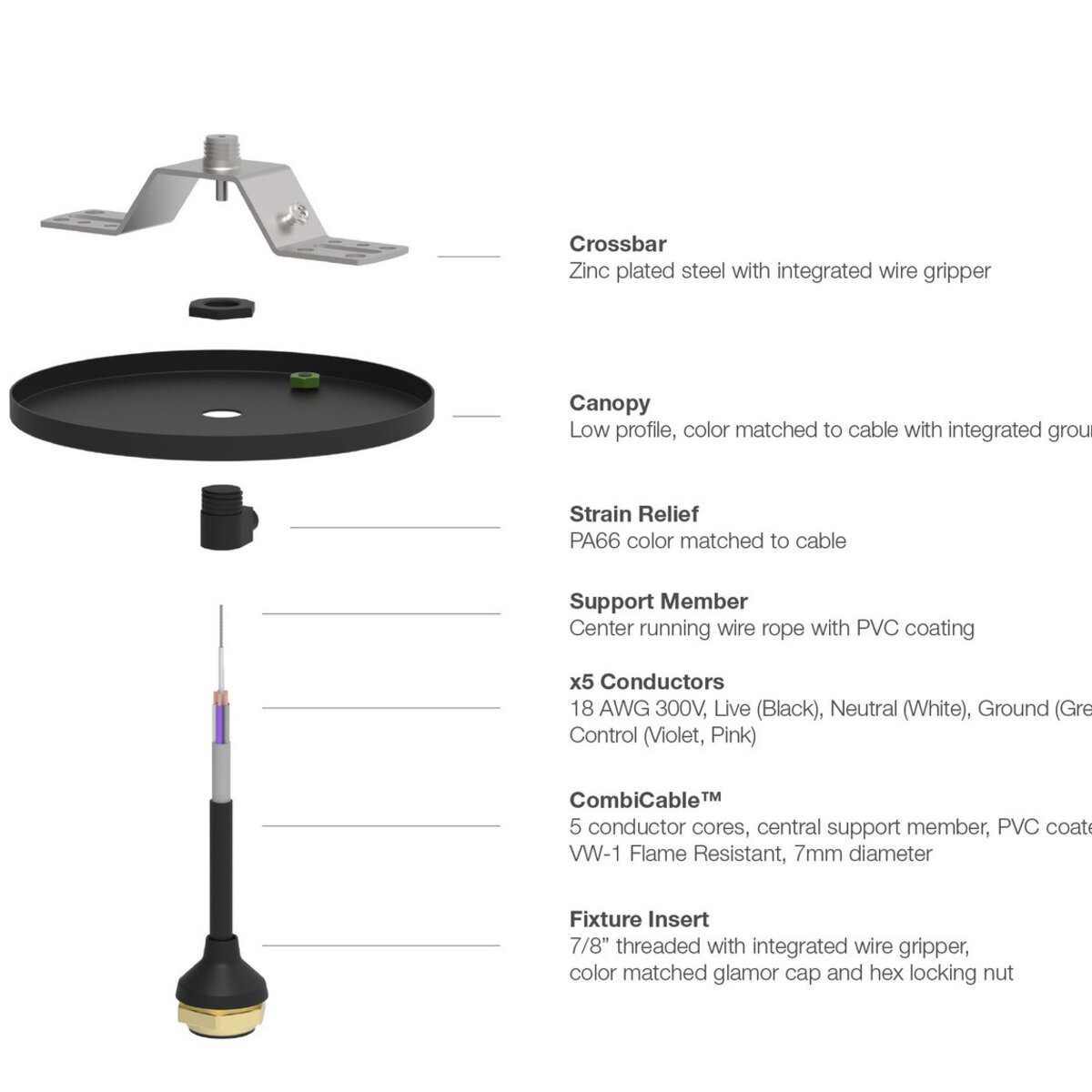

This innovative solution is supplied as a pre-stripped length of five core cable attached to a 7/8” fixture insert, and includes a low profile canopy assembly with strain relief and crossbar. Each CombiCable™ kit contains everything required to suspend a light of up to 16 1/2 lbs (more with secondary supports) to a standard junction box.

US Patent Pending

Safe Working Load:	Safety Factor:	Voltage Rating:	Temperature Rating:	Cable Configuration:	Cable Flammability:
16 1/2 lb	4:1	300V	176°F	5 core + metal support member	VW-1

Aesthetic – Fully integrated load bearing cable for a neat and professional installation.
Simple – Single point lighting entry, pre-assembled and pre stripped ends.
Integrated – A ready to use kit with all components needed to go from ceiling to lighting.
Compatible – Fits a 7/8″ lighting knockout & 4″ fixture rated outlet box.
Safe – Supports 16 1/2 lbs at 4:1 safety factor, with UL 62, UL 1598, and CSA approval.
